Arduino Nano R4

ArduinoSKU: ABX00142
Header Style:Loose Headers
Price:
Sale price £12
incl. VAT
excl. VAT
Stock:
Only 14 units left
Quantity:

Awesome Extras

USB-A to USB-C Cable - Black by The Pi Hut - The Pi Hut
The Pi HutUSB-A to USB-C Cable - Black
Sale priceFrom £2.25 incl. VAT excl. VAT
USB-C to USB-C Cable - Black by The Pi Hut - The Pi Hut
The Pi HutUSB-C to USB-C Cable - Black
Sale priceFrom £2.25 incl. VAT excl. VAT
Qwiic/STEMMA QT-Compatible Cable - JST-SH 4-Pin (50mm) by The Pi Hut - The Pi HutQwiic/STEMMA QT-Compatible Cable - JST-SH 4-Pin (50mm) by The Pi Hut - The Pi Hut
Arduino Nano Connector Carrier by Arduino - The Pi HutArduino Nano Connector Carrier by Arduino - The Pi Hut
ArduinoArduino Nano Connector Carrier
Sale price £11.30 incl. VAT excl. VAT
Arduino Nano Screw Terminal Adapter by Arduino - The Pi HutArduino Nano Screw Terminal Adapter by Arduino - The Pi Hut
ArduinoArduino Nano Screw Terminal Adapter
Sale price £11.50 incl. VAT excl. VAT
Arduino Nano Motor Carrier by Arduino - The Pi HutArduino Nano Motor Carrier by Arduino - The Pi Hut
ArduinoArduino Nano Motor Carrier
Sale price £53.90 incl. VAT excl. VAT
Full-Size Breadboard - White by The Pi Hut - The Pi HutFull-Size Breadboard - White by The Pi Hut - The Pi Hut
The Pi HutFull-Size Breadboard - White
Sale price £5 incl. VAT excl. VAT
120-Piece Ultimate Jumper Bumper Pack (Dupont Wire) by The Pi Hut - The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire) by The Pi Hut - The Pi Hut

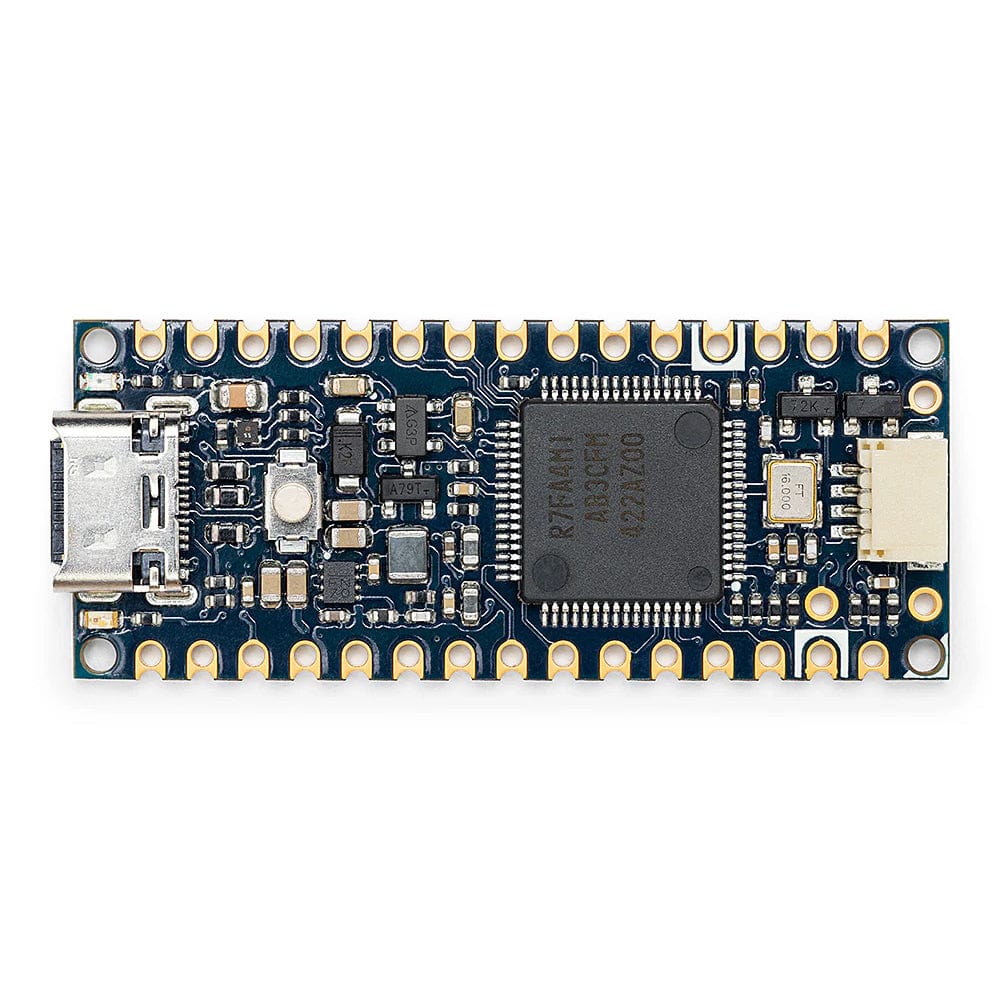

The Arduino Nano R4 pairs the Renesas RA4M1 microcontroller with a Nano form factor, featuring USB-C, Qwiic connector, CAN support, RTC, DAC, OpAmp, and HID capabilities.


Nano R4 merges Arduino’s signature ease of use with the powerful Renesas RA4M1 microcontroller, enabling effortless scaling from prototyping on the UNO R4 to production-ready applications.

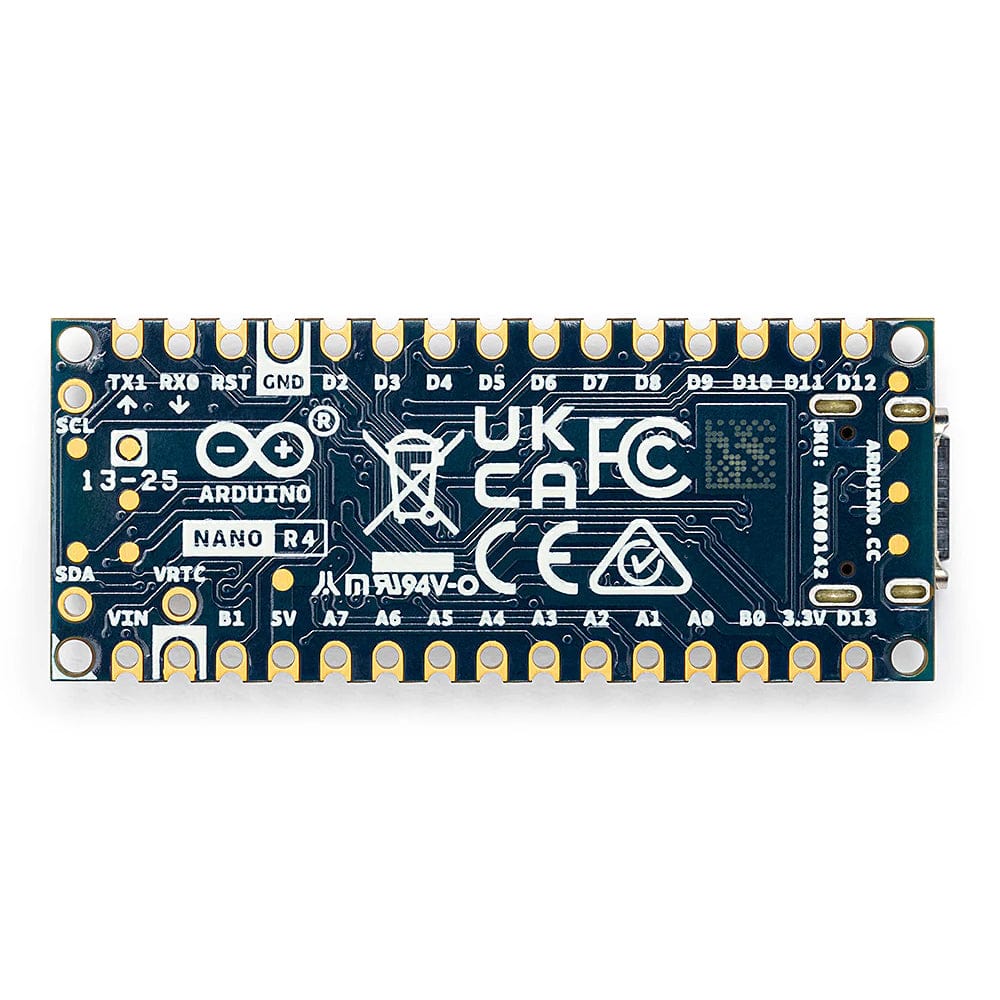

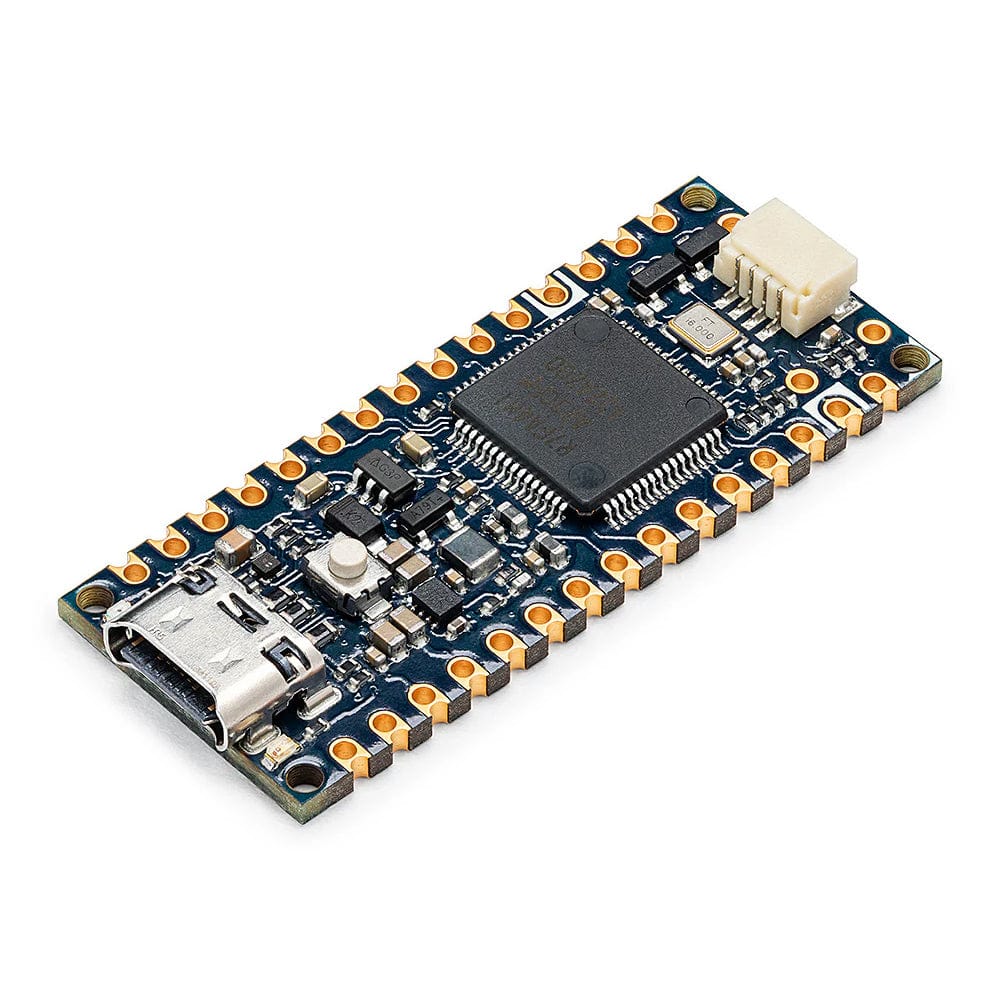

Compact and versatile, the Nano R4 maintains the same pinout as other boards in the Nano family and features castellated pins for easy hardware integration, an on-board Qwiic connector for rapid sensor and peripheral expansion, and a programmable RGB LED for intuitive system feedback. Its single-sided component design makes it ideal for space-constrained products and SMD soldering on custom carrier boards, ensuring a seamless transition from lab testing to real-world deployment.

Thanks to its compatibility with familiar Arduino tools and libraries (including those for the Arduino UNO R4 Minima), the Nano R4 offers developers and designers a streamlined path to build compact, connected solutions.

Available with loose, unsoldered headers, or with headers pre-soldered - please select an option before adding to cart.

Features

  • Renesas RA4M1 microcontroller with 32-bit Arm® Cortex®-M4 core (48 MHz)
  • USB-C® connector
  • Qwiic I²C connector (3.3V logic)
  • CAN bus support (requires external transceiver)
  • 12-bit DAC
  • Built-in operational amplifier (OPAMP)
  • Real-time clock (RTC)
  • 5V operating voltage
  • Mouse/keyboard HID emulation
  • Compatible with standard Arduino Nano form factor

Specifications

Microcontroller Renesas RA4M1 (Arm® Cortex®-M4)
USB USB-C® programming port
Pins Digital I/O pins: 21 (all the exposed I/O can be used as digital I/O pins)
Analog input pins: 8
DAC: 1
PWM pins: 6
External interrupts: 2, 3
DAC: A0
Misc OpAmp: A1, A2, A3
VRTC: J5
Communication UART: 1
I2C: 2 (5V: A4, A5 / 3.3V: Qwiic, J3, J4)
SPI: 1
CAN: 1
Power Circuit operating voltage: +5 VDC
Input voltage (VIN): +6–21 VDC
DC current per I/O pin: 8 mA
Clock speed Main core: 48 MHz
Memory (RA4M1) Flash: 256 kB
RAM: 32 kB
EEPROM: 8 kB
Dimensions Width: 18 mm
Length: 45 mm

Resources

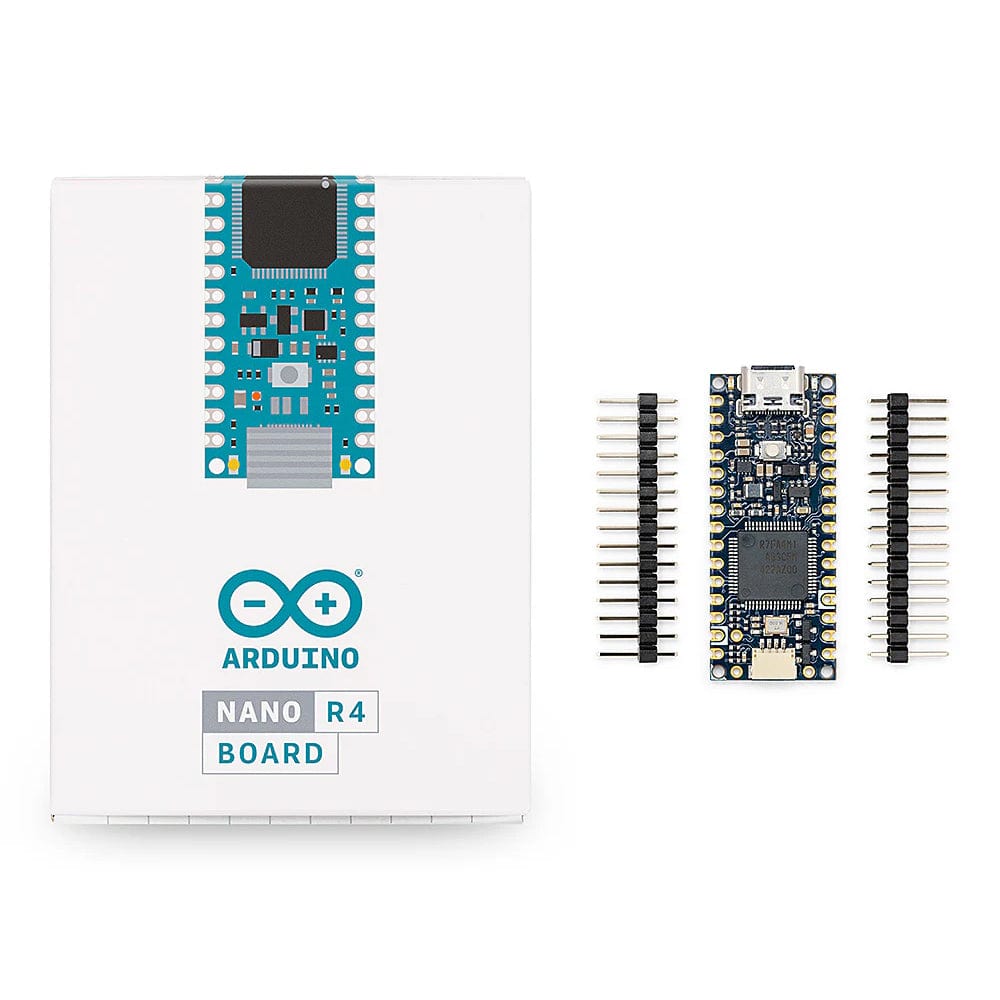

Package Contents

Either (select option before adding to cart):

  • 1x Arduino Nano R4 (no headers)
  • 2x Header strips

or

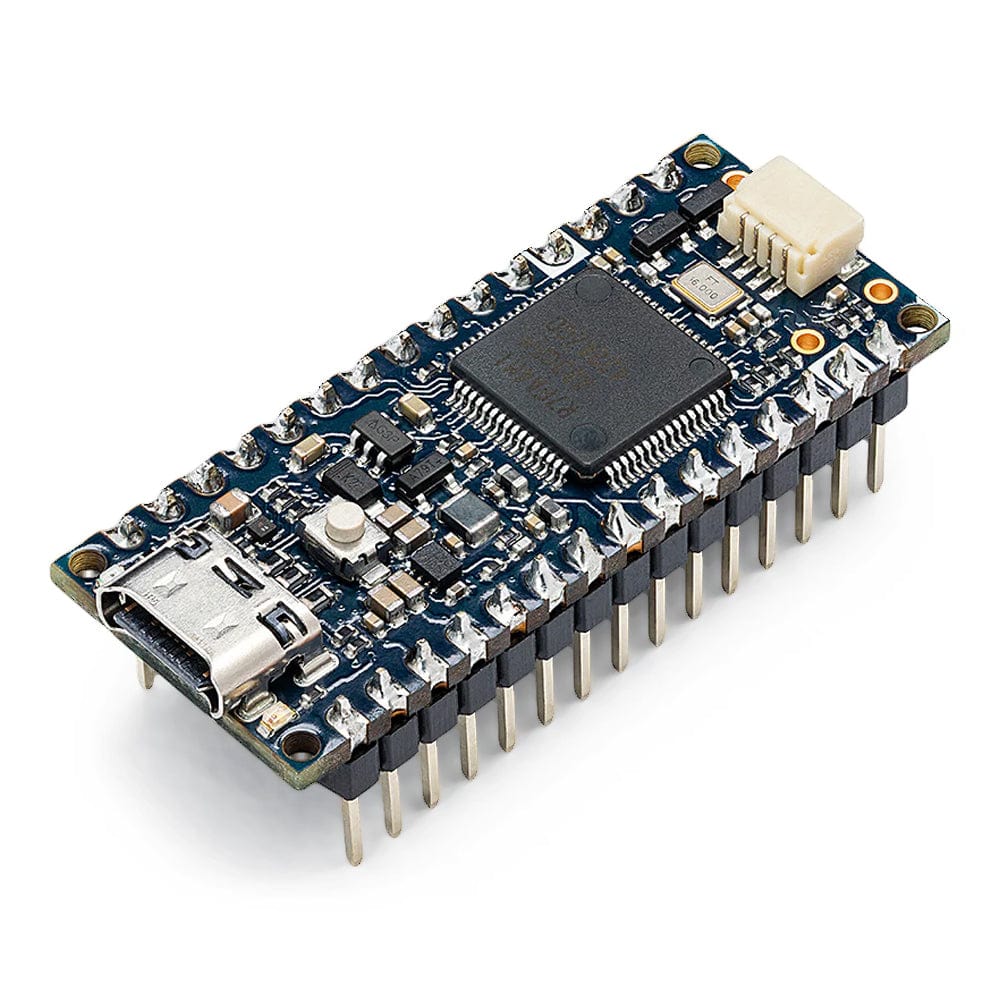

  • 1x Arduino Nano R4 (with pre-soldered headers)
