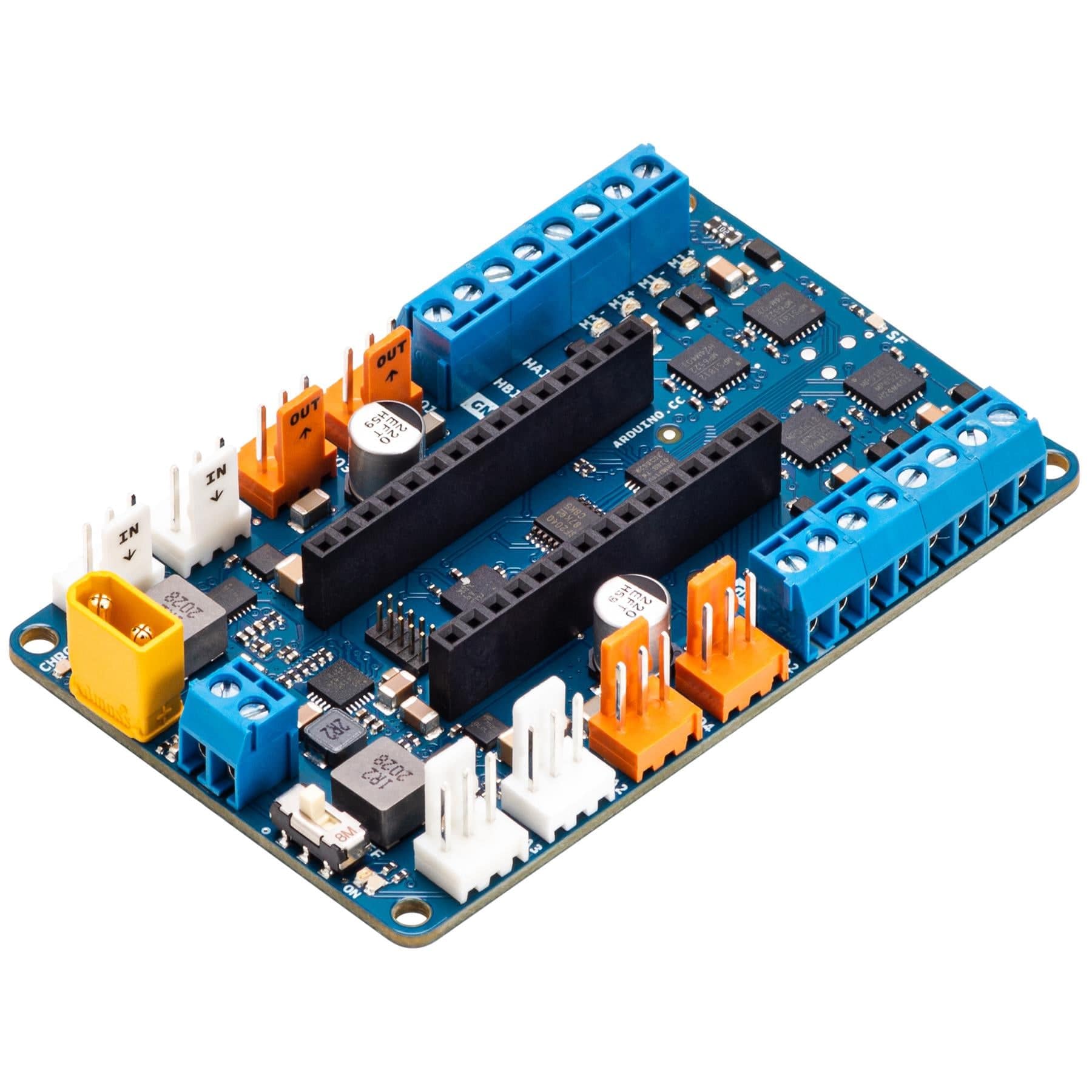

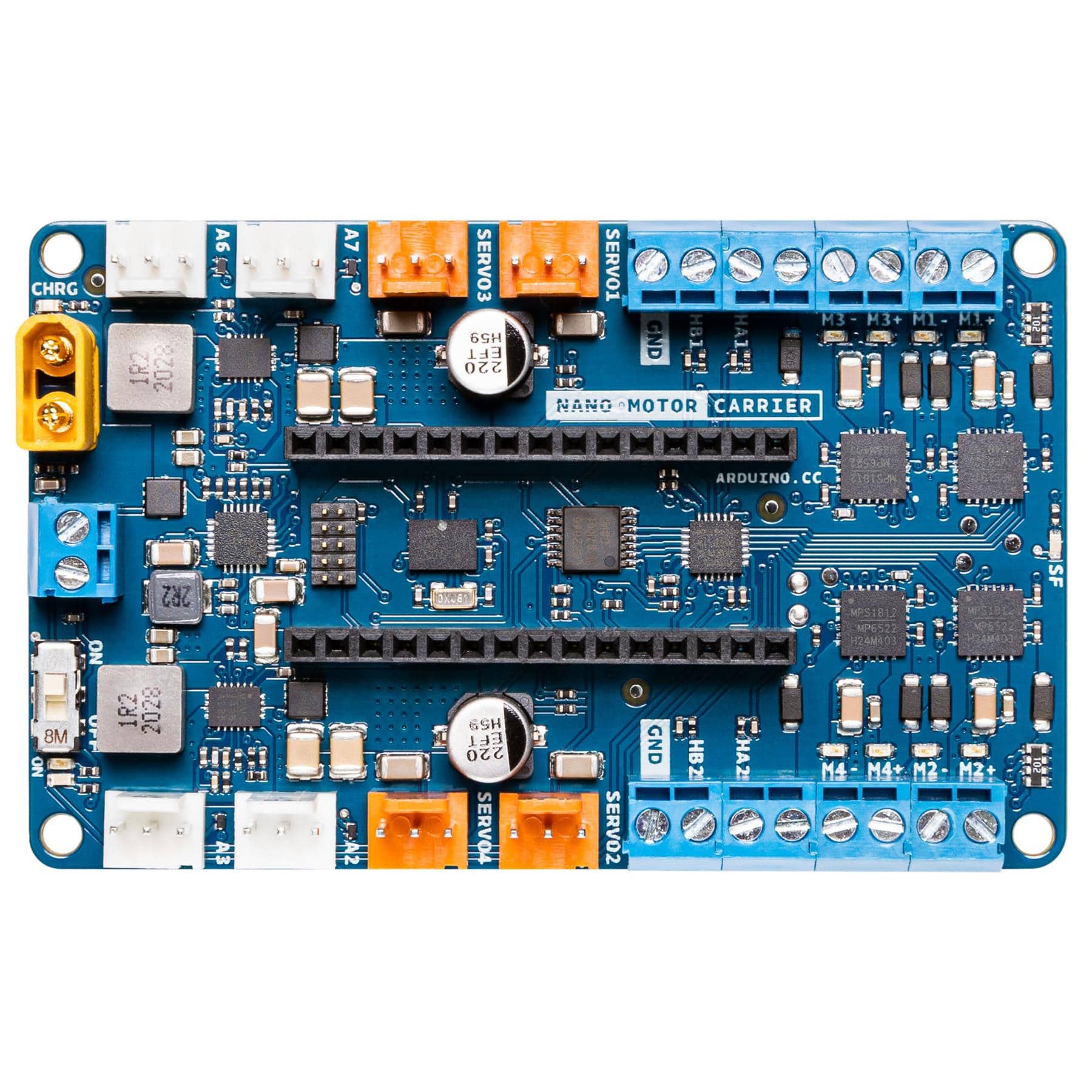

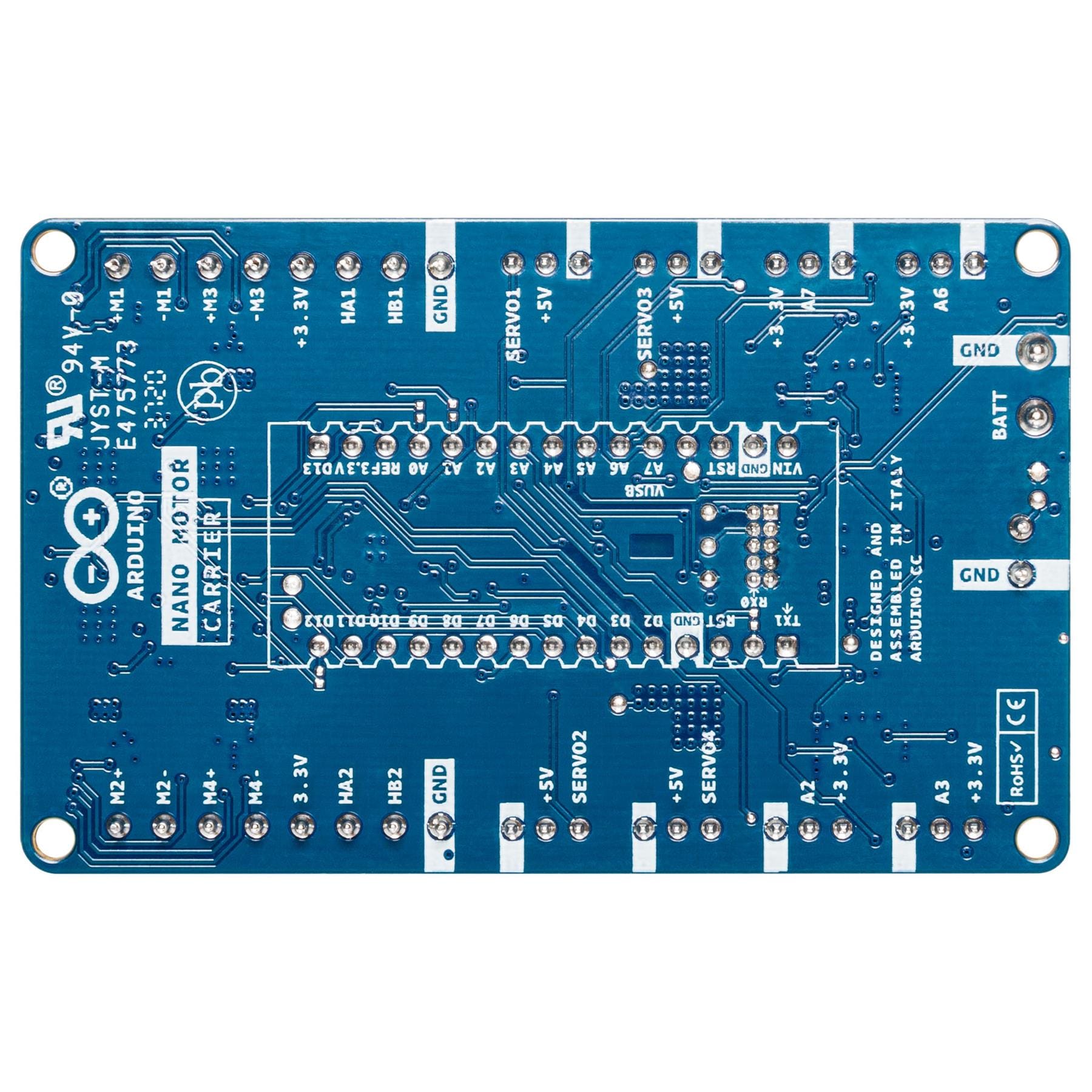

The Arduino Nano Motor Carrier is the perfect add-on for the Nano 33 IoT board to extend and power up its functionality.

Designed to facilitate motor control, the Nano Motor Carrier takes care of the electronics required to control motors, allowing you to focus on prototyping and building projects. It can also be used to connect other actuators and sensors via a series of 3-pin male headers. The board features an onboard 9-axis accelerometer, gyroscope and magnetometer. It includes a battery charger for single-cell Li-ion batteries and it contains 2 ports for quadrature encoder counting.

To use the carrier, simply connect it to a Nano 33 board and attach the motors you need for your project. Once connected, attach a USB cable to the Nano 33 IoT. Download the Arduino Motor Carrier library from the library manager and you’re all set up to start programming and controlling your motors using the motor drivers!

When working with motors, you need an external power source to feed the motor drivers and power the motors. You can do this by connecting a 1 cell Li-Ion battery to the battery connector or by using an external power source.

Specifications

Microcontroller ATSAMD11 ( Arm Cortex-M0+ @48 Mhz)
Motor Drivers (X4) MP6522
Max Input Voltage (Power Terminals) 4V (1S Li-Ion Battery)
Max Output Current Per Motor Driver 500 mA
Motor Driver Output Voltage 12V
Temp Shutdown Protection Yes
Battery Charging Yes
Max Battery Charging Current 500mA (configurable)
Power Terminals (Connectors) XT-30 and 2POS terminal block
Servo Connector 4 terminals
Encoder Inputs 2 ports
Dc Motor Control 4 ports
3V Digital/Analog Sensor Input/Output 4 ports
IMU BNO055 9axis Acc/Gyr/Mag

Package Contents

  • 1x Arduino Nano Motor Carrier (ABX00041)

Arduino Nano not included
