The Nano Connector Carrier makes prototyping with Arduino Nano easy, adding four Grove ports, a Qwiic connector, and a microSD slot for logging. Includes 3.3V/5V IO selection and M3 mounting holes.

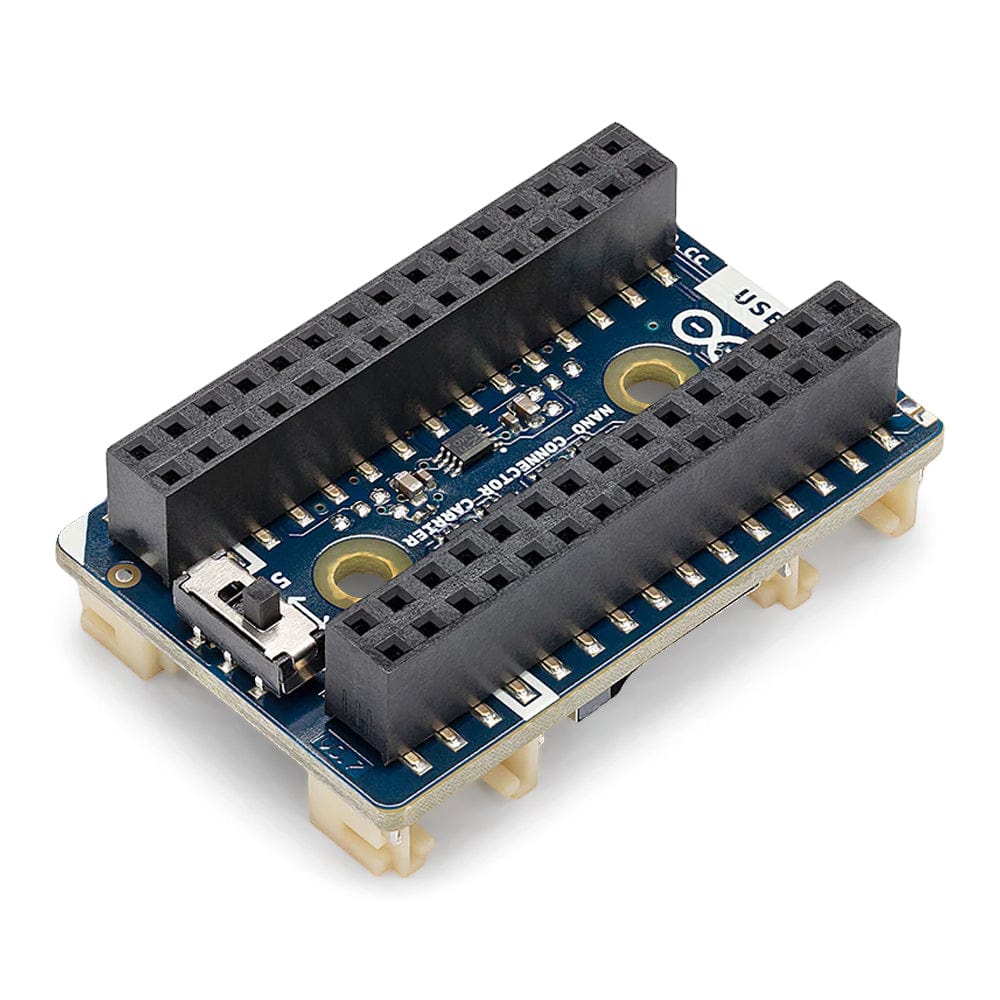

The Arduino Nano Connector Carrier is a compact expansion board designed to make prototyping easy with Arduino Nano boards. It provides a simple way to connect Qwiic and Grove modules, or simple jumper wires, making it quick to add sensors and other devices to your project without any complex wiring or soldering.

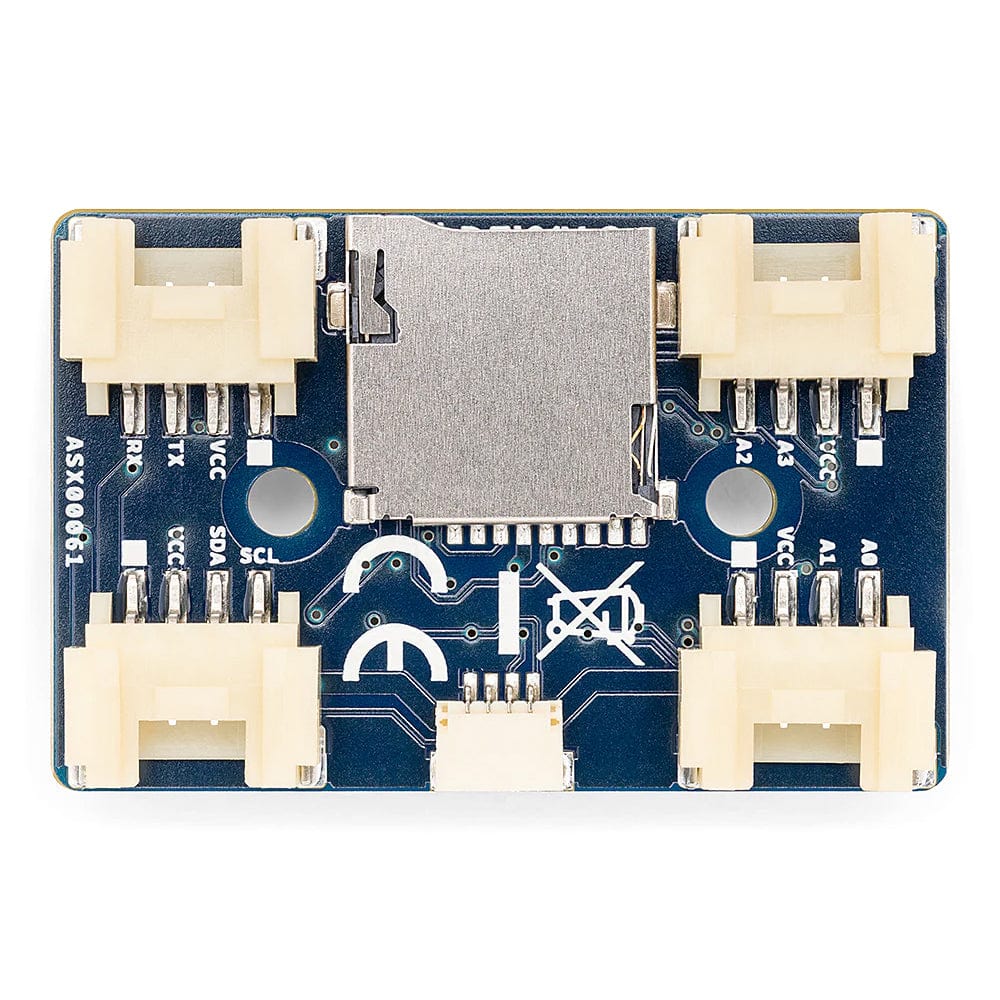

Onboard features include a microSD card slot for easy data logging and real-time storage, four Grove ports (I2C and UART) and a Qwiic connector. There's also an IO voltage switch to flick between 3.3V and 5V.

It's not much bigger than a Nano board, and includes 2x M3 mounting holes if you want to attach it to an enclosure or surface.

Arduino Nano not included

Features

  • Compact expansion board for Arduino Nano boards
  • Supports easy prototyping with Qwiic and Grove connectors
    • 4x Grove ports (I2C and UART)
    • 1x Qwiic connector
  • Onboard microSD card slot

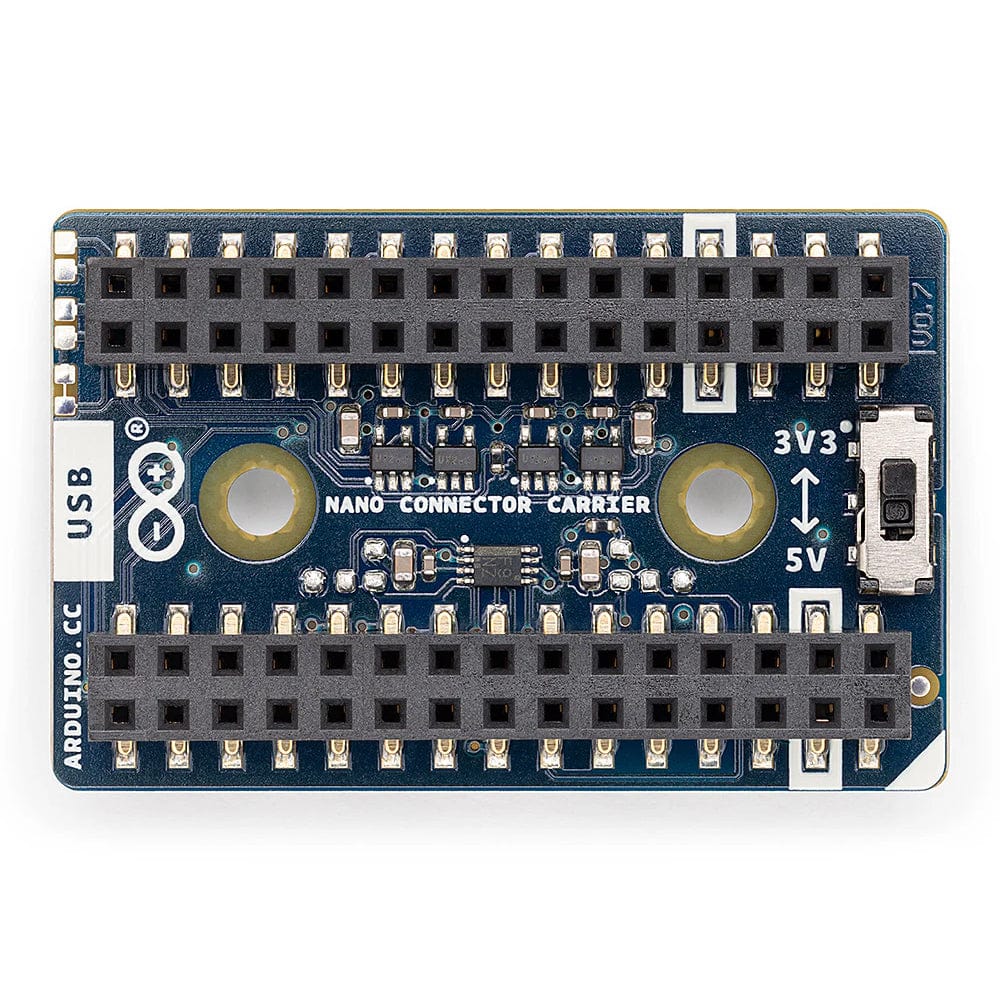

  • IO voltage switch (3.3V / 5V)
  • 2x M3 mounting holes
  • DImensions: 28mm x 43mm

Specifications

Interfaces 2× GROVE analog/digital I/O
GROVE I2C
GROVE UART
QWIIC I2C
SD card reader
Double female board header
Dimensions 28 mm × 43 mm
I/O voltage Switch between 3.3V and 5V

Resources

Package contents

  • 1x Nano Connector Carrier

Arduino Nano not included
