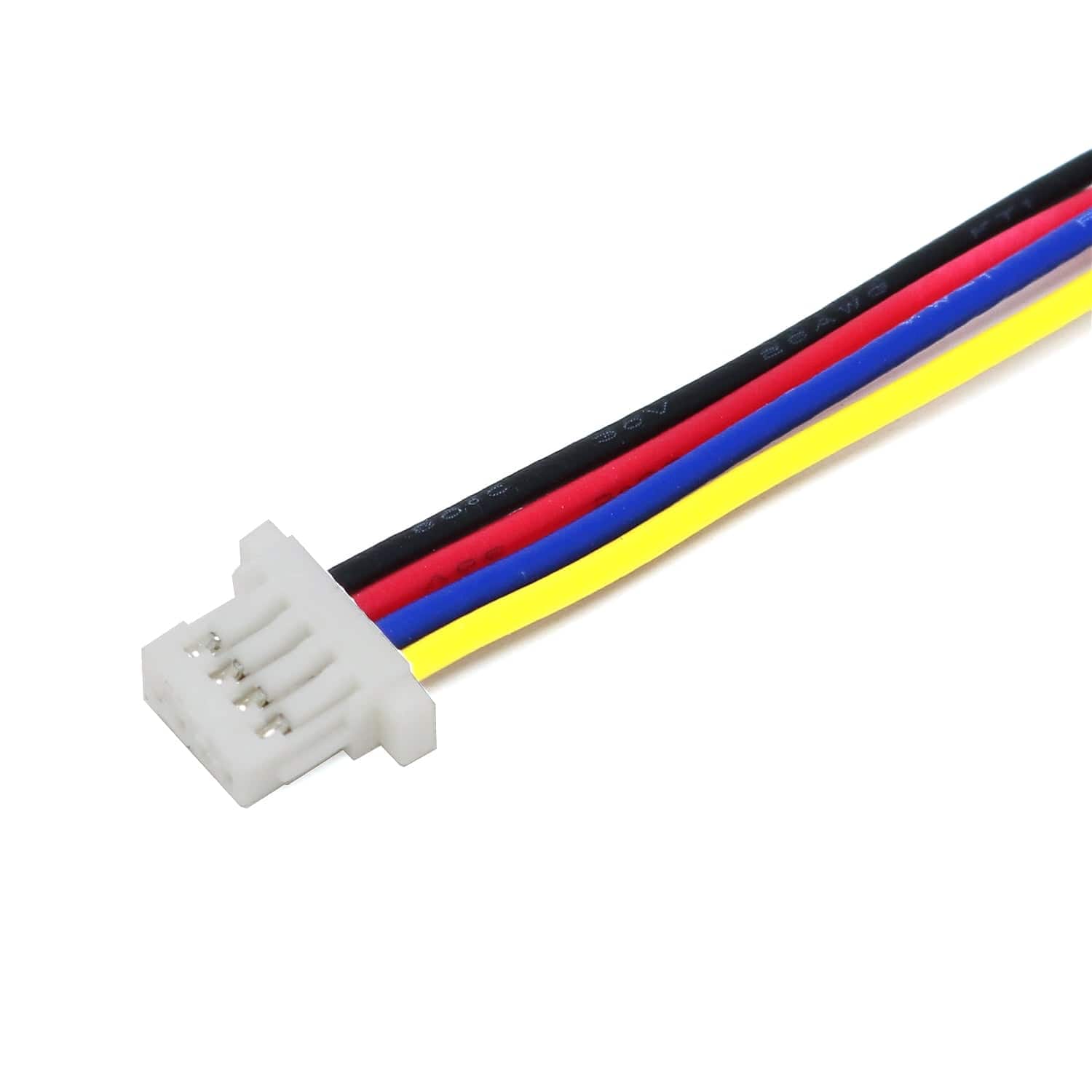

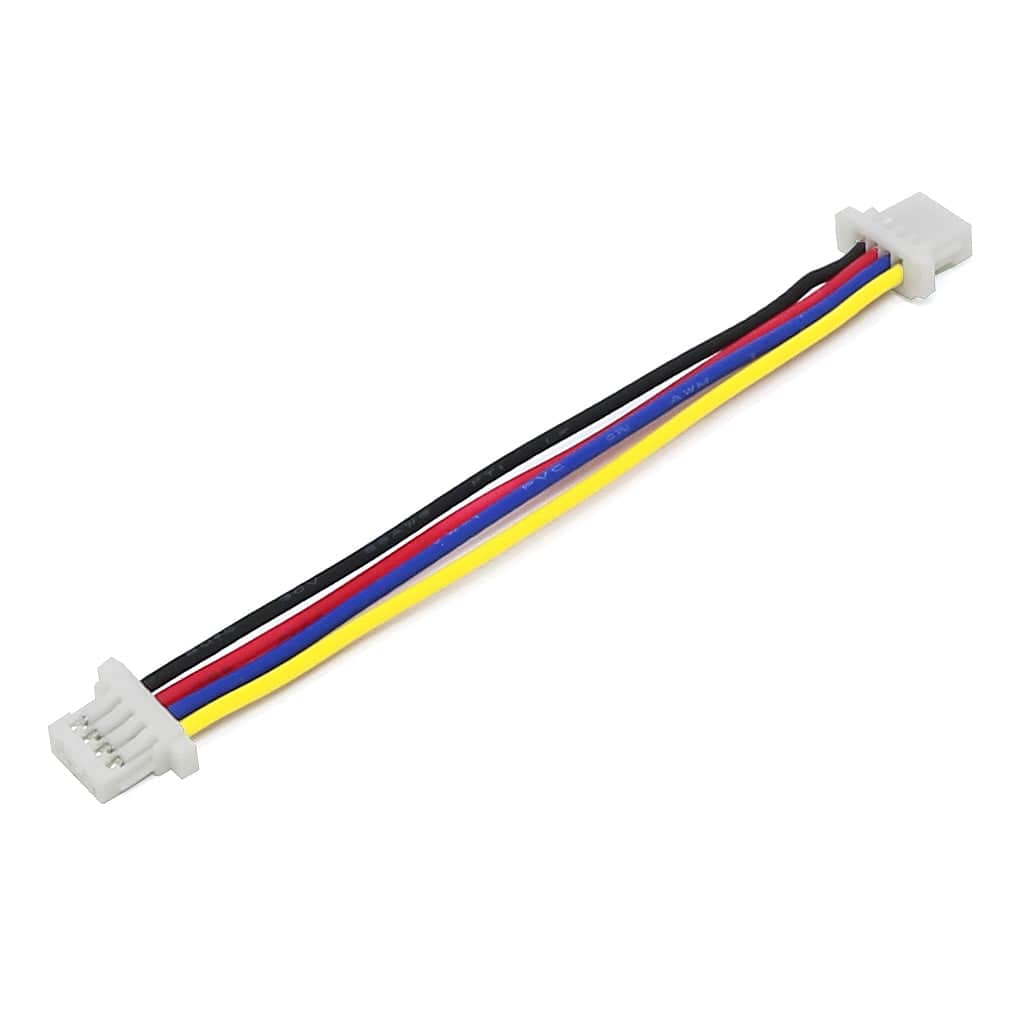

This 4-wire cable is 50mm long and comes complete with JST-SH female 4-pin connectors on both ends which are compatible with Adaruit STEMMA QT and SparkFun Qwiic connectors and modules.
Compared with JST-PH connectors, these JST-SH versions are a smaller 1mm pitch instead of 2mm, but are still easy to insert and remove.
Can be used with SparkFun Qwiic or Adafruit STEMMA QT board, to connect sensors and drivers from one board to the other. The cables are made symmetrically - it doesn't matter which side goes where.
- Black = GND
- Red =
- V+ - for Qwiic (3.3V)
- STEMMA QT (3-5V)
- Blue = SDA
- Yellow = SCL
