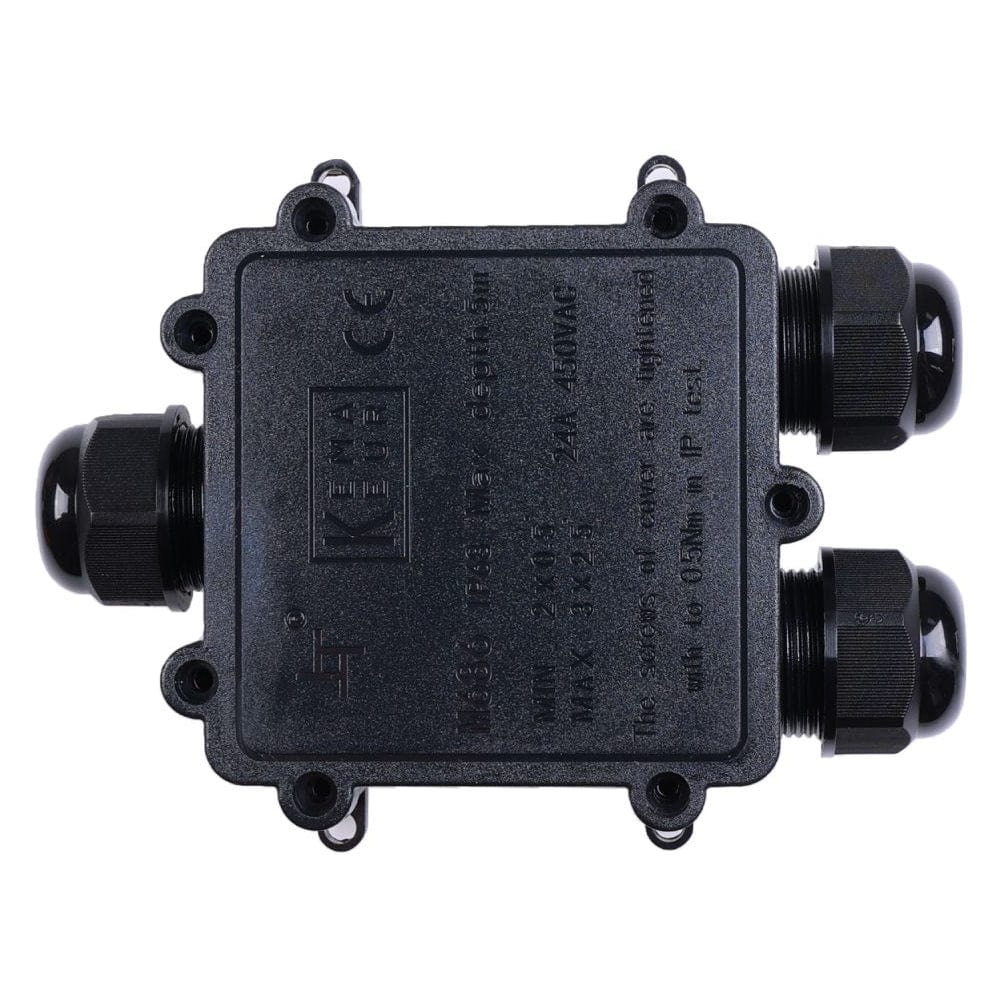

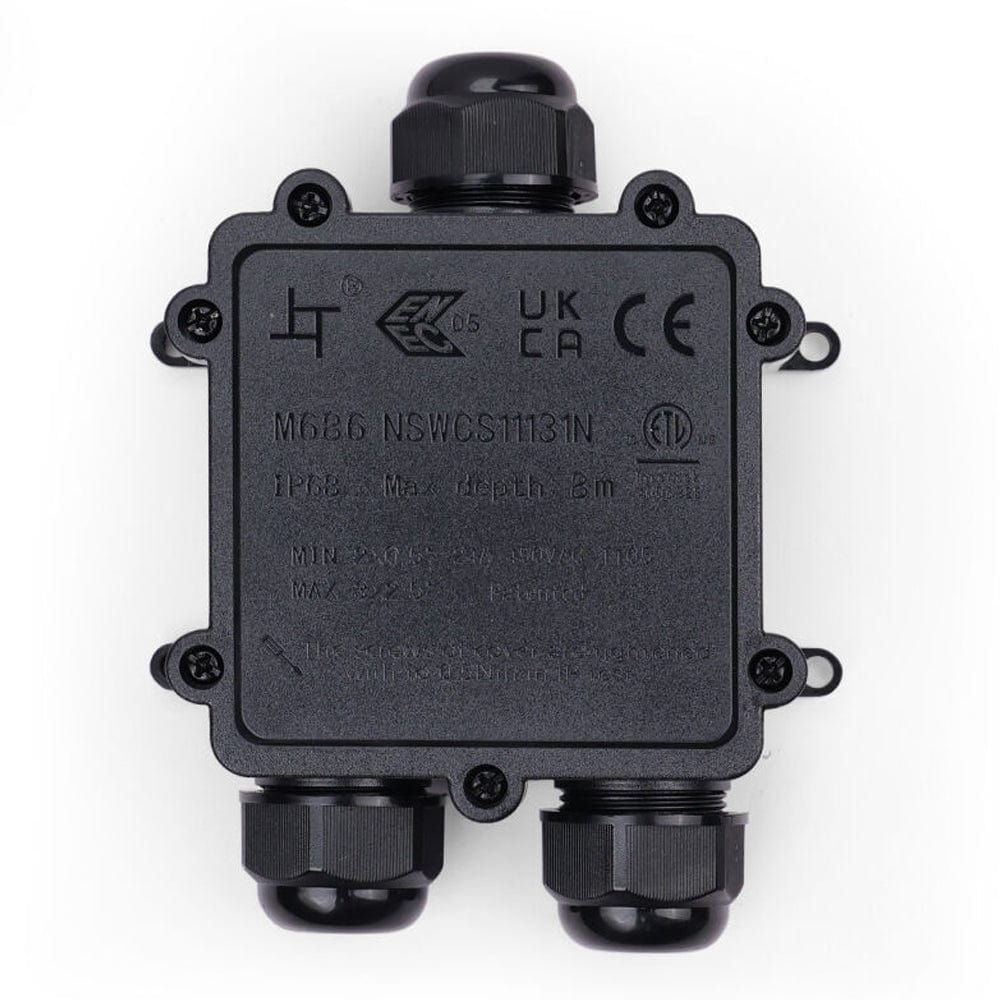

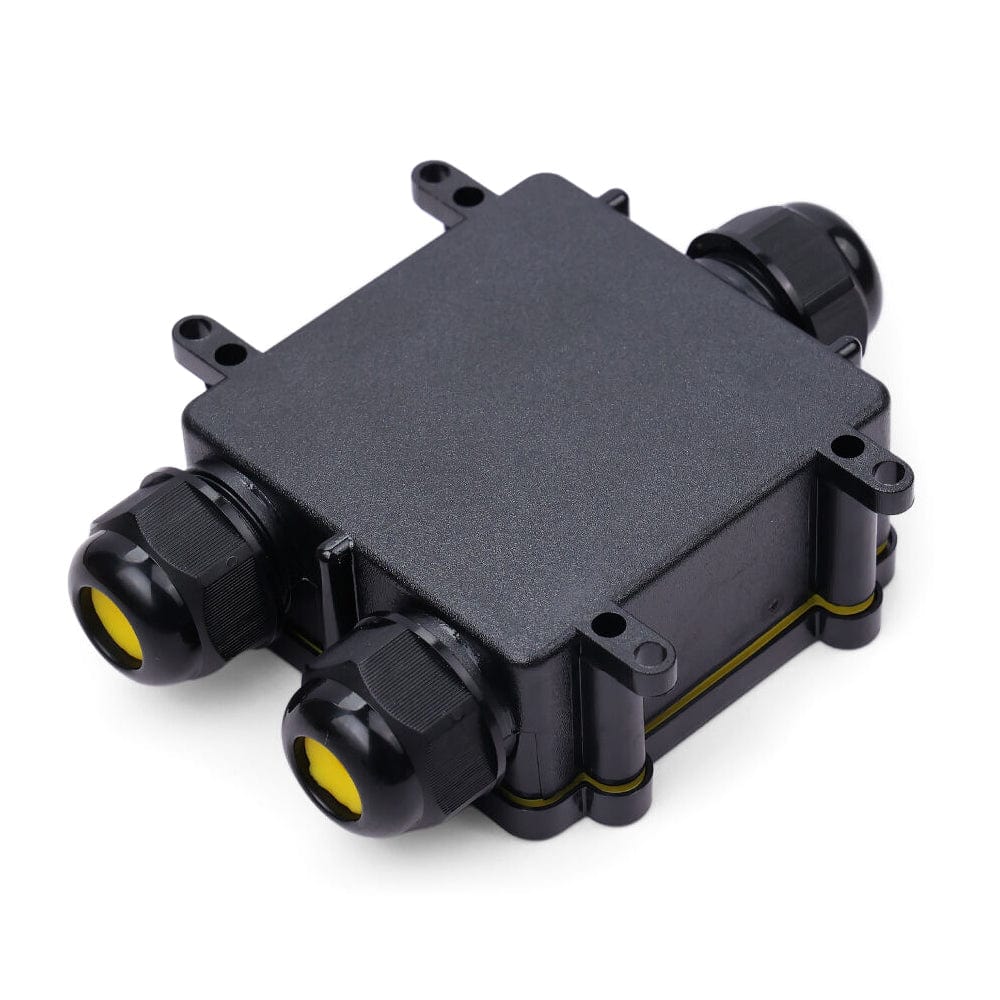

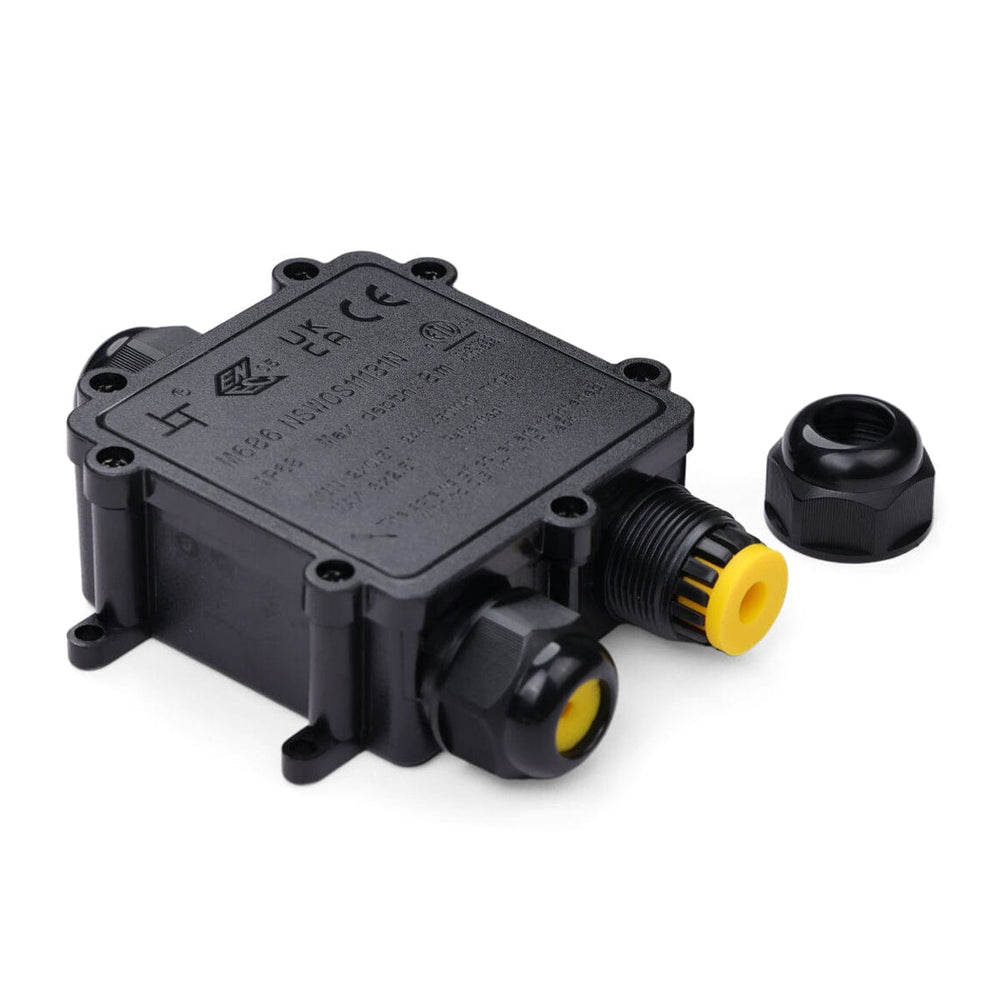

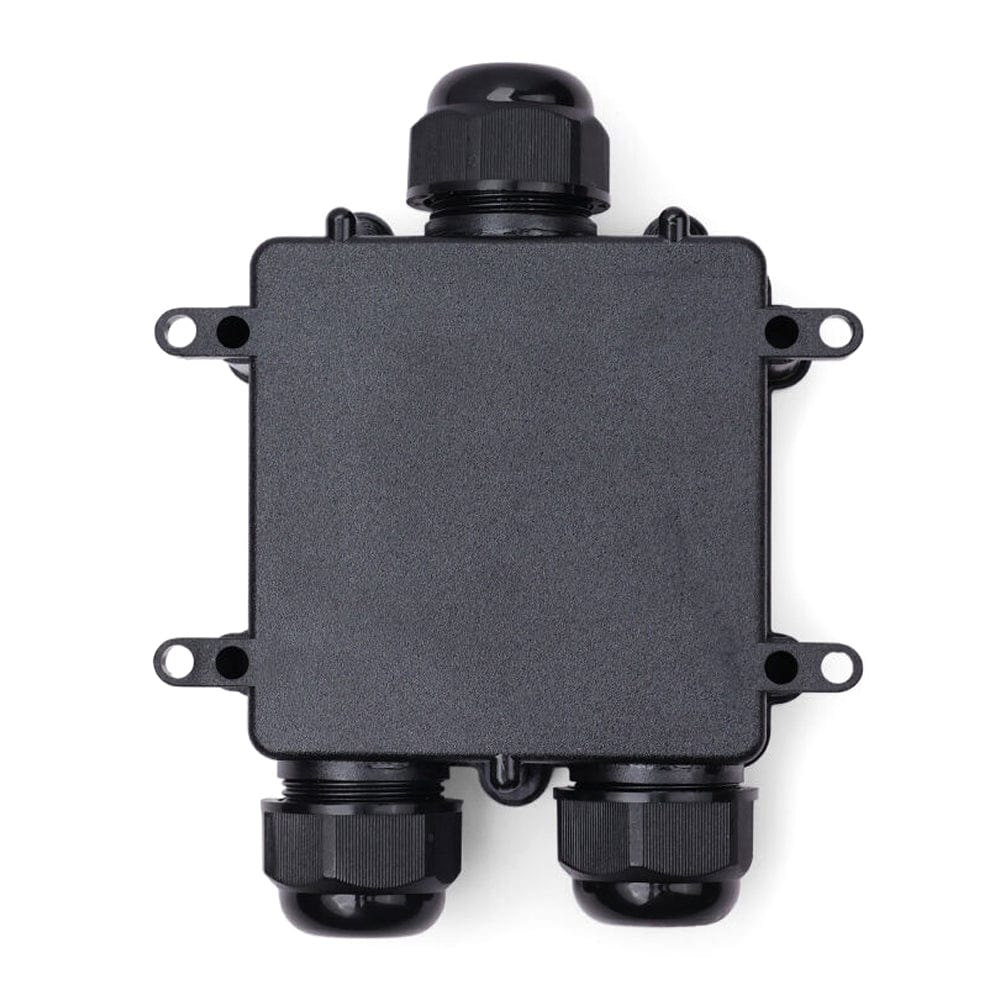

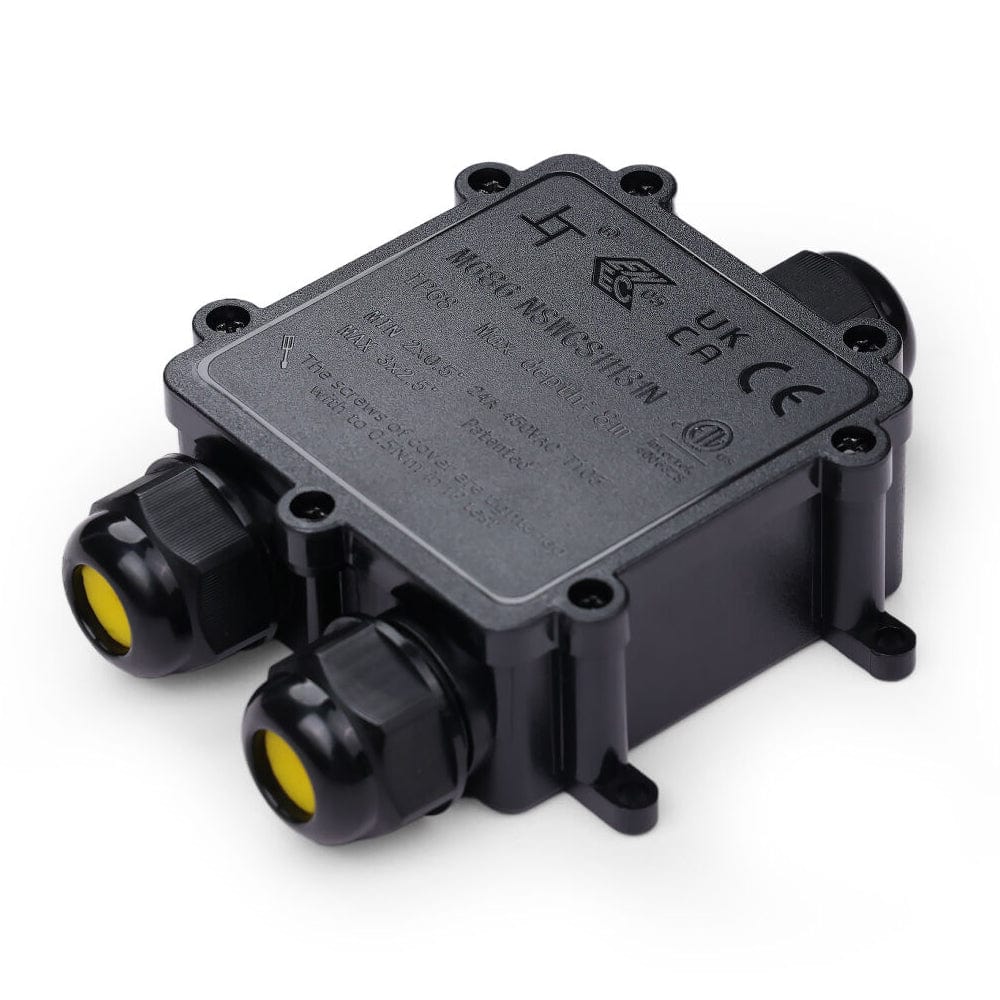

This waterproof junction box provides a reliable way to connect the SenseCAP S2100 Data Logger to an external 12V power supply. With an IP68 rating, it’s designed to withstand demanding environments, ensuring safe and secure operation outdoors or in wet conditions.
The enclosure is made from polycarbonate (PC) and can be installed either horizontally or vertically. Installation is straightforward and tool-free – no welding or cable cutting required. Everything needed is included in the kit: screwdriver, waterproof tape, screws and more.
Although ideal for use with the S2100, this junction box is not limited to that device. It can be used anywhere external wiring is needed and supports up to 12 cable connections. During installation, be sure to tighten all screw caps to maintain the waterproof seal. For thinner cables, apply waterproof tape around the entry point to ensure a tight fit.
Data logger not included.
Features
IP68 waterproof rating for reliable outdoor and wet-environment use
Connects the SenseCAP S2100 Data Logger to an external 12V power supply
Made from durable polycarbonate (PC)
Supports up to 12 cable connections
Horizontal or vertical mounting options
No welding or cable cutting required
Includes screwdriver, waterproof tape, and screws for quick installation
Compatible with other devices requiring external wiring
Waterproof seal can be improved for thin cables using included tape
Product number: Seeed 114992988
Specifications
Material - Housing
PC
Material - Conductor
Brass
IP Code
IP68
Working Temperature
T105
Rated Connecting Capacity
0.5 ~ 2.5mm²
Available Cable Diameter
4–8mm
Waterproof Test
10M 150 hours

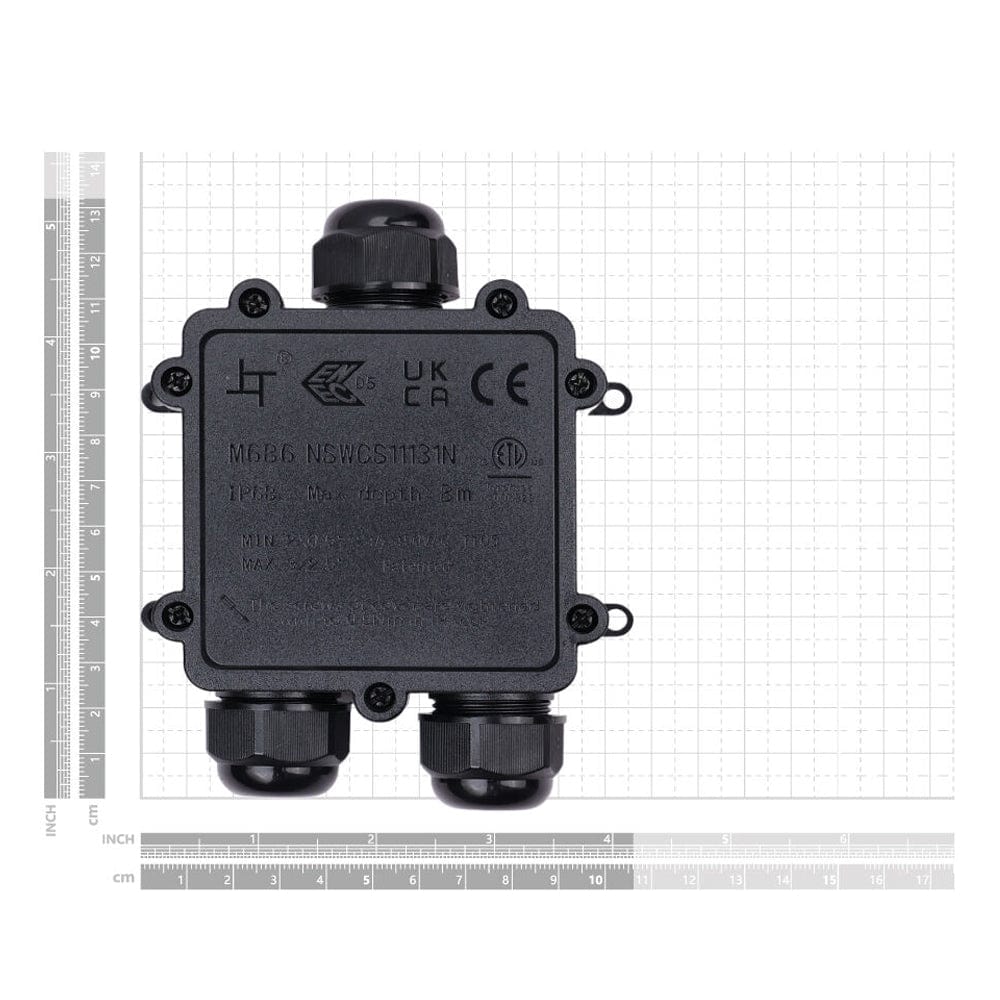

Product Size

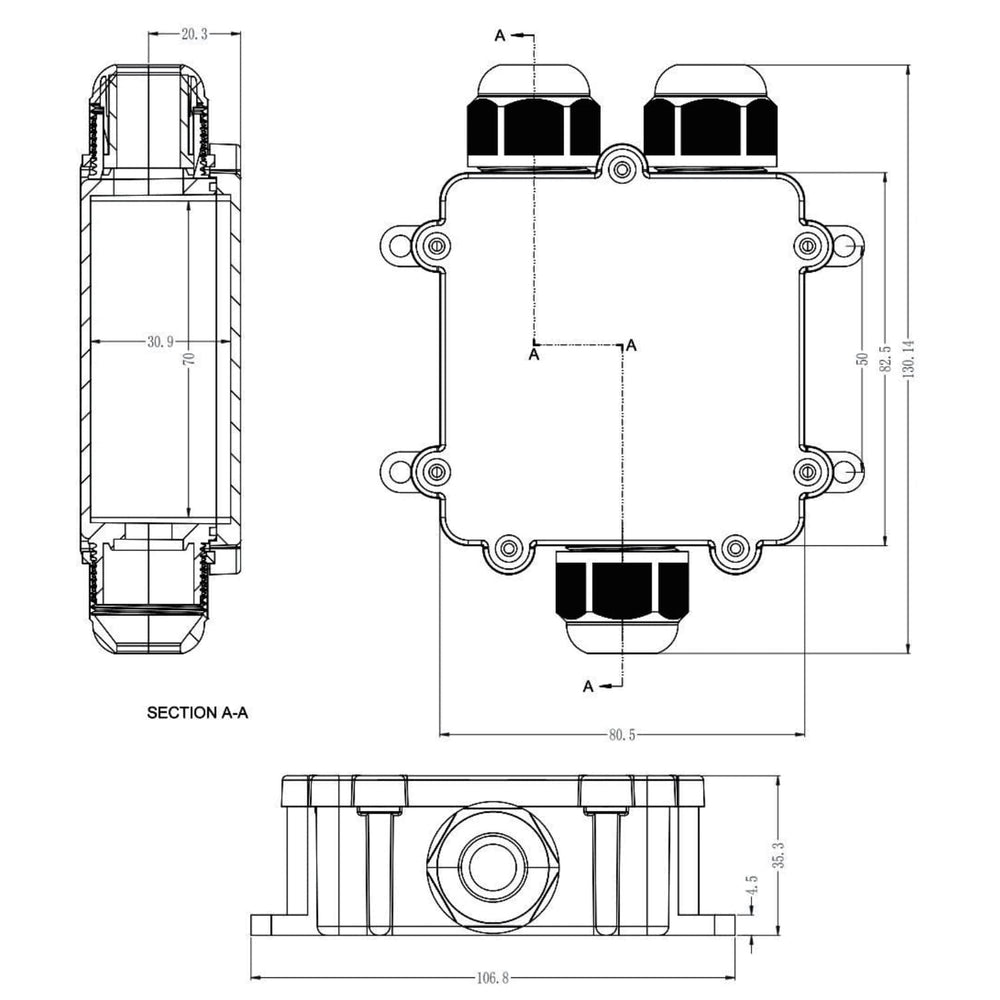

130.14mm × 80.5mm × 35.3mm (Refer to drawing)
Package Contents
1x Housing
1x M12 cable
8x Self-tapping screws
1x Screwdriver
1x Waterproof tape

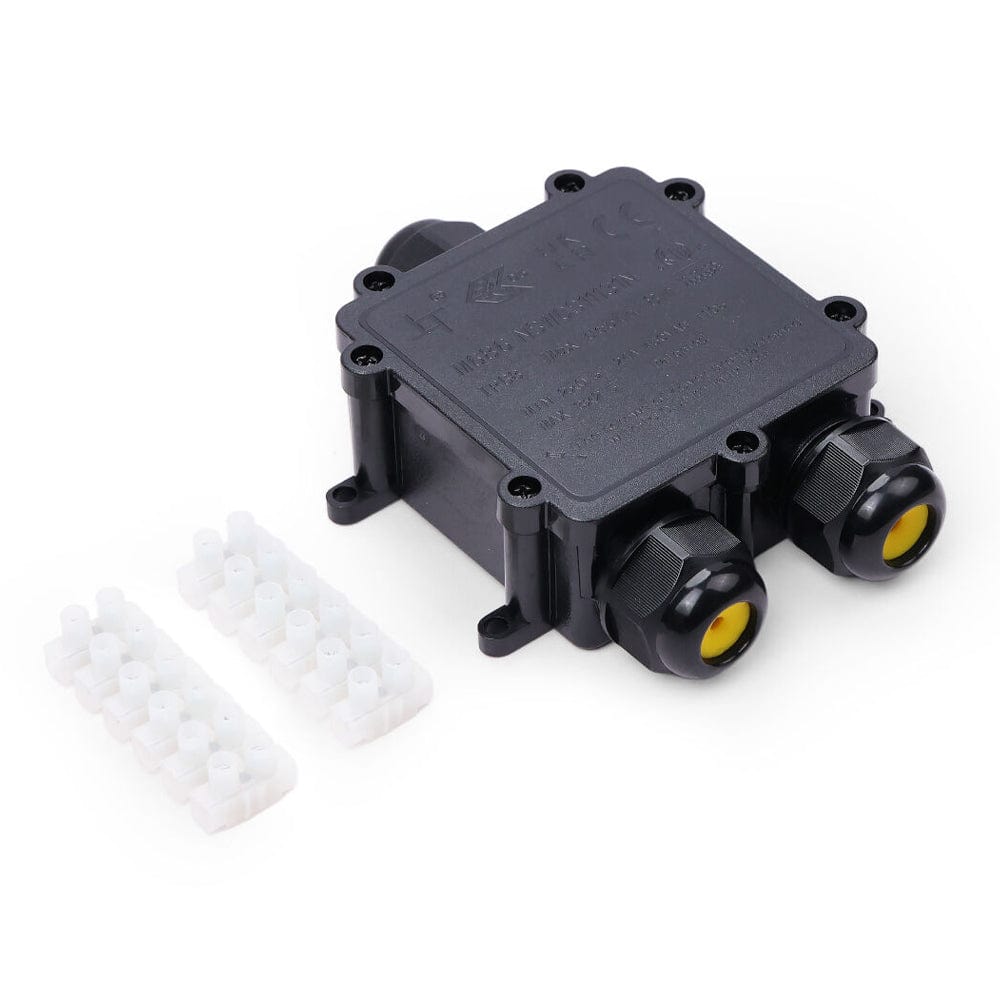

2x Connection terminals
Data logger not included.
