Ultra Bright LED 5mm - Pink (10 Pack) - The Pi Hut

Ultra Bright LED 5mm - Pink (10 Pack)

Name: Ultra Bright LED 5mm - Pink (10 Pack)
Brand: ModMyPi
SKU: MMP-0171
Price: 1.50 GBP
Availability: InStock

ModMyPiSKU: MMP-0171

£1.50

incl. VAT

excl. VAT

In stock

Awesome Extras

The Pi Hut Ultimate Resistor Kit - The Pi Hut

The Pi Hut 575-Piece Ultimate Resistor Kit

£6 incl. VAT excl. VAT

Notify me

The Pi Hut Half-Size Breadboard - White

£3 incl. VAT excl. VAT

The Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi Hut

The Pi Hut 120-Piece Ultimate Jumper Bumper Pack (Dupont Wire)

£6 incl. VAT excl. VAT

Available in 9 different colours, these Ultra Bright LEDs (Light-Emitting Diodes) are perfect for all your Raspberry Pi prototyping projects!

All Ultra Bright LEDs are "Grade A" class and offer a pure and consistent colour with a high-intensity light output and up to 20degree viewing angle. LEDs come in packs of 10!

Nothing is more satisfying than seeing your Pi physically interacting with stuff, and these LEDs are a fantastic place to start, as they fit perfectly into breadboards! If you need some resistors, we stock an excellent kit here!

These Ultra Bright LEDs Feature:

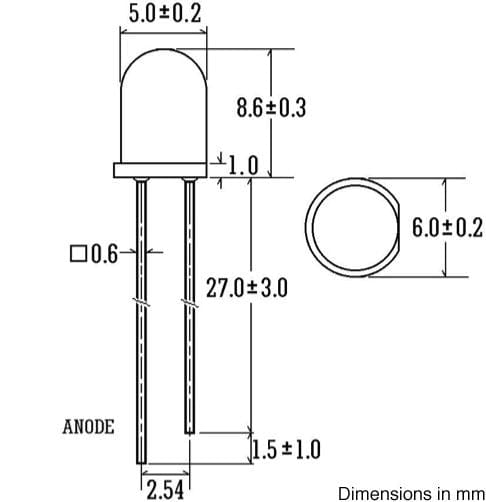

5mm Diameter
Ultra Bright
Lens Type: Crystal Clear, Round
Typical Forward Current: 20mA
Maximum Forward Current: 30mA
Forward Voltage: 3.2v to 3.8v
Up to 20degree Viewing Angle
Each purchase is for 10 x LEDs

LED Colour	Fwd Current	Fwd Voltage	Wavelength (nm)	Brightness (mcd)
White	20mA - 30mA (Max)	3.2v – 3.8v	N/A	13000
Warm White	20mA - 30mA (Max)	3.2v – 3.8v	N/A	14000
Blue	20mA - 30mA (Max)	3.2v – 3.8v	465	9000
Red	20mA - 30mA (Max)	1.8v – 2.5v	640	2000
Green	20mA - 30mA (Max)	3.2v – 3.8v	520	15000
Yellow	20mA - 30mA (Max)	1.8v – 2.2v	590	8000
Orange	20mA - 30mA (Max)	1.8v – 2.2v	600	6000
Pink	20mA - 30mA (Max)	3.2v – 3.8v	N/A	9000
UV	20mA - 30mA (Max)	3.2v – 3.8v	395	3000
