Ultra Bright LED 5mm - Red (10 Pack)

ModMyPiSKU: MMP-0168
Price:
Sale price £1.50
incl. VAT
excl. VAT
Stock:
Only 6 units left
Quantity:

Awesome Extras

The Pi Hut Ultimate Resistor Kit - The Pi HutThe Pi Hut Ultimate Resistor Kit - The Pi Hut
The Pi Hut575-Piece Ultimate Resistor Kit
Sale price £6 incl. VAT excl. VAT
Half-Size Breadboard - WhiteHalf-Size Breadboard - White
The Pi HutHalf-Size Breadboard - White
Sale price £3 incl. VAT excl. VAT
The Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi HutThe Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi Hut

Available in 9 different colours, these Ultra Bright LEDs (Light-Emitting Diodes) are perfect for all your Raspberry Pi prototyping projects!

All Ultra Bright LEDs are "Grade A" class and offer a pure and consistent colour with a high-intensity light output and up to 20degree viewing angle. LEDs come in packs of 10!

Nothing is more satisfying than seeing your Pi physically interacting with stuff, and these LEDs are a fantastic place to start, as they fit perfectly into breadboards! If you need some resistors, we stock an excellent kit here!

These Ultra Bright LEDs Feature:

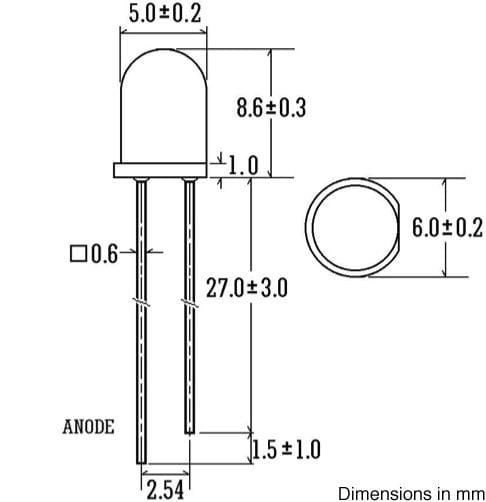

  • 5mm Diameter
  • Ultra Bright
  • Lens Type: Crystal Clear, Round
  • Typical Forward Current: 20mA
  • Maximum Forward Current: 30mA
  • Forward Voltage: 1.8v to 2.2v
  • Up to 20degree Viewing Angle
  • Each purchase is for 10 x LEDs

LED

Colour

Fwd

Current

Fwd

Voltage

Wavelength

(nm)

Brightness

(mcd)

White 20mA - 30mA (Max) 3.2v – 3.8v N/A 13000
Warm White 20mA - 30mA (Max) 3.2v – 3.8v N/A 14000
Blue 20mA - 30mA (Max) 3.2v – 3.8v 465 9000
Red 20mA - 30mA (Max) 1.8v – 2.5v 640 2000
Green 20mA - 30mA (Max) 3.2v – 3.8v 520 15000
Yellow 20mA - 30mA (Max) 1.8v – 2.2v 590 8000
Orange 20mA - 30mA (Max) 1.8v – 2.2v 600 6000
Pink 20mA - 30mA (Max) 3.2v – 3.8v N/A 9000
UV 20mA - 30mA (Max) 3.2v – 3.8v 395 3000



Tutorials

Adafruit - Learning About LEDs

Resistor Calculator
