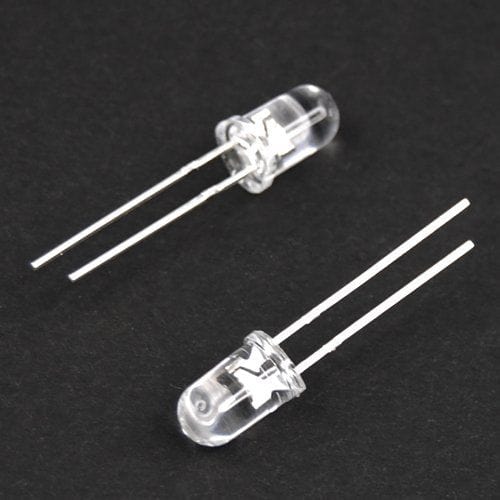

Available in 9 different colours, these Ultra Bright LEDs (Light-Emitting Diodes) are perfect for all your Raspberry Pi prototyping projects!
All Ultra Bright LEDs are "Grade A" class and offer a pure and consistent colour with a high-intensity light output and up to 20degree viewing angle. LEDs come in packs of 10!
Nothing is more satisfying than seeing your Pi physically interacting with stuff, and these LEDs are a fantastic place to start, as they fit perfectly into breadboards! If you need some resistors, we stock an excellent kit here!
These Ultra Bright LEDs Feature:

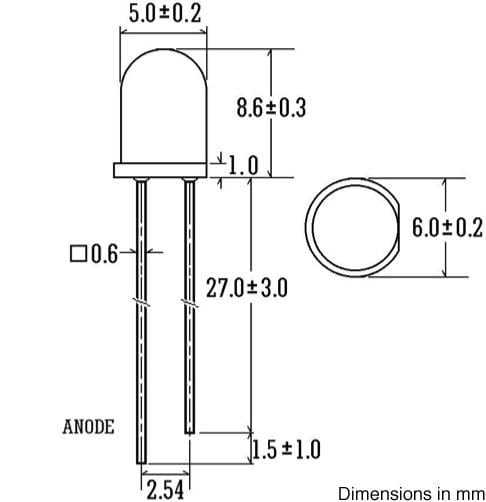

- 5mm Diameter
- Ultra Bright
- Lens Type: Crystal Clear, Round
- Typical Forward Current: 20mA
- Maximum Forward Current: 30mA
- Forward Voltage: 1.8v to 2.2v
- Up to 20degree Viewing Angle
- Each purchase is for 10 x LEDs
|White||20mA - 30mA (Max)||3.2v – 3.8v||N/A||13000|
|Warm White||20mA - 30mA (Max)||3.2v – 3.8v||N/A||14000|
|Blue||20mA - 30mA (Max)||3.2v – 3.8v||465||9000|
|Red||20mA - 30mA (Max)||1.8v – 2.5v||640||2000|
|Green||20mA - 30mA (Max)||3.2v – 3.8v||520||15000|
|Yellow||20mA - 30mA (Max)||1.8v – 2.2v||590||8000|
|Orange||20mA - 30mA (Max)||1.8v – 2.2v||600||6000|
|Pink||20mA - 30mA (Max)||3.2v – 3.8v||N/A||9000|
|UV||20mA - 30mA (Max)||3.2v – 3.8v||395||3000|
