Ultra Bright LED 5mm - White (10 Pack)

ModMyPiSKU: 103510

£1.50

incl. VAT

excl. VAT

In stock

Awesome Extras

575-Piece Ultimate Resistor Kit by The Pi Hut - The Pi Hut

The Pi Hut 575-Piece Ultimate Resistor Kit

£6 incl. VAT excl. VAT

Half-Size Breadboard - White by The Pi Hut - The Pi Hut

The Pi Hut Half-Size Breadboard - White

£3 incl. VAT excl. VAT

120-Piece Ultimate Jumper Bumper Pack (Dupont Wire) by The Pi Hut - The Pi Hut

The Pi Hut 120-Piece Ultimate Jumper Bumper Pack (Dupont Wire)

£6 incl. VAT excl. VAT

Available in 9 different colours, these Ultra Bright LEDs (Light-Emitting Diodes) are perfect for all your Raspberry Pi prototyping projects!

All Ultra Bright LEDs are "Grade A" class and offer a pure and consistent colour with a high-intensity light output and up to 20-degree viewing angle. LEDs come in packs of 10!

Nothing is more satisfying than seeing your Pi physically interacting with stuff, and these LEDs are a fantastic place to start, as they fit perfectly into breadboards! If you need some resistors, we stock an excellent kit here!

These Ultra Bright LEDs Features:

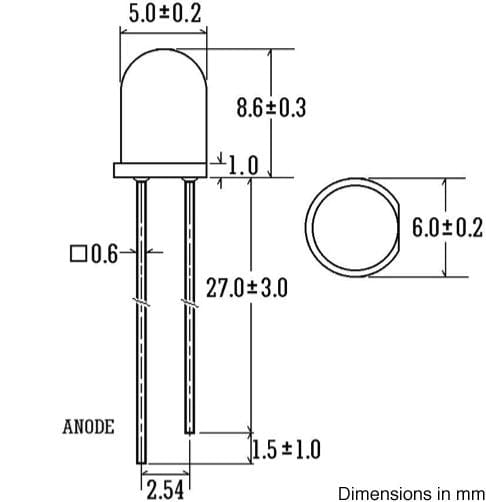

5mm Diameter
Ultra Bright
Lens Type: Crystal Clear, Round
Typical Forward Current: 20mA
Maximum Forward Current: 30mA
Forward Voltage: 3.2v to 3.8v
Up to 20degree Viewing Angle
Each purchase is for 10 x LEDs

LED Colour	Fwd Current	Fwd Voltage	Wavelength (nm)	Brightness (mcd)
White	20mA - 30mA (Max)	3.2v – 3.8v	N/A	13000
Warm White	20mA - 30mA (Max)	3.2v – 3.8v	N/A	14000
Blue	20mA - 30mA (Max)	3.2v – 3.8v	465	9000
Red	20mA - 30mA (Max)	1.8v – 2.5v	640	2000
Green	20mA - 30mA (Max)	3.2v – 3.8v	520	15000
Yellow	20mA - 30mA (Max)	1.8v – 2.2v	590	8000
Orange	20mA - 30mA (Max)	1.8v – 2.2v	600	6000
Pink	20mA - 30mA (Max)	3.2v – 3.8v	N/A	9000
UV	20mA - 30mA (Max)	3.2v – 3.8v	395	3000
