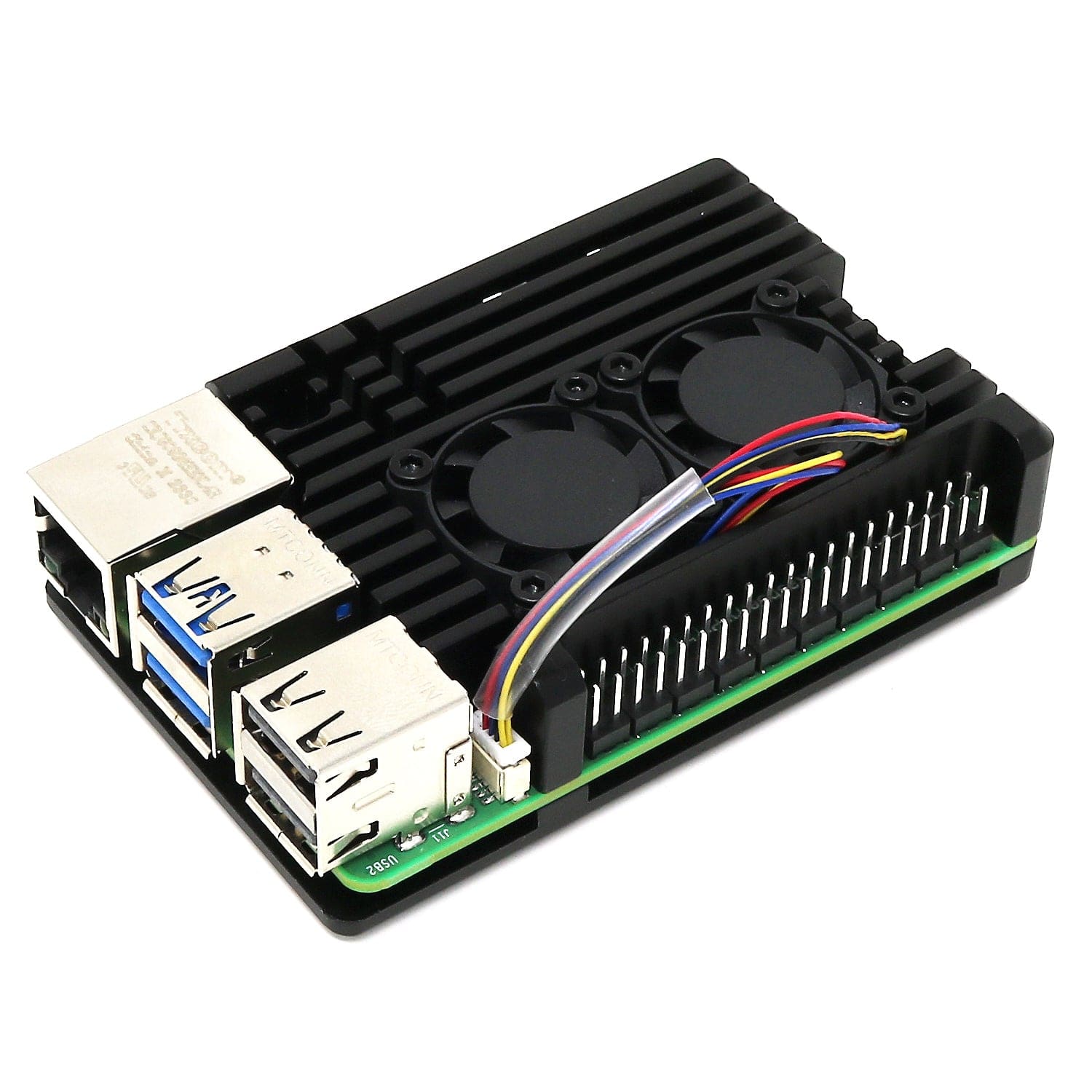

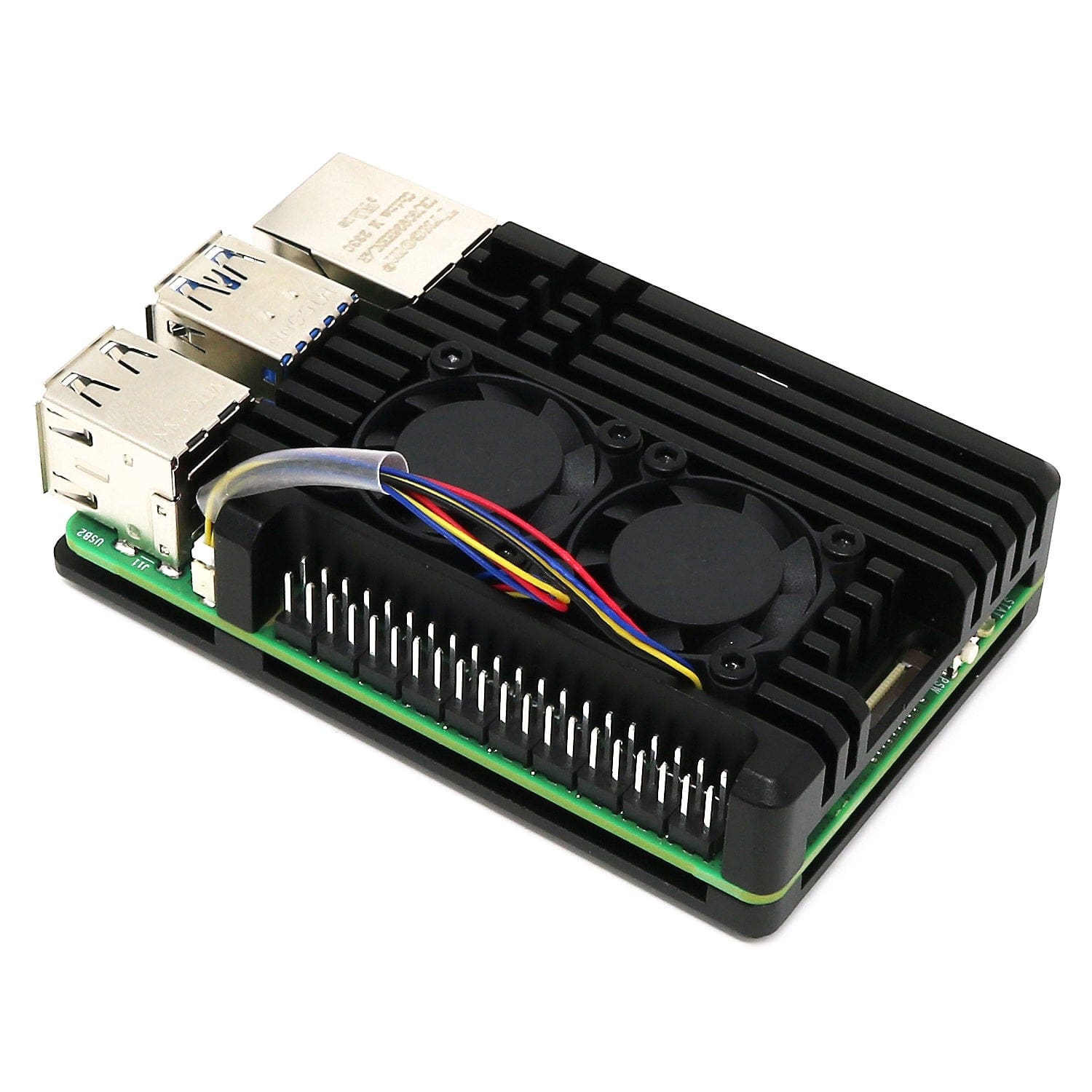

This is a version of our Aluminium Armour case for Raspberry Pi 5 with dual software-controllable fans for ultimate cooling performance!

If you plan to run very power-hungry projects with your Raspberry Pi 5 or keep your project in a warm environment, this might be the better option for you.

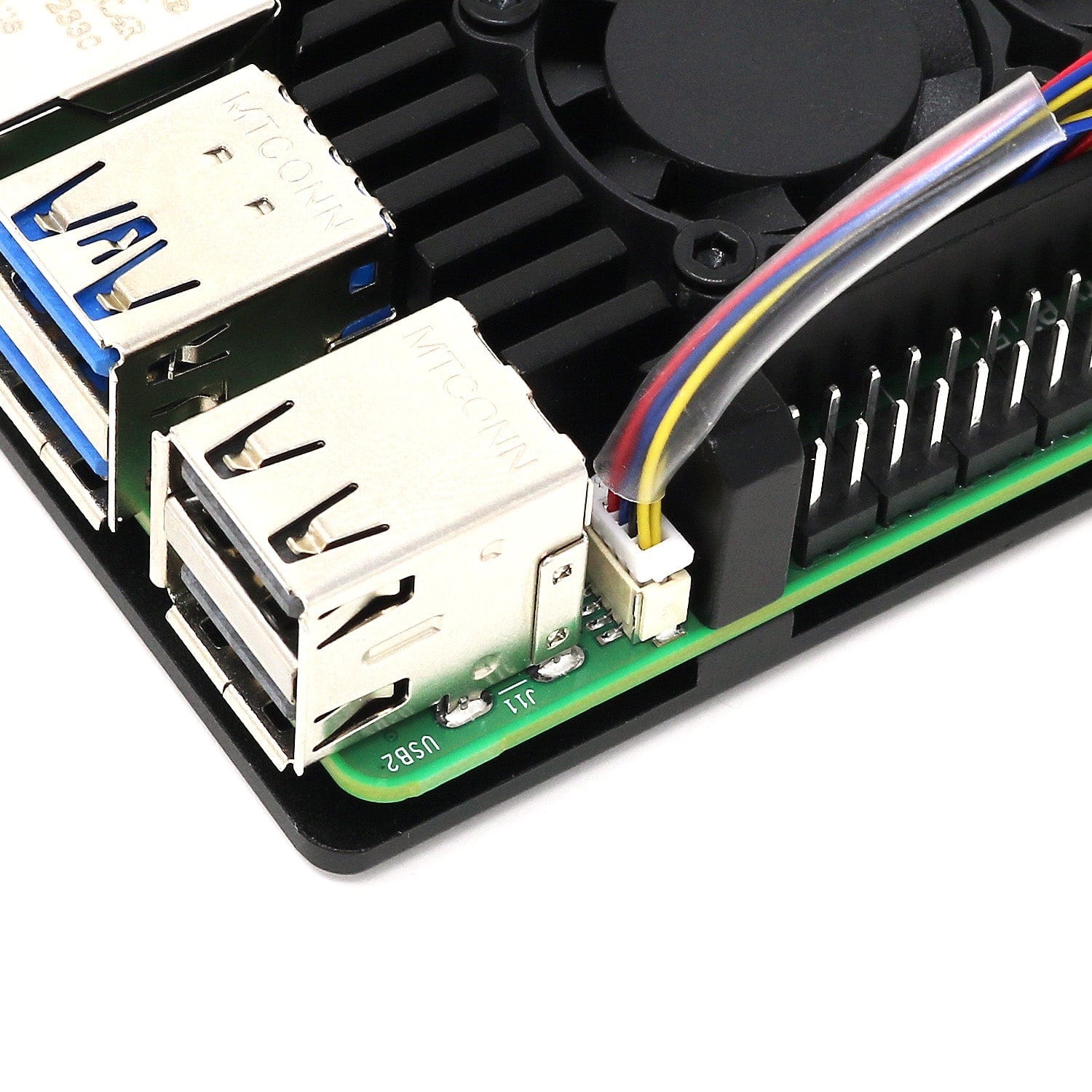

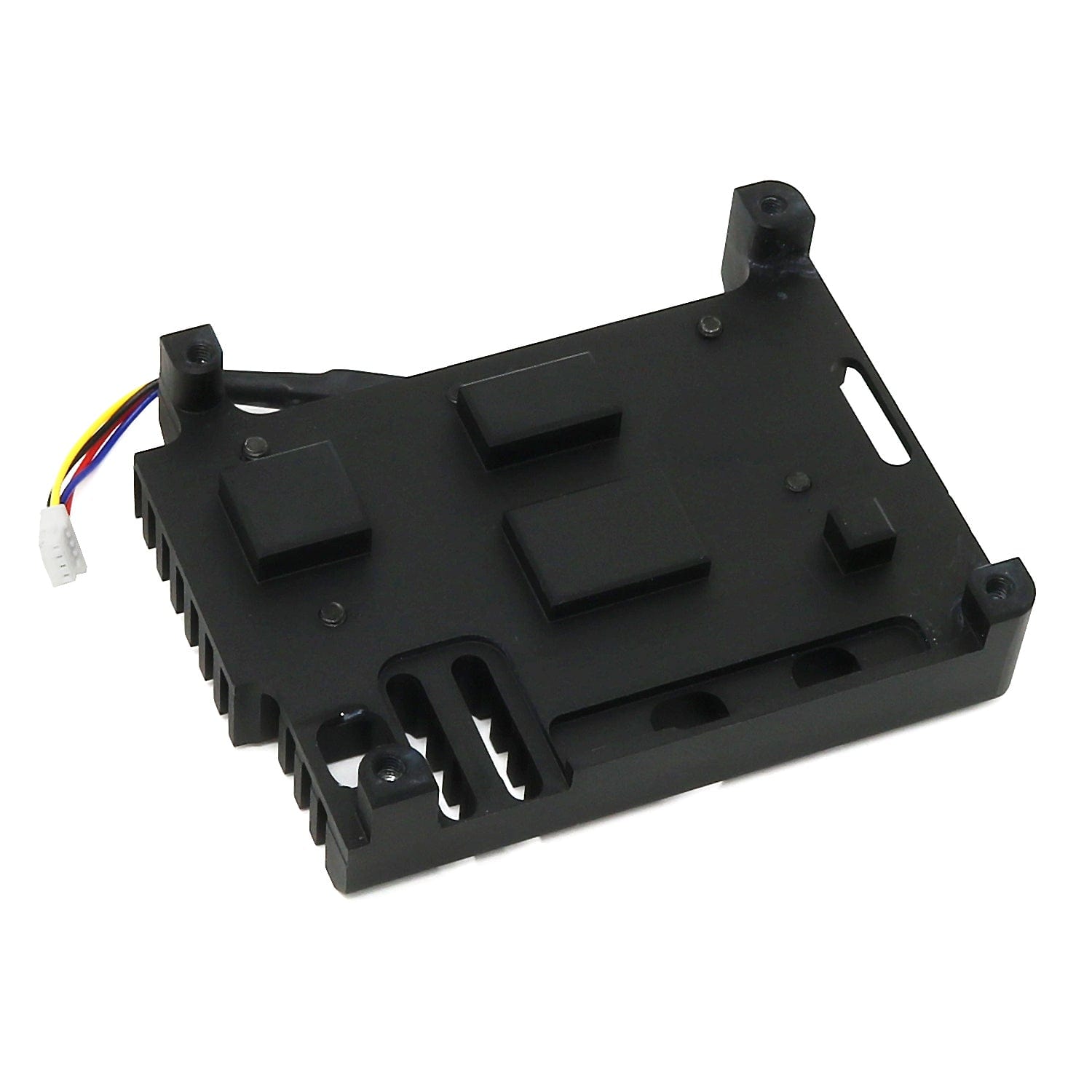

The two-part aluminium body makes direct contact (via thermal pads) with your Pi 5's critical components, ensuring excellent heat transfer - backed up by the dual fans. The fans use the Raspberry Pi 5 JST fan socket connector, keeping all your GPIO pins free for your project, allowing software control based on the temperature of your CPU - keep the fans off when they're not needed!

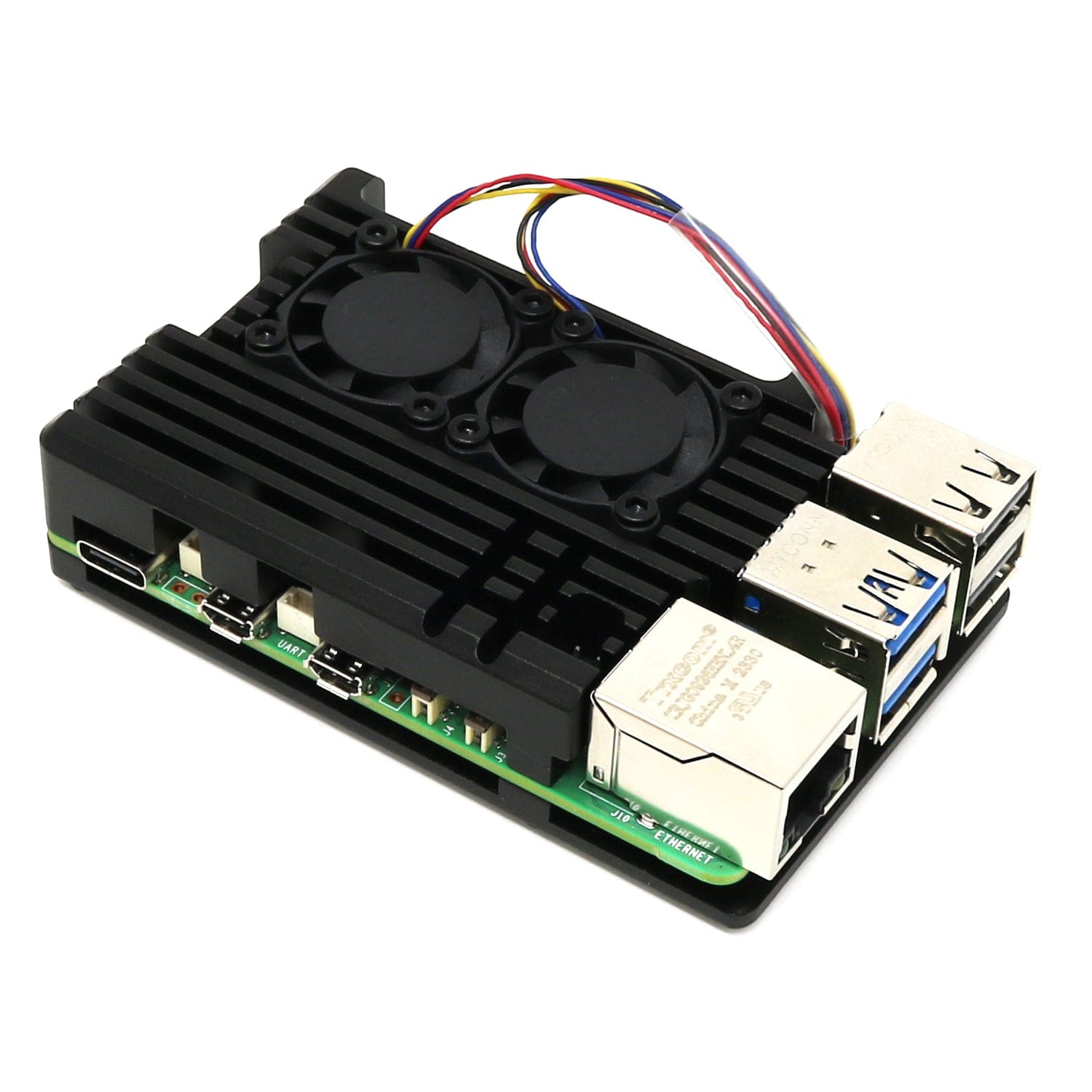

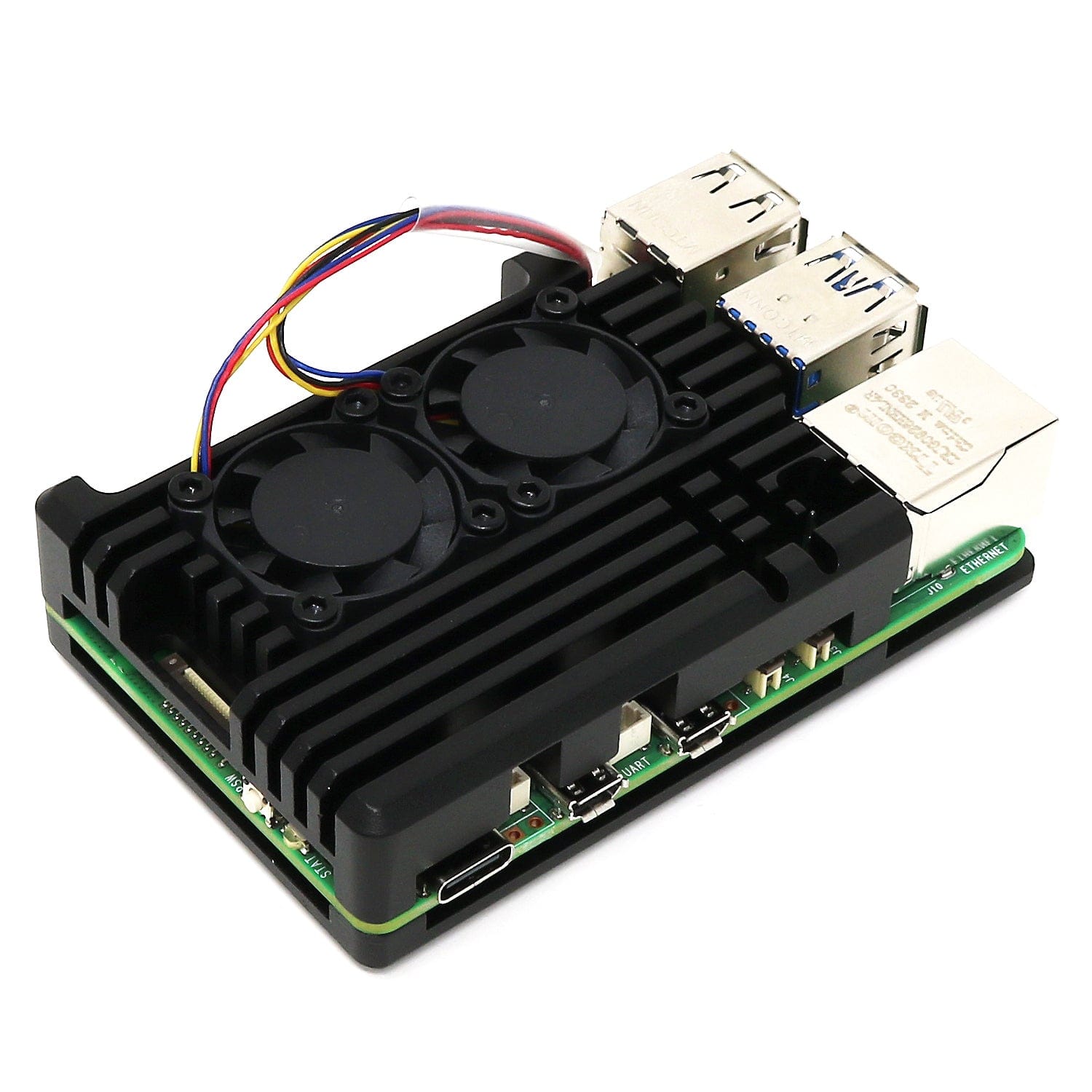

All ports and pins are accessible including GPIO and Micro SD access, fan/UART/RTC headers and even cut-outs for the PoE, CSI/DSI and PCI-E ports.

Assembly is easy - just fit the thermal pads (remove the backing film first), position the upper/lower sections, then use the four screws (thicker head) to secure the case together, and finally screw the two fans in with the eight (thinner head) screws.

Note:

  • Do not overtighten the fan screws! They only need to be finger-tight and 'just bite' - no more or you may damage the fans!
  • CSI, DSI and PCI-E ribbon cables should be fitted to the Raspberry Pi before assembling the case.You will need to disassemble the case to swap them out (which is just a matter of removing four screws).
  • Raspberry Pi not included

Features

  • Aluminium Armour Dual-Fan case for Raspberry Pi 5
  • Hybrid design - heatsink and case in one!
  • Efficient passive cooling combined with dual-fan active cooling
  • Software-controllable fans - option to only turn them on when your CPU hits a certain temperature
  • Rugged aluminium body for protecting your Pi 5
  • Access to all ports and pins
  • Easy assembly - just apply the thermal pads, secure the four body screws, then fit the fans with the remaining screws.
  • Colour - Matt Black

Package Contents

  • 1x Aluminium Armour body (two parts)
  • 1x Fan assembly (includes two fans)
  • 4x Body screws (thicker head)
  • 8x Fan screws (thinner head)
  • 1x Thermal pad set

Raspberry Pi not included
