The Raspberry Pi 5 provides two MIPI connectors to use with displays (DSI) or camera modules. These connectors are smaller than previous generations of Raspberry Pi, so you'll need one of these adapter cables to use your Raspberry Pi touchscreen display.
These display cables DO NOT work with camera modules. You'll need a different cable for cameras - they are not interchangeable!

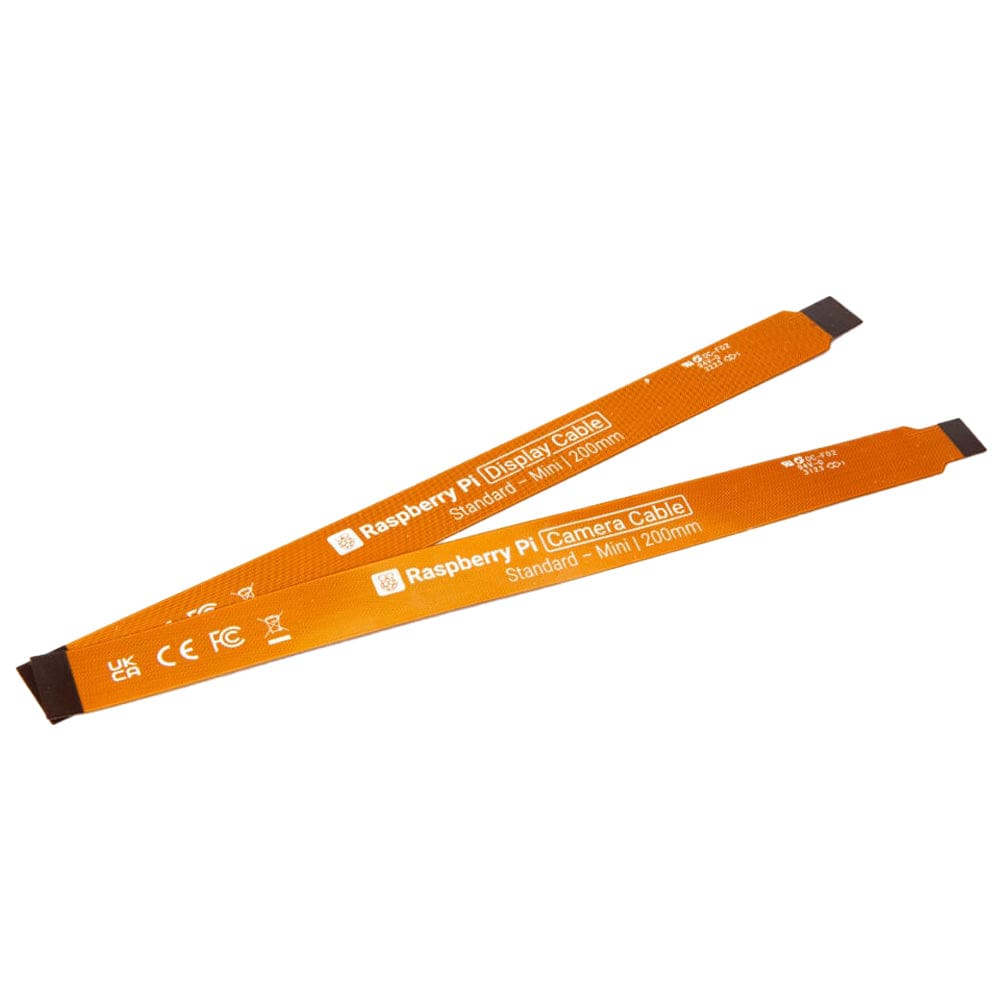

These display adapter cables have a 22-way 0.5mm-pitch connection at one end (for the Raspberry Pi 5 end), and a 15-way 1mm-pitch connector at the other (for your display). These cableshave DISPLAY clearly printed on them so that you don't get them mixed up with the very similar-looking camera cables.
We offer these cables in 200mm, 300mm or 500mm lengths (select before adding to your cart), giving you options to match the kind of project you're working on and the flexibility you might need.
These cables are tested by and supplied by our good pals over at Raspberry Pi, so you can rest assured they offer the quality, reliability and compatibility you'd expect.
Features
Display adapter cable for Raspberry Pi 5
For use with DSI displays only (not compatible with camera modules)
22-way 0.5mm pitch to 15-way 1mm-pitch
FPC cable (Flexible Printed Circuit)

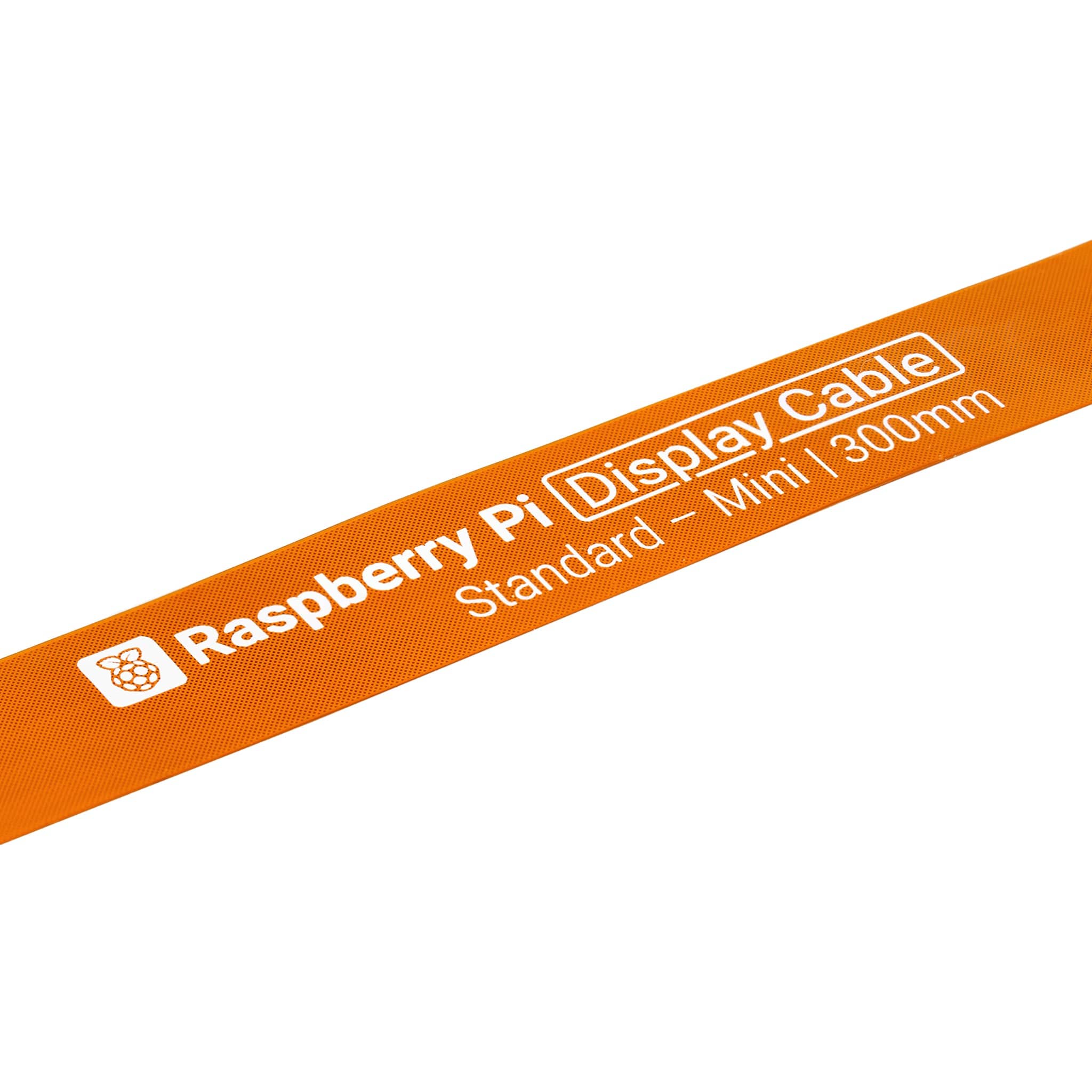

DISPLAY printed on the cable body for easy identification
Available in 200mm, 300mm and 500mm lengths
Package Contents
1x Display adapter cable for Raspberry Pi 5 (select required length before adding to cart)
Raspberry Pi and display not included
Resources
EAN:
200mm: 5056561803524
300mm: 5056561803517
500mm: 5056561803500
SKU
200mm: SC1131
300mm: SC1132
500mm: SC1133
