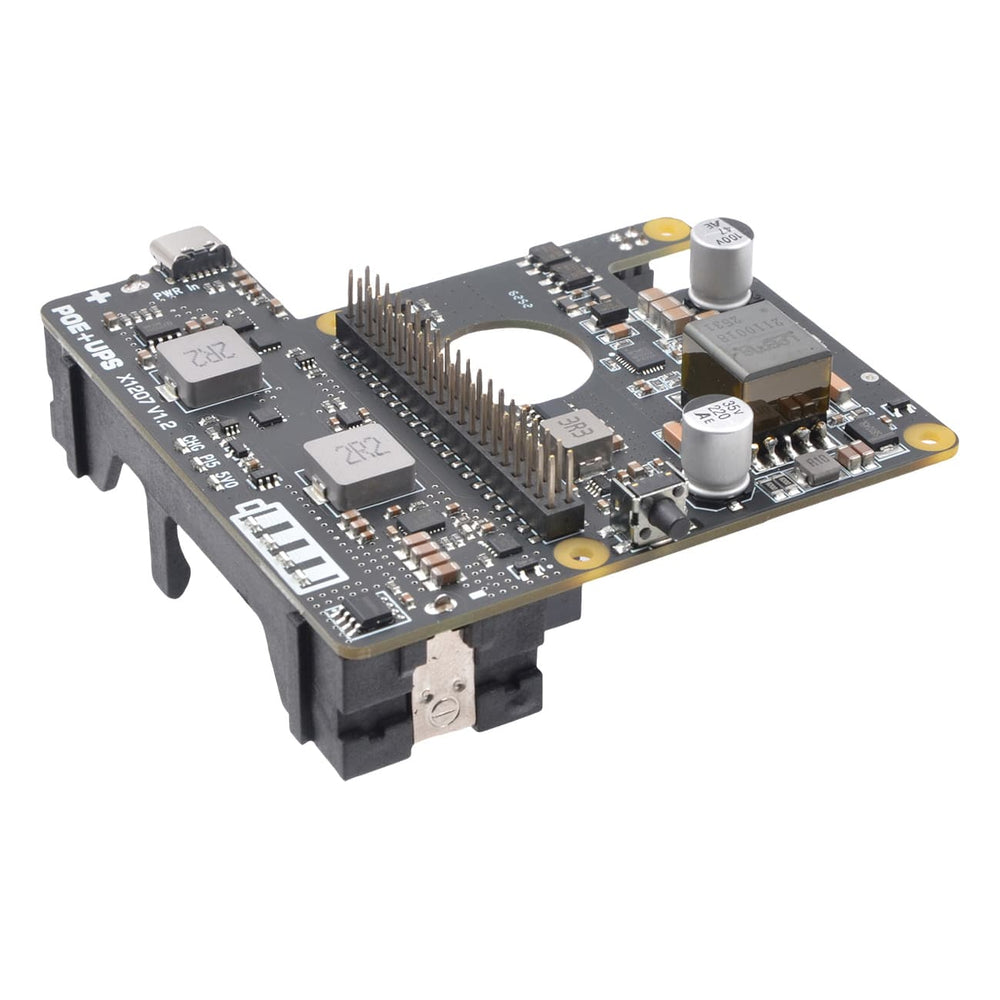

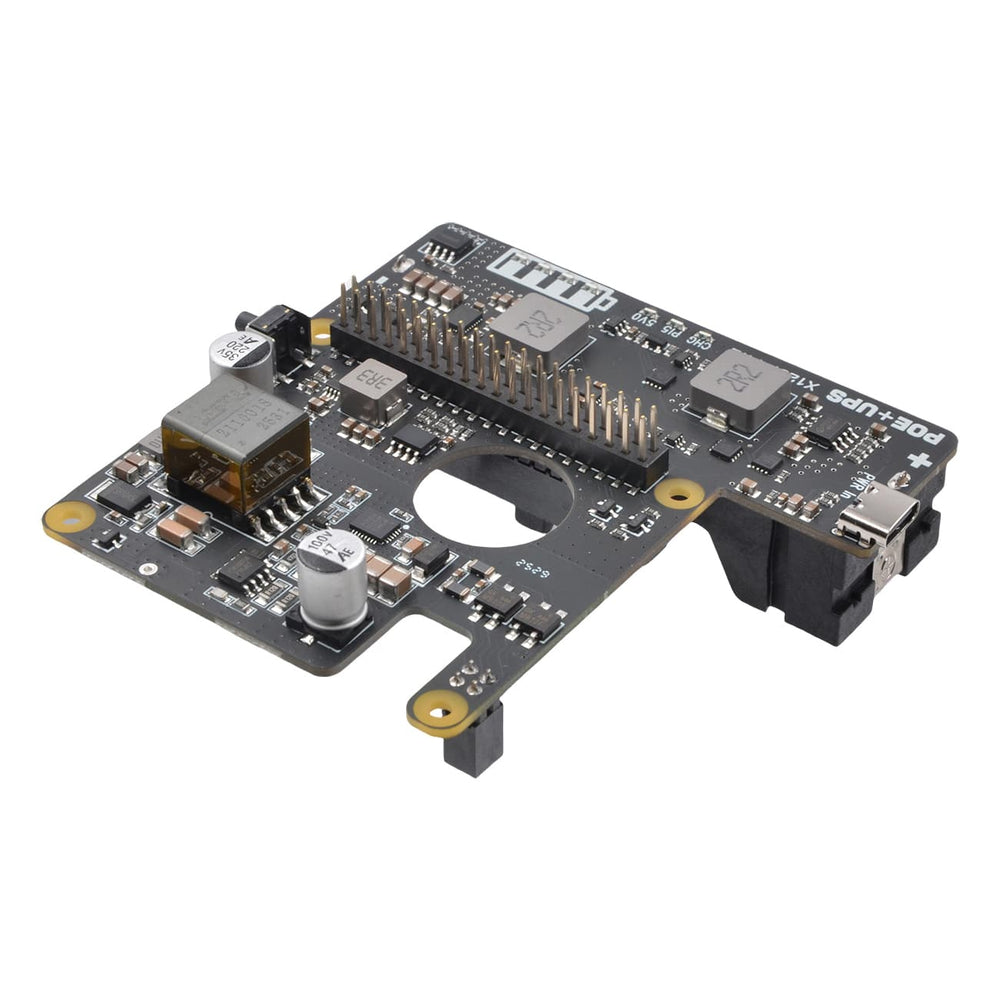

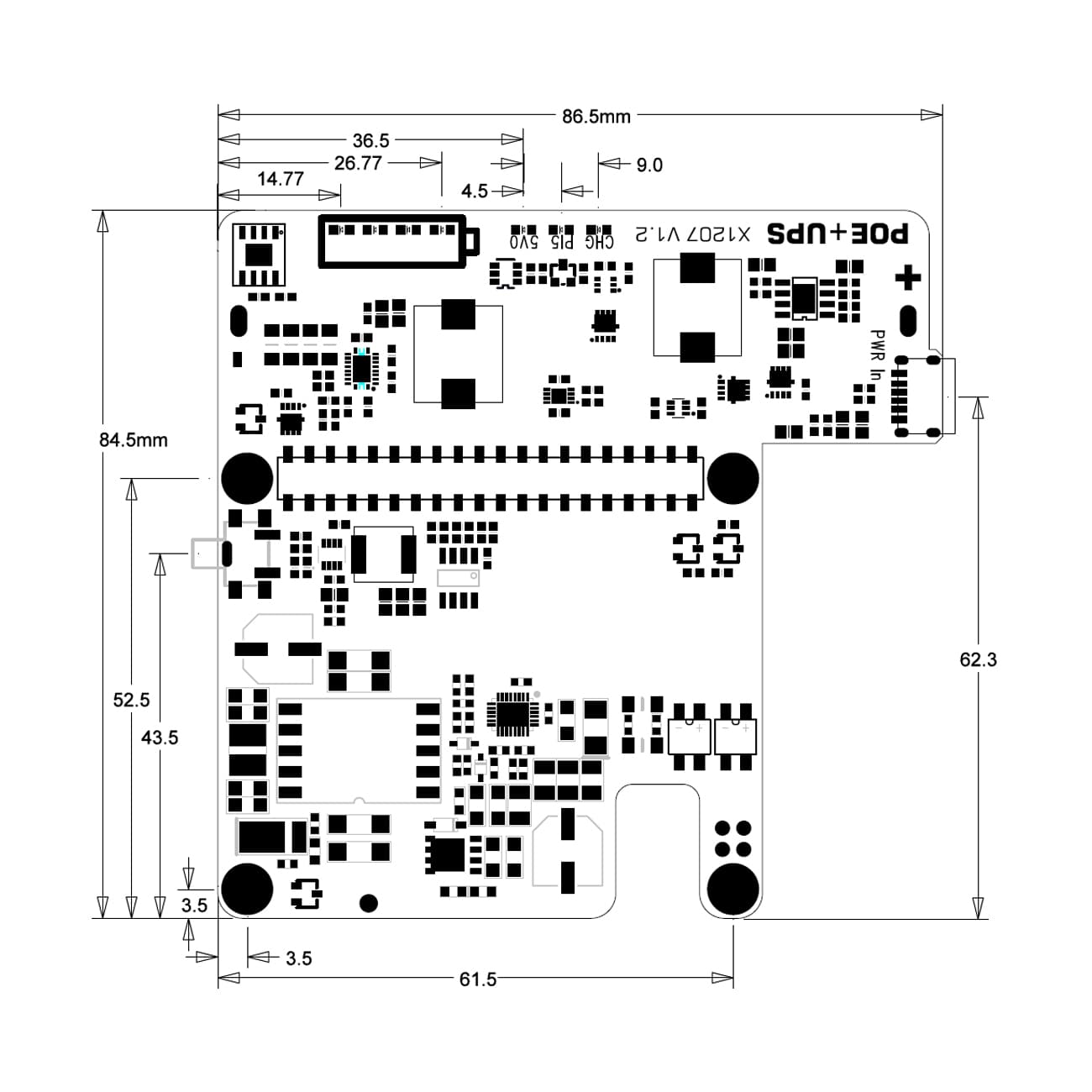

The SupTronics X1207 is a PoE UPS HAT designed for Raspberry Pi 5, delivering reliable 5.1V/5A backup power to maintain uninterrupted operation.
It supports high-demand setups and complies with IEEE 802.3af/at PoE standards, drawing up to 25W from a compatible POE switch while providing both power and network connectivity over a single cable.
With intelligent power management, it monitors Pi status, cuts power after shutdown to conserve the 21700 battery (battery not included), and features ultra-low standby consumption. The board ensures seamless power switching during outages and supports auto power-on and AC loss detection.
Raspberry Pi 5 and 21700 battery not included.
Features
Compatible with
Raspberry Pi 5
UPS Output:
Built for continuous, long-lasting operation -providing unwavering power for always-on Raspberry Pi systems
Supports a maximum current output of 5.1V 5000mA, suitable for most Raspberry Pi applications
Integrated Advanced Power MOSFET with an equivalent of 7mΩ RDS(ON) to minimize power loss

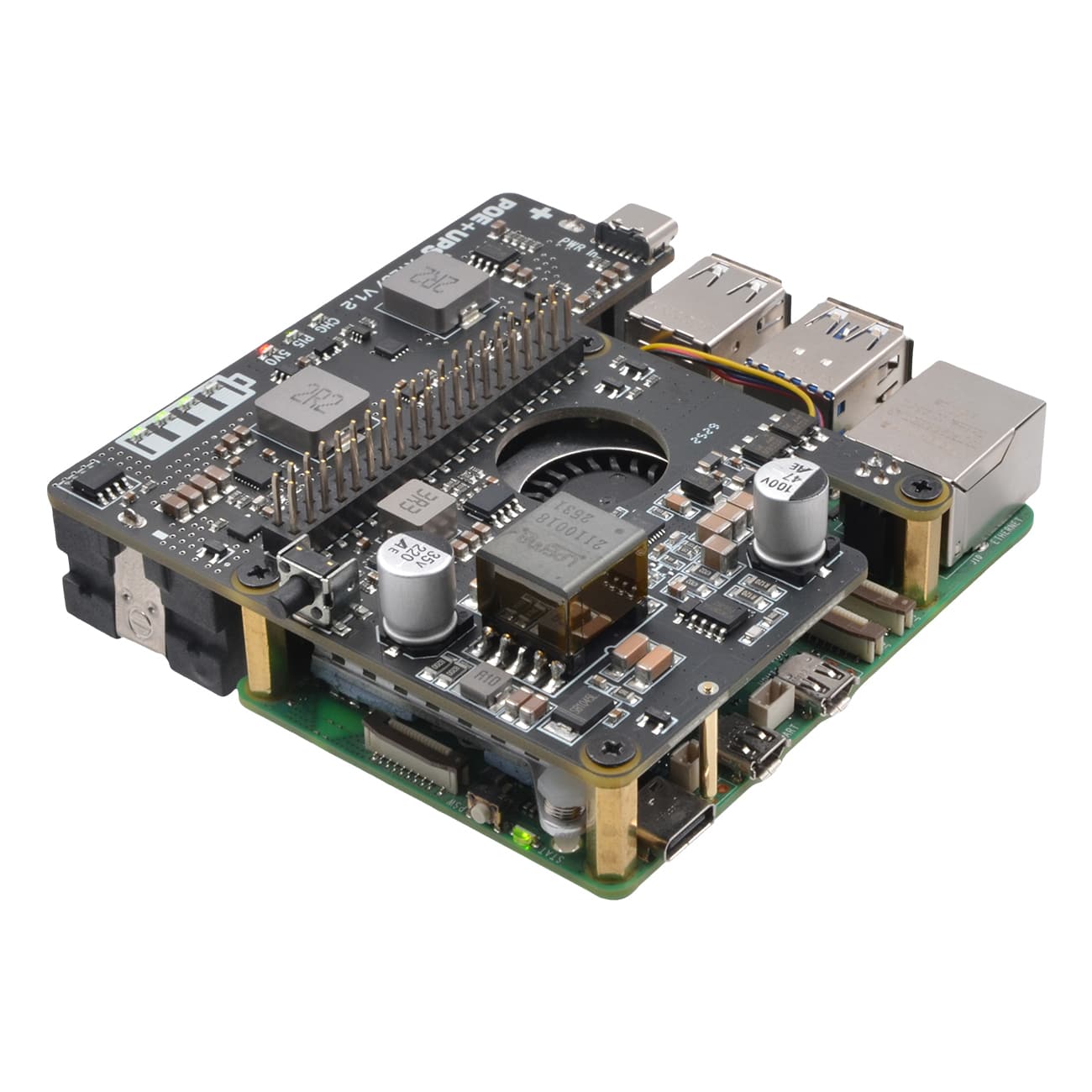

Power the Pi directly through the 40-pin header, eliminating the need for cables and soldering
Battery Charging:
Supports battery charging with a capacity of 1500mA
Battery charging control can be managed via GPIO
Provides protection against battery overcurrent and overvoltage
Built-in protection against reverse connection of battery cells
Integrated Maxim's fuel-gauge systems for reading battery voltage and percentage over i2c

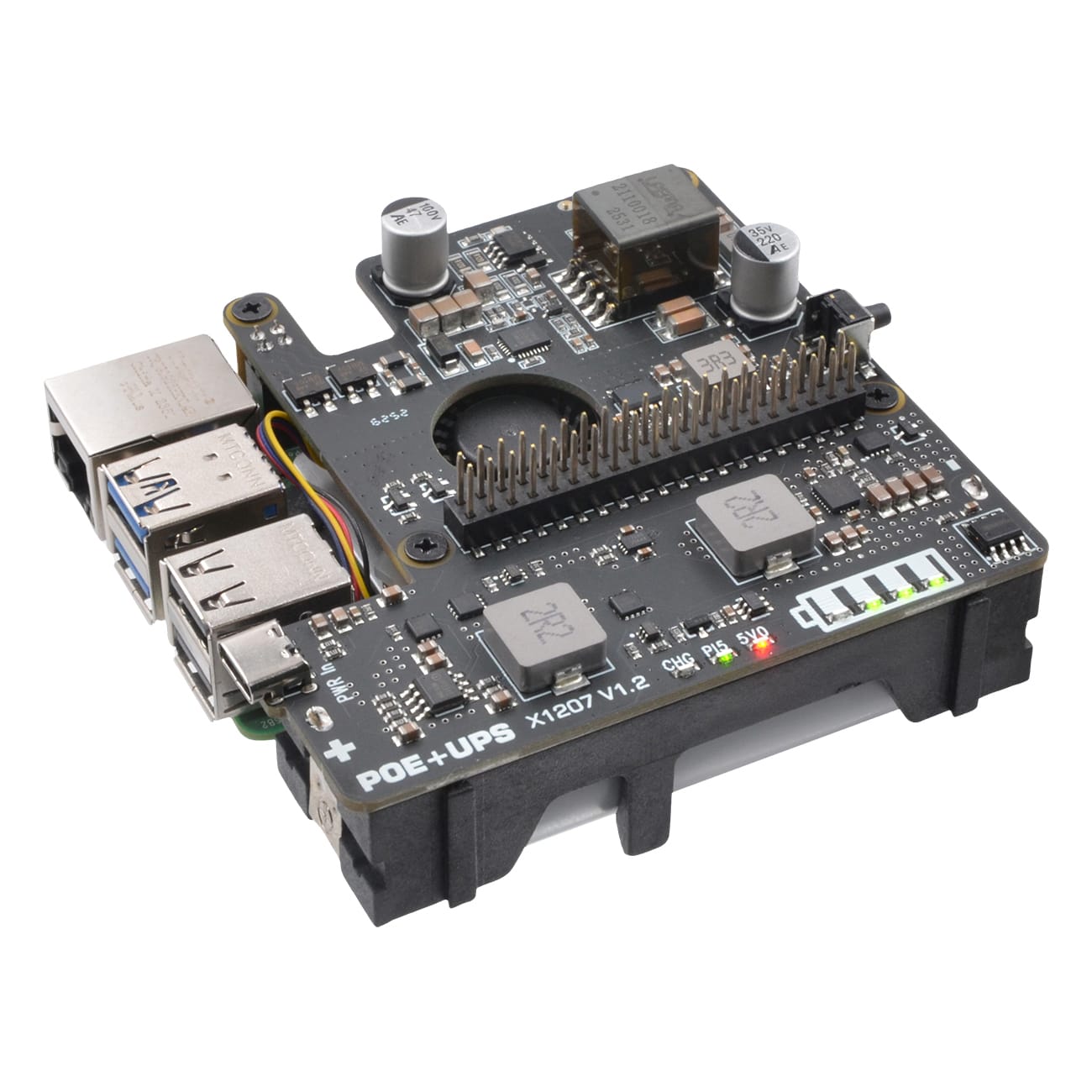

On-board LEDs indicate battery charging and discharging levels of 25%, 50%, 75%, and 100%

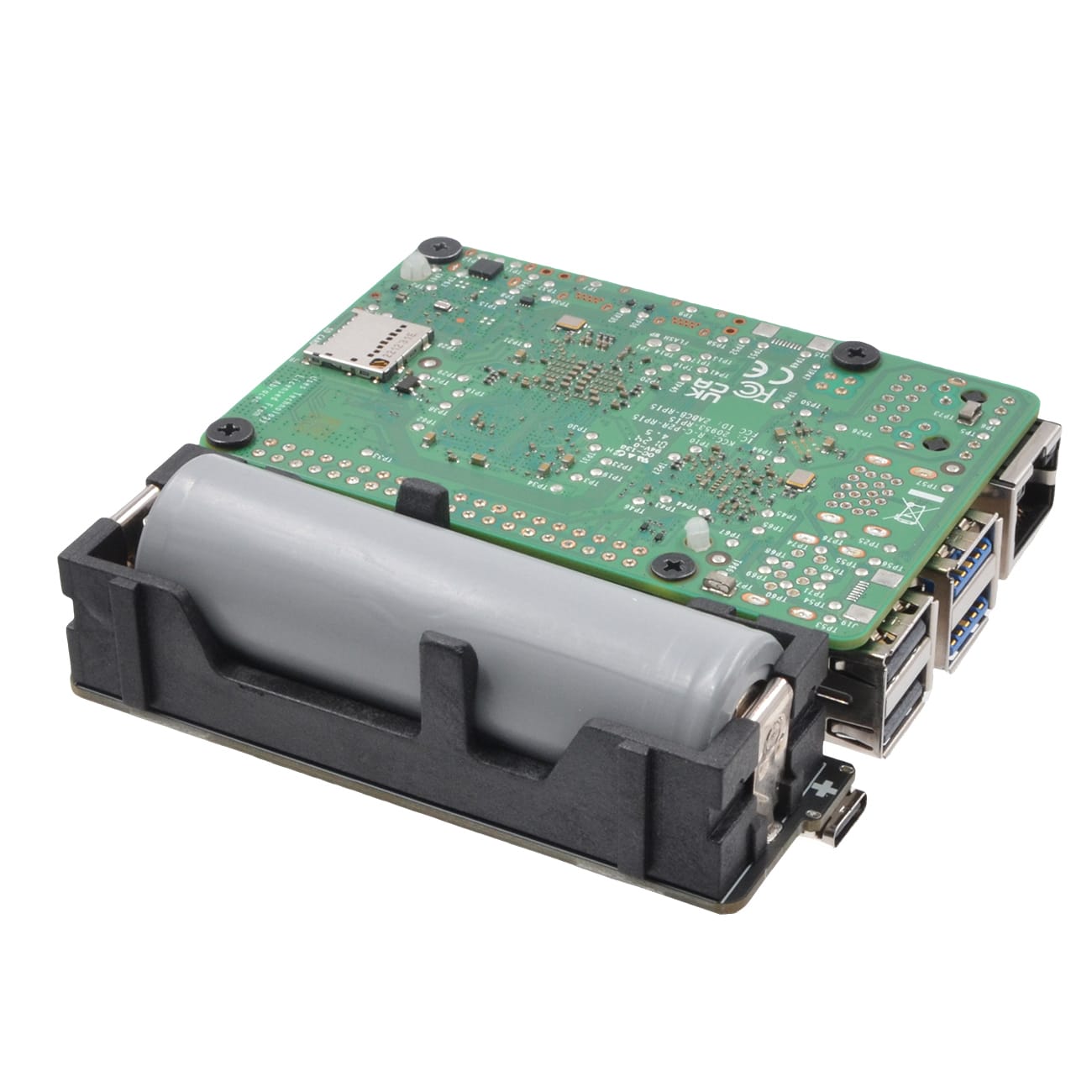

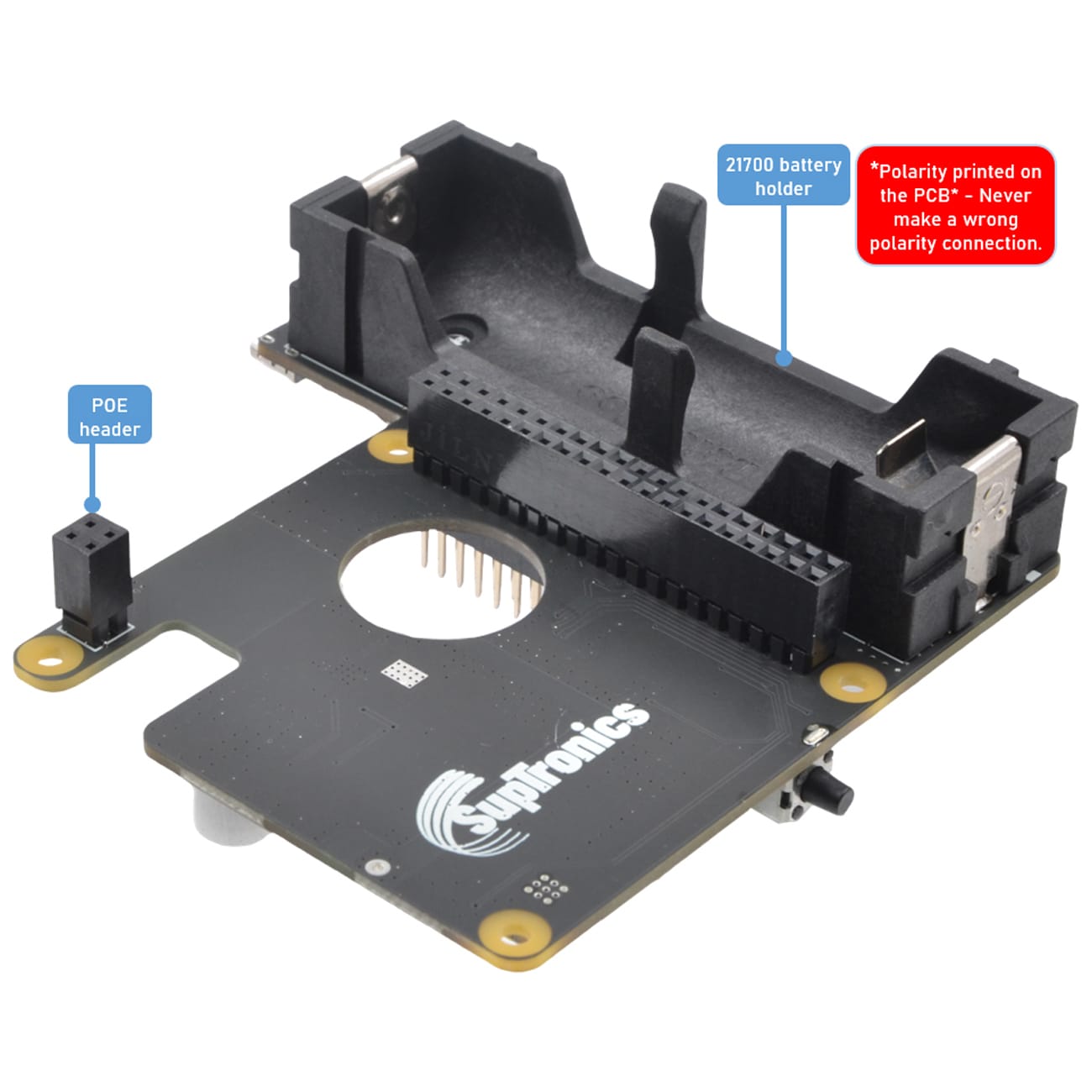

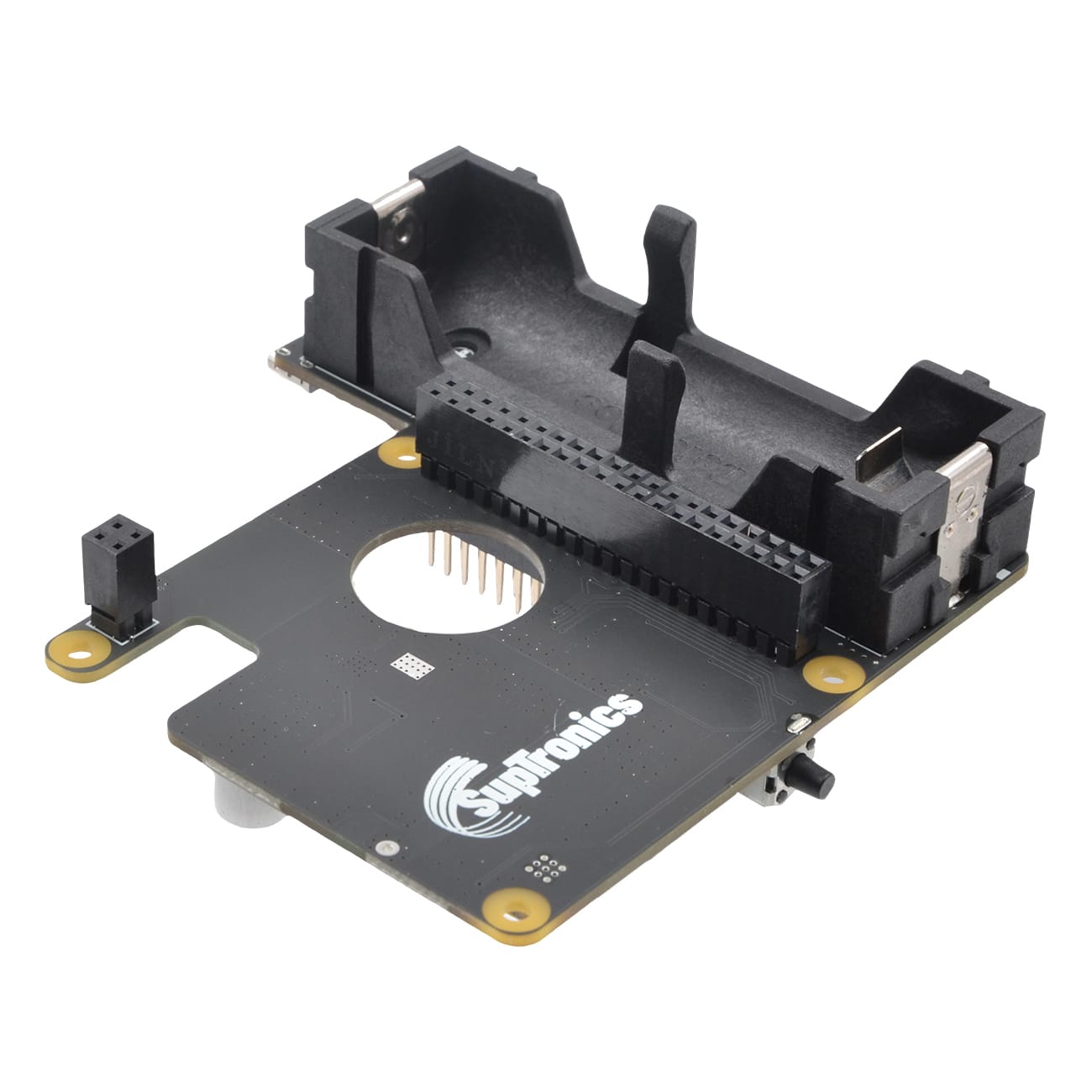

Features a single 21700 battery holder, supporting battery of up to 5000mAh (battery not included)
Power Input:
Supports Power over Ethernet (PoE) input capability
Provides up to 5A output current, enabling 1.5A charging while powering the system
Standard Compliance: IEEE 802.3af & 802.3at (PoE+)
Fully isolated switched-mode power supply (SMPS) topology
Simplified single-cable installation and robust power delivery for Raspberry Pi
Compatible with Raspberry Pi USB-C Power Supply
Enhanced Power Management:
Seamless power switching between backup power and power adapter

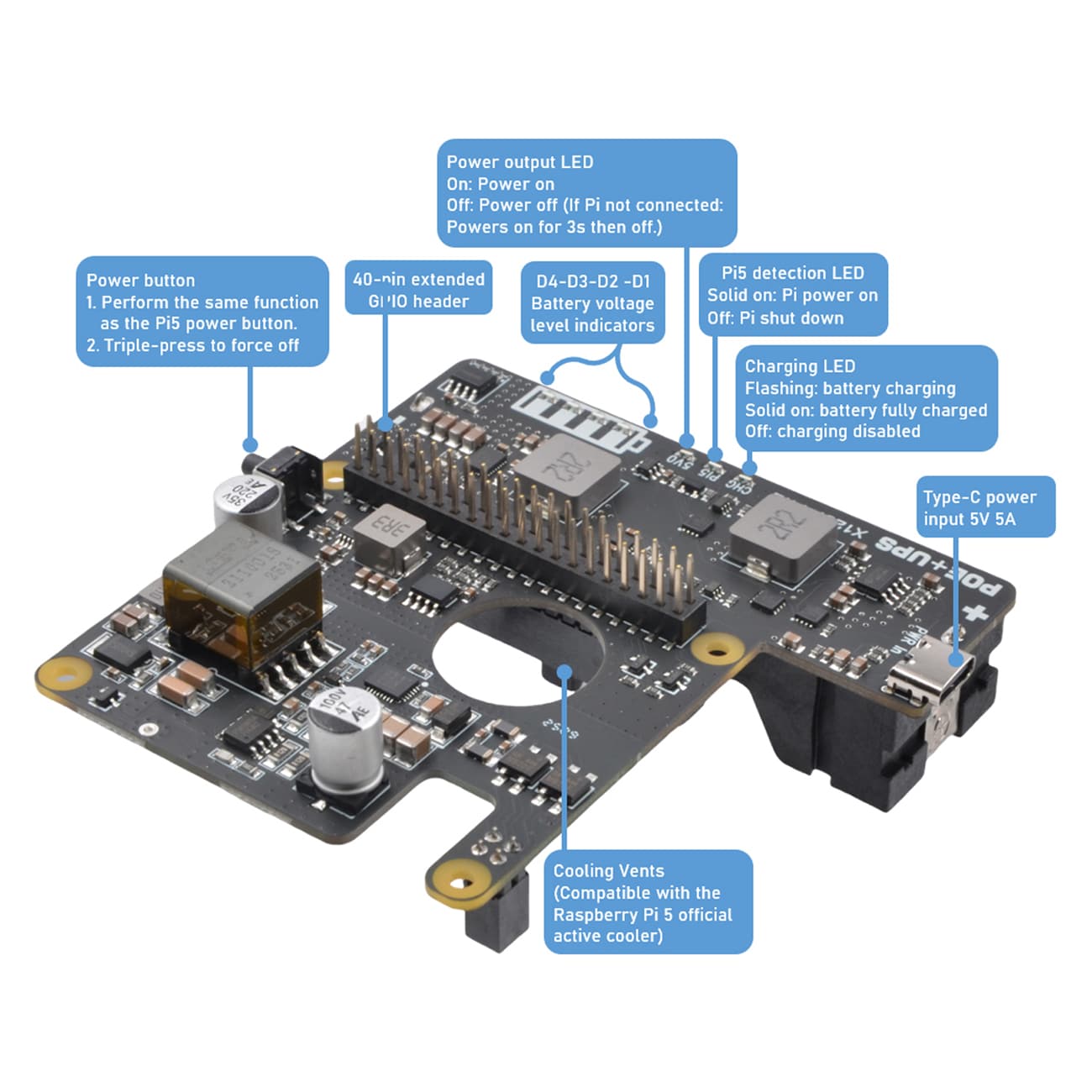

On-board push button performs the same actions as the Pi's power button
Automatically cuts off power when the Pi is shut down
On-board LED indicates power status and Pi detection
AC power loss and power adapter failure detection via GPIO
Auto power-on when power is applied or restored
Automatic safe shutdown when battery voltage is low (programmable)
Ultra-low standby power consumption to maximize battery life
Advanced system power-path management to minimize frequent charging and discharging of batteries
The default charging current is set to 1.5A and charge cut-off voltage is 4.23V. before installing your battery in the UPS board, Please carefully confirm the maximum charging current and voltage, exceeding the upper limit of the charging specification that the battery can withstand will not only cause adverse reactions, but may also cause irreversible damage.
It is essential to read and understand these safety instructions and warnings before charging your batteries.
Lithium Polymer and Li-ion batteries are volatile. Failure to read and follow the instructions below may result in fire, personal injury, and damage to property if charged or used improperly.
Never make a wrong polarity connection when charging or discharging battery packs. Always double-check the polarity of the battery's connector to ensure that "+" is connected to "+" and "-" is connected to "-".
Do not mix and use old batteries with new batteries, or batteries with different brand names.
Lithium batteries have a limited cycle life. Please replace old batteries with new ones when they reach their service life or when they are two years old, whichever comes first.
When charging the Battery Pack, please place the battery in a fireproof container. Do not leave the UPS shield on wood material or carpet unattended.
Keep the UPS shield away from children to ensure their safety.
Do not apply power to your Raspberry Pi via the Type-C USB socket.
Compatible with unprotected 21700 battery only (Max. length: 70.3 mm).
