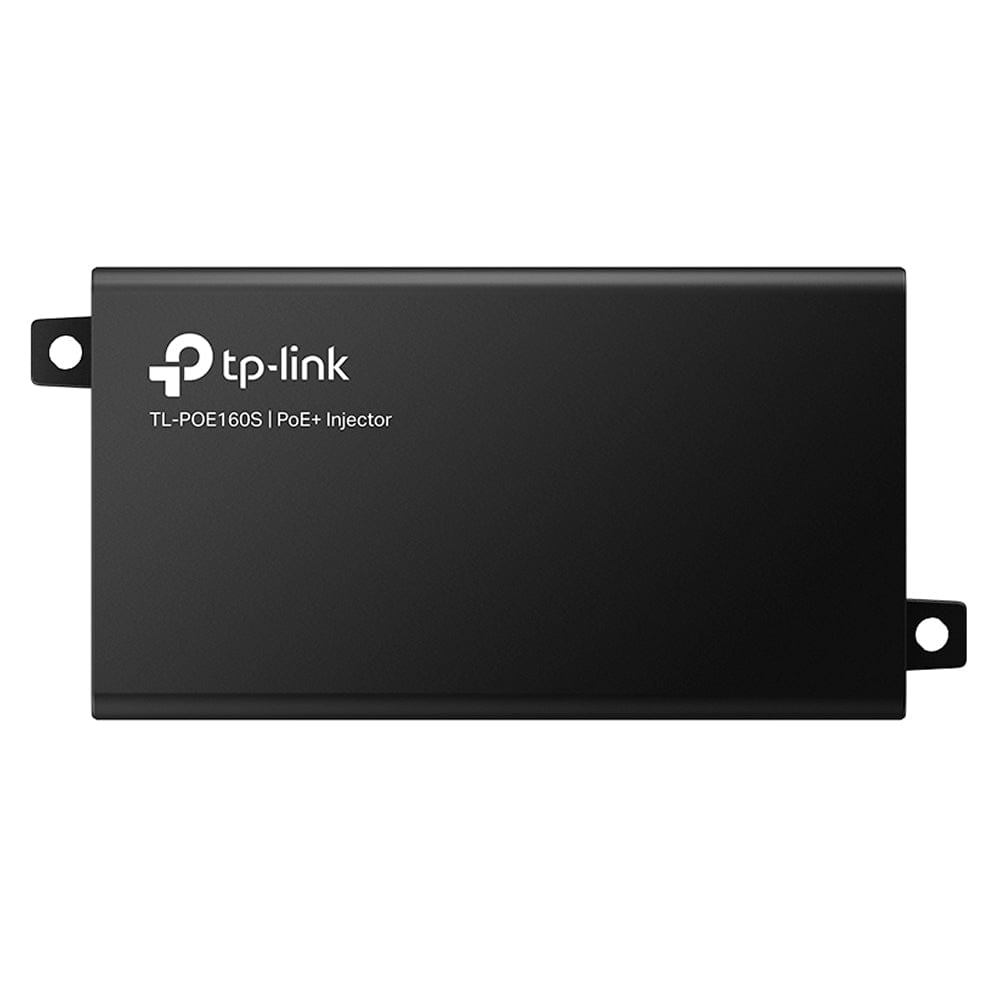

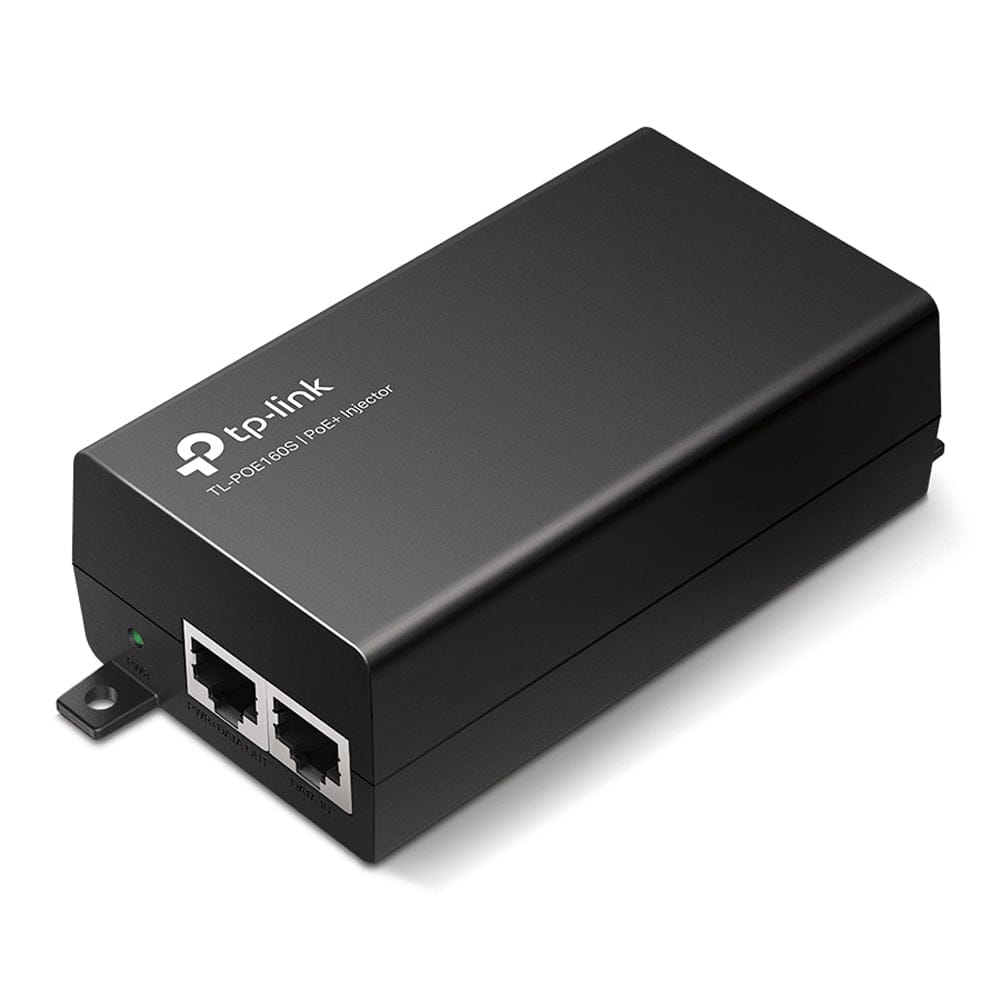

This PoE+ Injector from TP-Link fully complies with IEEE 802.3af/at standards supplying up to 30W, and can work with all IEEE 802.3af/at PoE compliant PoE equipment - such as many of the PoE HATs and add-ons we stock for the Raspberry Pi.

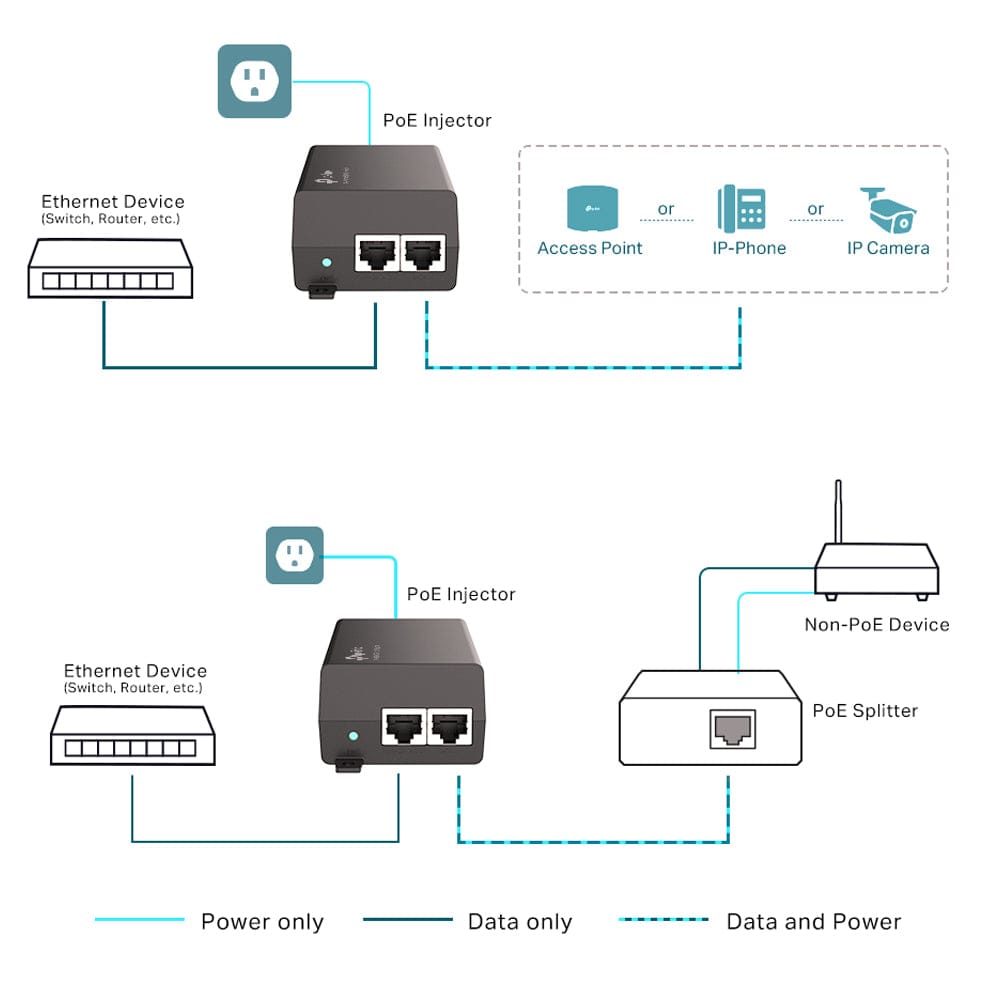

If your router or network switch doesn't offer PoE injected Ethernet lines, this injector will allow you to 'inject' any Ethernet cable to provide both power and a network connection - popular for Raspberry Pi deployment, IP PoE cameras and more.
Comes with a UK 3-pin plug, RJ45 cable and mounting kit.
Features

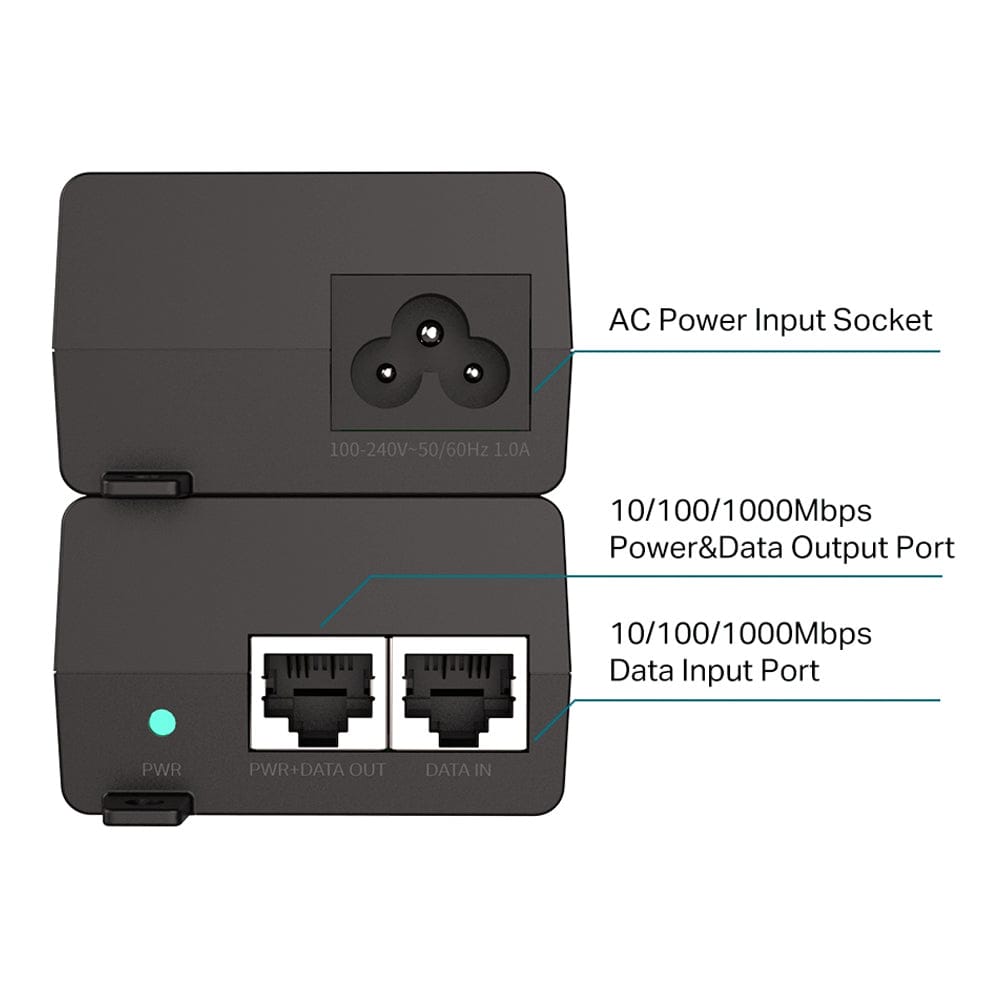

2x Gigabit ports
One input port for data
One output port for data+power
Complies with IEEE802.3af/at standards, supplies up to 30 W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation, requires no configuration
Auto-sensing algorithm provides power with 802.3af/at PD Auto-determines necessary power requirements Wall-mounting and desktop installation supported Plug-and-play
LED indicator
ON: Supplying power normally OFF: No power supply
Dimensions (W × D × H)
4.9 × 2.3 × 1.4 in (125 × 59 × 37 mm)
Certification
FCC, CE, RoHS
Environment
Operating temperature: 0°C to 40°C (32°F to 104°F) Storage temperature: -40°C to 70°C (-40°F to 158°F) Operating humidity: 10% to 90% RH non-condensing Storage humidity: 5% to 90% RH non-condensing
