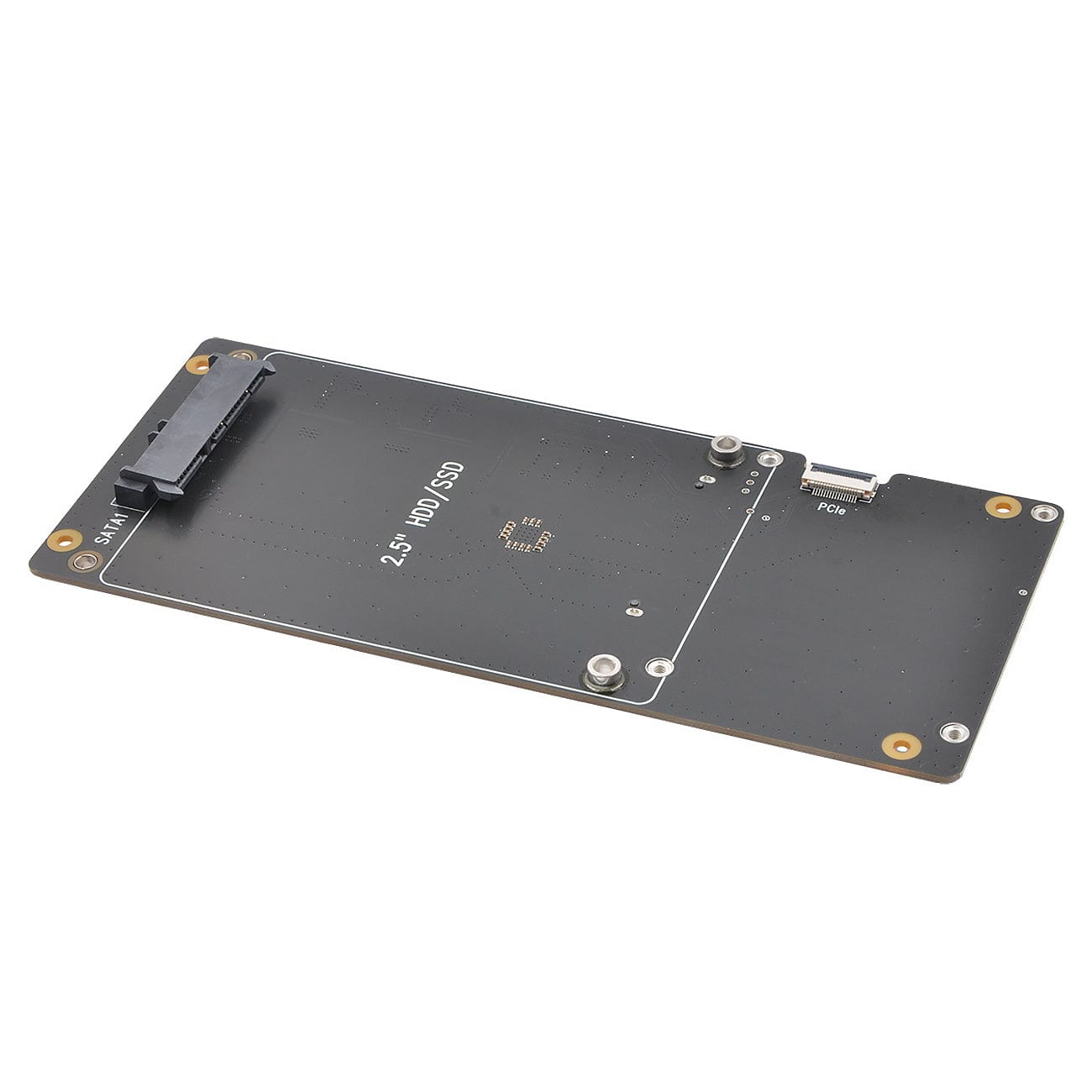

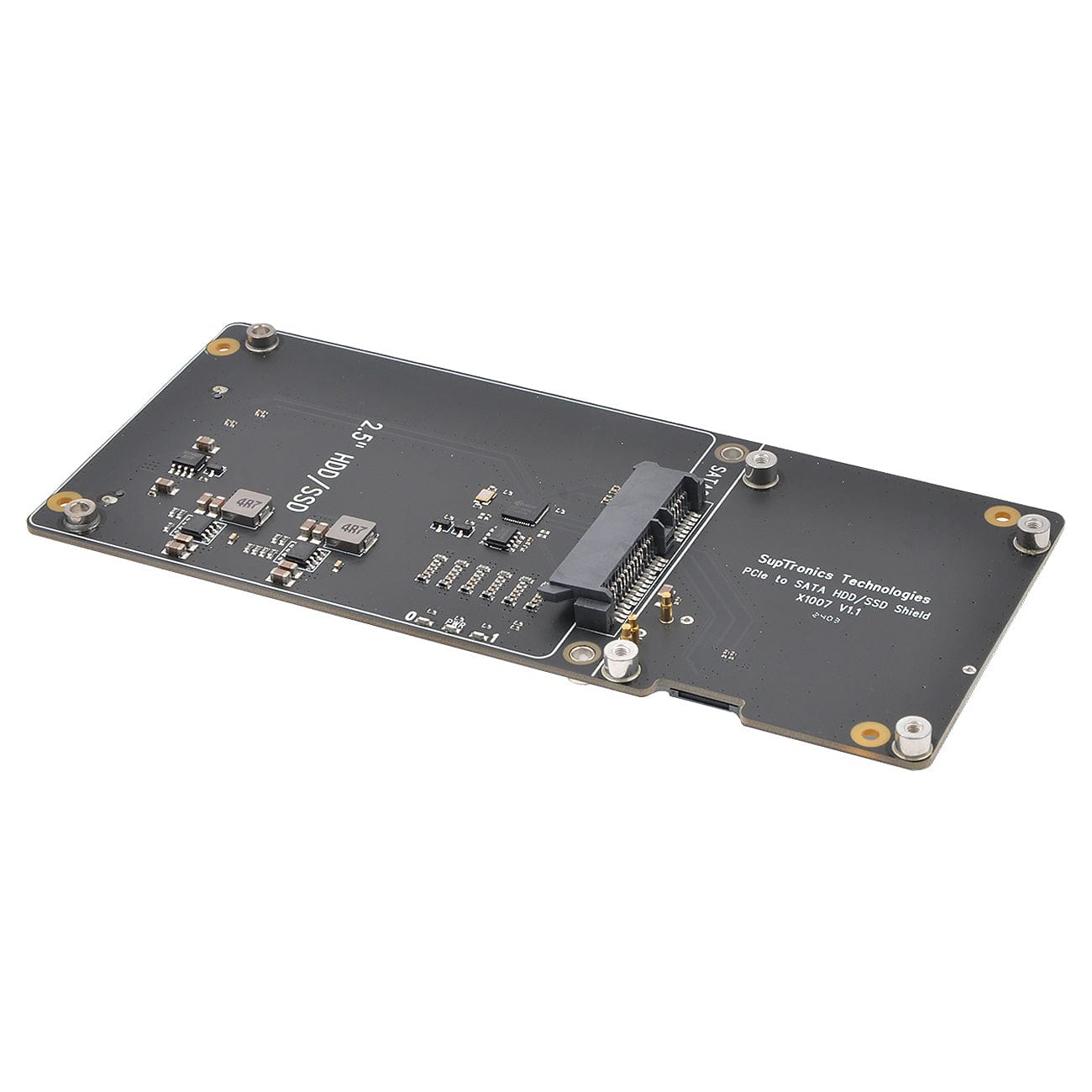

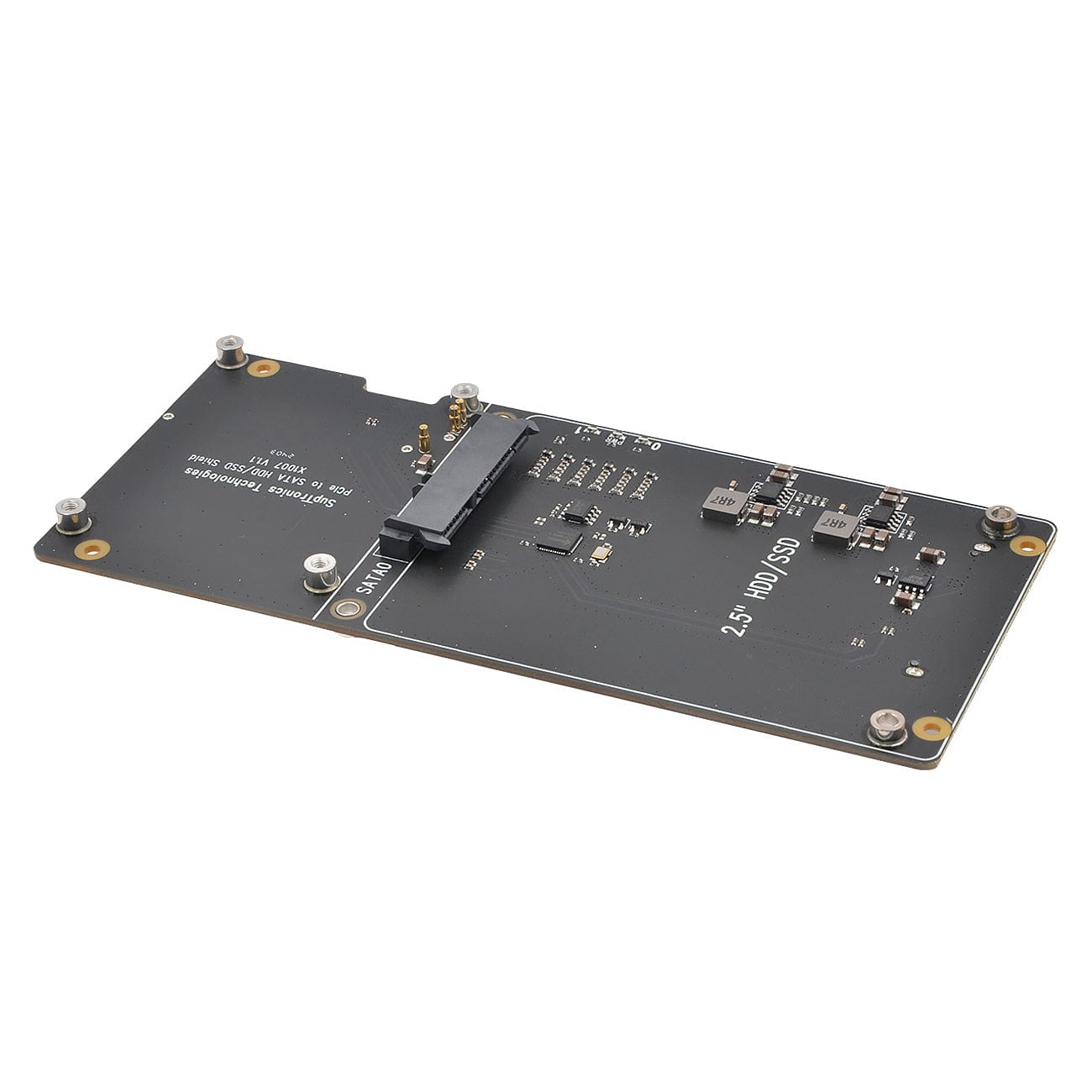

The SupTronics X1007 Dual SATA Expansion for Raspberry Pi 5 adds two 2.5" SATA 3.0 ports with up to 5Gbps speeds via PCIe. Mounts under the Pi 5 without blocking GPIO, powers via pogo pins, and supports mass storage setups.


Introducing the SupTronics X1007 Dual SATA Expansion, designed to provide a mass-capacity storage and high-speed storage solution via PCIe, for your Raspberry Pi 5. This board facilitates the simultaneous connection of two 2.5" HDDs/SSDs, with SATA 3.0 interface speeds reaching up to 5Gbps.

Note: does not currently support booting from SSD with the existing firmware.

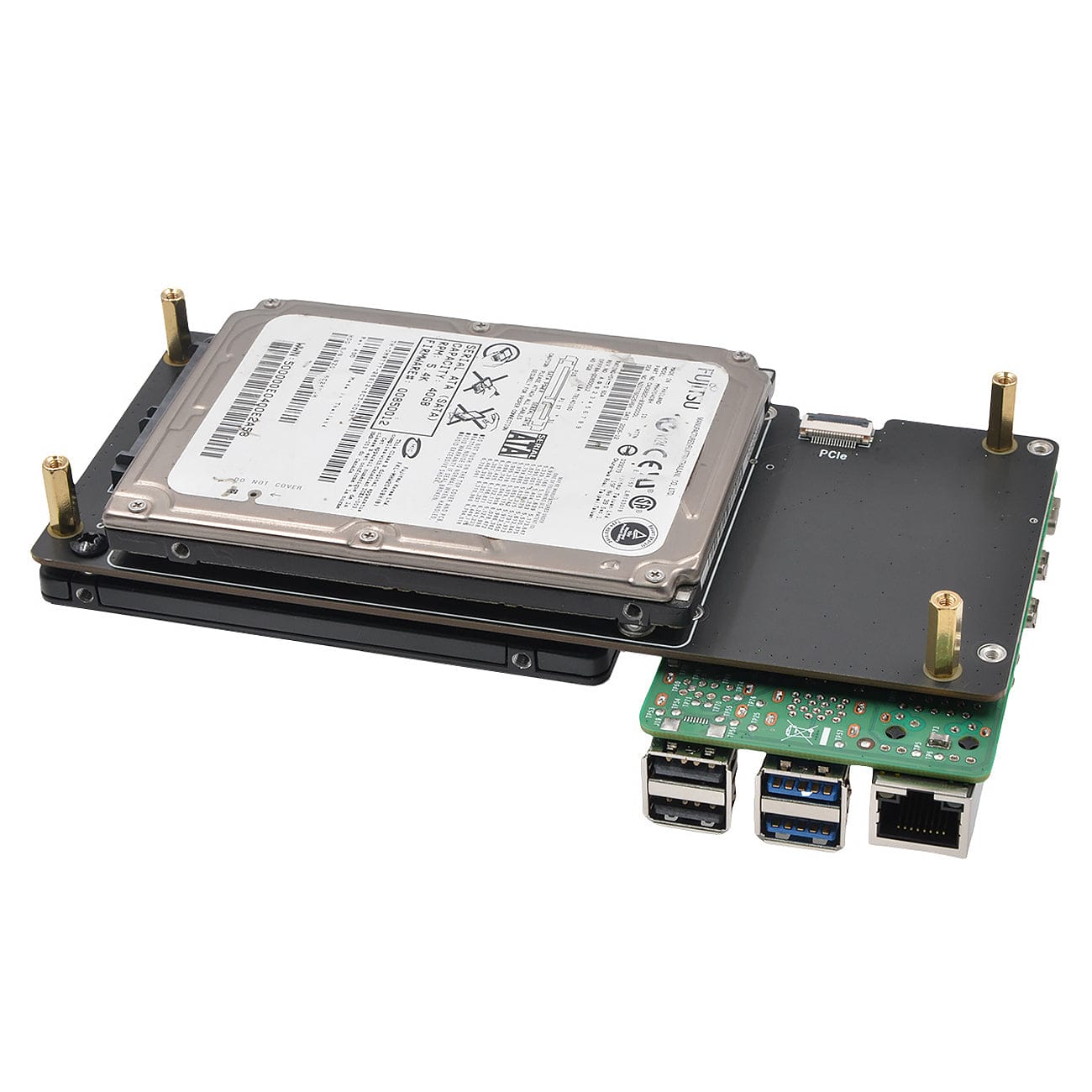

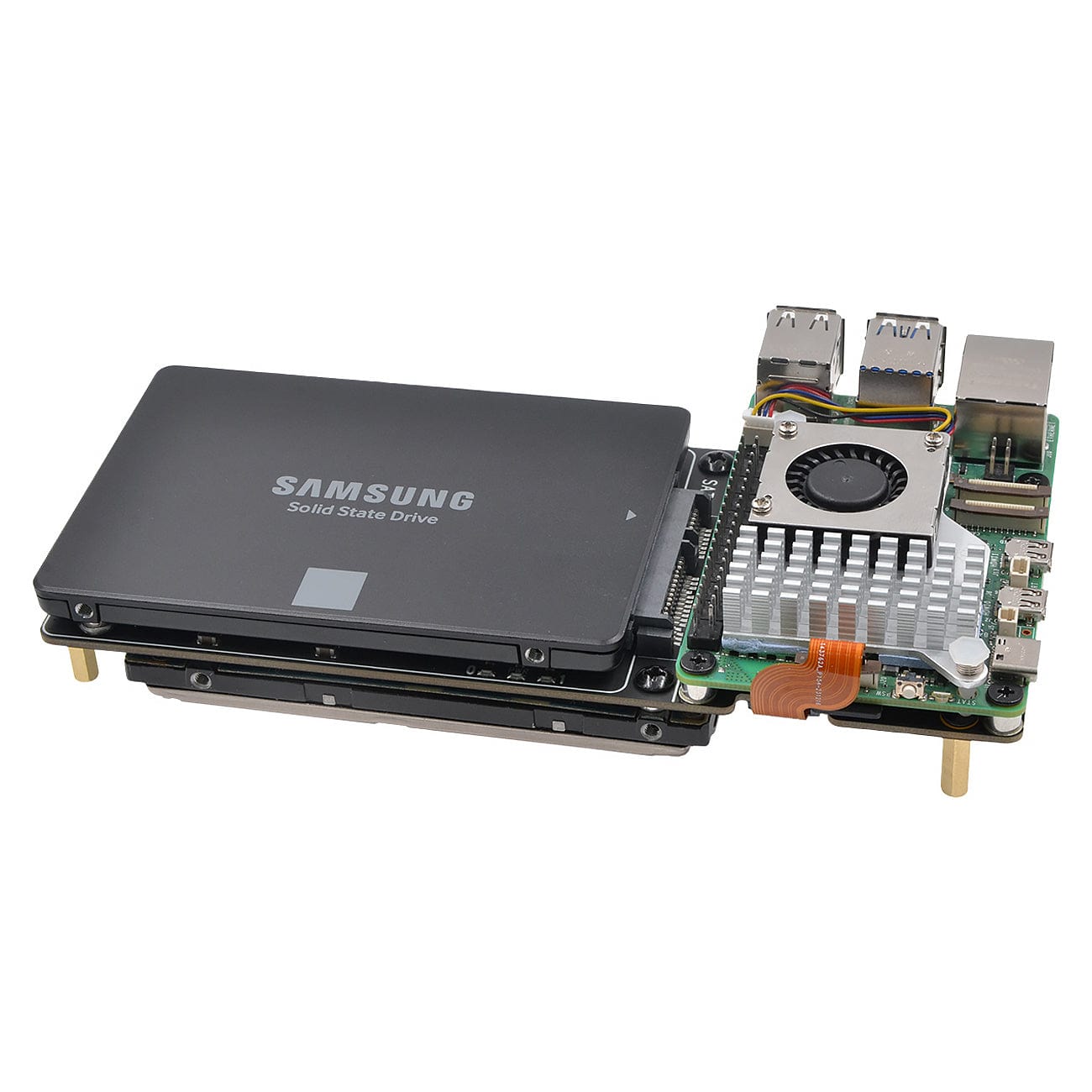

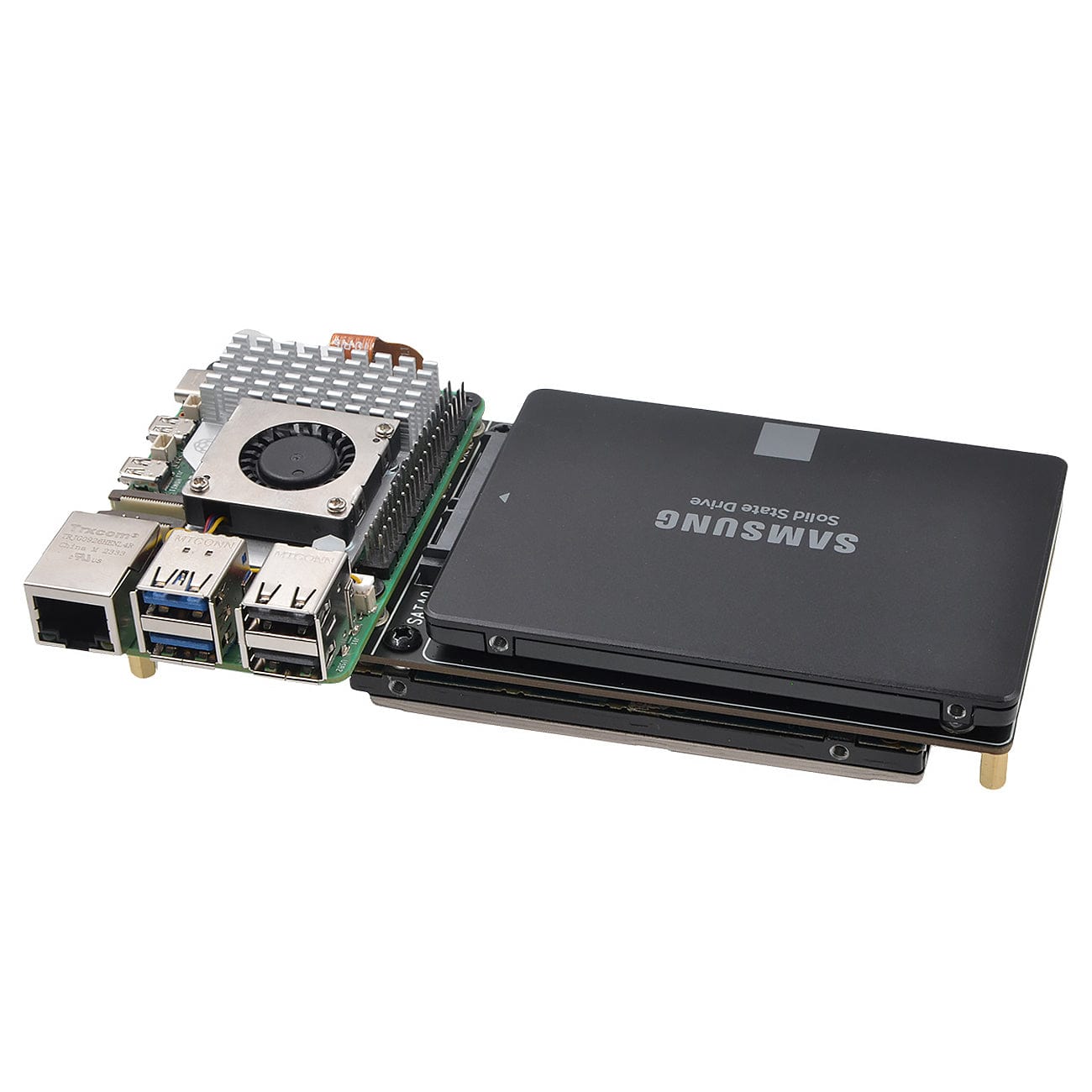

The X1007 connects to the underside of the Raspberry Pi 5, eliminating the need for a passthrough for the GPIO. This means you can use your favourite HATs while also utilising this expansion board. The X1007 and your SSDs/HDDs can be powered from Raspberry Pi 5 via chunky pogo pins, using your single USB-C power supply for everything.

The X1007 serves as the perfect storage solution for establishing a home media centre or constructing a network-attached storage (NAS) system.

SSDs, Raspberry Pi and Active Cooler not included

Features

  • Compatible with Raspberry Pi 5
  • Supports the connection of two 2.5" HDD/SSD to your Raspberry Pi 5 simultaneously
  • Supports up to 4TB + 4TB 2.5" SATA disk drives (HDDs/SSDs)
  • Compliant with the Serial ATA 3.0 specification, with backward compatibility to SATA 2.0 and SATA 1.0
  • Adheres to the PCI-Express v2.0 specification and is backward compatible with PCI-Express v1.0
  • Supports communication speeds of 5.0 Gbit/s, 3.0 Gbit/s, and 1.5 Gbit/s
  • Compatible with SATA 6G, 3G, and 1.5G hard drives
  • LED indicators display power and drive status
  • Powered from Raspberry Pi 5 via pogo pins
  • Compatible with the Raspberry Pi Active Cooler
  • Supports the HAT+ STANDBY power state, automatically turning off SATA devices when the Pi 5 is powered down

The X1007 is designed for data storage purposes and does not currently support booting from HDD/SSD with the existing firmware.

Specifications

Power supply 5Vdc ±5% ≥3A via FFC & pogo pins
Ports & connectors PCIe connector ×1 – 16-pin pitch 0.5mm
SATA connectors ×2 – 7+15P
PCIe FFC cable length 37mm
PCB size 164.5mm × 71.85mm

Resources

    Package Contents

    • 1x SupTronics X1007 Dual SATA Expansion for Raspberry Pi 5
    • 1x 37mm PCIe cable
    • 1x Screw pack

    SSDs, Raspberry Pi and Active Cooler not included
