SupTronics X1006 2.5" SATA + M.2 SATA Expansion for Raspberry Pi 5

The SupTronics X1006 2-Port 2.5"+ M.2 SATA Expansion for Raspberry Pi 5 supports one 2.5" SATA SSD/HDD and one M.2 2280 SATA SSD at up to 5Gbps via PCIe. Fits under the Pi 5, preserves GPIO access, and powers from pogo pins.

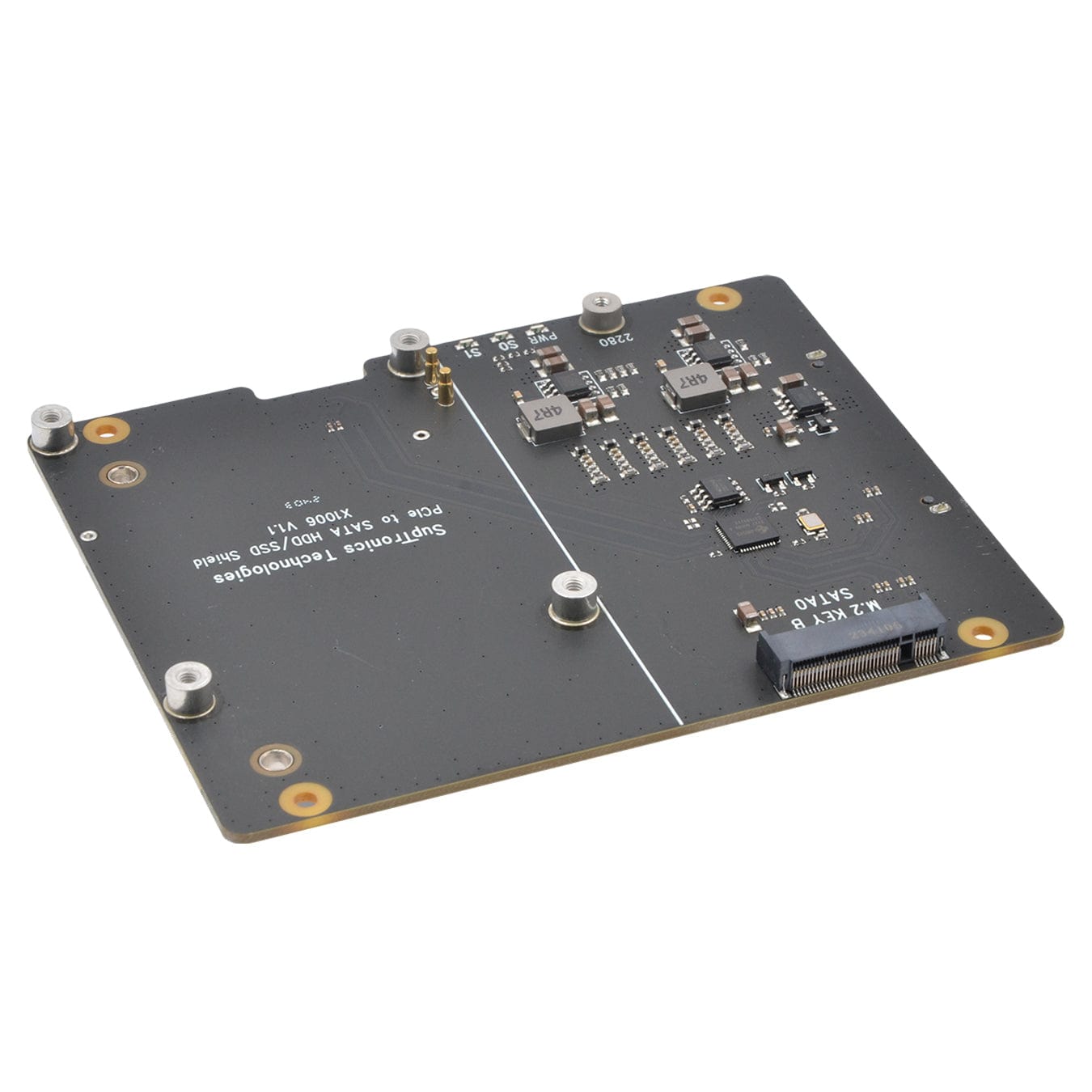

Introducing the SupTronics X1006 2-port (2.5" SATA + M.2 SATA) Expansion, designed to provide a mass-capacity data storage and high-speed storage solution via PCIe, for your Raspberry Pi 5.

Note: does not currently support booting from SSD with the existing firmware.

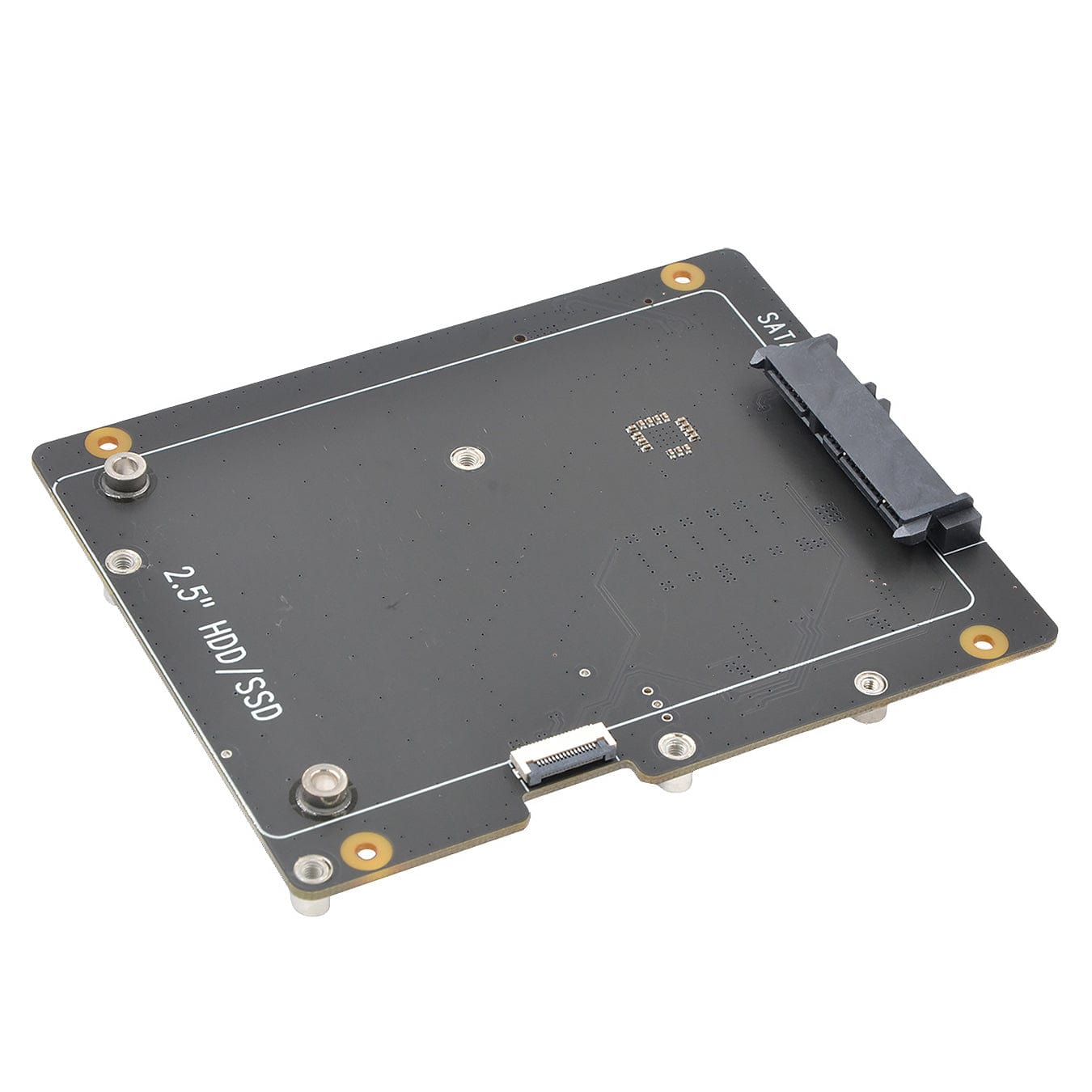

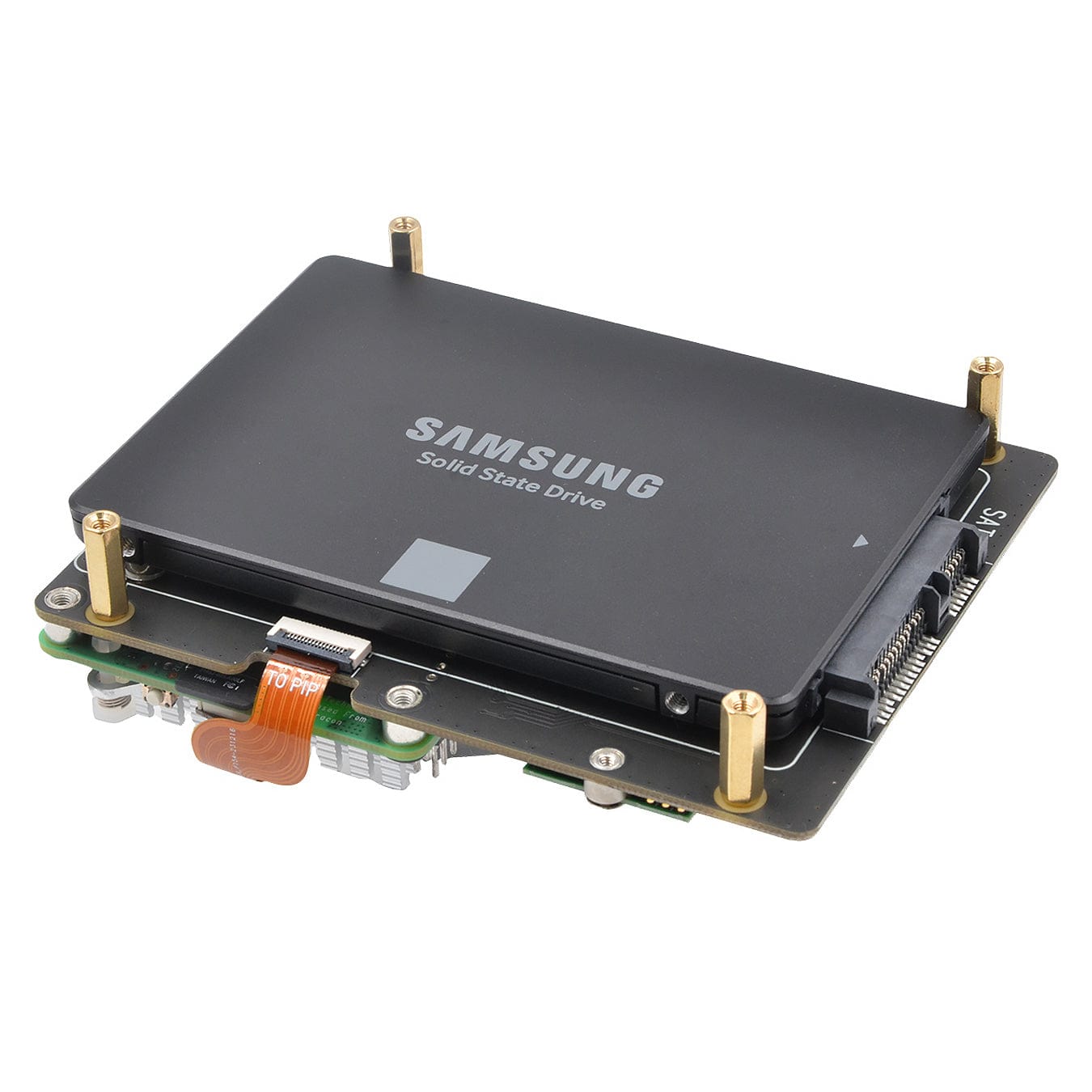

This board facilitates the simultaneous connection of a 2.5" SATA SSD (or HDD) and an M.2 2280 SATA SSD (NOT NVMe), unleashing the full potential of your storage capabilities, with SATA 3.0 interface speeds reaching up to 5Gbps - allowing you to use those SATA drives you have lying around!

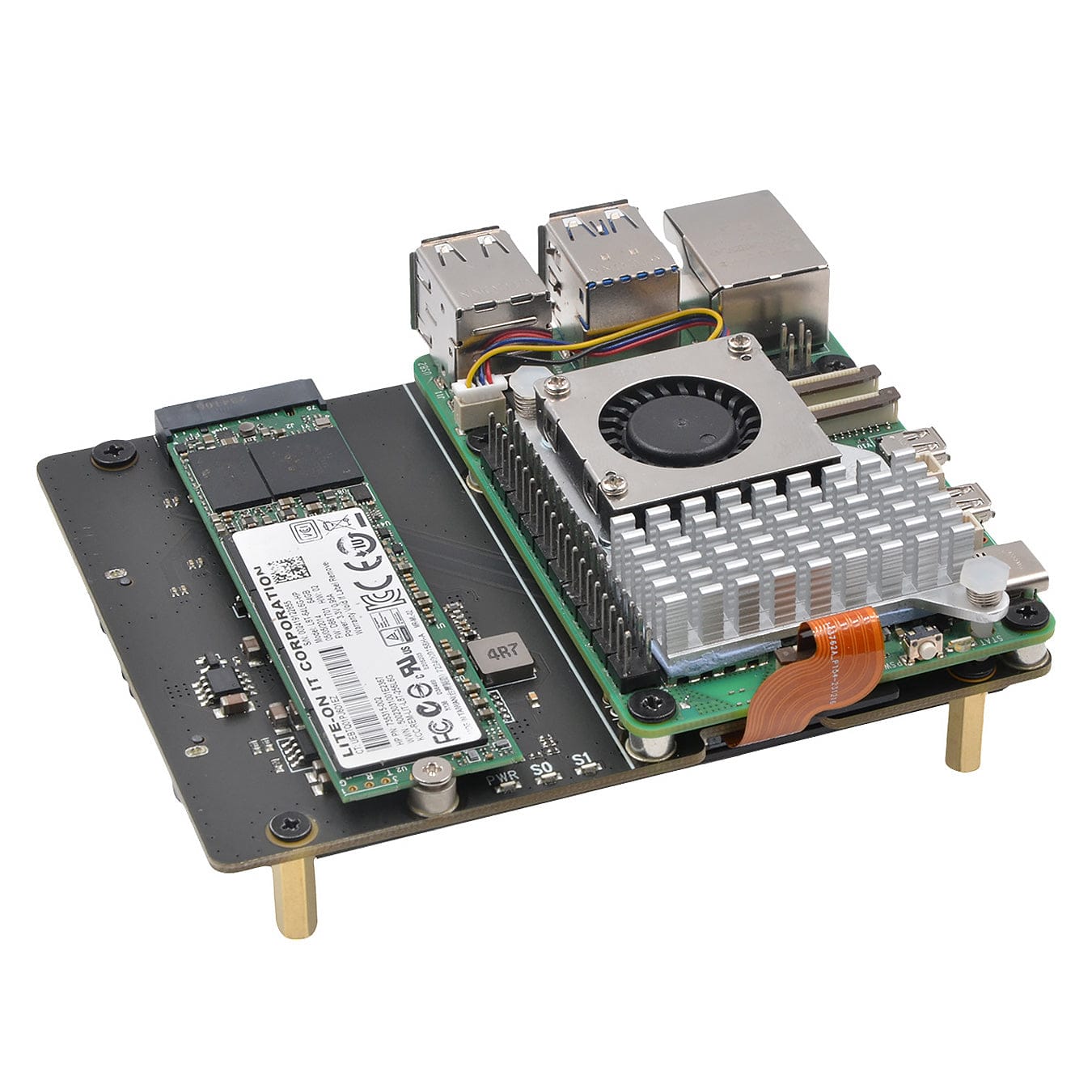

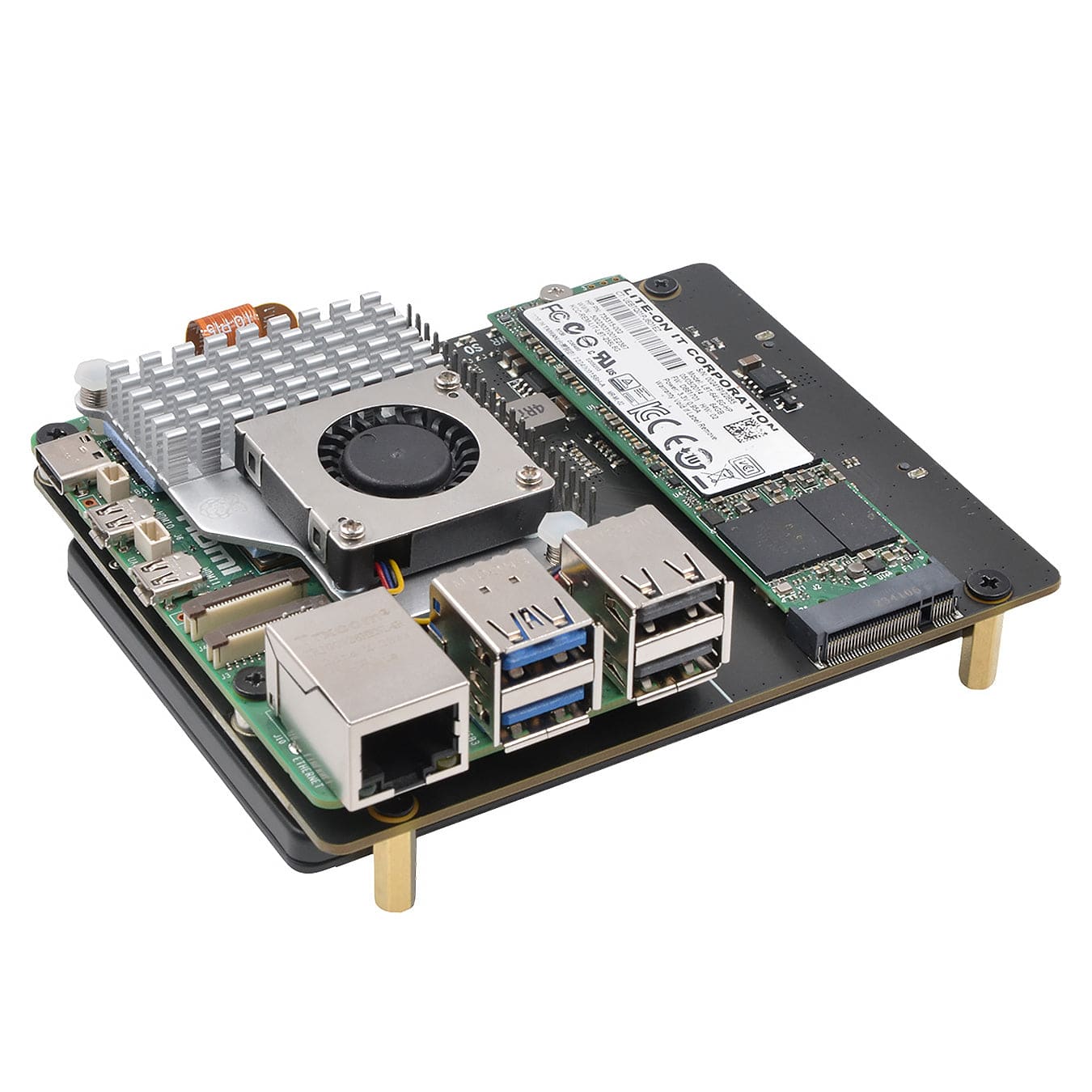

The X1006 connects to the underside of the Raspberry Pi 5, eliminating the need for a passthrough for the GPIO. This means you can use your favourite HATs while also utilising this expansion board. The X1006 and your SSDs/HDDs are powered from Raspberry Pi 5 via chunky pogo pins, using your single USB-C power supply for everything.

The X1006 serves as the perfect storage solution for establishing a home media centre or constructing a network-attached storage (NAS) system with a Raspberry Pi 5.

SSDs, Raspberry Pi and Active Cooler not included

Features

• Compatible with Raspberry Pi 5
• Supports the connection of a 2.5" SATA SSD/HDD and an M.2 2280 SATA SSD to your Raspberry Pi 5 simultaneously
  • Does not support M.2 NVMe SSDs
• Supports up to 4TB (2.5" SSD/HDD) + 2TB (M.2 2280 SSD) SATA disk drives
• Compliant with the Serial ATA 3.0 specification, with backwards compatibility to SATA 2.0 and SATA 1.0
• Adheres to the PCI-Express v2.0 specification and is backwards compatible with PCI-Express v1.0
• Supports communication speeds of 5.0 Gbit/s, 3.0 Gbit/s, and 1.5 Gbit/s
• Compatible with SATA 6G, 3G, and 1.5G hard drives

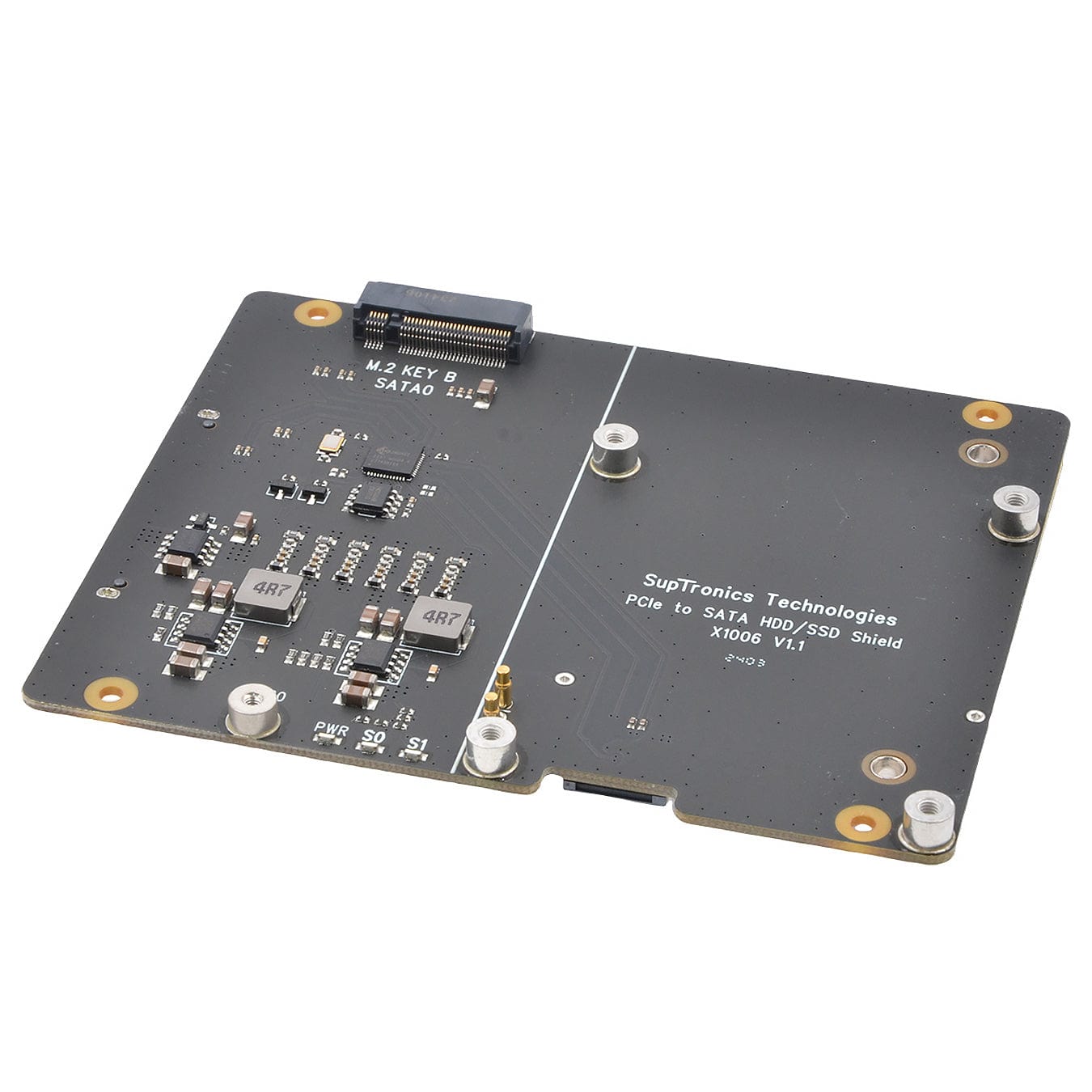

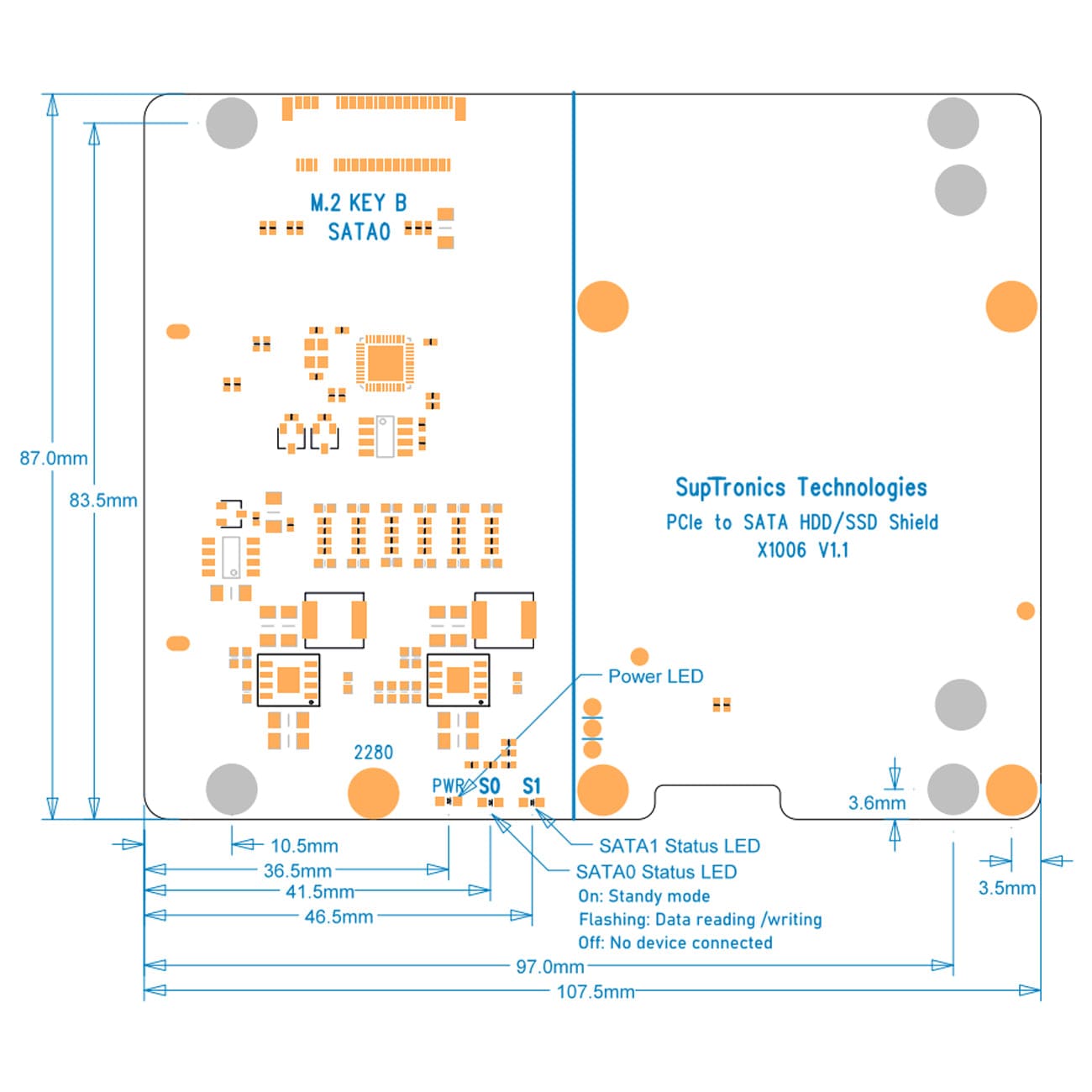

• LED indicators display power and drive status
• Powered from Raspberry Pi 5 via pogo pins
• Compatible with the official active cooler
• Supports the HAT+ STANDBY power state, automatically turning off SATA devices when the Pi 5 is powered down

The X1006 is designed for data storage purposes and does not currently support booting from SSD with the existing firmware.

Specifications

Resources

• Software setup/tutorials
• Hardware information and assembly

Package Contents

• 1x SupTronics X1006 2-port SATA Expansion for Raspberry Pi 5
• 1x 37mm PCIe cable
• 1x Screw pack

SSDs, Raspberry Pi and Active Cooler not included
