The XIAO RA4M1 is a small development board based on the 32-bit Renesas RA4M1 microcontroller (as seen on the popular Arduino UNO R4) ,making it perfect for compact projects.

Powered by the ARM® Cortex®-M4 MCU with FPU, it operates at up to 48 MHz, and comes with 256 KB of Flash memory and 32 KB of SRAM, providing enough resources for a wide range of projects.

This board has a 14-bit ADC, 12-bit DAC, CAN BUS, USB 2.0, and an RGB LED, allowing you to handle both basic and complex tasks. The expanded 19 GPIOs, including 8 new IO pins on the back, provide additional flexibility for more complex projects compared to previous XIAO boards.

With built-in hardware encryption, secure boot, and key storage ensure that your projects are protected. Fully compatible with the Arduino IDE, the XIAO RA4M1 offers an easy development experience, making it ideal for quick prototyping and project development. Whether you're building IoT devices, smart gadgets, or tricky embedded systems, this board gives you the power and flexibility you need in a tiny form.

Features

  • Microcontroller: Powered by Renesas RA4M1, a 32-bit ARM® Cortex®-M4 R7FA4M1AB3CFM MCU operating at up to 48 MHz with FPU, 256 KB of Flash memory, and 32 KB of SRAM.
  • Highlighted Resources: Equipped with a 14-bit ADC, 12-bit DAC, CAN BUS, USB 2.0, and an onboard RGB LED.

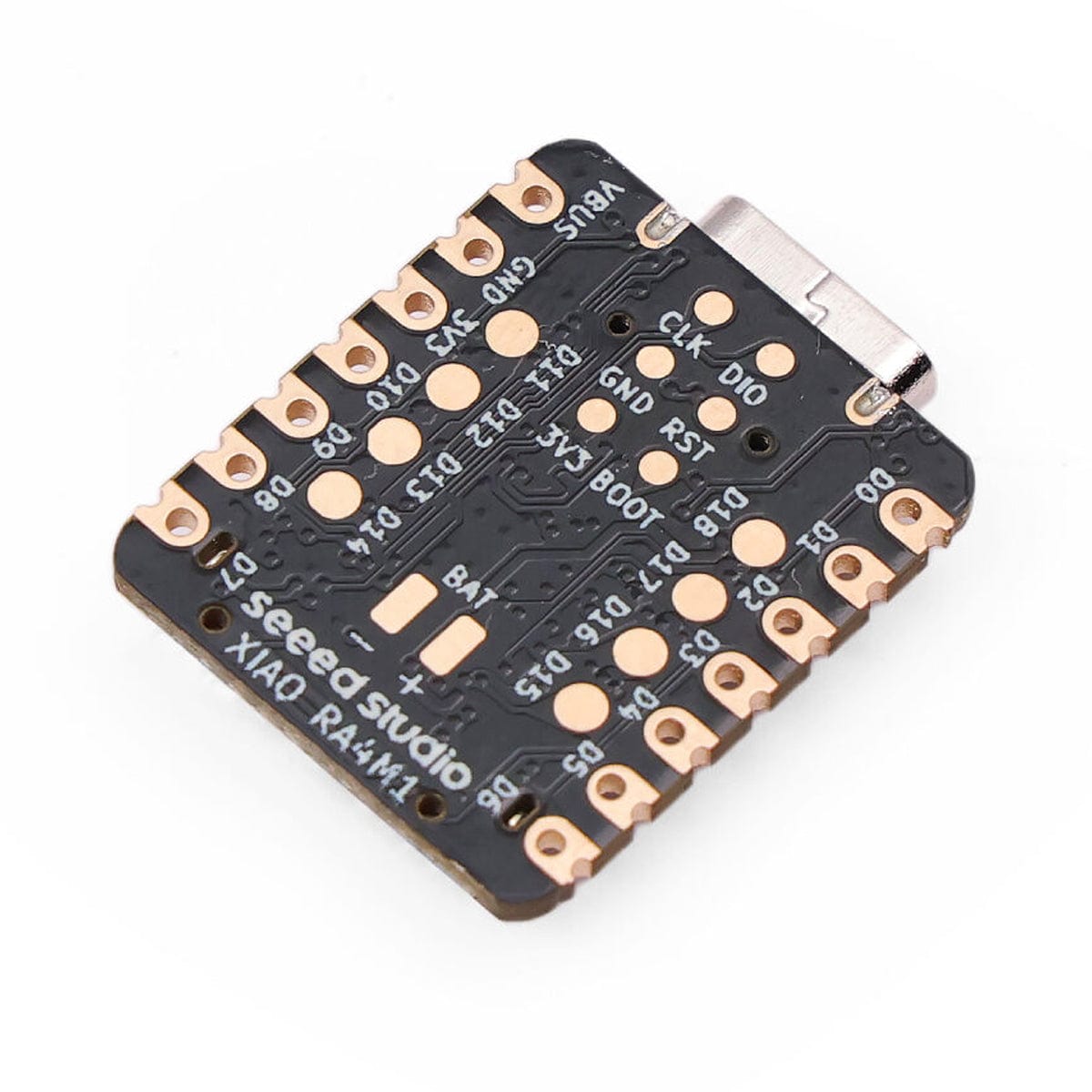

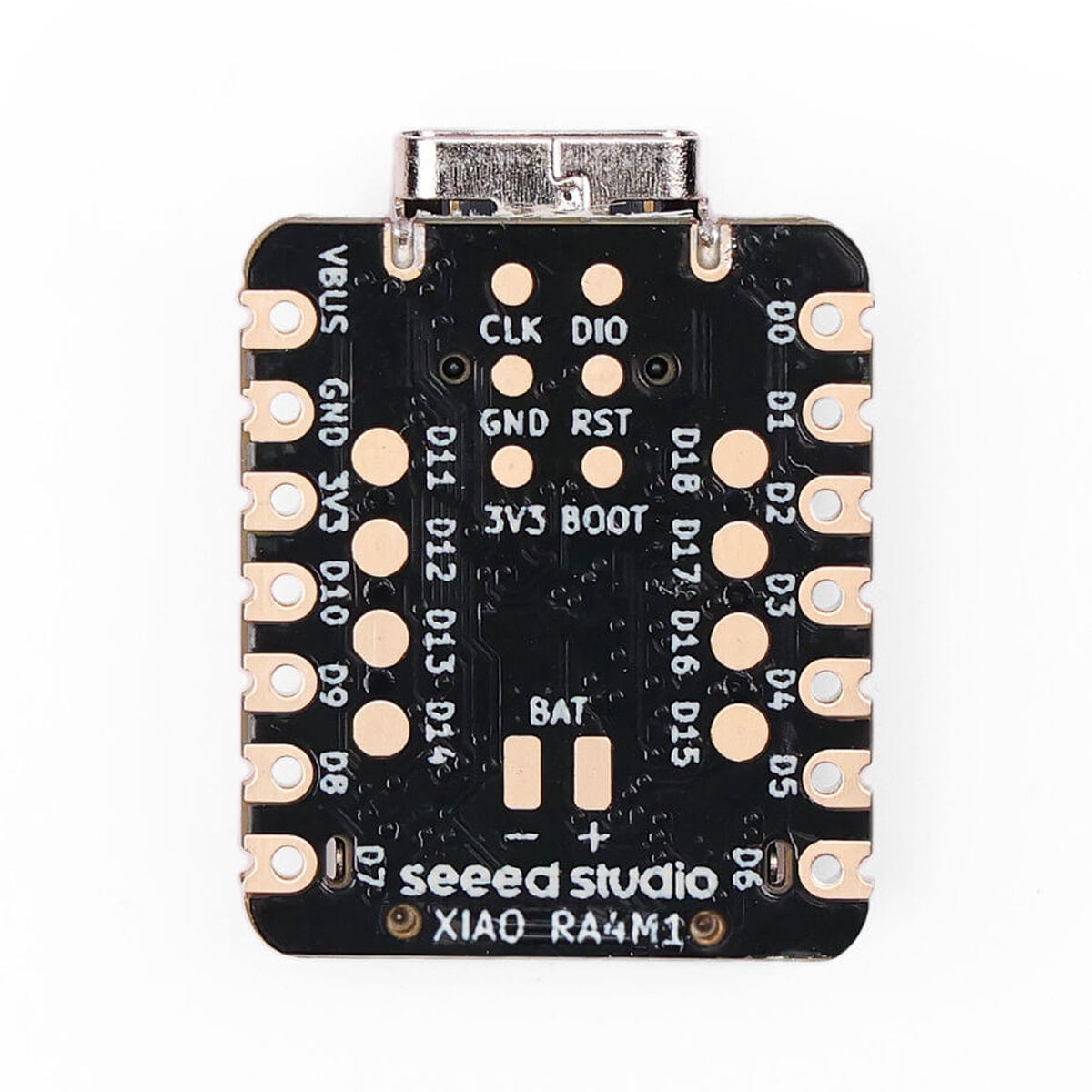

  • 8 New IOs: Added 8 new IO pins on the back compared to previous XIAO boards (19 GPIOs in total), enabling more complex applications.
  • Powerful Security Features: Built-in hardware encryption, secure boot, key storage, and other functions to ensure application security.
  • Software Compatibility: Fully compatible with Arduino IDE for seamless project development and prototyping.
  • Power Design: Offers 4 operating modes with power consumption as low as 45μA in deep sleep, and supports lithium battery charge management.

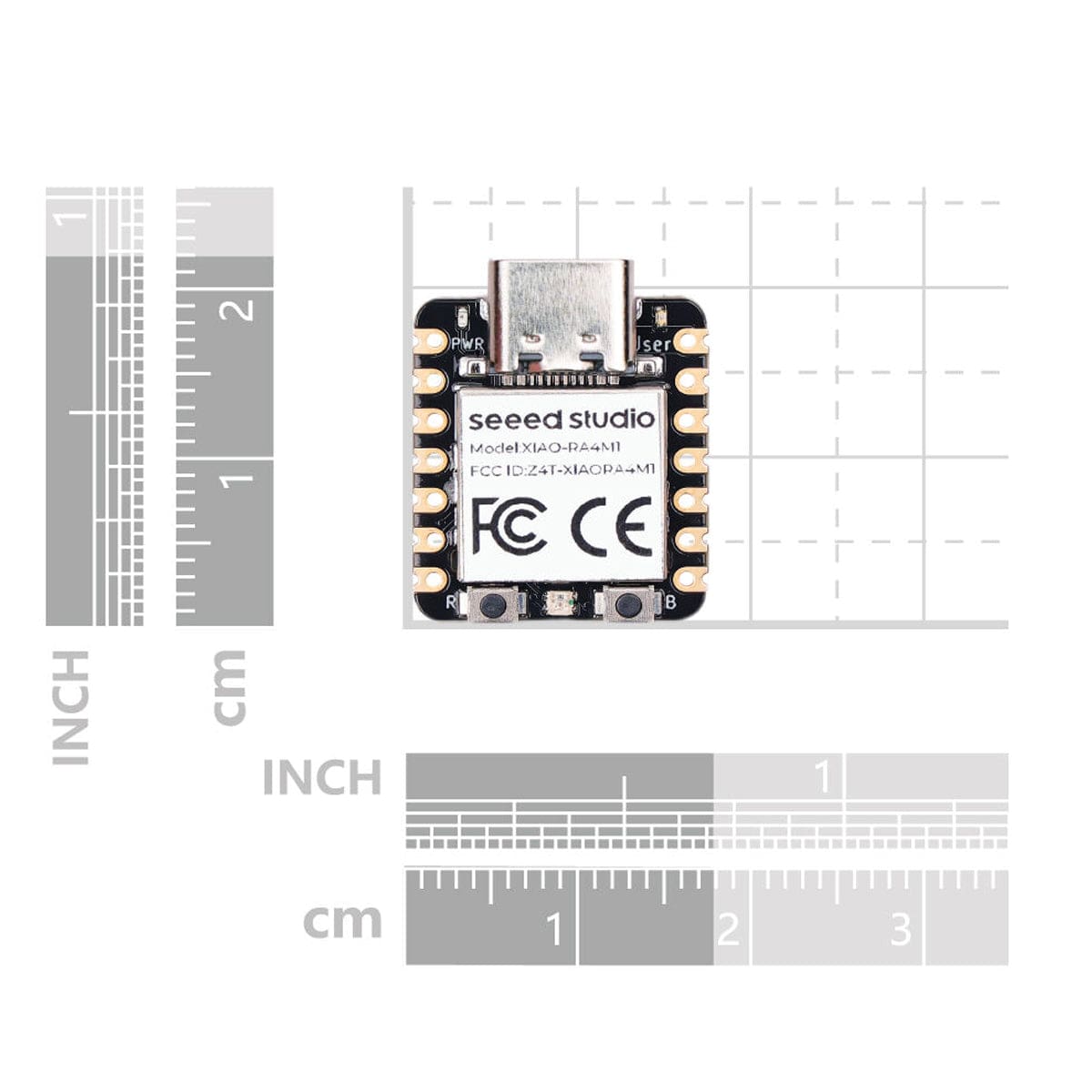

  • Compact Thumb-Sized Design: Measuring 21 x 17.8mm, adopting Seeed Studio's classic XIAO form factor, ideal for space-conscious applications.
  • Production-Friendly: Surface Mount Device (SMD) design with all components on the front and stamp holes on both sides, facilitating efficient mass production.
  • Product Number: Seeed 102010551

What's on Board

Specifications

Processor Renesas RA4M1
48-MHz Arm® Cortex®-M4 Core with FPU
RAM 32 KB SRAM
Flash 256 KB
LEDs 1 User LED, 1 Power LED, 1 RGB LED
Interfaces 19 IOs:
14x Analogue, 19x Digital, 2x IIC, 2x UART, 2x SPI
Buttons 1 RESET Button, 1 BOOT Button
Security AES128/256
Low Power 45μA
Software Compatibility Arduino IDE
Working Temperature -20°C to -70°C
Dimensions 21 x 17.8 mm

Resources

Pinout

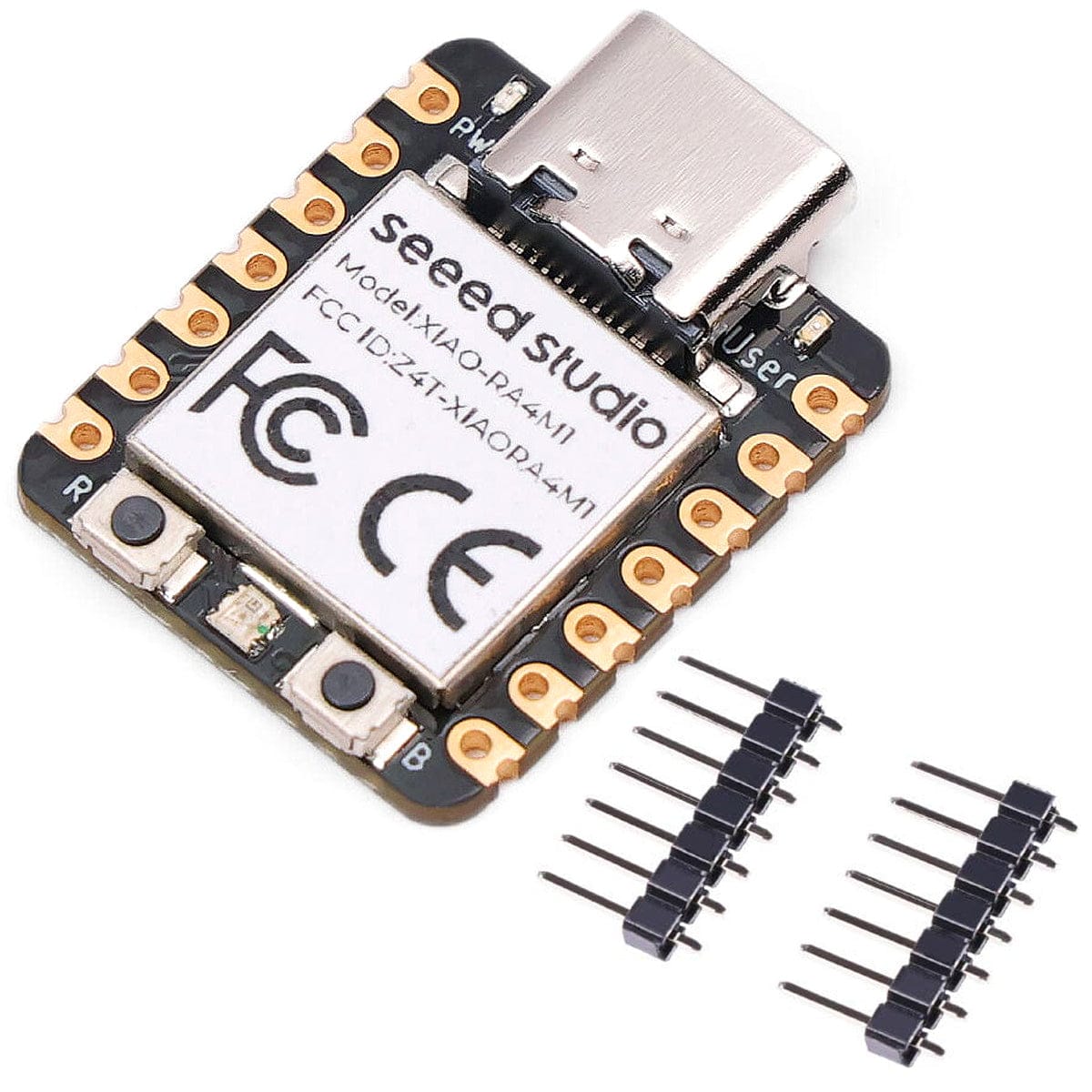

Package Contents

  • 1x XIAO RA4M1
  • 2x 7-pin Header
