XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic & LoRa
Price:
Sale price
£10.90
Stock:
Quantity:
Awesome Extras

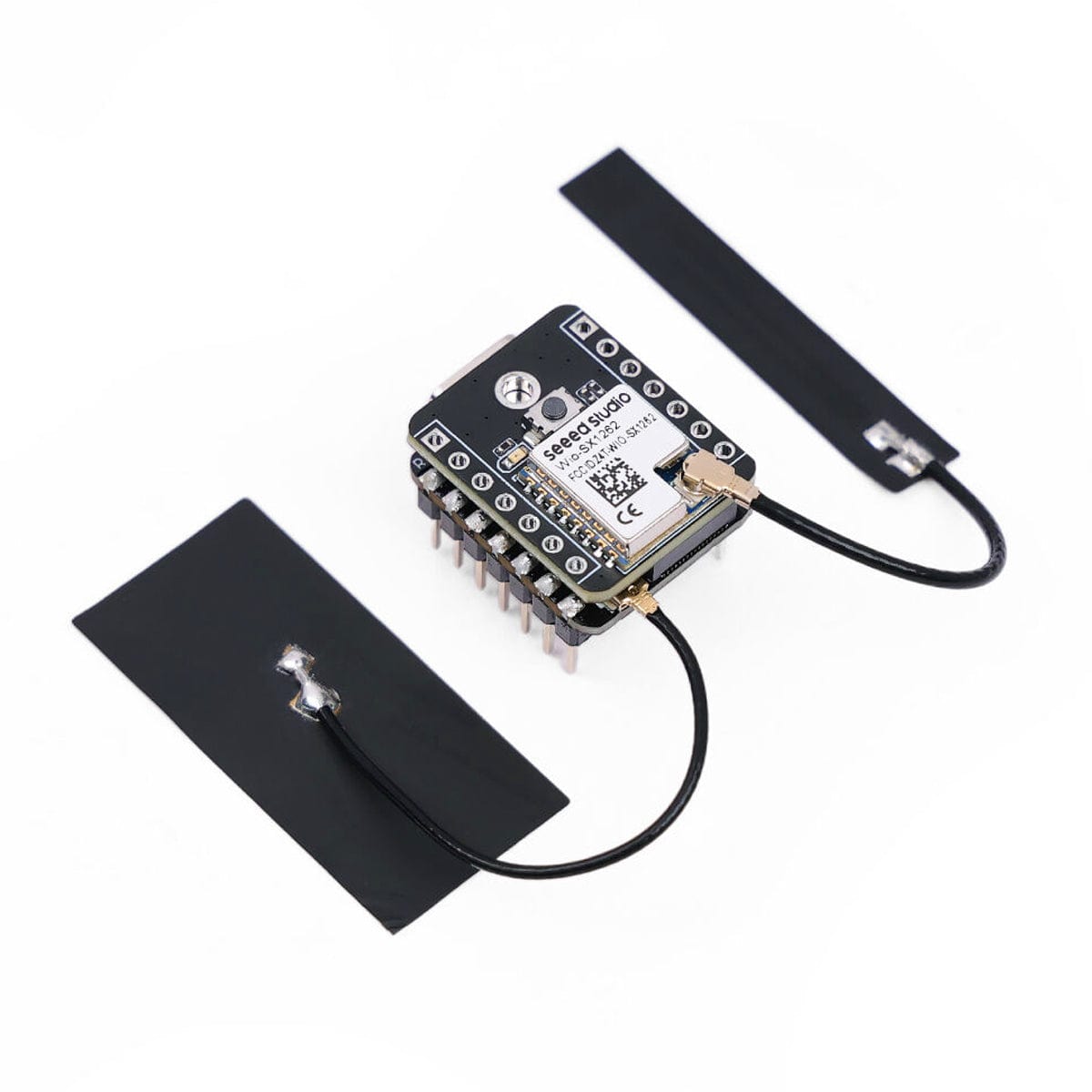

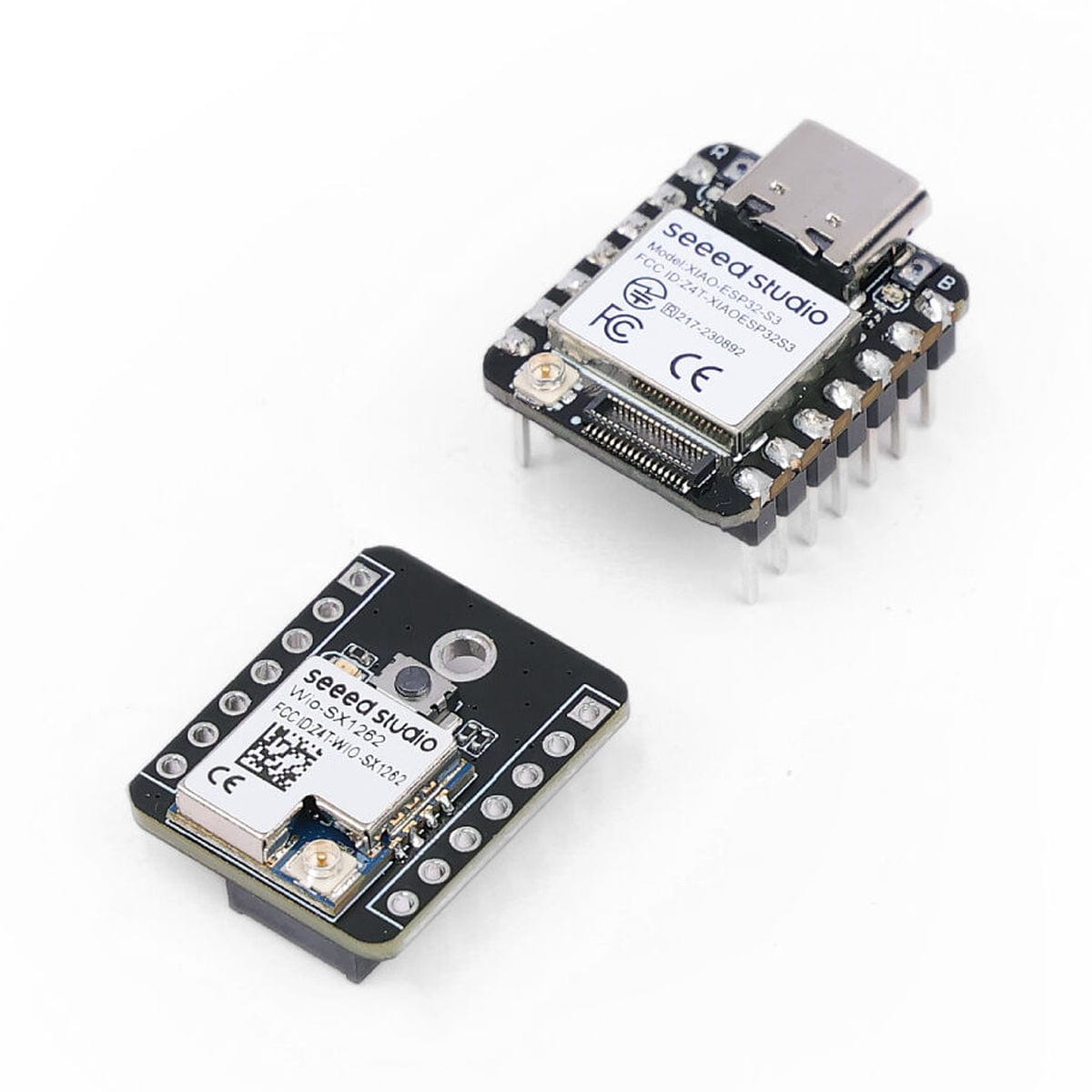

This is an ideal starter kit for any Meshtastic and LoRa/LoRaWAN projects! The kit combines the XIAO ESP32S3 microcontroller with the Wio-SX1262 LoRa module to add Wi-Fi, Bluetooth Low Energy (BLE), and LoRa, which opens up the possibilities to what you can create next! This added wireless connectivity makes it ideal for various Internet of Things (IoT) projects. It is compatible with the XIAO Expansion Board for adding screens and sensors, and you can also add Grove sensors via the Grove Expansion Board.
The XIAO ESP32S3 has a dual-core Xtensa 32-bit LX7 processor running at up to 240 MHz, and this processing power is great for trickier tasks. It includes 8MB of Flash and 8MB of PSRAM, giving sufficient memory for program storage and performance. The board supports multiple development environments, including Arduino and MicroPython, ideal for those with different programming preferences. There's also a lithium battery charger and a USB-C connector for power.
The Wio-SX1262 LoRa module goes from 862 to a 930 MHz frequency range, providing long-range communication with low power consumption. It comes pre-flashed with Meshtastic firmware, letting you use it as soon as it is powered on. It includes a built-in power management chip and can be extended via I²C, UART, and other GPIO interfaces, giving you more room for hardware expansions.
Features
- Meshtactic works out of the box: Pre-flashed with Meshtastic firmware, it is ready to work once powered on.
- Supports LoRa(862-930MHz) 2.4GHz Wi-Fi and BLE 5.0 dual wireless communication, support 2~5km(LoRa) and 100m+(Wi-Fi/BLE) remote communication when connected with U.FL antenna.
- 21 x 18mm, adopting the classic form factor of XIAO, suitable for space-limited projects like wearable devices.
- ESP32S3 32-bit, dual-core, Xtensa processor running at up to 240MHz, mounted multiple development ports, Arduino / MicroPython supported.
- Includes a Type-C USB interface and lithium battery charge management.
- Can be developed as a Meshtastic node or router, a single-channel LoRaWAN gateway, or a LoRa & LoRaWAN sensor.
- Product Number: Seeed 102010611
What's on Board (XIAO ESP32-S3)
Specifications
| ESP32S3 | ESP32-S3R8, Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz |
| LoRa | Based on Semtech SX1262, supports 862-930MHz, |
| BLE | Bluetooth 5.0, Bluetooth mesh |
| Wi-Fi | Complete 2.4GHz Wi-Fi subsystem |
| Interface | ESP32S3 |
| 1x UART, 1x IIC, 1x IIS, 1x SPI(connect to SX1262),11x GPIO(PWM) 9x ADC, 1x User LED, 1x Charge LED, 1x Reset button, 1x Boot button |
|
| Wio-SX1262 | |
| 1x User button, 1x SPI (connect to ESP32S3) | |
| Power | Input voltage (Type-C): 5V |
| Input voltage (BAT): 4.2V | |
| Charging battery current: 100mA | |
| Working Temperature | -40°C ~ 65°C |
| Dimensions | 21 x 17.8mm |
Resources

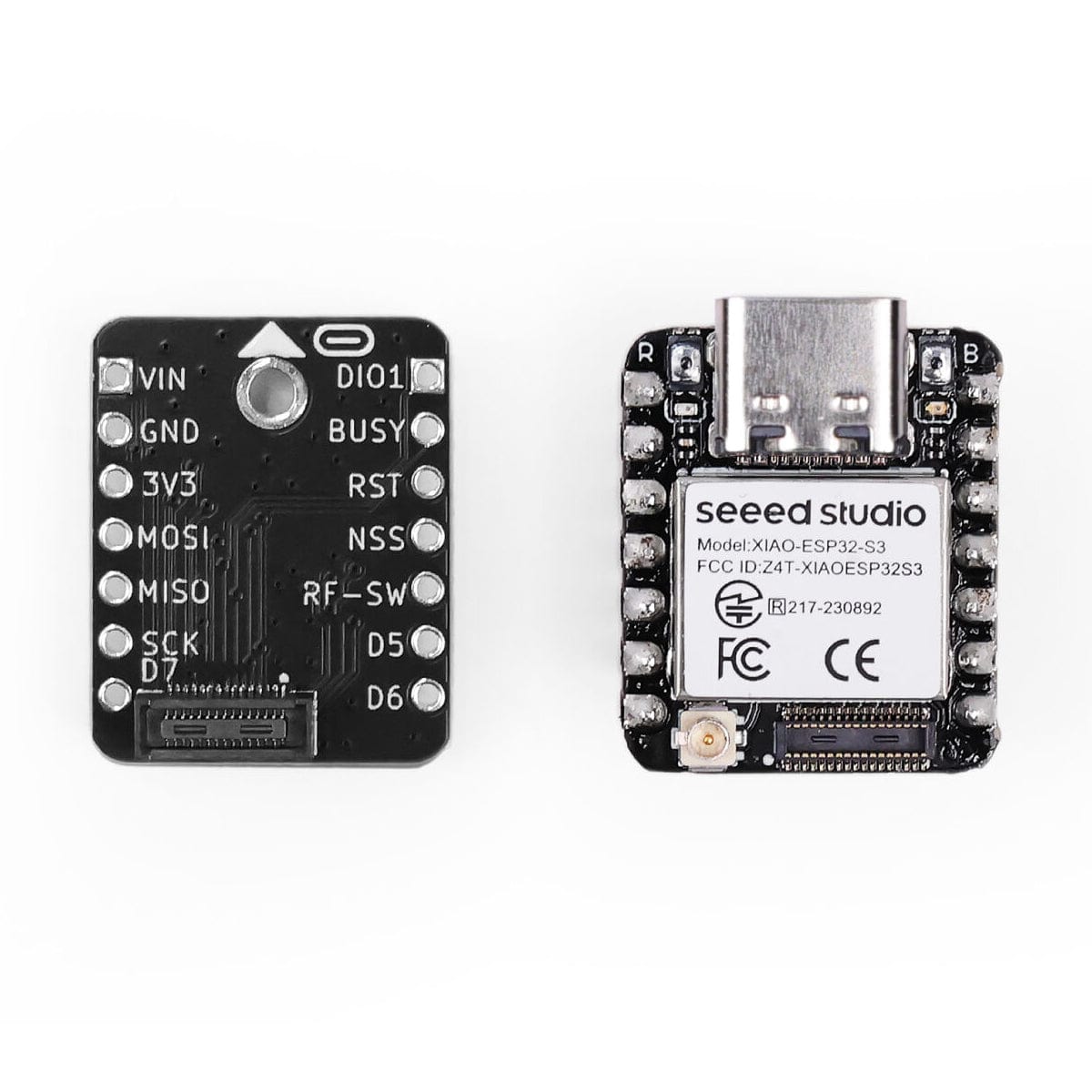

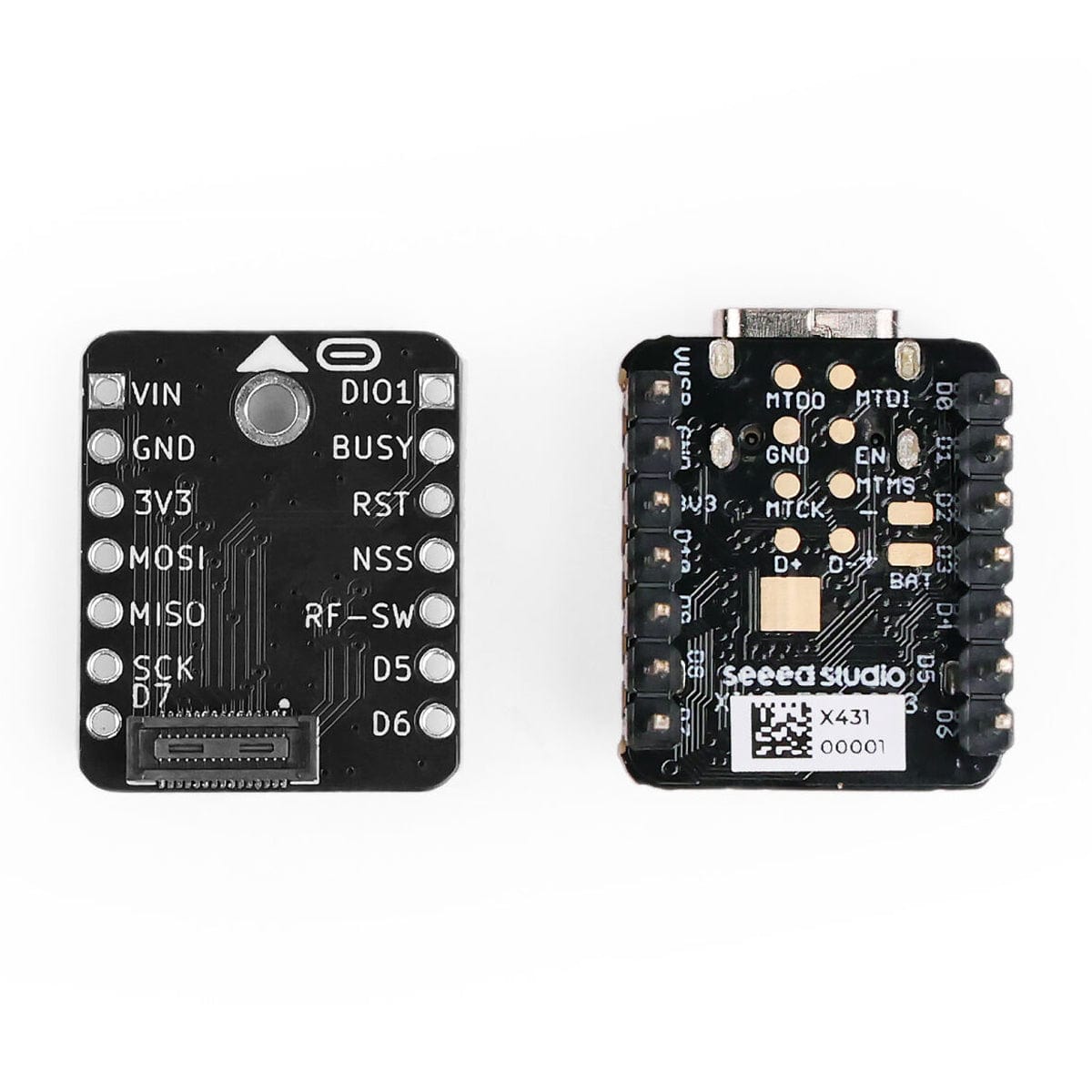

Pinout
XIAO ESP32S3
Wio-SX1262

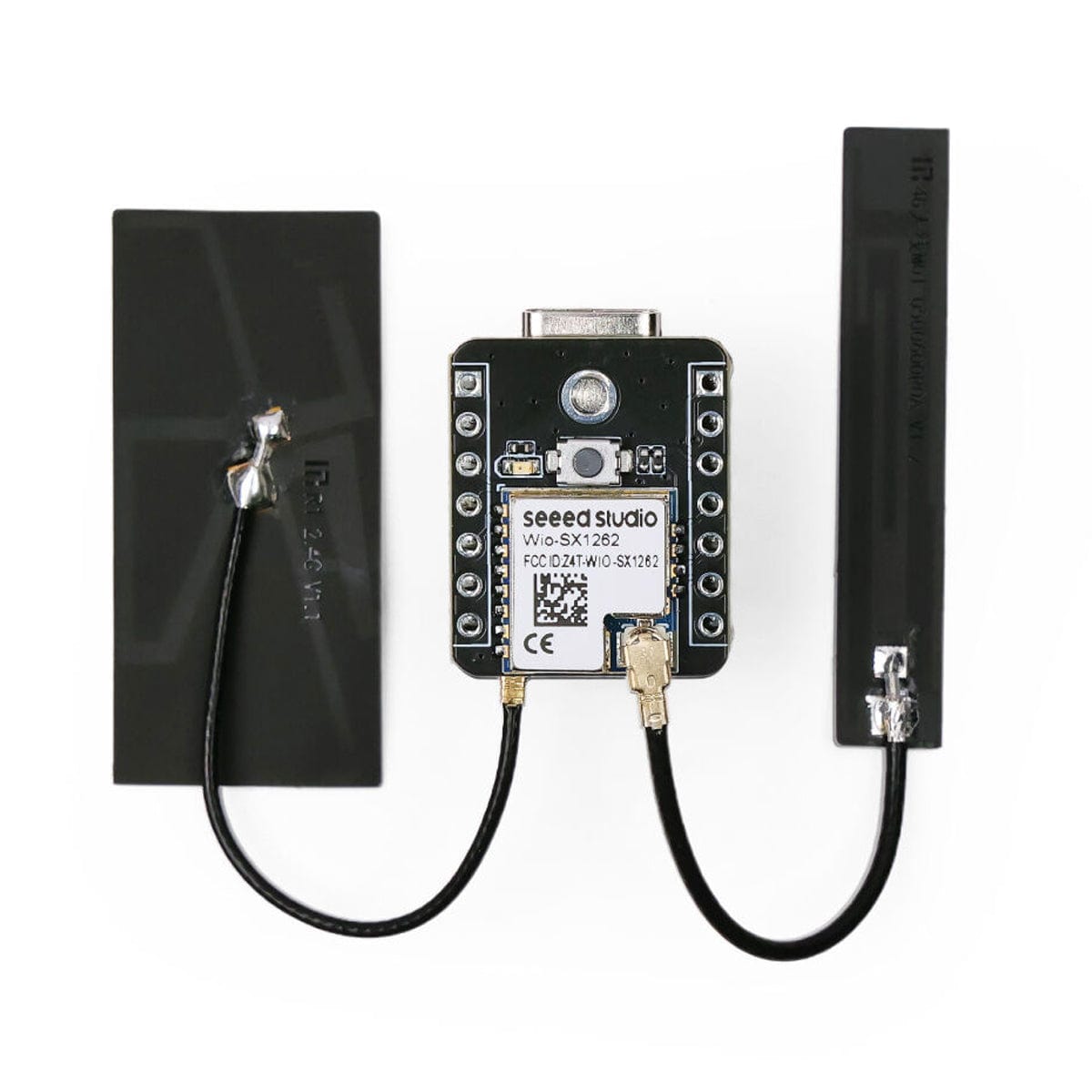

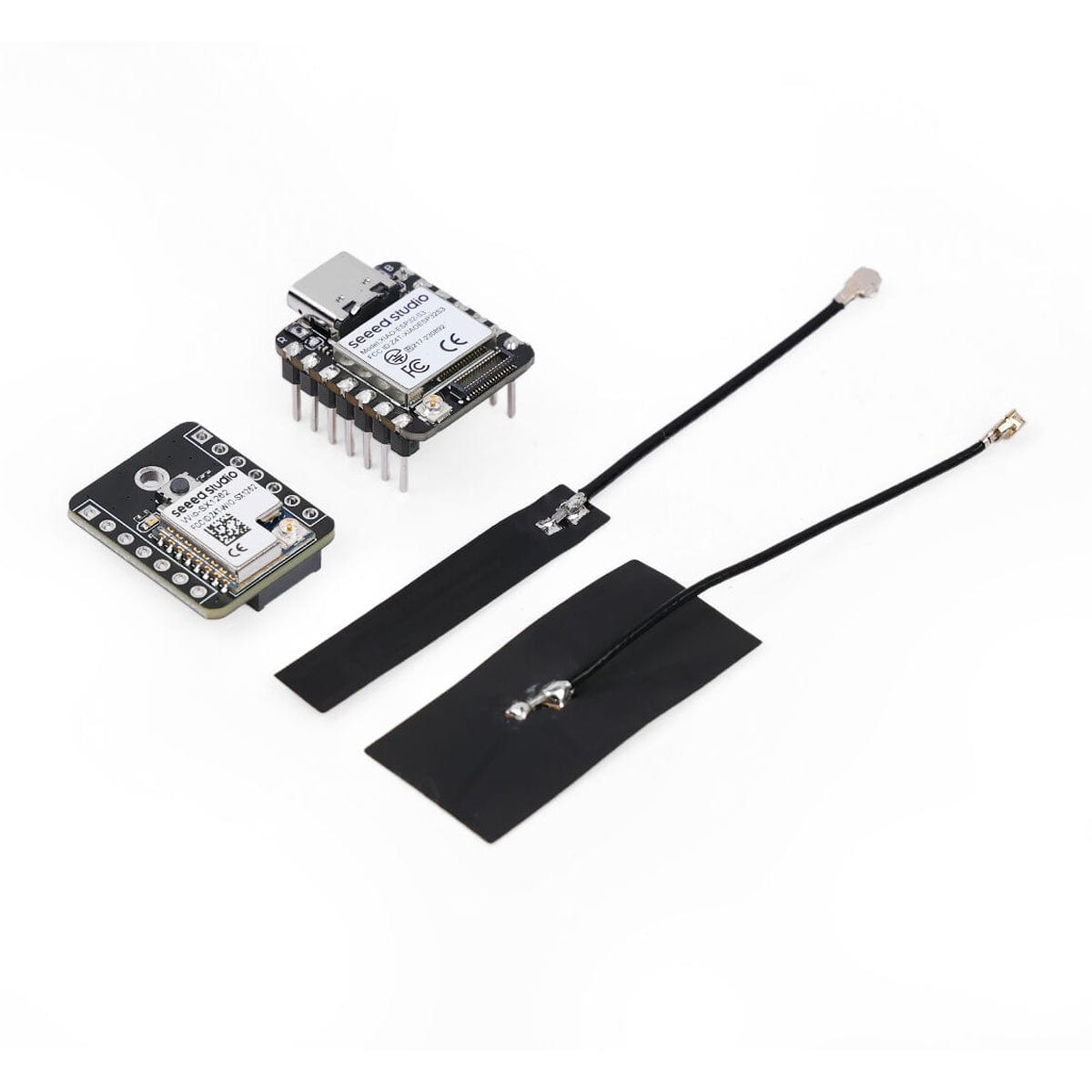

Package Contents
- 1x XIAO ESP32S3
- 1x Wio-SX1262 Extension Board
- 1x Wi-Fi Antenna
- 1x LoRa antenna
Payment & Accreditations
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Accreditations
4.75
Based on 4 reviews
Write Review
Sort
Clear Filters
Order By
Newest First
Oldest First
Most Popular
Highest Rating
Breakdown
3
1
0
0
0
Product Reviews
XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic & LoRa
Excellent radio & MCU combination which works well once set up. However, the tiny form factor is very difficult to work with.
The tiny buttons are hard to see, never mind keep pressed while trying to plug in a cable (required to re-flash the board).
Soldering to such closely-spaced pads and pins is extremely difficult, especially if you are inexperienced or not as young as you used to be!
Attaching the antennas required a lot of force, pliers, a third hand and a lot of care.
1 person found this review helpful.
Was this review helpful?
24 days ago
XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic & LoRa
Great tiny meshtastic radio
Was this review helpful?
25 days ago
XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic & LoRa
This is the perfect cheap and easy way to get onto Meshtastic!
Was this review helpful?
25 days ago
XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic & LoRa
Great little chips, giving a cheap way to get into the meshtastic network - adding IoT into everyday things is now possible without breaking the bank and without having to wire big boxes to everything.
1 person found this review helpful.
Was this review helpful?
2 months ago
