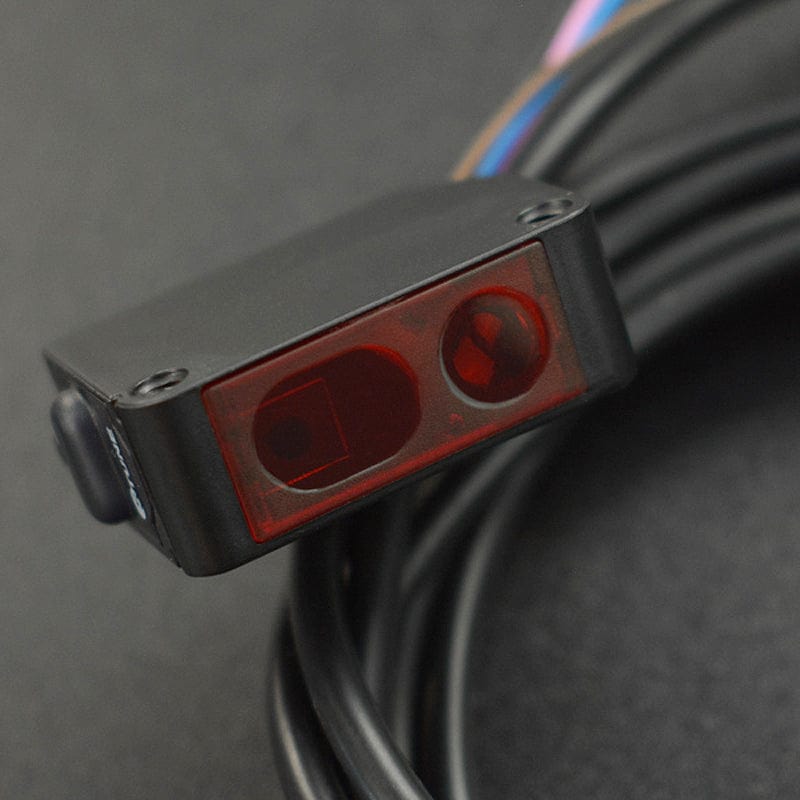

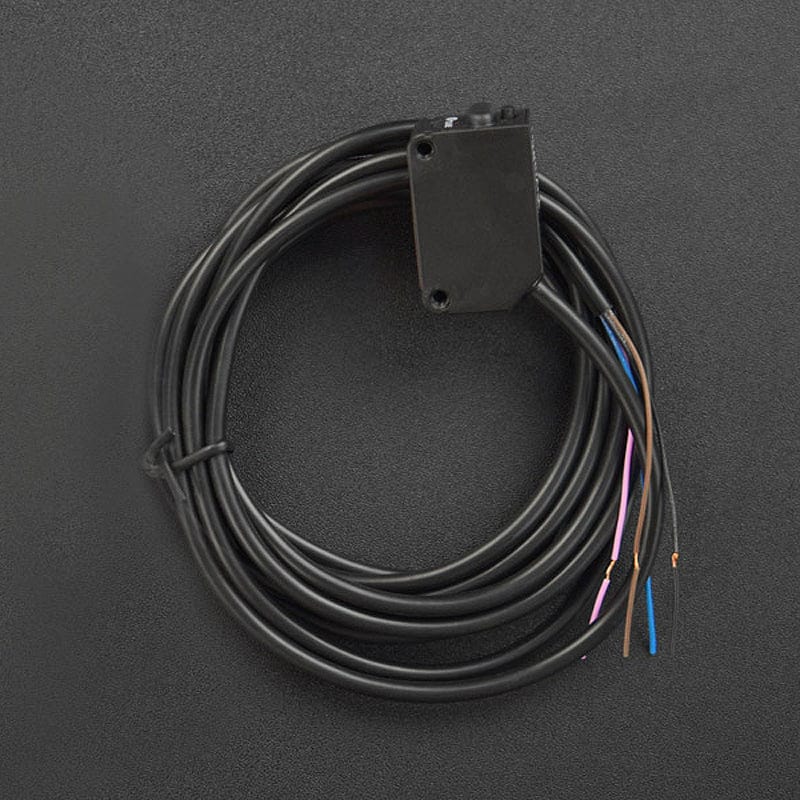

Waterproof Mirror Reflection Photoelectric Sensor Switch (10~100cm)

This photoelectric sensor is able to detect various transparent or semi-transparent objects and operates on a wide voltage range of DC 10V-30V. Typically, it’s used with a reflector and can detect objects within a distance of 10cm to 100cm.

The device is equipped with a learning function button(SmartTune) that allows users to set their sensitivity with the button during initial installation so as to ensure optimal performance. Align the sensor with the reflector, long pressing the SmartTune for over 5s, and release it when the indicators flash alternately, then the setting is successful and users can get the optimal sensitivity.

Lightly pressing SmartTune can switch between normally open and normally closed NPN and PNP types, meeting different scenario requirements. The sensor features short circuit protection, reverse polarity protection, over-current protection, surge protection, and dual independent output protection for safe and reliable use.

Diagram

Features

• Detects various transparent or semi-transparent objects
• Operates on a wide voltage range of DC 10V-30V
• Can detect objects within a distance of 10cm to 100cm when used with a reflector
• Equipped with a learning function button (SmartTune)
• Can switch between normally open and normally closed NPN and PNP types
• Short circuit protection and dual independent output protection

Specifications

• Control Output: 100mA (30V DC)
• Control Input: 10V-30V DC
• Rated Current: 15mA
• Detection Distance: 1000mm
• LED Source: Red spotlight source
• Response Time: 5ms
• Hysteresis: 15%
• Repeatability: 1mm
• Protection Circuit: Reverse polarity protection, over-current protection, surge protection, and dual output independent protection
• Indicators: Orange LED (operation indicator), Green LED (stability indicator)
• Light Spot Diameter: Φ2mm to Φ25mm (gradually increasing from 1mm to 1000mm)
• Operating Environment: -10℃ to 60℃, 35%RH to 65%RH
• IP Rating: IP24

Package Contents

• 1x Mirror-reflection-photoelectric-switch

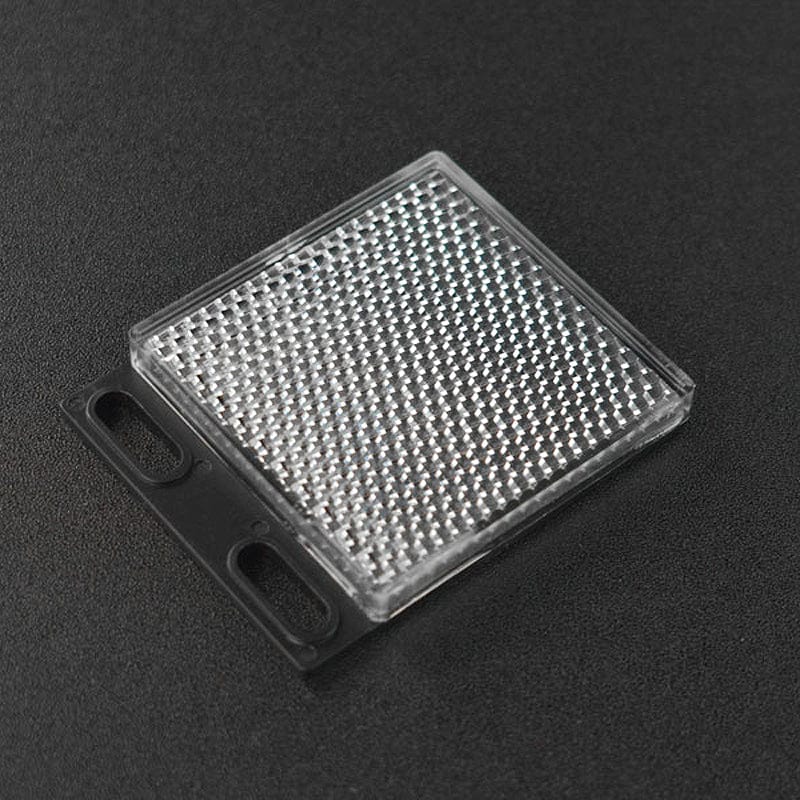

• 1x Reflector
• 1x M3 × 0.5 Screw
• 1x Installation Plate
