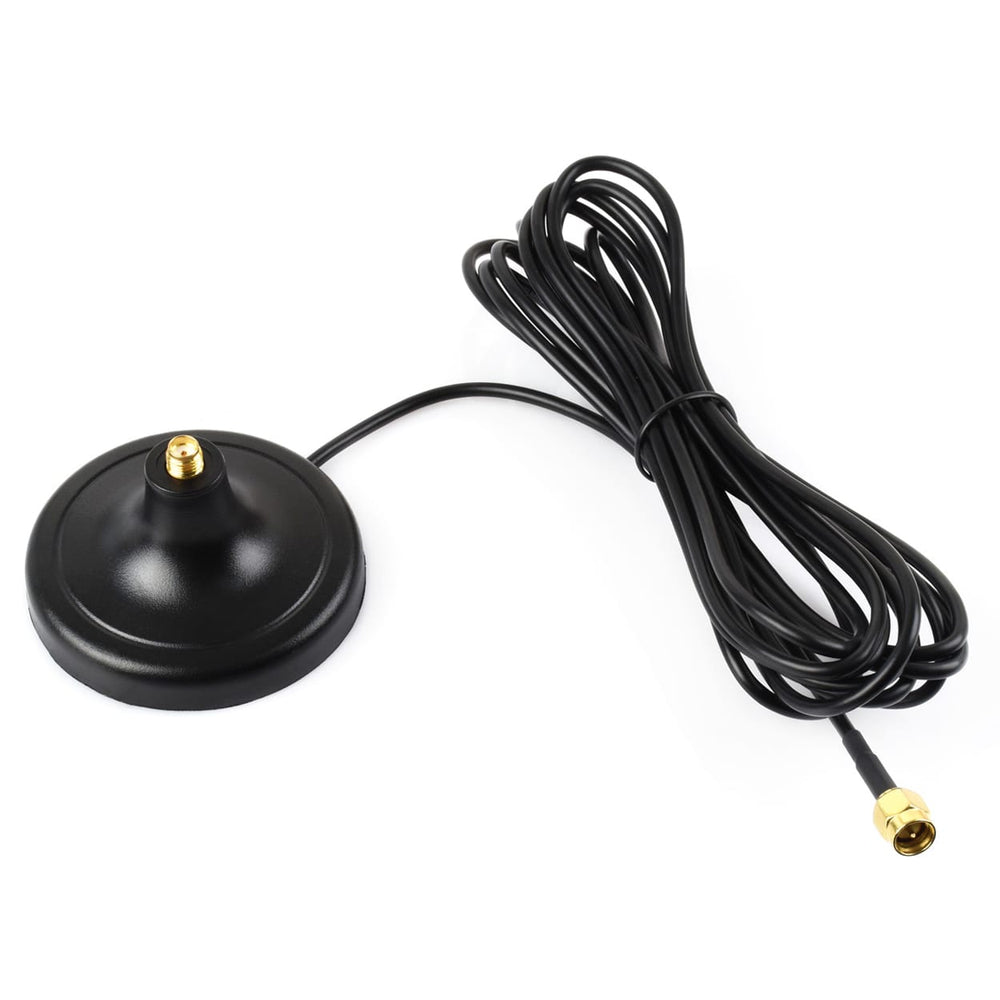

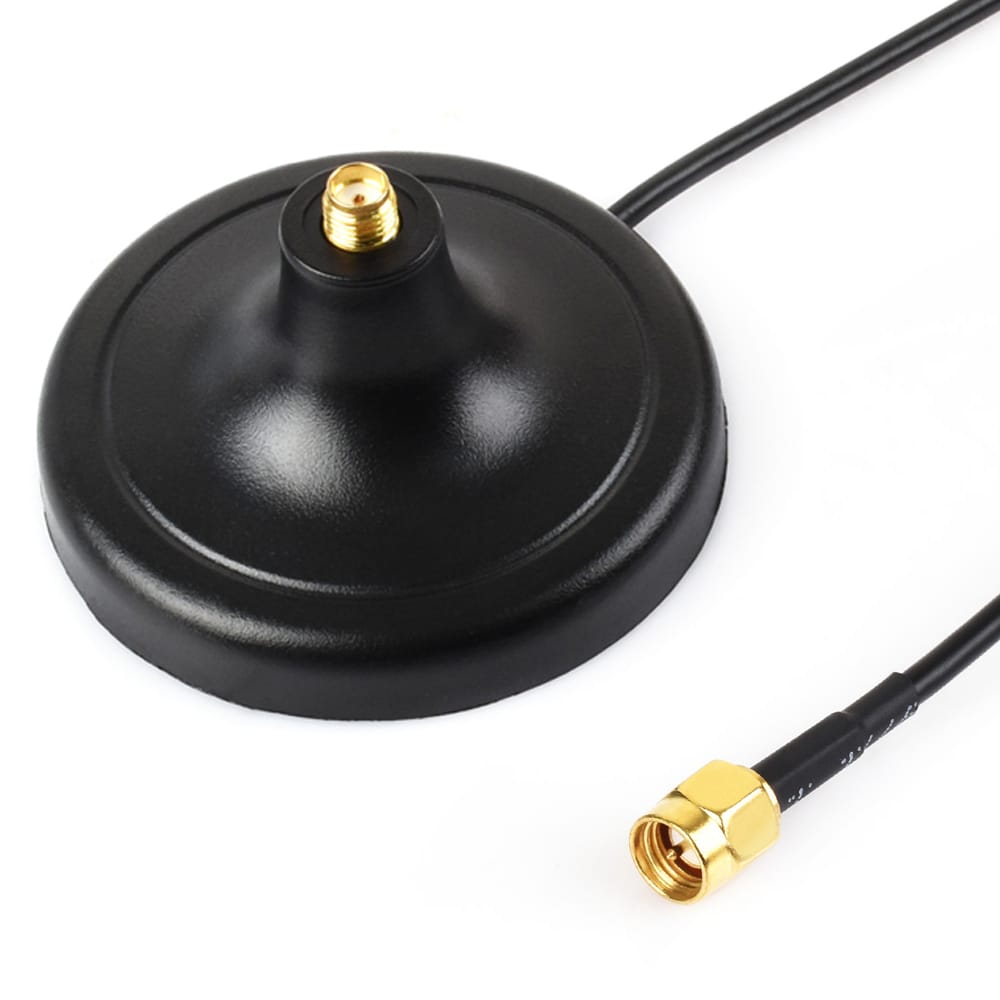

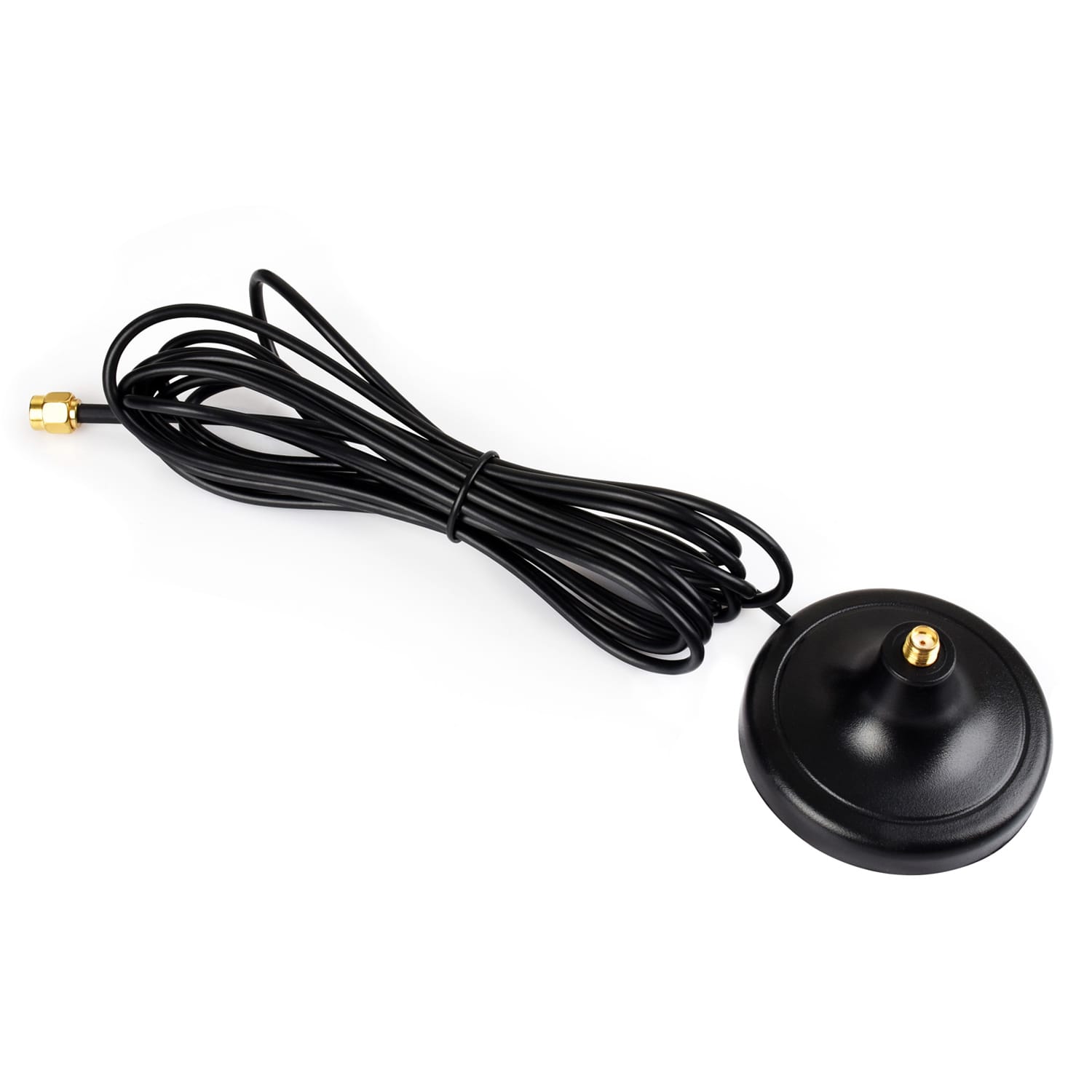

SMA Magnetic Mount Antenna Base with 3m Cable

This SMA magnetic antenna base provides a convenient way to mount a compatible antenna on a suitable metal surface and position it away from your receiver or development board. It includes an integrated 3m RG174 coaxial cable, with an SMA-Female connector for the antenna and an SMA-Male connector at the cable end.

Supporting frequencies from 0–6GHz, the base can be used with a wide range of compatible cellular, LPWA and GNSS antennas. Its 50Ω impedance makes it suitable for common RF and positioning hardware using standard SMA connections.

Magnetic base and cable only. Antenna not included.

Compatible Antennas

This base is designed for antennas with an SMA-Male connector. Compatible options from our range include (but not limited to):

• 4G/3G/2G/LPWA High-Gain SMA Antenna
• 5G/4G/3G/GNSS High-Gain Omni Antenna
• 5G/4G/3G/2G High-Gain Omni Antenna

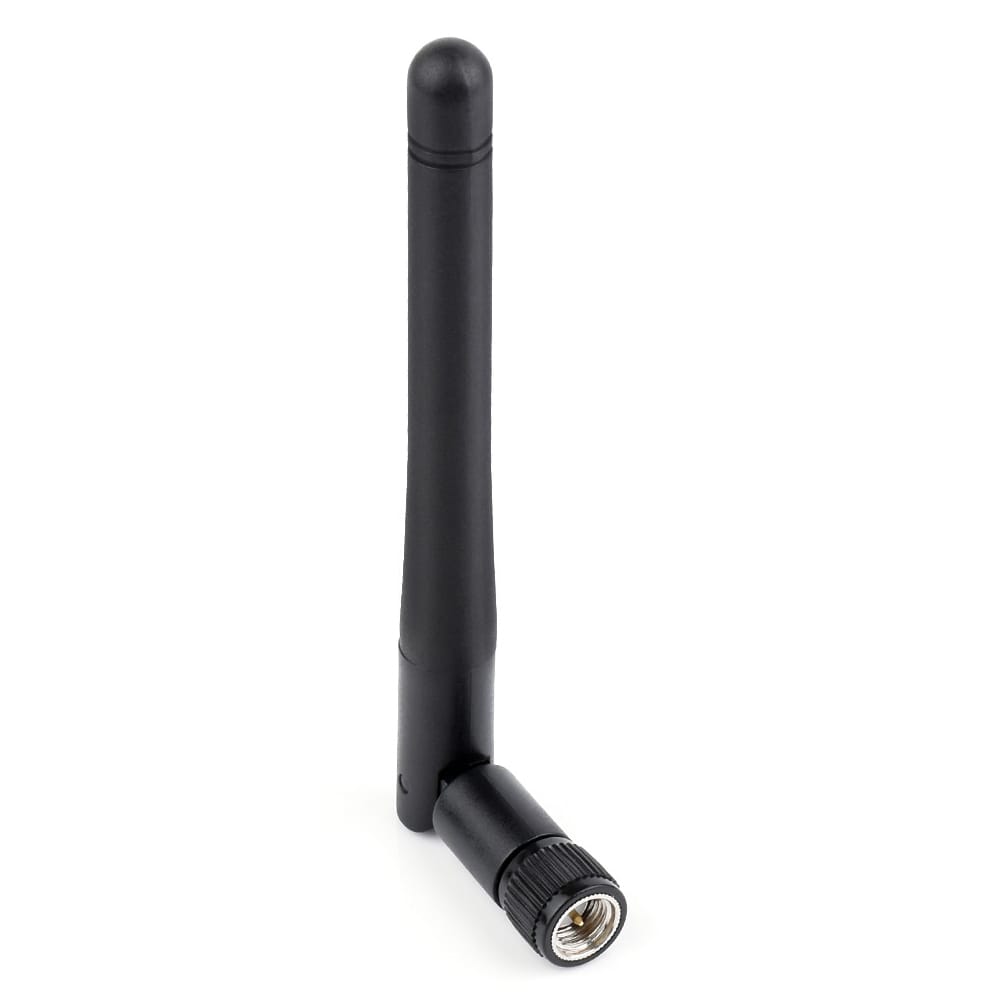

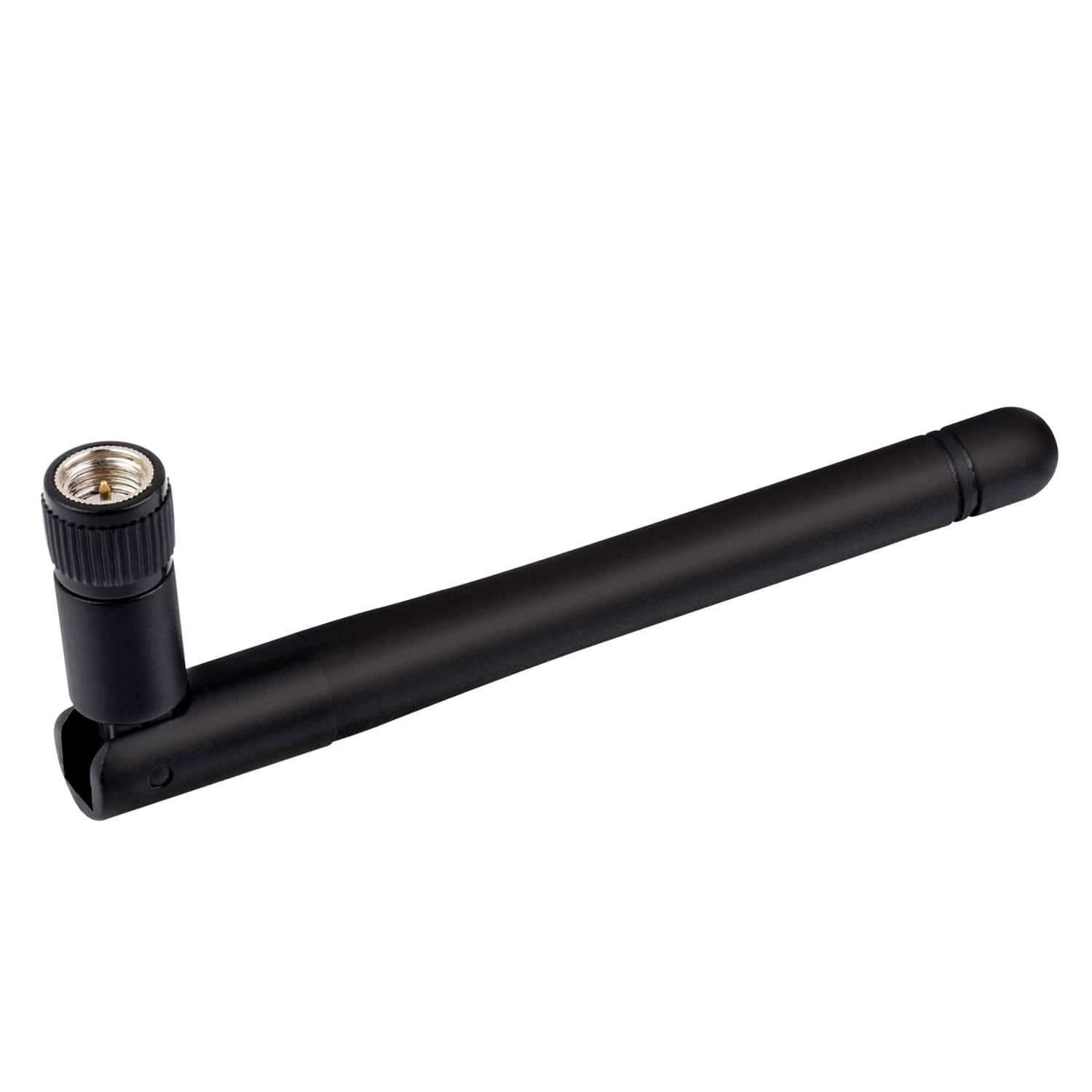

• 868/915MHz LPWA SMA Antenna

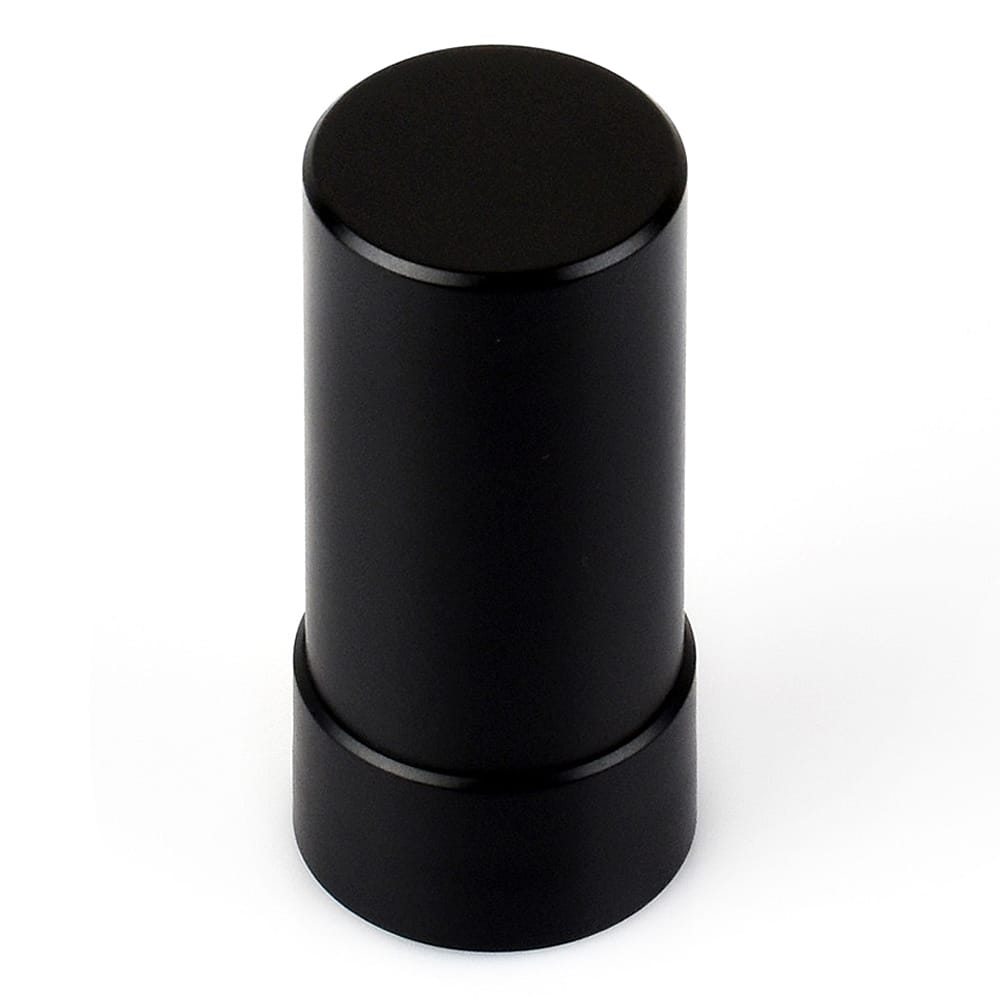

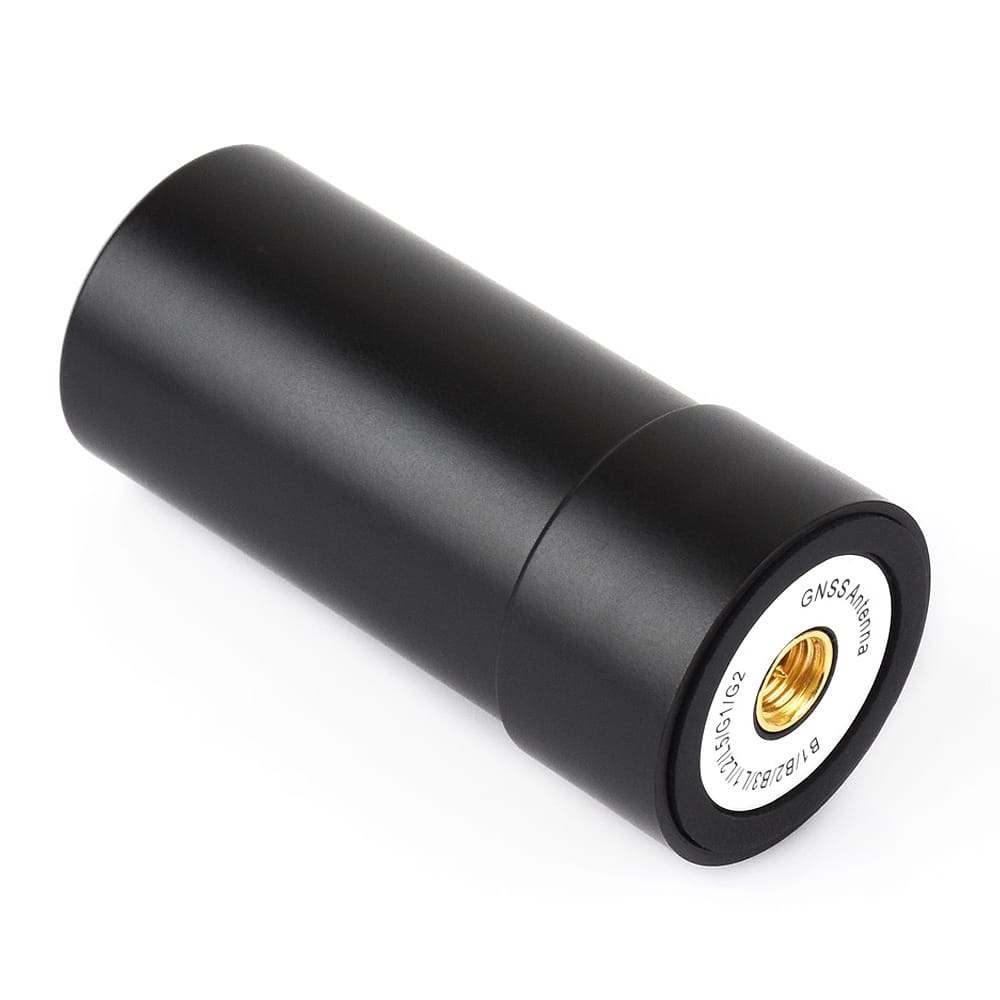

• High-Precision Multi-Band Active GNSS Antenna - L1/L2/L5
• High-Precision Multi-Band Active GNSS Antenna with L-Band - L1/L2/L5

Features

• Magnetic base for mounting to suitable metal surfaces
• 0–6GHz frequency range

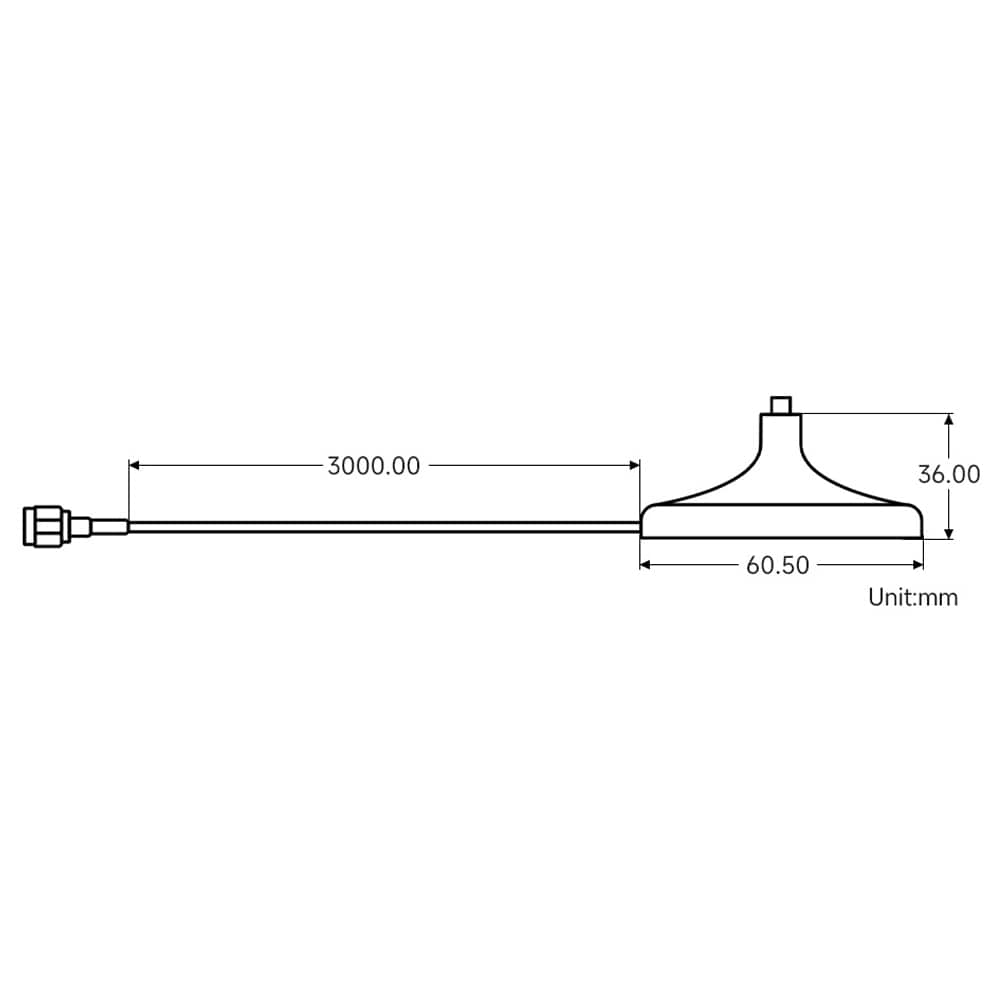

• Integrated 3m RG174 coaxial cable
• SMA-Female antenna connector
• SMA-Male cable connector
• 50Ω impedance
• Supports up to 50W input power

Specifications

Package Contents

• 1x SMA Magnetic Mount Antenna Base with 3m Cable

Antenna not included
