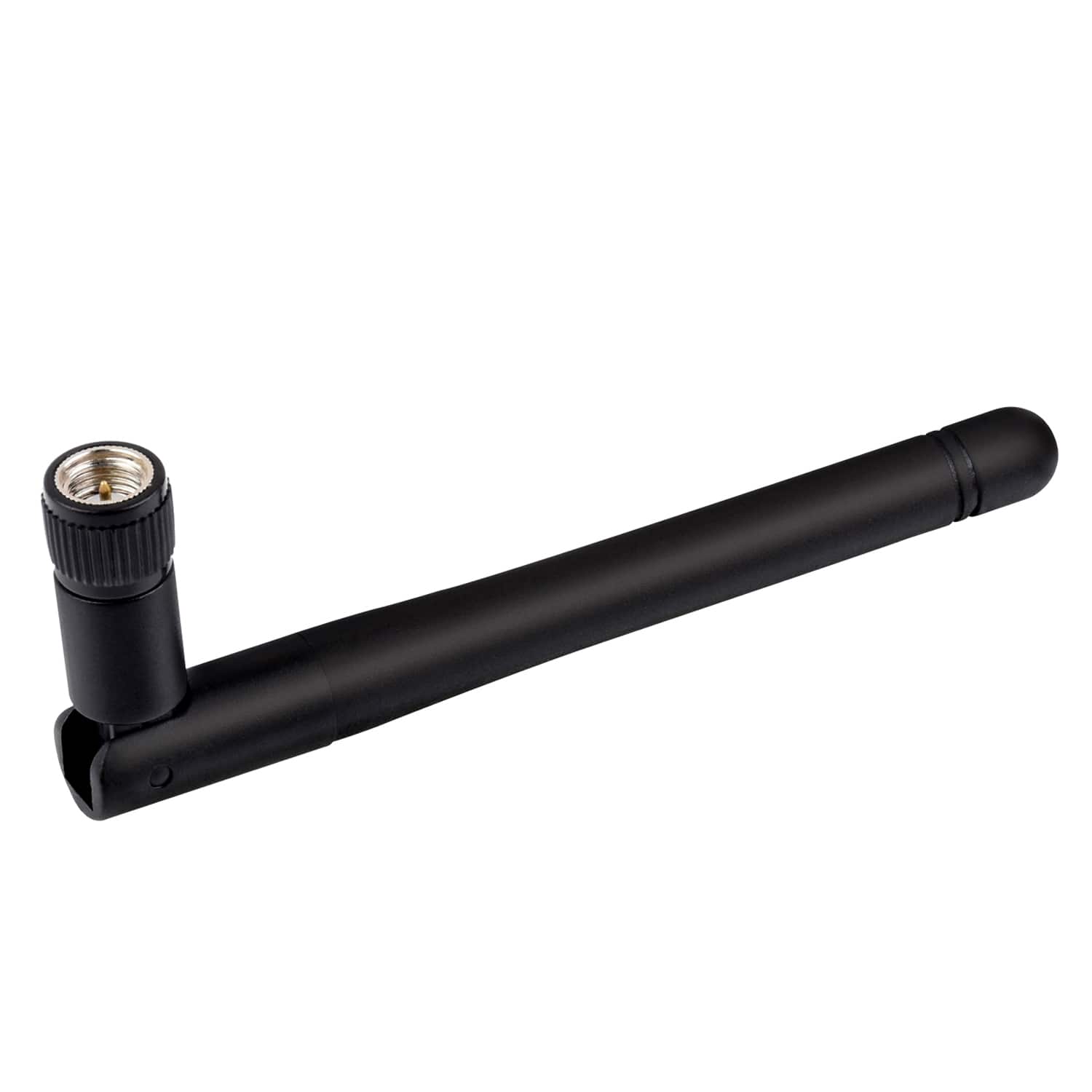

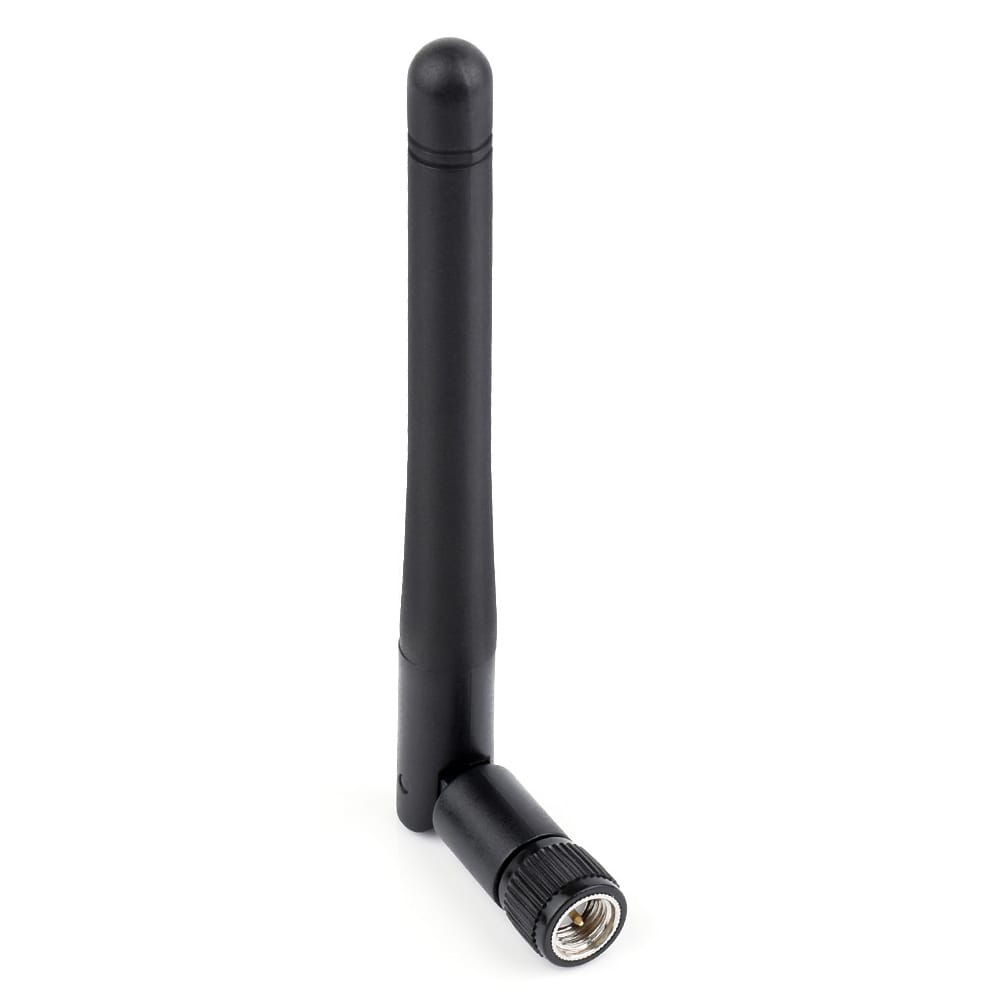

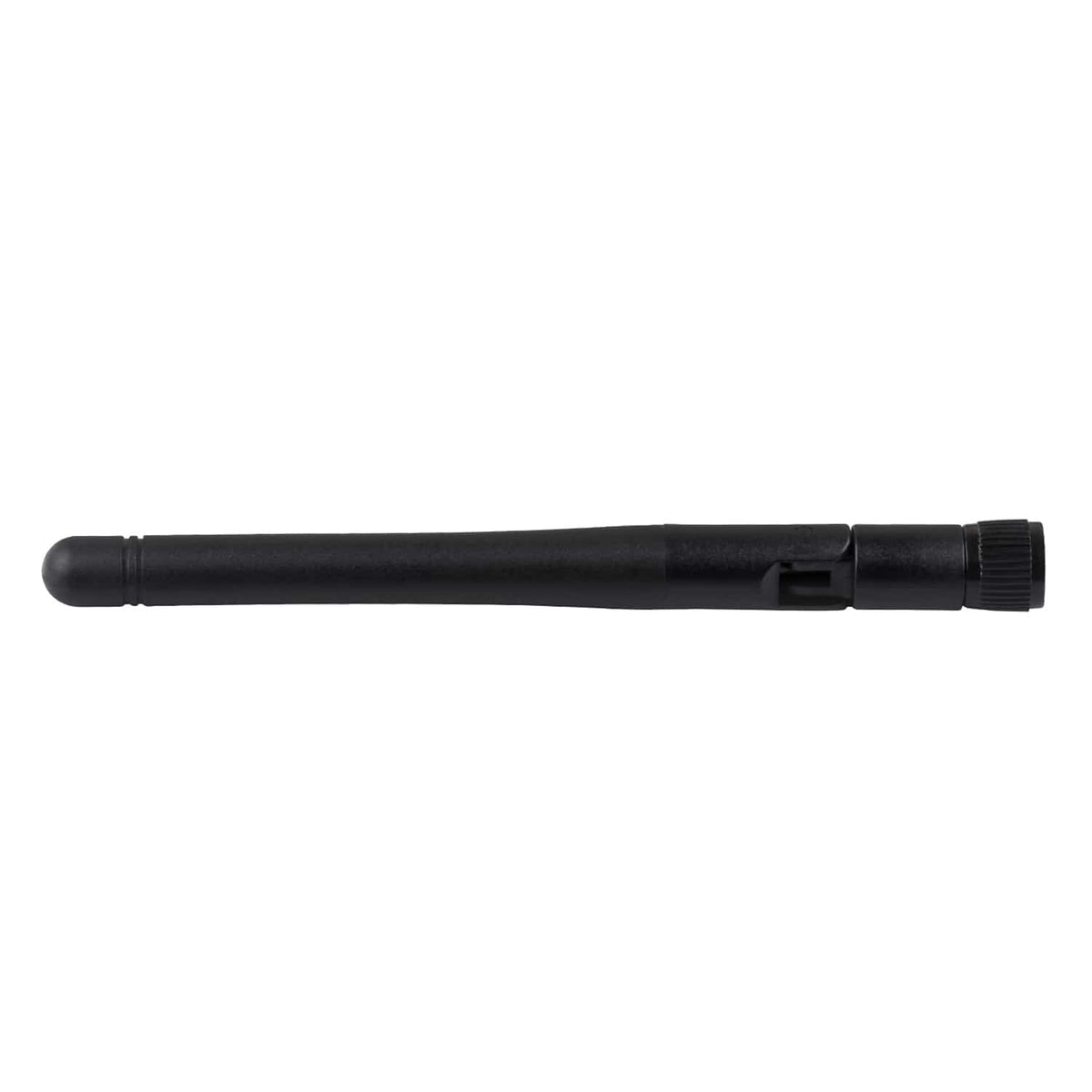

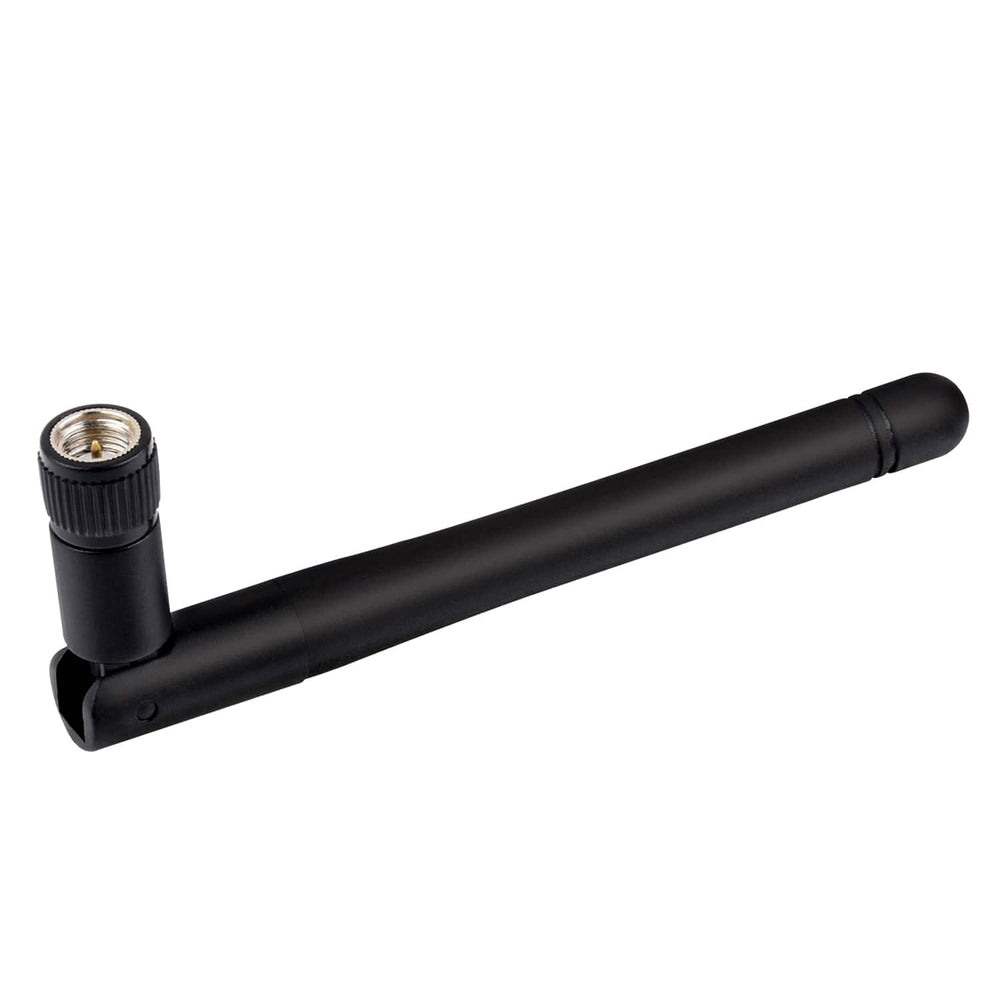

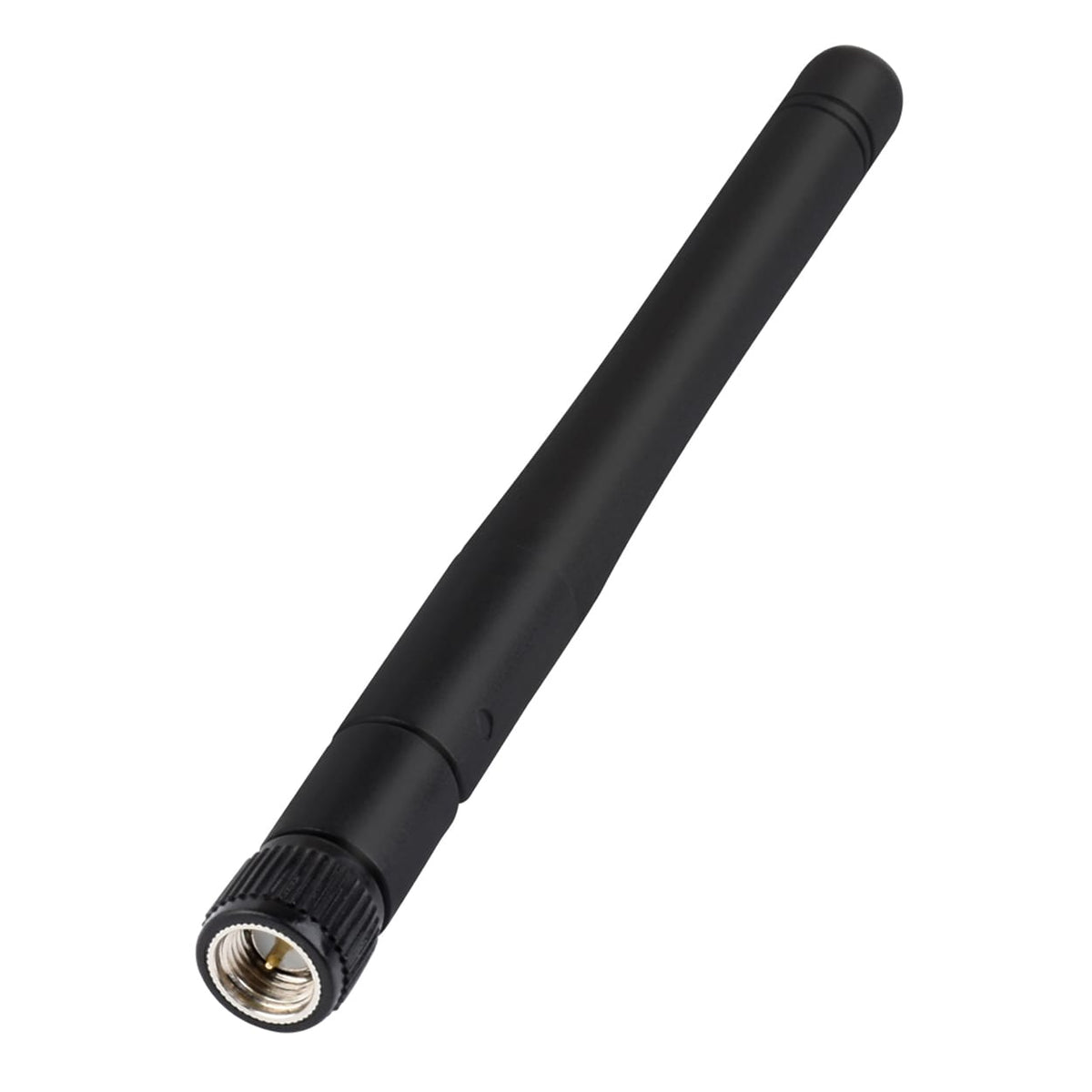

868/915MHz LPWA SMA Antenna

WaveshareSKU: WAV-24415

£2

incl. VAT

excl. VAT

In stock

Awesome Extras

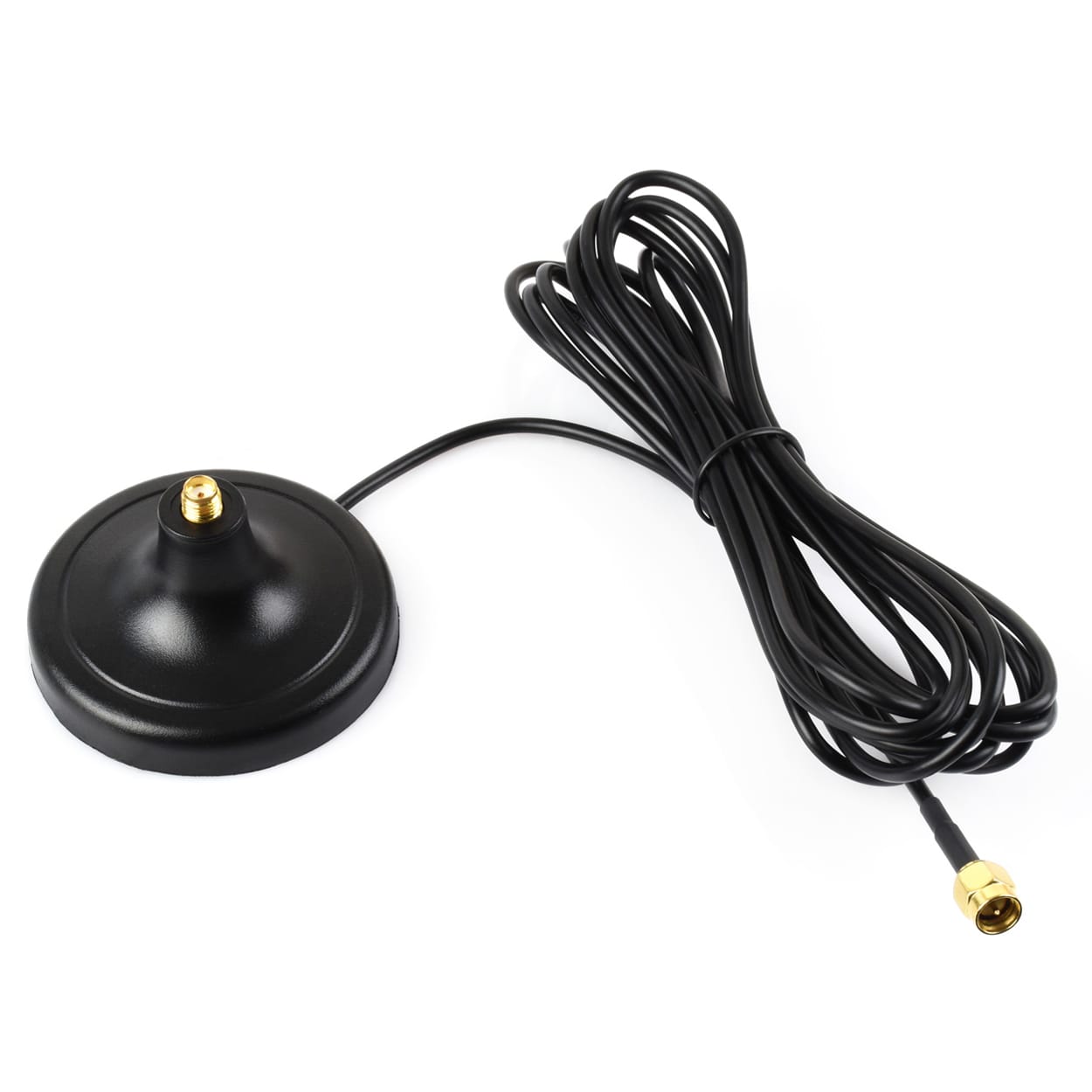

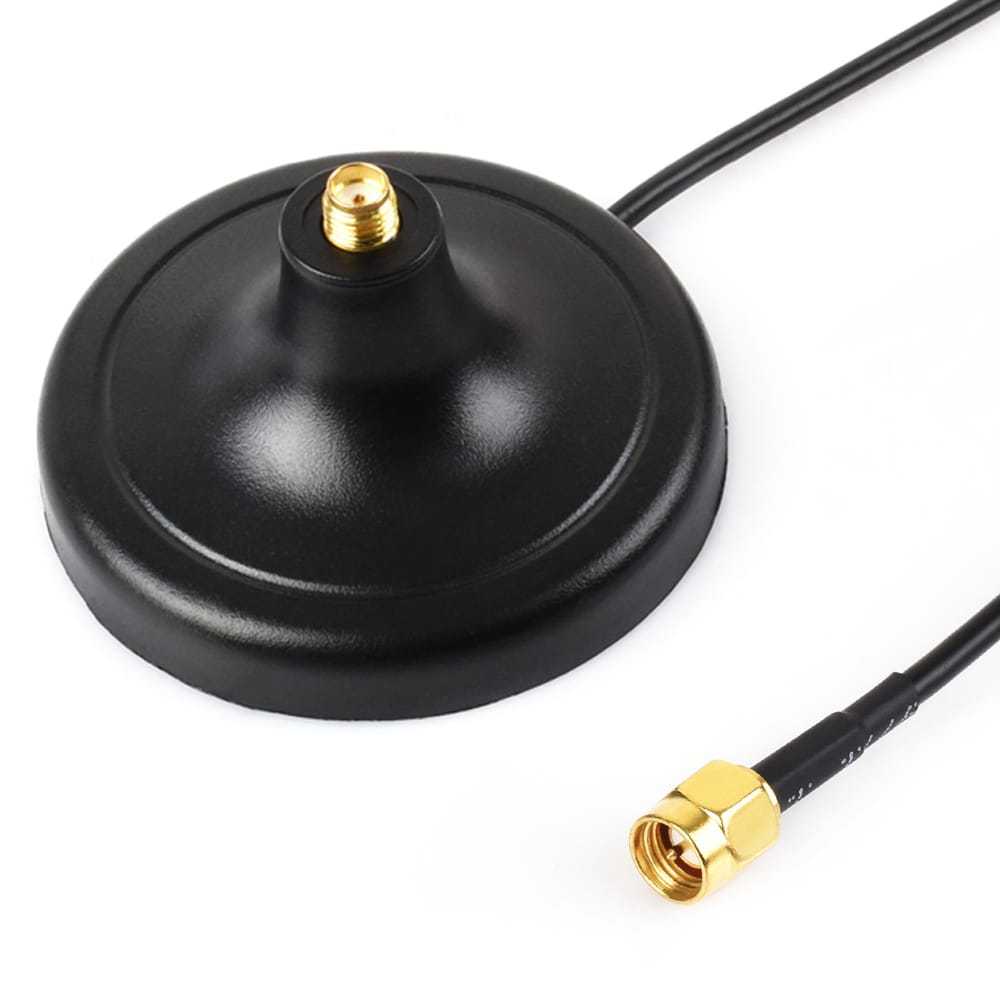

Waveshare SMA Magnetic Mount Antenna Base with 3m Cable

£3.40 incl. VAT excl. VAT

SMA to uFL/u.FL/IPX/IPEX RF Adapter Cable by The Pi Hut - The Pi Hut

The Pi Hut SMA to uFL/u.FL/IPX/IPEX RF Adapter Cable

£3.40 incl. VAT excl. VAT

SMA Male to SMA Female Antenna Cable (0.3m) by The Pi Hut - The Pi Hut

The Pi Hut SMA Male to SMA Female Antenna Cable (0.3m)

£4 incl. VAT excl. VAT

Straight SMA Thru Hole RF Connector by The Pi Hut - The Pi Hut

Adafruit Straight SMA Thru Hole RF Connector

£1.90 incl. VAT excl. VAT

Right Angle SMA Thru Hole RF Connector by The Pi Hut - The Pi Hut

Adafruit Right Angle SMA Thru Hole RF Connector

£1.90 incl. VAT excl. VAT

This 868MHz LPWA antenna is designed for LoRa and other compatible low-power wide-area wireless applications. It covers an 833–903MHz frequency range, offers 2dBi gain, and connects directly to compatible hardware using its SMA-Male connector.

LPWA stands for Low-Power Wide-Area, used by networks such as NB-IoT, LTE-M, LoRaWAN and Sigfox, designed for long-range, low-power IoT communication.

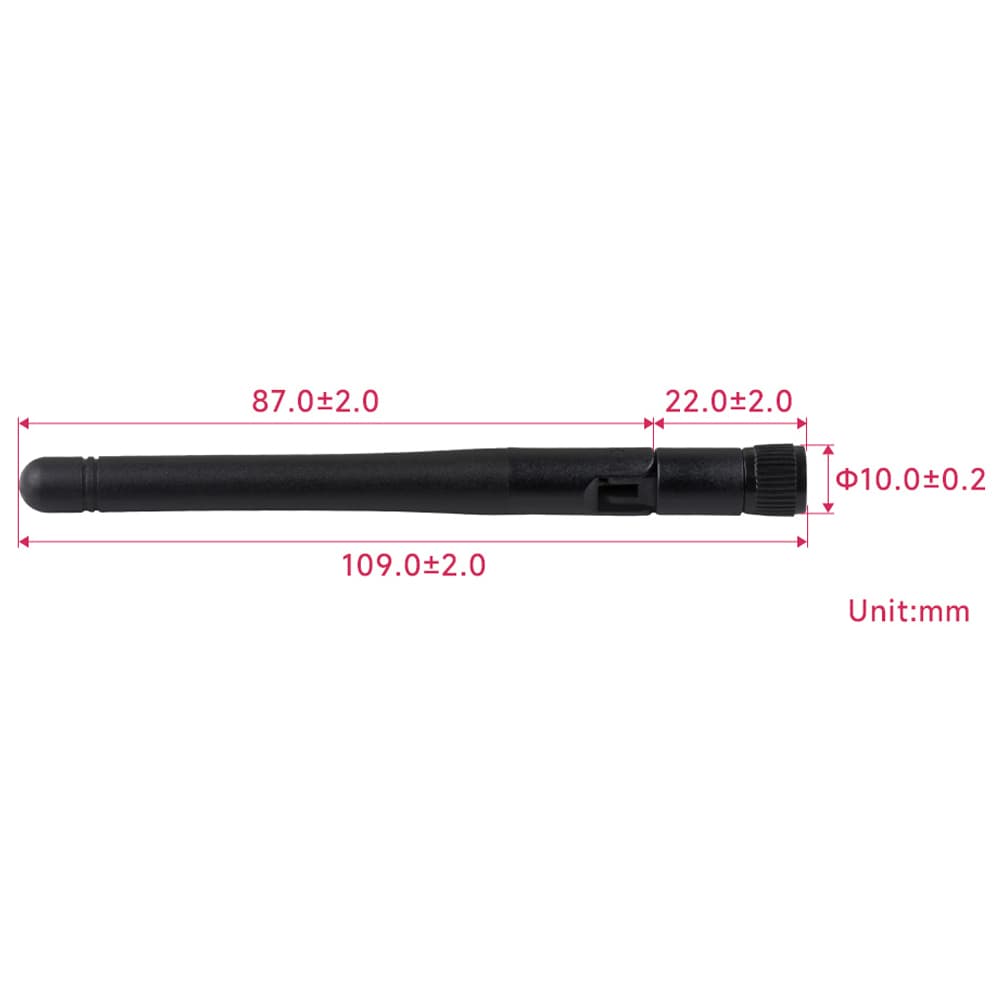

The antenna measures approximately 109mm long and features vertical polarisation, a standard 50Ω impedance, and a tough ABS housing.

Features

Designed for 868MHz LPWA applications
Suitable for compatible LoRa hardware
833–903MHz frequency range
2dBi gain
SMA-Male connector
Vertical polarisation
Compact 109mm length
ABS housing

Specifications

Network support	LPWA
Frequency version	868MHz
Frequency range	833–903MHz
Gain	2dBi
SWR	≤2.0
Polarisation	Vertical
Output impedance	50Ω
Connector	SMA-Male
Antenna length	109mm
Material	ABS
Colour	Black

Package Contents

1x 868MHz LPWA SMA Antenna
