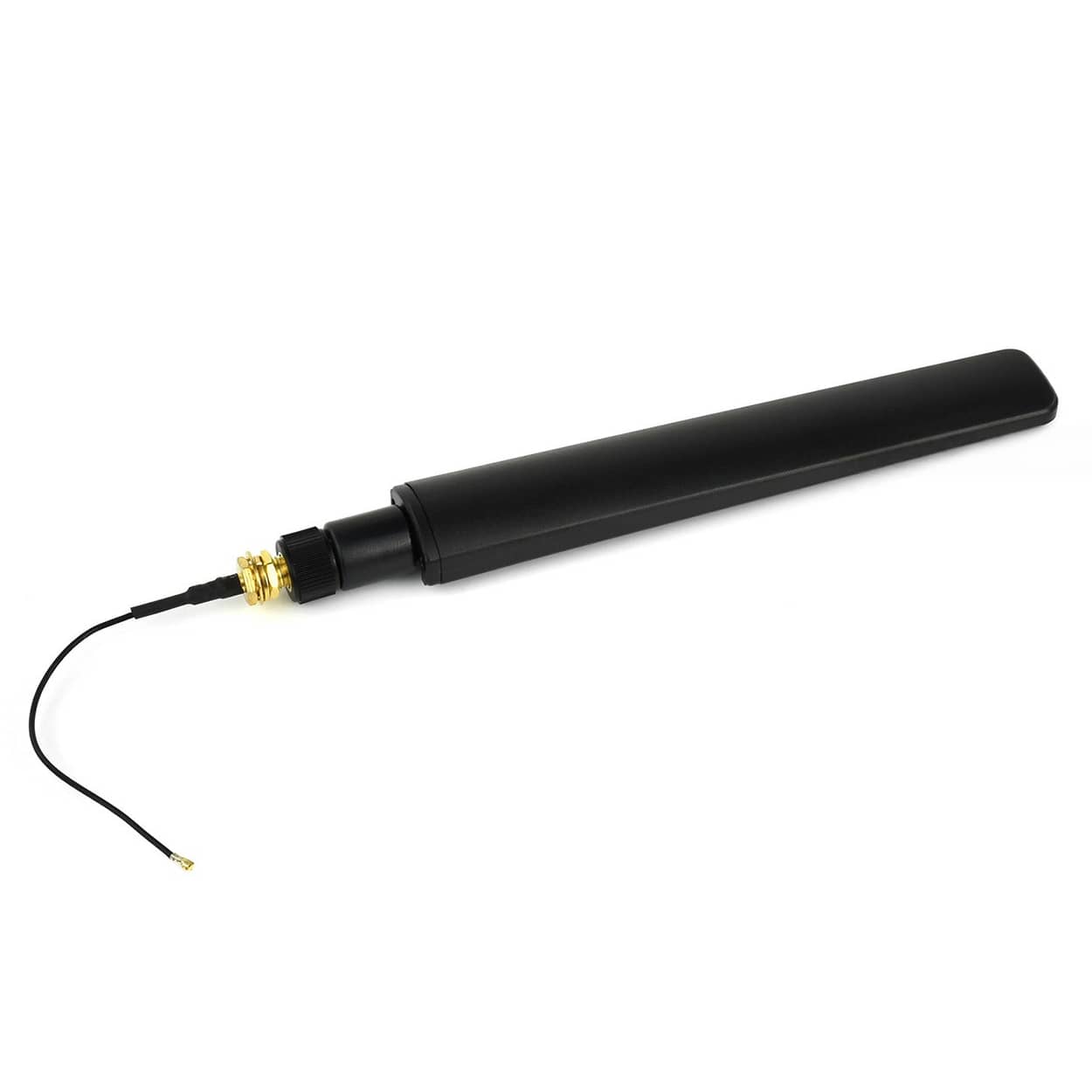

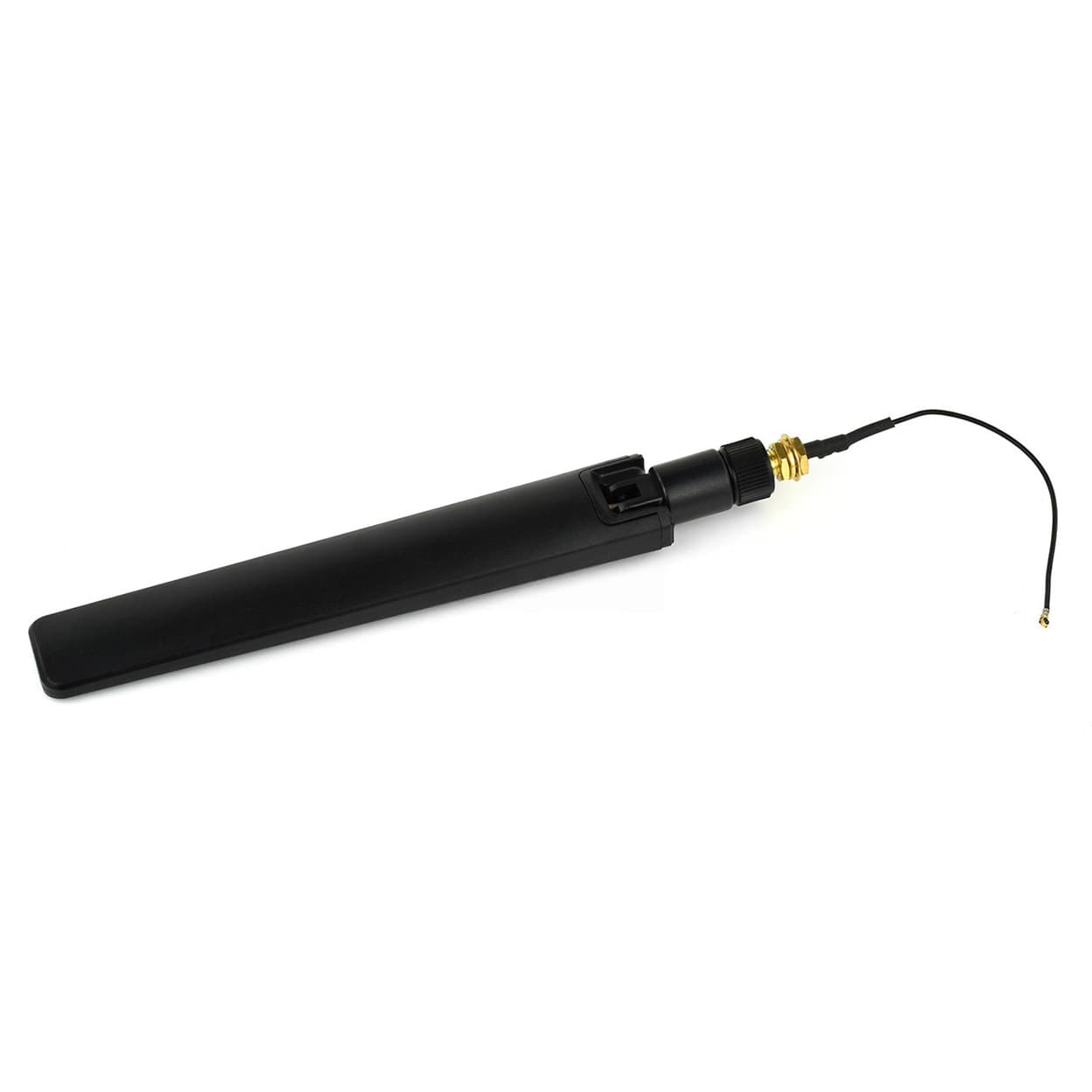

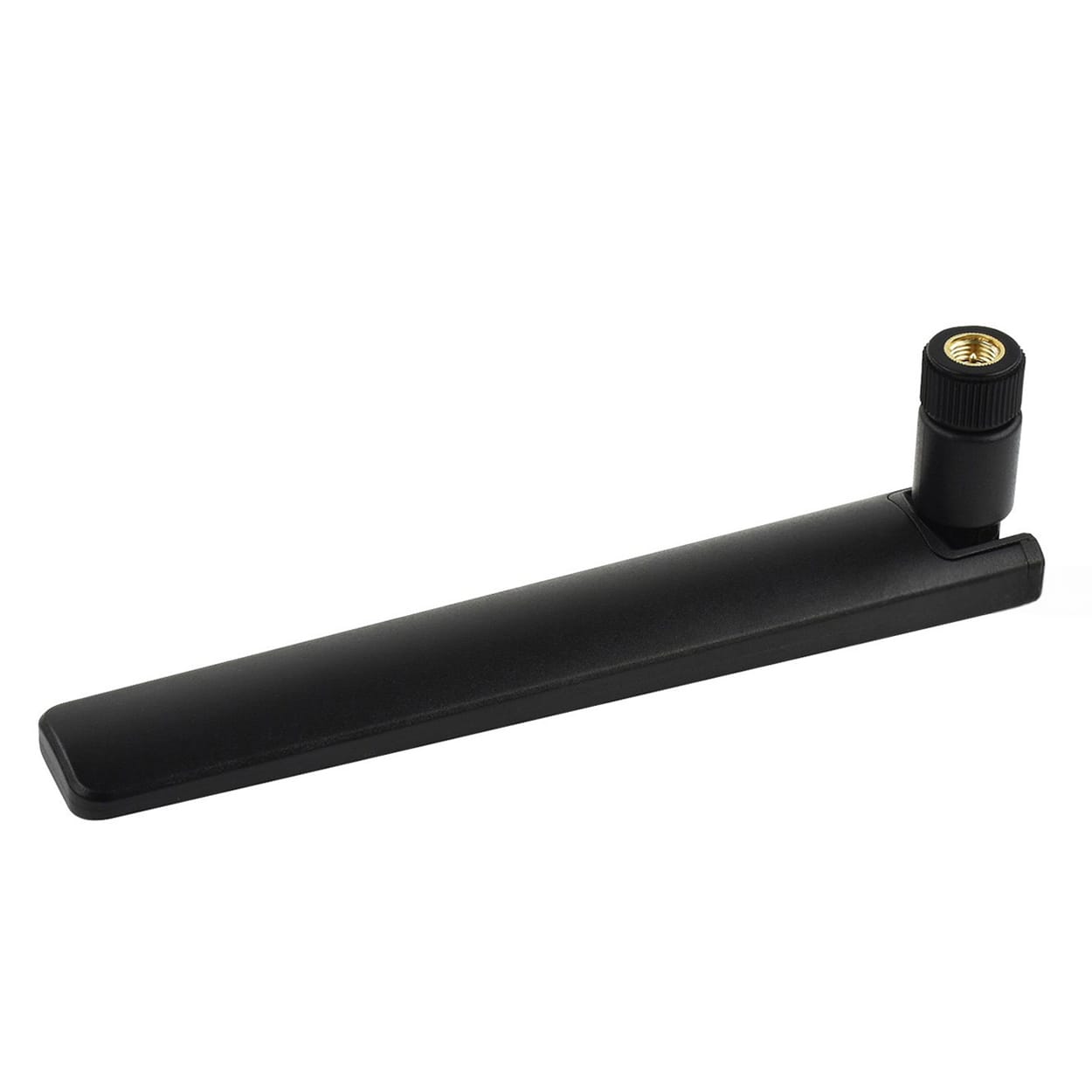

Designed for high-speed cellular networks and positioning systems, this high-gain omni-directional antenna supports 5G, 4G, 3G, and GNSS connectivity. It has an SMA-male connector or convert it to IPEX-4 using the included SMA-Female to IPEX-4 adapter cable.
Operating across a broad 600–6000MHz frequency spectrum, it provides dependable 360° signal coverage for IoT gateways, routers, and development boards. Features include linear polarisation, a standard 50Ω output impedance, and a robust ABS enclosure handling up to 25W input power.
Features
Compatible with 5G, 4G, 3G, and GNSS networks
Wide 600–6000MHz frequency band coverage
Omni-directional 360° coverage pattern
Linear polarisation
Direct SMA-Male connection
Includes SMA-Female to IPEX-4 adapter cable
Durable ABS housing
Specifications
Network support
5G/4G/3G/GNSS
Frequency band
600–6000MHz
Peak gain
18dBi
SWR
<3.0
Polarisation
Linear
Emitting direction
Omni-directional
Output impedance
50Ω
Input power
25W
Connector
SMA (center hole / inner receptacle)
Connection wire
SMA-Female to IPEX-4
Dimensions
220 × 24mm
Material
ABS
Operating temperature
-20°C to +85°C
Package Contents

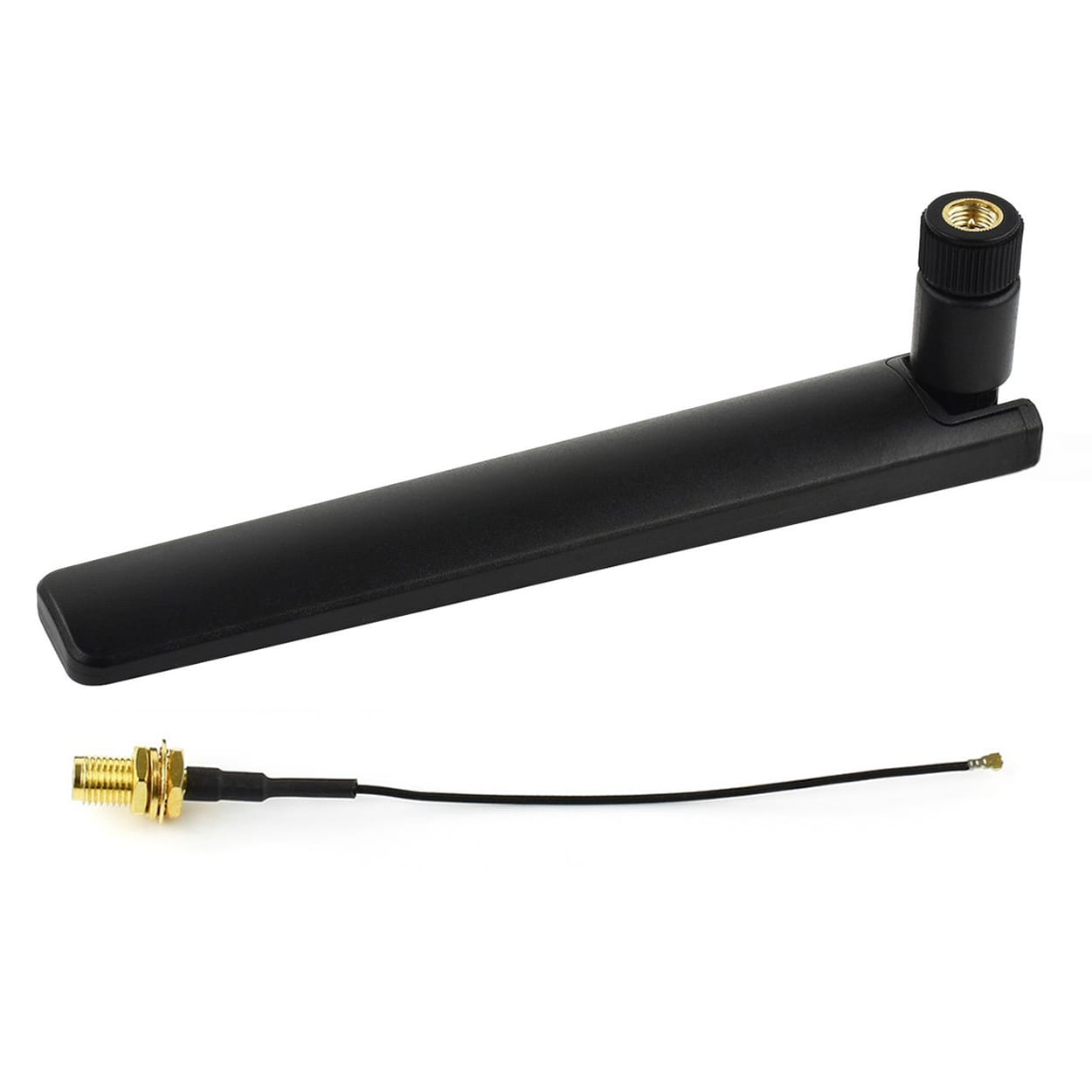

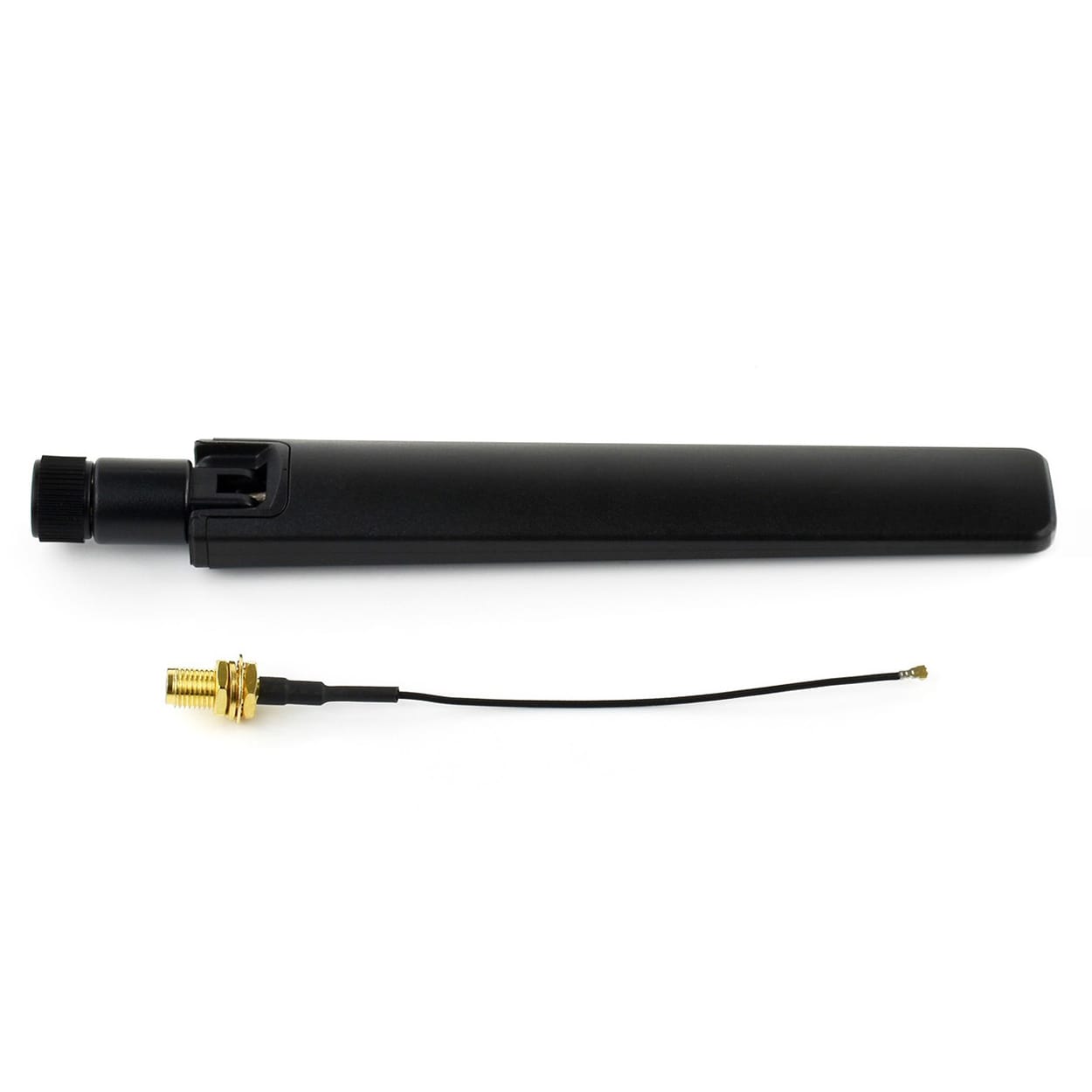

1x 5G/4G/3G/GNSS Antenna
1x SMA Female to IPEX-4 cable
