Edge-Launch SMA Connector for 1.6mm / 0.062" Thick PCBs

The Pi HutSKU: 105715
£2.50
incl. VAT
excl. VAT
Only 4 units left

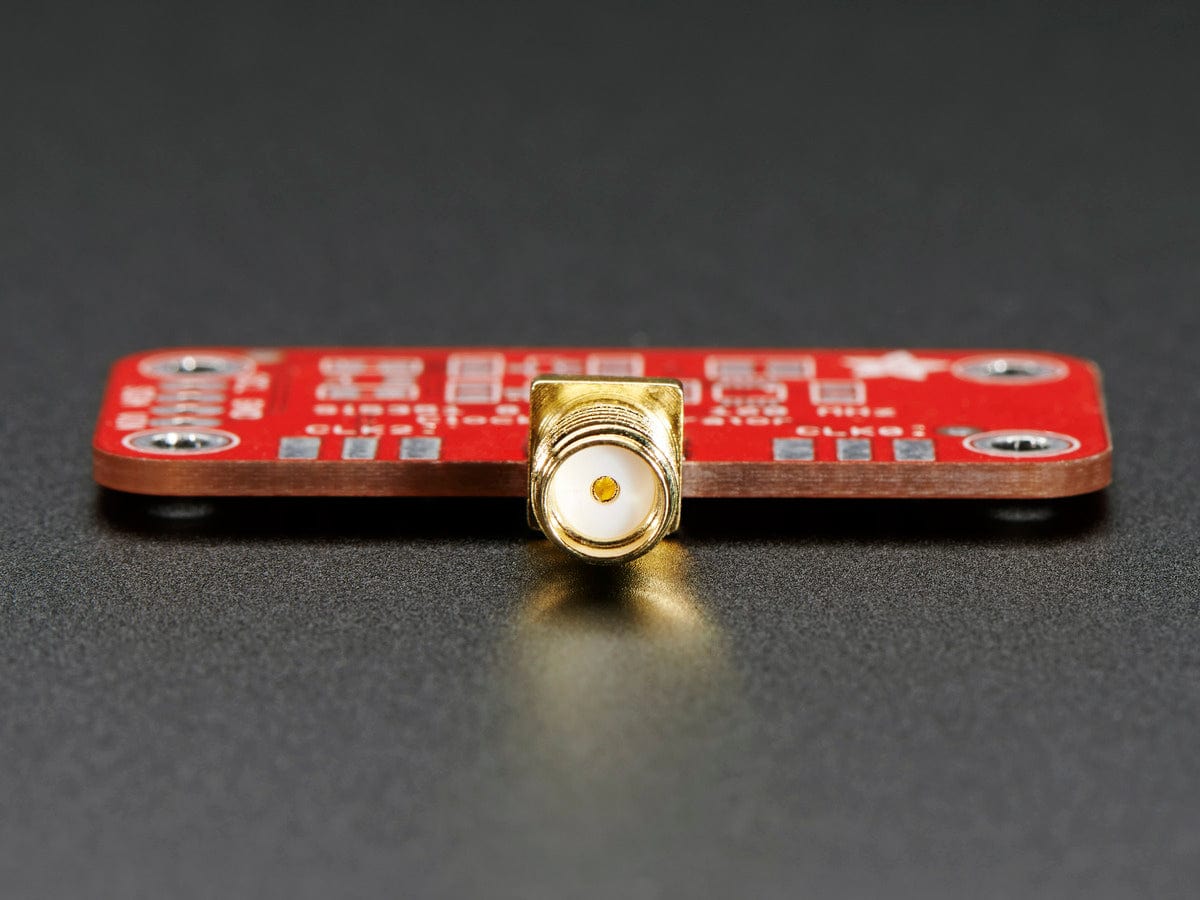

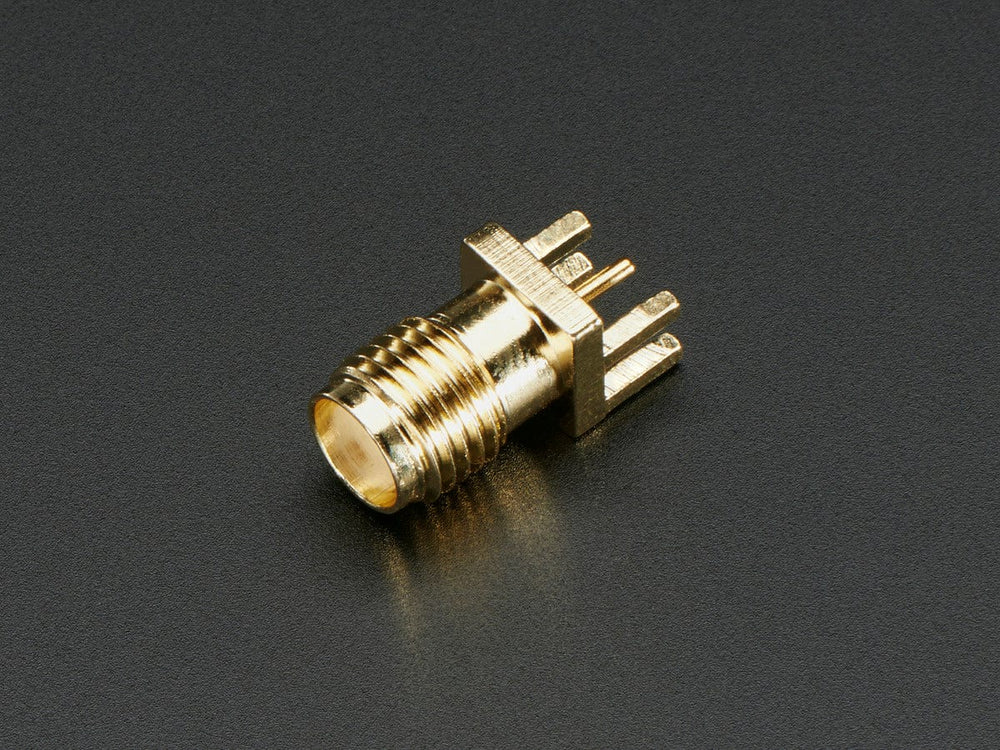

This is a great connector for anyone doing RF work, when an SMA connector is required. It hugs the edge of a standard 0.063" thick PCB and 'launches' off of the edge. We like these for their ease of soldering and low profile. Mates with any SMA plug, we also have an SMA to RP-SMA in case your antenna is RP-SMA

You can find an Eagle footprint for this part in the Adafruit Eagle Library, it's called SMA_EDGELAUNCH

Technical Details

  • Impedance: 50 ohm
  • Diameter of Jack: 6.1mm / .24"
  • Width of Plug: 6.4mm / .25"
  • Total Length of Connector: 13.5mm / 0.53"
  • Weight: 2g
