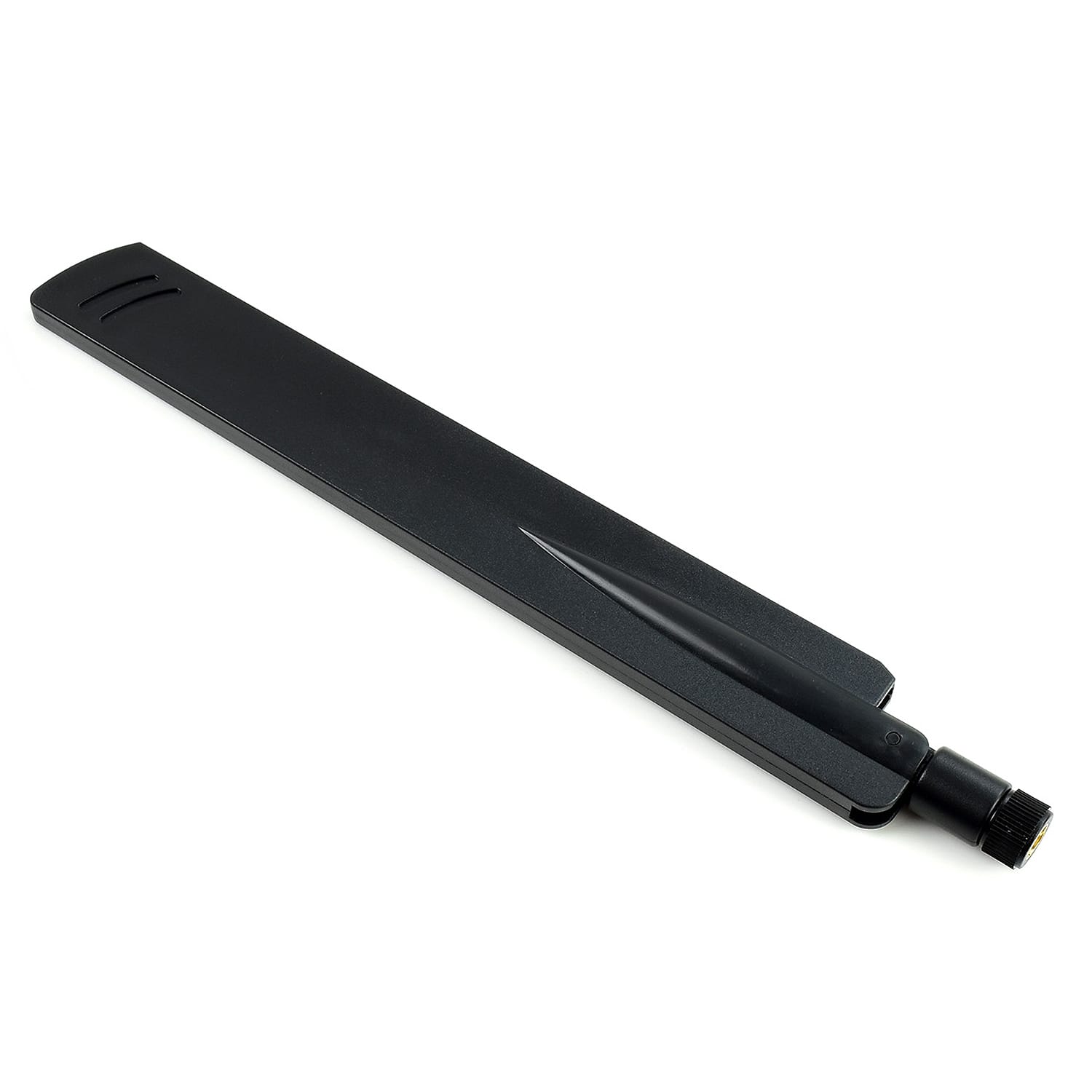

Designed for high-speed cellular networks and positioning systems, this high-gain omni-directional antenna supports 5G, 4G, 3G, and GNSS connectivity. It connects via a standard SMA-Male connectoror convert it to IPEX-4 using theincluded SMA-Female to IPEX-4 adapter cable.
Operating across a broad 600–6000MHz frequency spectrum, it provides dependable 360° signal coverage for IoT gateways, routers, and development boards. Features include linear polarisation, a standard 50Ω output impedance, and a robust ABS enclosure.
Features
Compatible with 5G, 4G, 3G, and GNSS networks
Wide 600–6000MHz frequency band coverage
Omni-directional 360° coverage pattern
Linear polarisation
SMA-Male connection (centre pin inside)

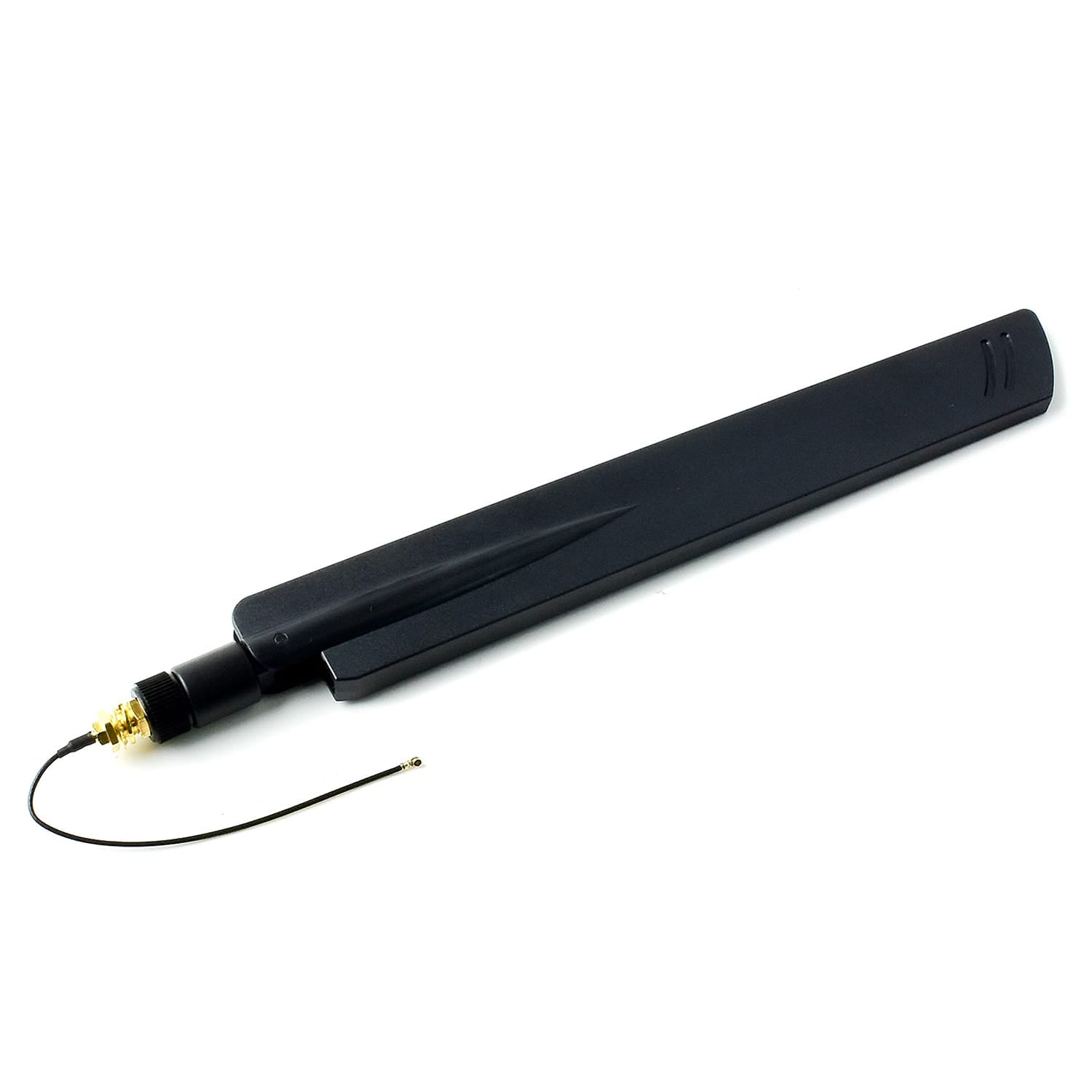

Includes SMA-Female to IPEX-4 adapter cable
Durable ABS housing
Specifications
Network support
5G/4G/3G/GNSS
Frequency band
600–6000MHz
Gain
18dBi
SWR
<3.0
Polarisation
Linear
Emitting direction
Omni-directional
Output impedance
50Ω
Connector
SMA-Male (centre pin)
Connector inner diameter
6mm
Connection wire
SMA-Female to IPEX-4

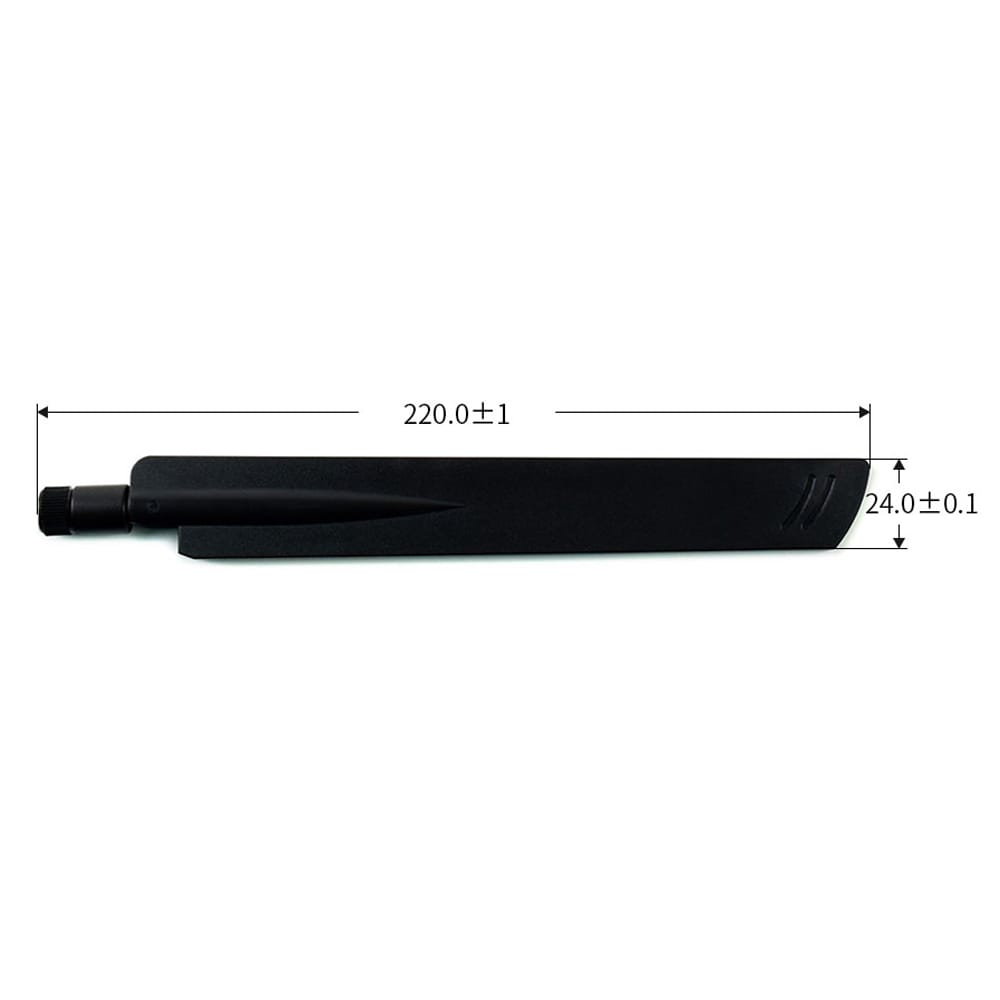

Dimensions
220 × 24mm
Material
ABS
Operating temperature
-20°C to +85°C
Package Contents

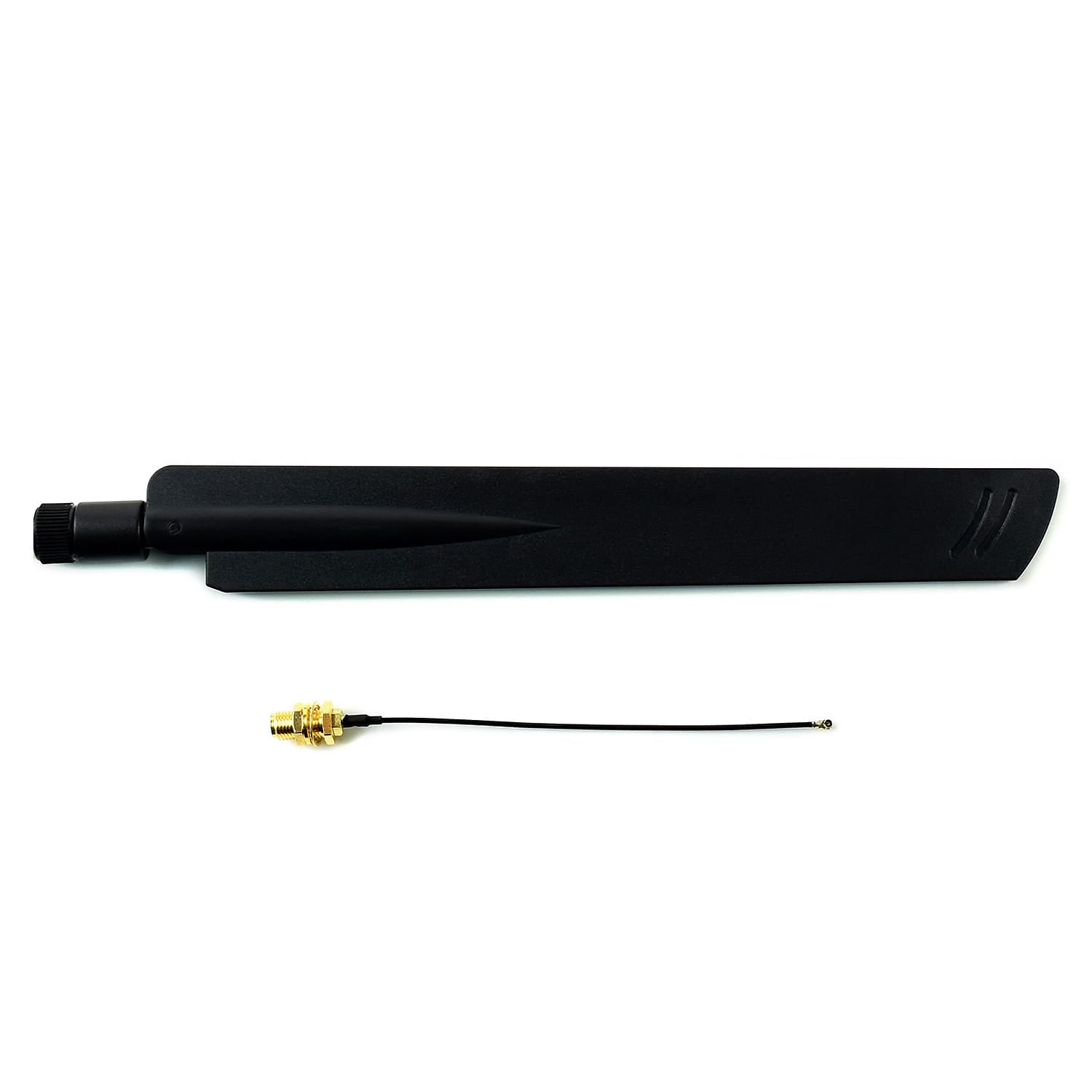

1x 5G/4G/3G/GNSS Antenna (SMA-Male)
1x SMA-Female to IPEX-4 cable
