This high-precision multi-band active GNSS antenna supports GPS, BeiDou, GLONASS and Galileo positioning systems across multiple L1/L2/L5 frequency bands. Its built-in 37dB low-noise amplifier boosts received satellite signals before they reach your GNSS receiver.
The antenna uses a quadrifilar helical design with right-hand circular polarisation (RHCP) and wide-angle coverage. This design improves reception of satellites at lower elevation angles, making it well suited to RTK positioning, surveying, mapping and other high-precision GNSS applications. Connection and DC bias power are provided through the SMA-Male connector.
This antenna covers the main multi-band GPS, BeiDou, GLONASS and Galileo frequencies used for high-precision positioning. If your GNSS receiver also supports L-Band correction services, see our Multi-Band GNSS Antenna with L-Band Support instead.
Features
Active multi-band GNSS antenna
Supports GPS L1/L2/L5
Supports BeiDou B1/B2a/B2b/B3i
Supports GLONASS G1/G2
Supports Galileo E1/E5a/E5b
Quadrifilar helical antenna design
37dB built-in low-noise amplifier
RHCP (Right-Hand Circular Polarisation)
360° coverage

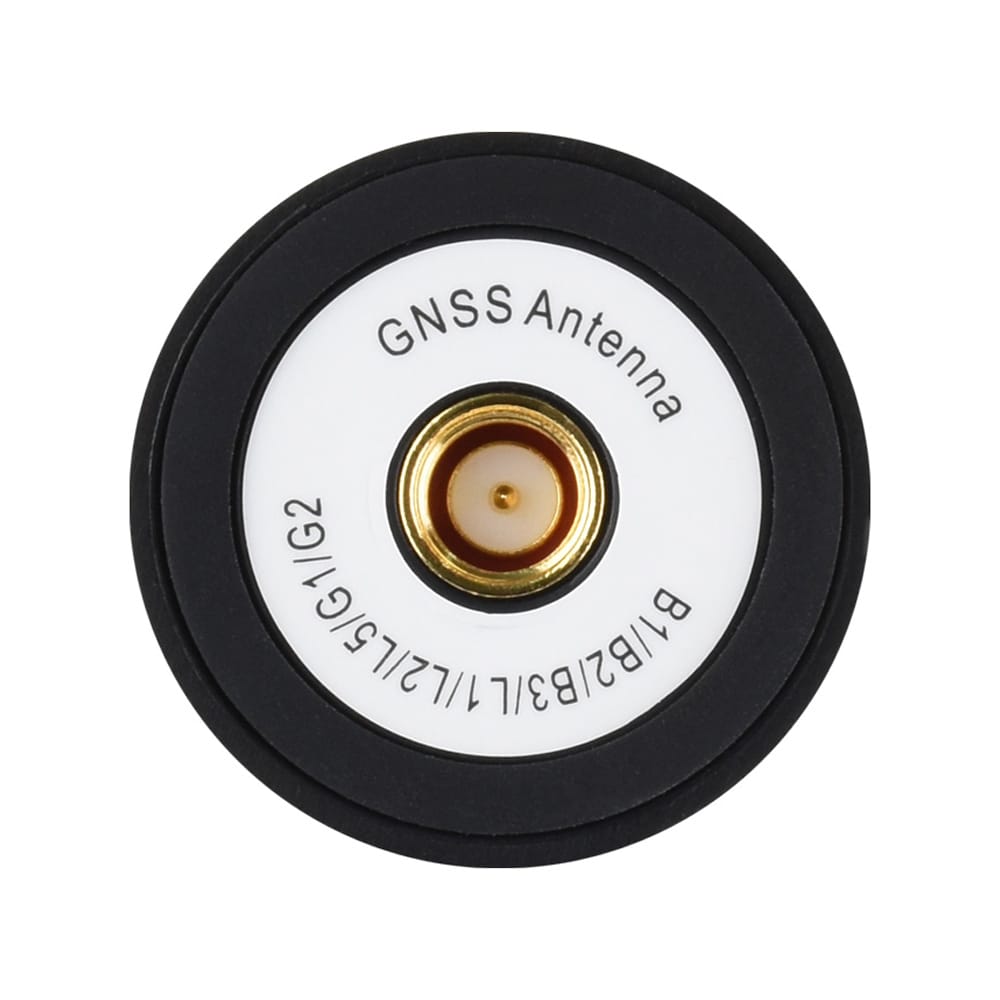

SMA-Male connector with coaxial DC bias power support
IP67-rated enclosure
Specifications
Version
Q25
Antenna type
Active quadrifilar helix
GPS bands
L1/L2/L5
BeiDou bands
B1/B2a/B2b/B3i
GLONASS bands
G1/G2
Galileo bands
E1/E5a/E5b
Antenna gain
2dB
Amplifier gain
37dB
Noise figure
<1.5dB
Polarisation
RHCP (Right-Hand Circular Polarisation)
Coverage
360°
Output VSWR
≤2
Axial ratio
≤3dB
Impedance
50Ω
Operating voltage
3.3–16V DC
Operating current
13mA
Connector
SMA-Male

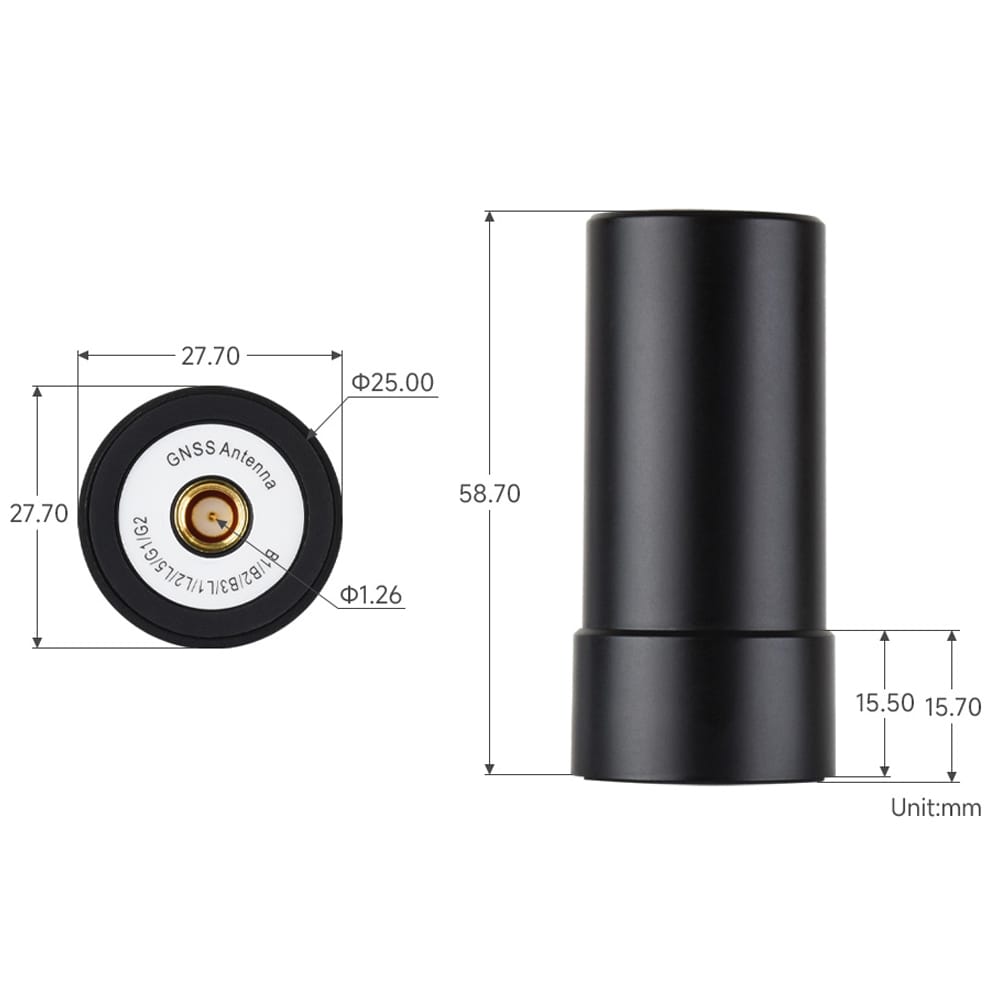

Dimensions
58.7 × Ø27.7mm
Operating/storage temperature
-40°C to +85°C
Ingress protection
IP67
Package Contents
1x High-Precision Multi-Band Active GNSS Antenna - L1/L2/L5
