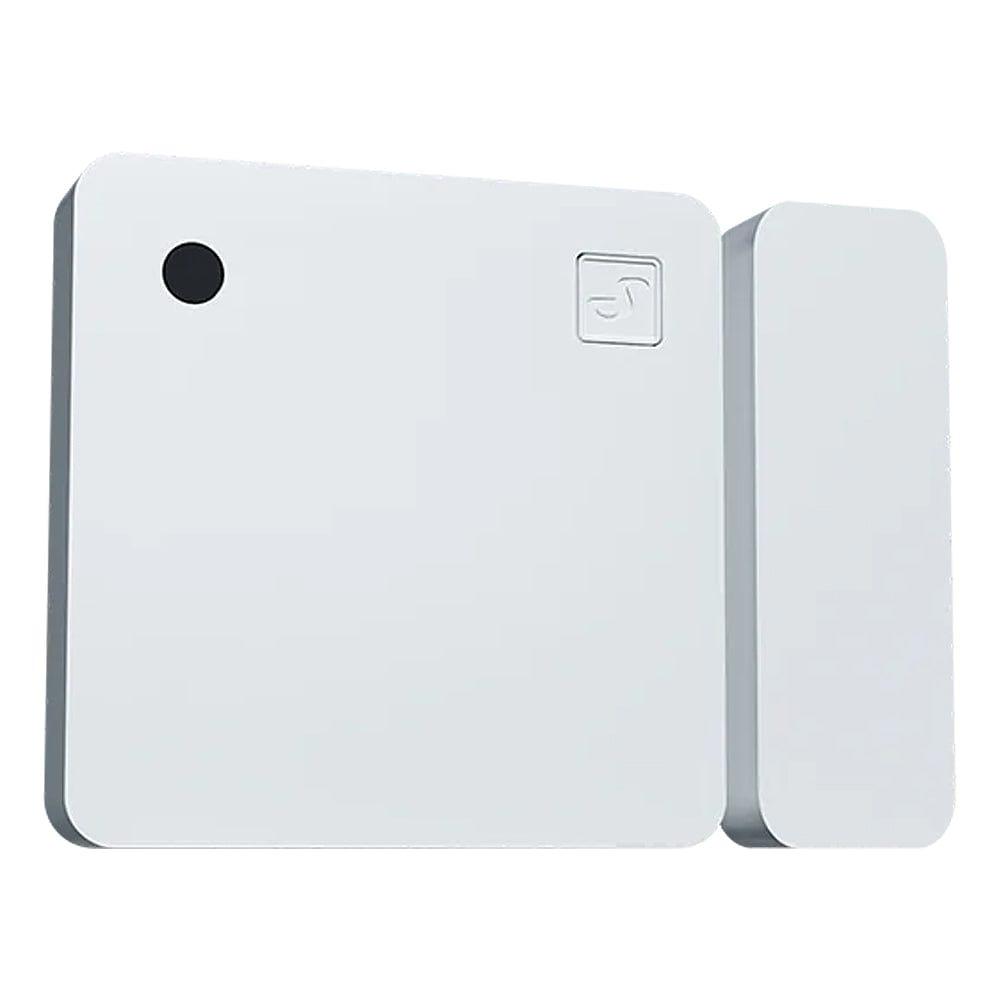

The Shelly Wave Door/Window sensor, with LUX and tilt angle measurement, is a Z-Wave sensor designed to detect openings and report them immediately, triggering home automation scenarios accordingly.

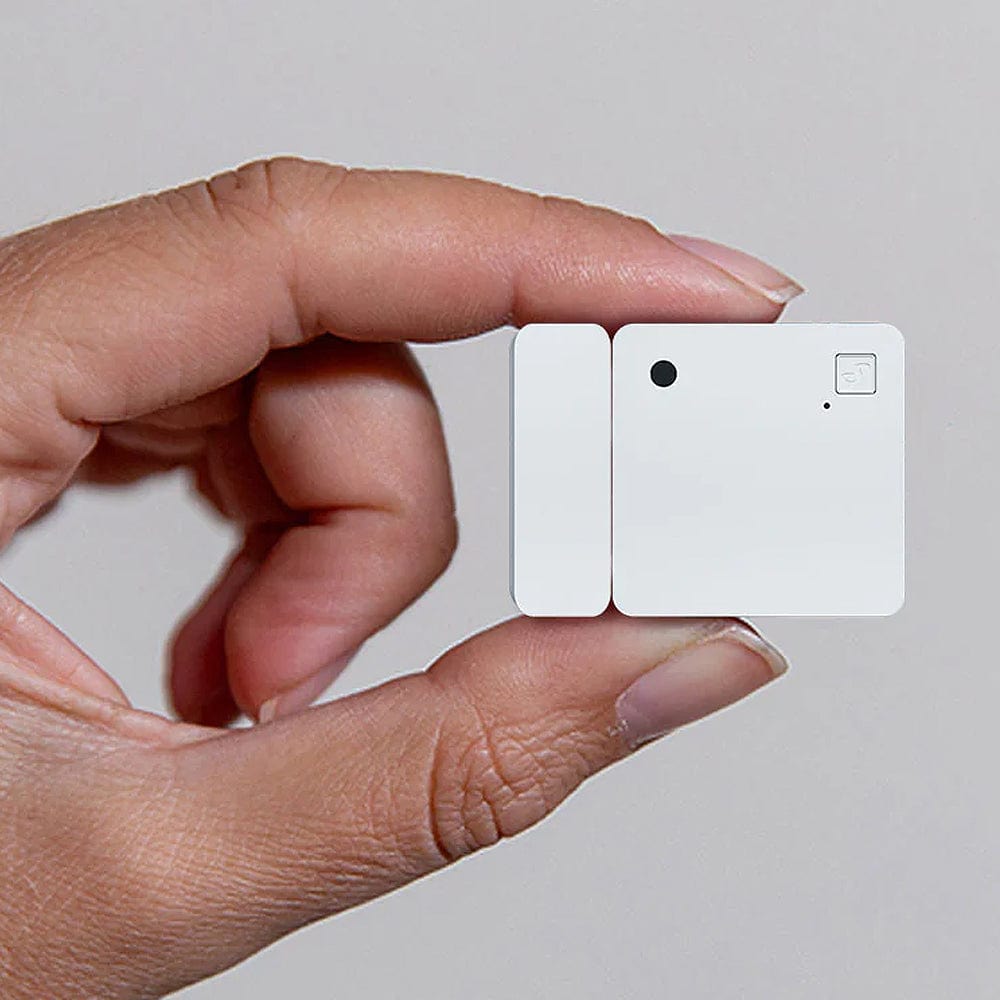

Whether you want to enhance home security, automate lighting, or monitor access, the Shelly Wave Door/Window sensor adapts to your unique needs. Its compact and stylish design allows for easy installation on doors, windows, safety gates, garage doors, and more.
The sensor is powered by a single CR2032 lithium battery, which is included in the package.
Works with all certified Z-Wave Gateways
Shelly Wave devices work with over 4000 Z-Wave-certified devices and gateways. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances from anywhere using your smartphone or tablet.
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralised smart hub! Shelly devices work on the latest Z-Wave chip generation (S800), one of the most popular standardised technologies for smart homes in the world.
Z-Wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-Wave hub.For more information, please visit the official Z-Wave website: www. z-wavealliance.org
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?
Features
Detects and reports opening or closing of doors/windows
Open/close, angle and illumination measurement
Battery 1x CR2032 (included)
Battery life - up to two years
Z-Wave frequency band: 868.4 MHz (CEPT countries)
Latest technology: Z-Wave 800 Series
Automatic set-up with SmartStart
Security 2 Authenticated for the highest level of security
Over-the-air firmware updates
Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
Specifications
Battery life
Up to 2 years
Reed switch
Yes
G-sensor
Yes
Light sensor
Yes
Distance
Up to 40 m indoors (131 ft.) (depends on local conditions)
Z-Wave® repeater
No
CPU
Z-Wave® S800
Z-Wave® frequency bands
868.4 MHz
Maximum radio frequency power transmitted in frequency band(s)
< 25 mW
Size (H x W x D)
35x35x7 mm ±0.5 mm (Sensor unit) 35x12x7 ±0.5 mm (Magnet)
Weight
10 g ±1 g (Device with the battery) 8 g ±1 g (Magnet)
