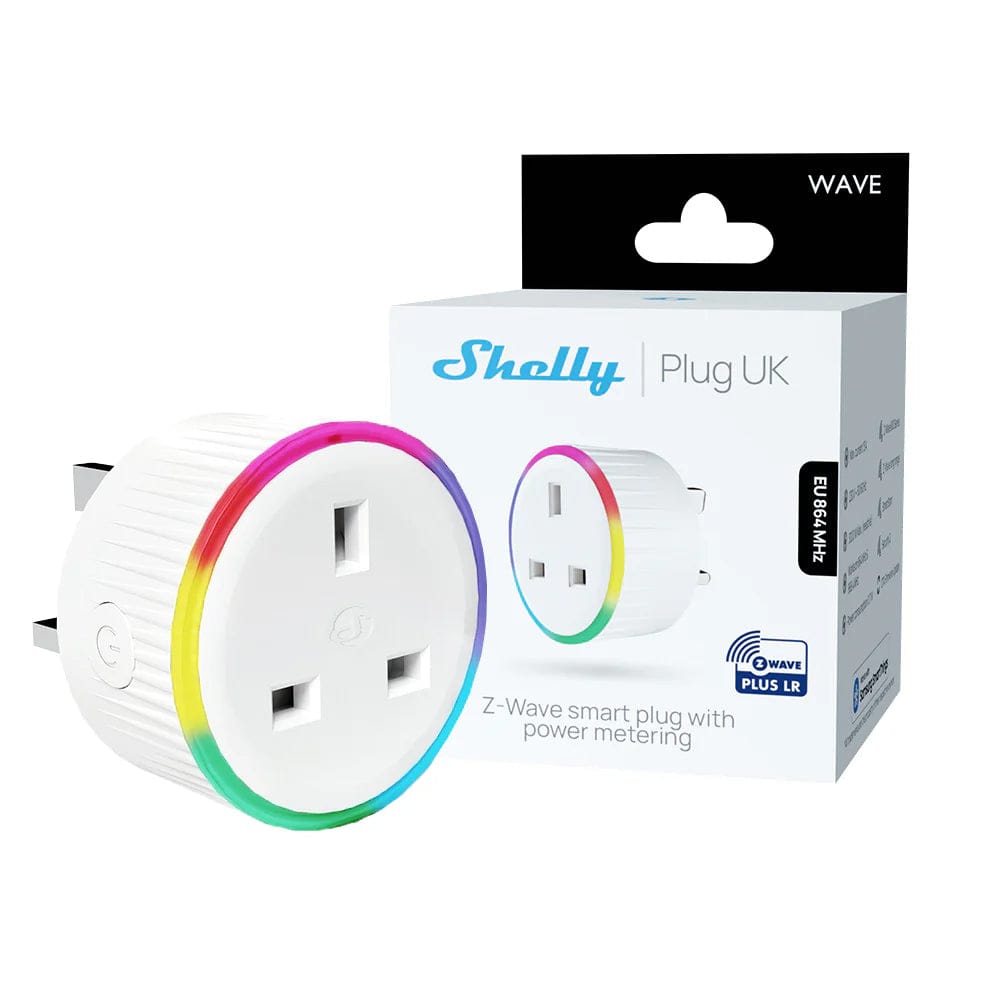

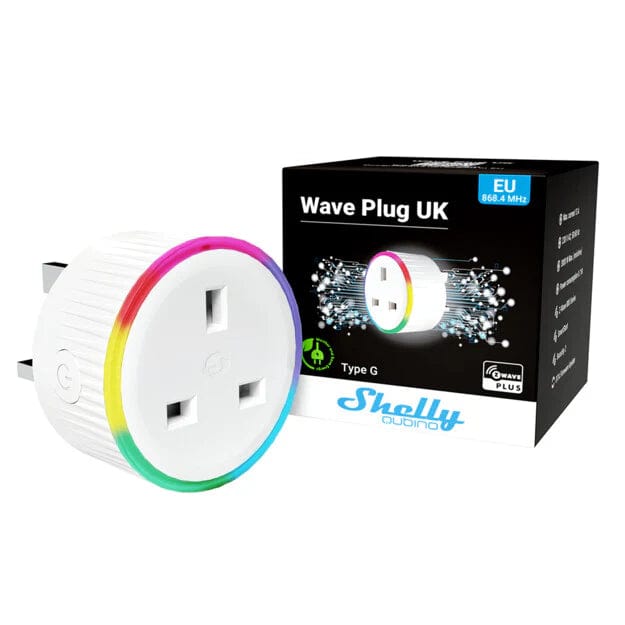

The ShellyWave Plug UK is a Z-Wave smart plugwith power metering that allows you to automate and remotely control any 3D printer, space heater, iron, TV, or any other connected electrical appliance at home with a power capacity of up to 3000 W at 13A, whilst also monitoring their power usage.

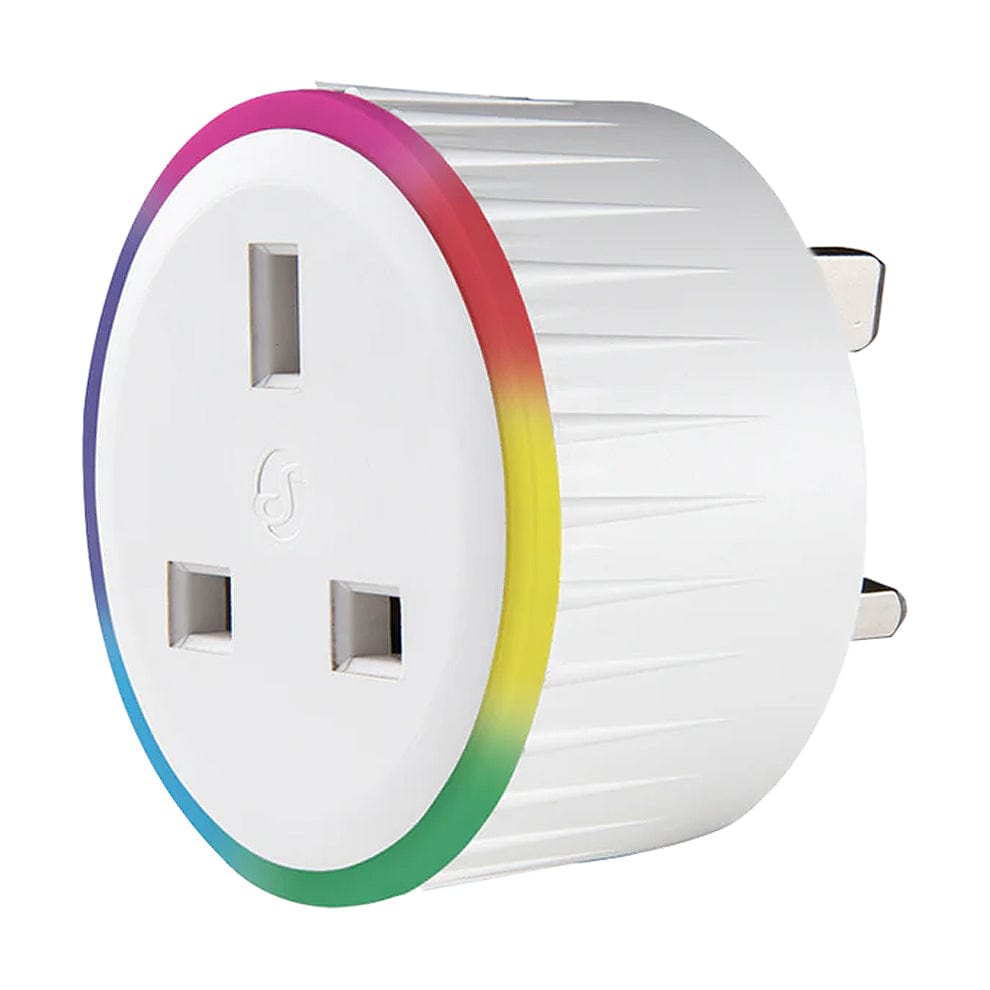

Its LED indication ring keeps you informed about the current power consumption and the current state of the appliance (e.g. if overcurrent or overheating is detected). The LED mode can be changed, or disabled altogether if you desire.
Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control it from anywhere using your smartphone or tablet. Shelly Wave devices work with over 4000 Z-Wave-certified devices and gateways.
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralised smart hub! Shelly devices work on the latest Z-Wave chip generation (S800), one of the most popular standardised technologies for smart homes in the world.
Z-Wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-Wave hub. For more information, please visit the official Z-Wave website: www. z-wavealliance.org
⚠️Caution - Read Before Buying⚠️
Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee (if any)
Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
Do not connect the device to appliances exceeding the given max load.
Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
Features
Manage power supplies of up to 3000 W (resistive) at 13 A

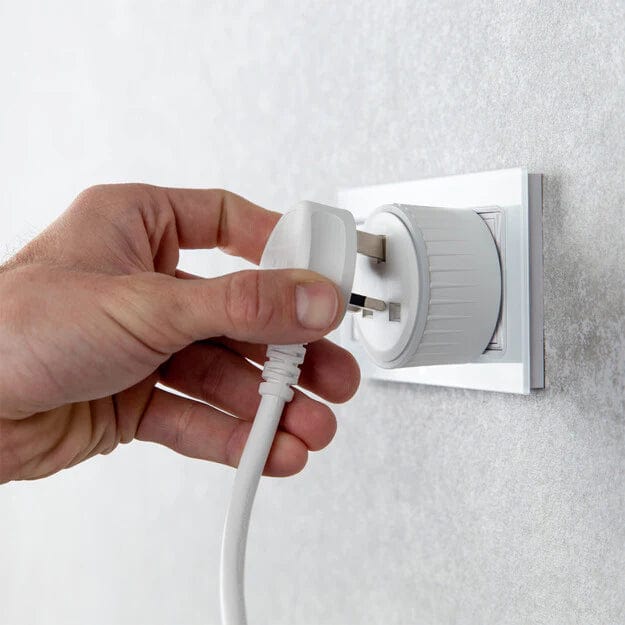

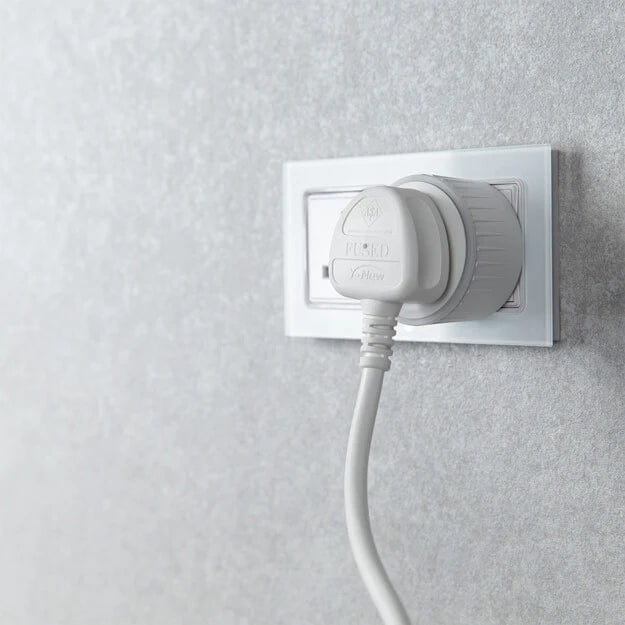

Plug & Play installation (compatible with standard UK sockets and plugs)
Measures power consumption of the connected appliance, indicated by the colour of the LED ring.
Low power consumption: < 0.7 W
Z-Wave frequency band: 868.42 MHz (CEPT countries)
Latest technology: Z-Wave 800 Series
Automatic set-up with SmartStart
Security 2 Authenticated for the highest level of security
Over-the-air firmware updates
Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
A Z-Wave™ gateway is not included. A gateway (smart hub) is required for the configuration of the device.
Specifications
Power supply
230 V ±10 % , 50/60 Hz
Power consumption
< 0.7 W
Power measurement [W]
Yes
Max switching voltage AC
260 V
Max switching current AC
13 A
Overheating protection
Yes
Overcurrent protection
Yes
Overvoltage protection
Yes
Distance
up to 40 m indoors (131 ft.)
Z-Wave repeater
Yes
CPU
Z-Wave S800
Z-Wave frequency band
868,4 MHz
Maximum radio frequency power transmitted in frequency bend(s)
