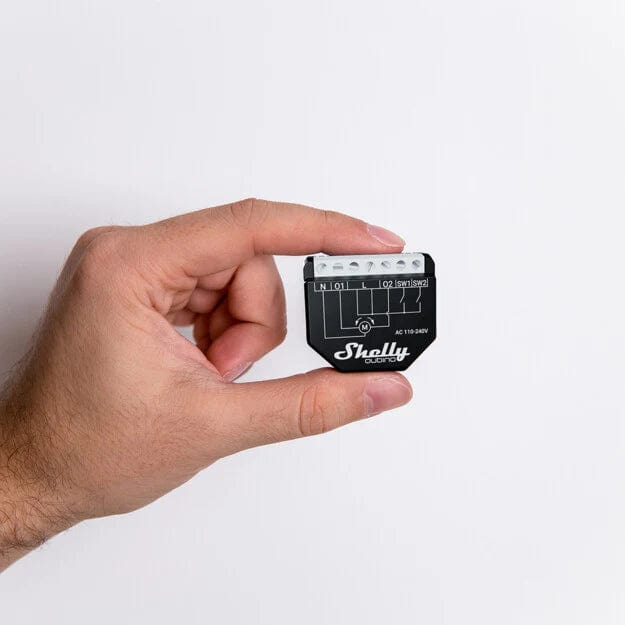

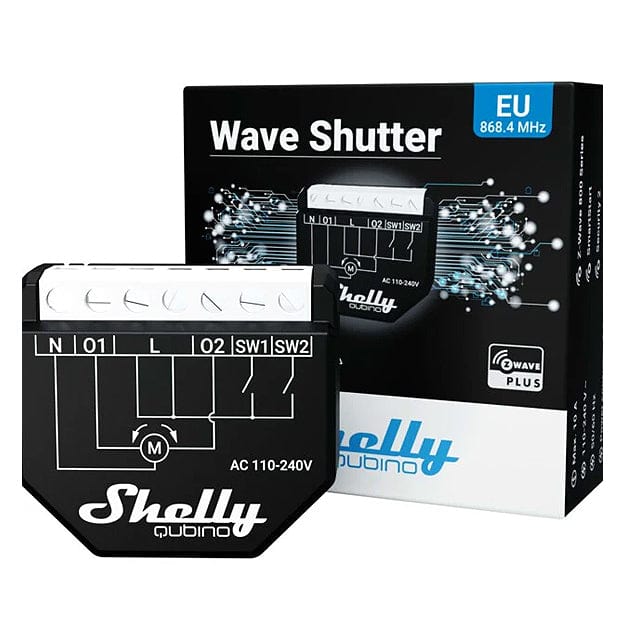

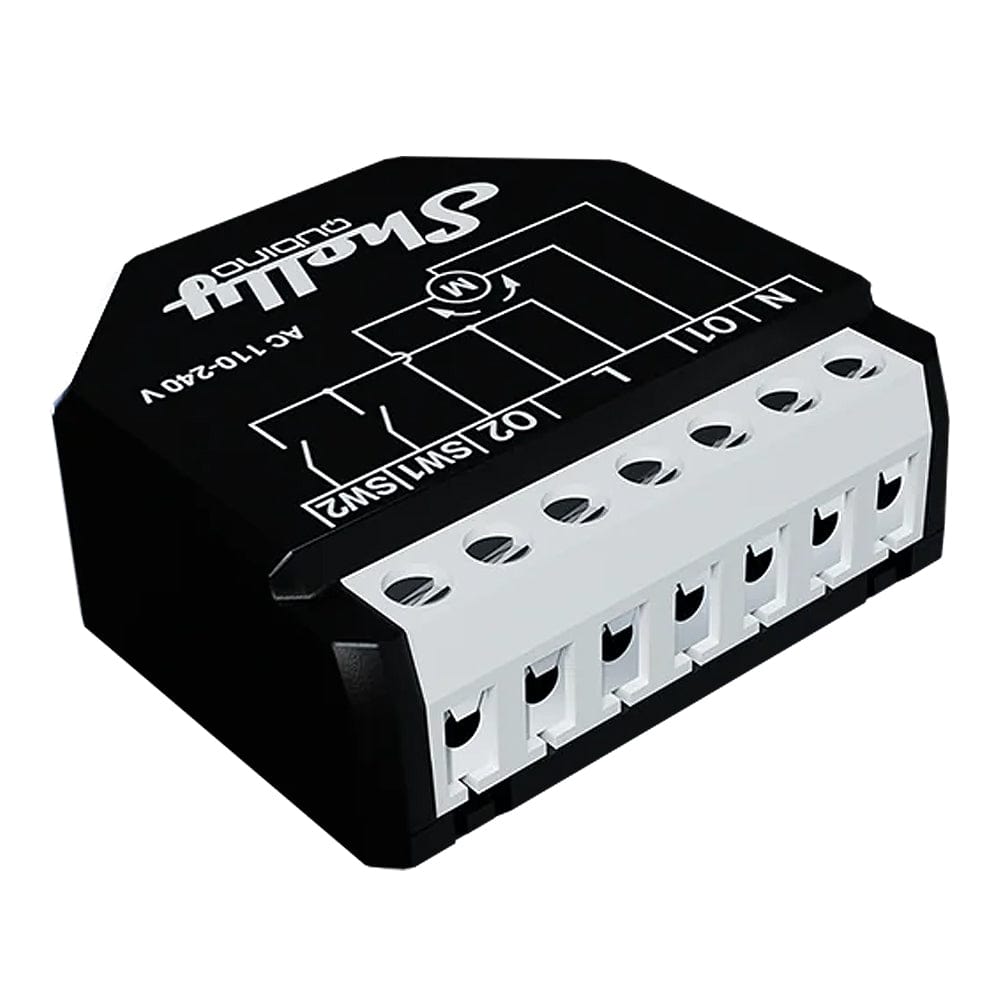

The ShellyWave Shutter allows you to set the desired position of motorised shading systems, such as blinds, roller shutters, screens, awnings, and other devices powered by bi-directional AC motors from anywhere, with power metering!
It is recommended that only motors for blinds with electronic or mechanical limit switches be used. Motor limit switches must be set correctly before connecting the device to the motor.
Note:You may require a neutral wire to use this product. Please research the device and your home wiring (safely, see below) before purchasing.
Works with all certified Z-Wave Gateways

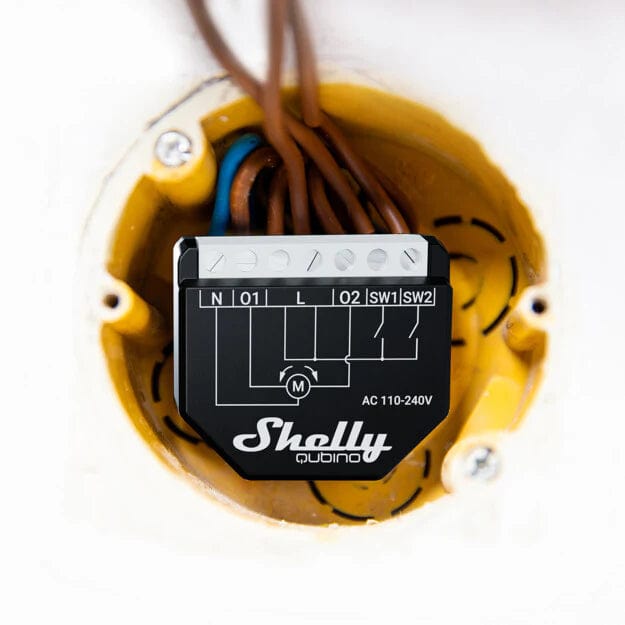

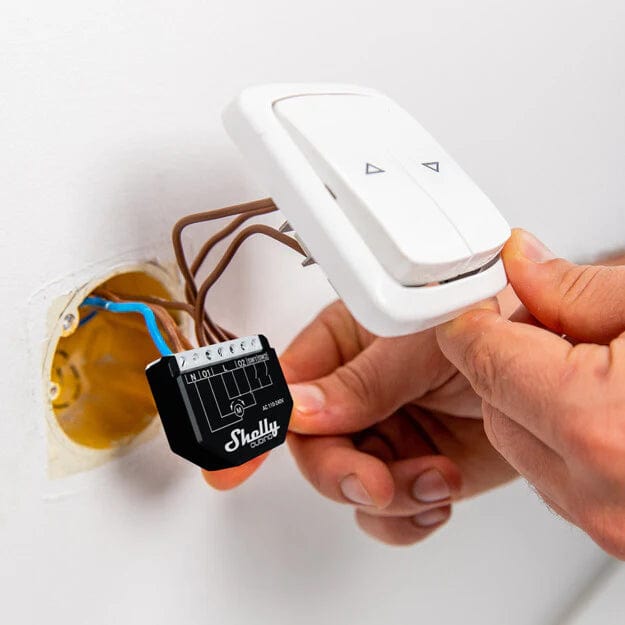

Shelly Wave Shutter is retrofit and designed to fit behind some switches or sockets. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control it from anywhere using your smartphone or tablet. Shelly Wave devices work with over 4000 Z-Wave-certified devices and gateways.
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralised smart hub! Shelly devices work on the latest Z-Wave chip generation (S800), one of the most popular standardised technologies for smart homes in the world.
Z-Wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-Wave hub. For more information, please visit the official Z-Wave website: www. z-wavealliance.org
⚠️Caution - Read Before Buying⚠️
Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
Danger of electrocution. The mounting/installation of the device should be performed by a qualified person (electrician)
Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee (if any)
Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
Do not connect the device to appliances exceeding the given max load.
Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.
Features
Supports push-buttons/momentary switches, and toggle switches
Power metering
Extremely low power consumption: < 0.3 W
Z-Wave frequency band: 868.4 MHz (CEPT countries)
Latest technology: Z-Wave 800 Series
Automatic set-up with SmartStart
Security 2 Authenticated for the highest level of security
Over-the-air firmware updates
Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
A Z-Wave™ gateway is not included. A gateway (smart hub) is required for the configuration of the device.
Specifications
Power supply
110-240 V AC +/- 10%
Power consumption
< 0.3 W
Power measurement [W]
Yes
Max switching voltage AC
240 V
Max switching current AC
10 A per channel
Overheating protection
Yes
Overload protection
Yes
Distance
up to 40 m indoors (131 ft.)
(depends on local conditions)
Z-Wave® repeater
Yes
CPU
Z-Wave® S800
Z-Wave® frequency band
868,4 MHz
Maximum radio frequency power transmitted in frequency bend(s)
