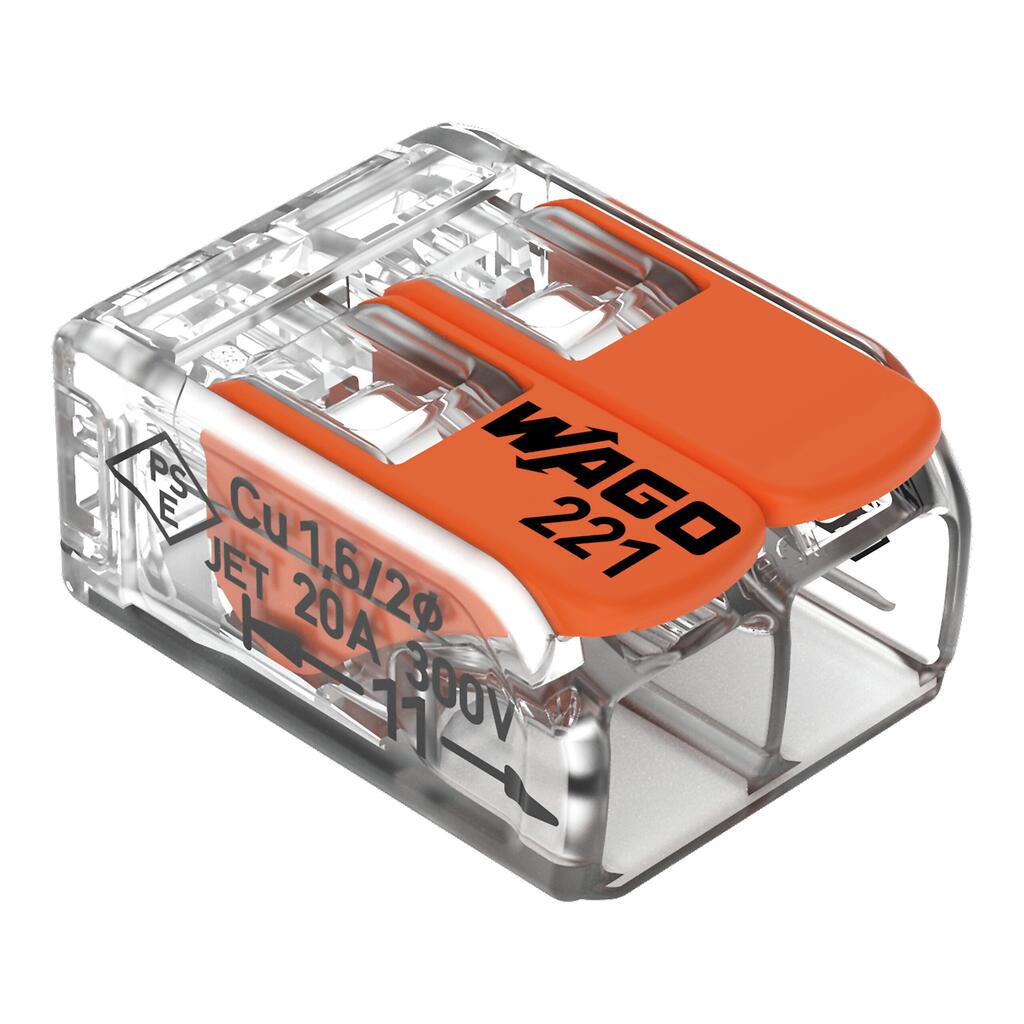

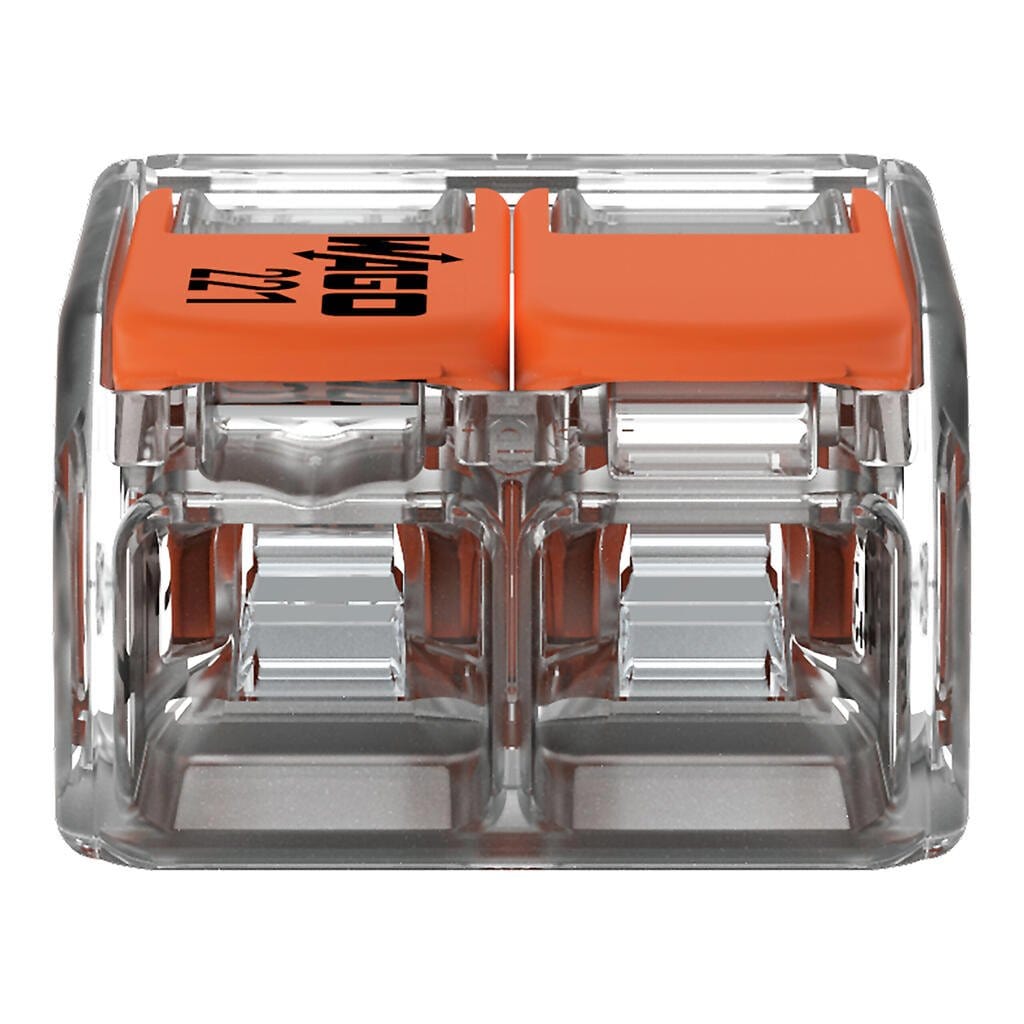

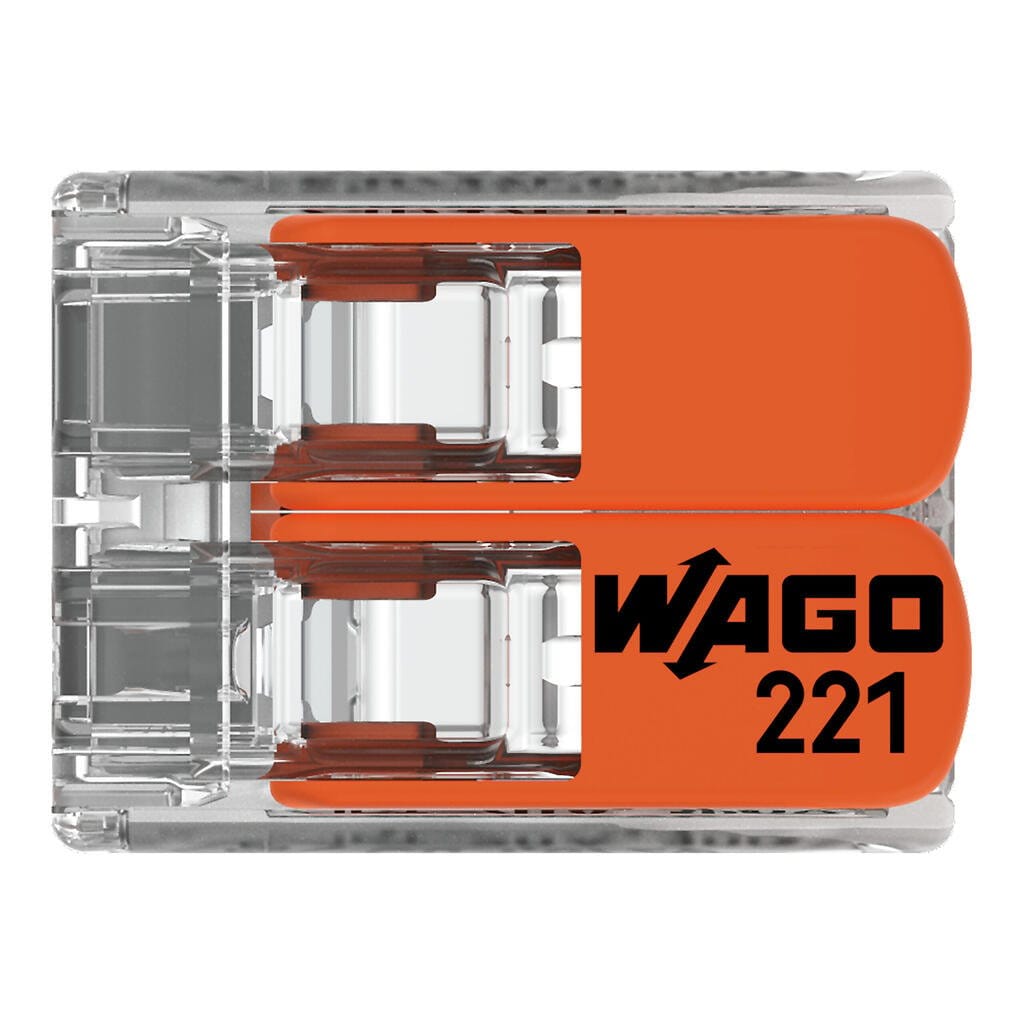

Wago 2-Way Block Connector (12-24 AWG) - Pack of 3

WagoSKU: 104128
£1.50
incl. VAT
excl. VAT
Sold out
Notify me

Awesome Extras

Wago 3-Way Block Connector (12-24 AWG) - Pack of 3 - The Pi HutWago 3-Way Block Connector (12-24 AWG) - Pack of 3 - The Pi Hut
WagoWago 3-Way Block Connector (12-24 AWG) - Pack of 3
£2.50 incl. VAT excl. VAT
Wago 5-Way Block Connector (12-24 AWG) - Pack of 3 - The Pi HutWago 5-Way Block Connector (12-24 AWG) - Pack of 3 - The Pi Hut
WagoWago 5-Way Block Connector (12-24 AWG) - Pack of 3
£3.50 incl. VAT excl. VAT
Prototyping Wire Spool Set - The Pi HutPrototyping Wire Spool Set - The Pi Hut
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
£12 incl. VAT excl. VAT

These high-quality official Wago block connectors are used across the globe for residential and industrial electrical work, and they're absolutely perfect for makers too!

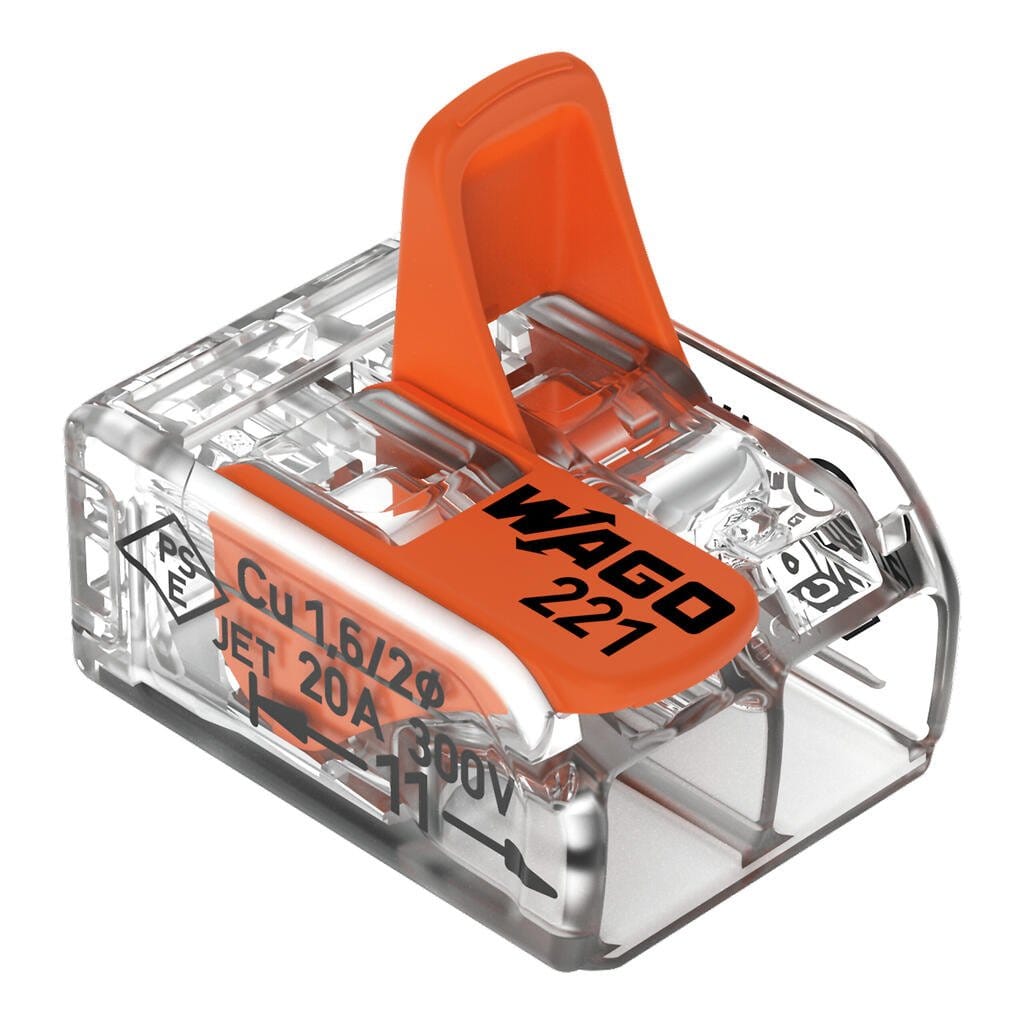

If you need to join cables together quickly to prototype a project, these are ideal for the job and require no tools - the levers simply snap open and close.

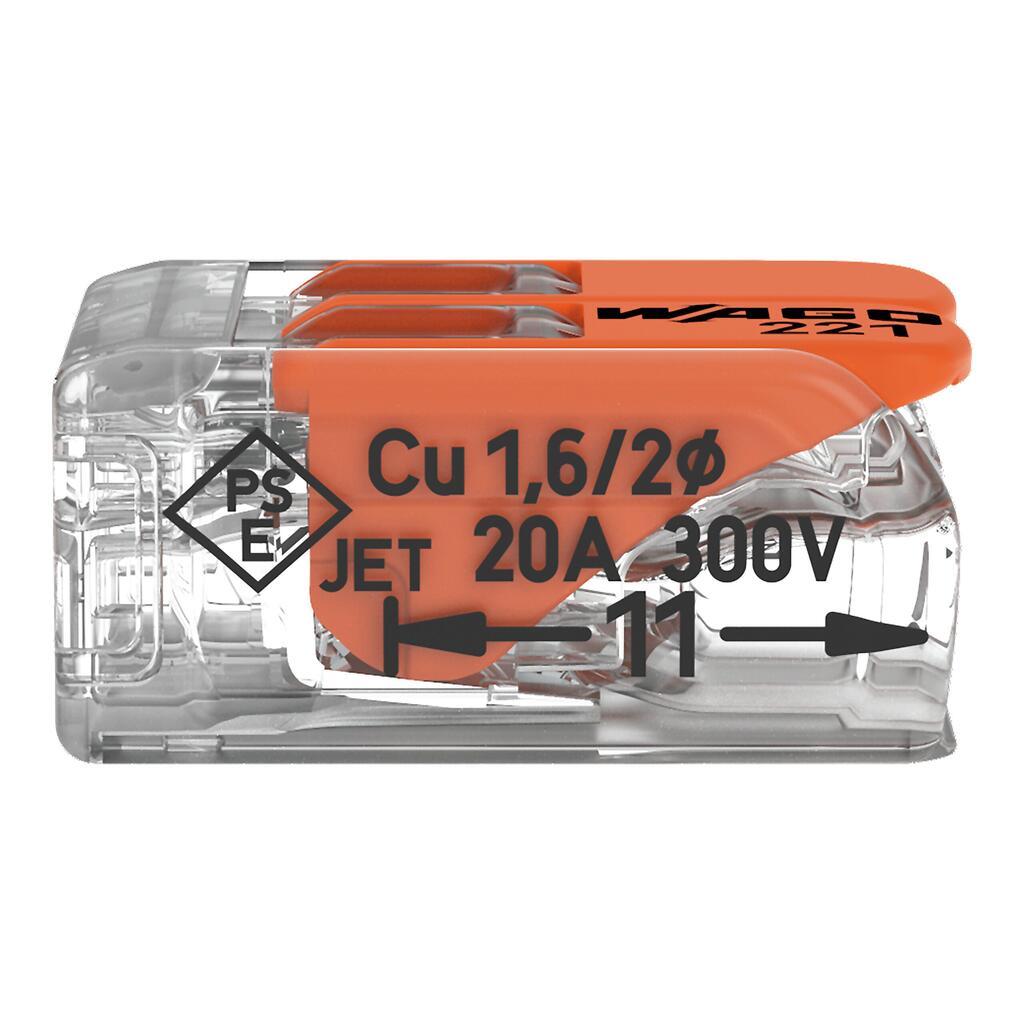

The connectors support up to 20A @ 300V and are UL listed so you can use them for your mains wiring. Wires from 12-24AWG will fit and work well.

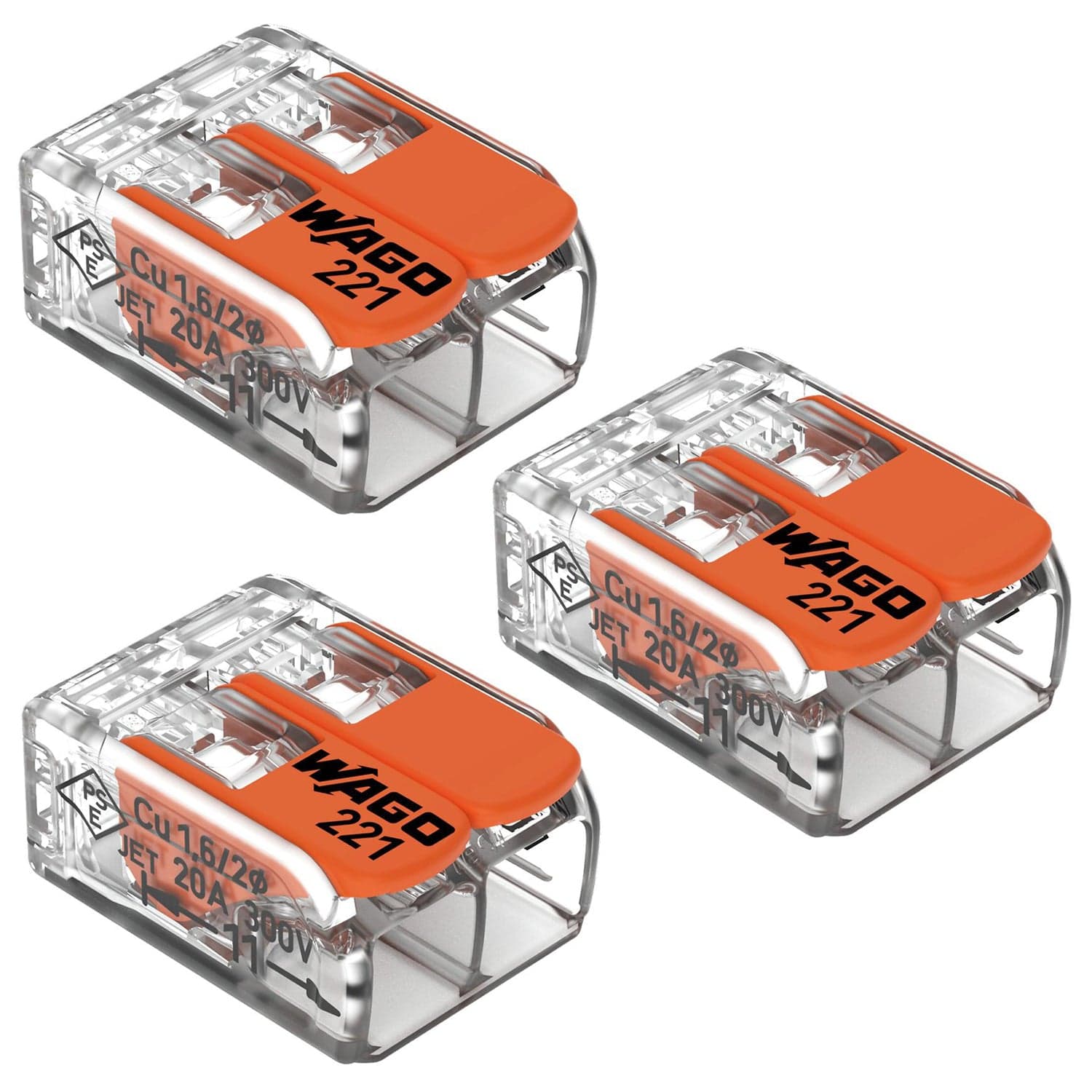

You will receive 3x 2-way Wago blocks as pictured.

Specification

  • Connection method: Cage Clamp
  • Cross-section [mm²]: 4 mm²

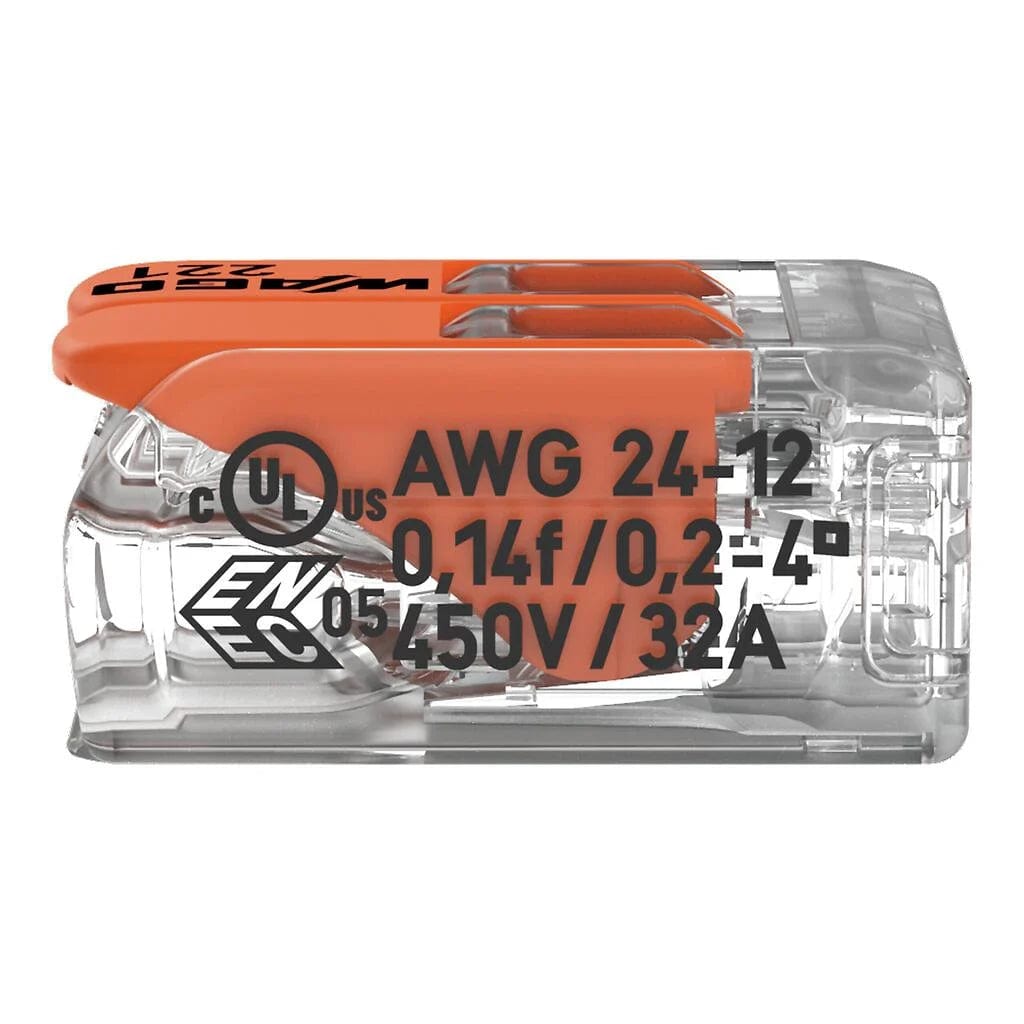

  • Cross-section [AWG]: 12-24 AWG
  • Rated voltage EN: 450 V
  • Measured shock voltage: 4 kV
  • Nominal Current: 32 A
  • Wiring type: Side-entry
  • Flammability rating per UL 94: V2
