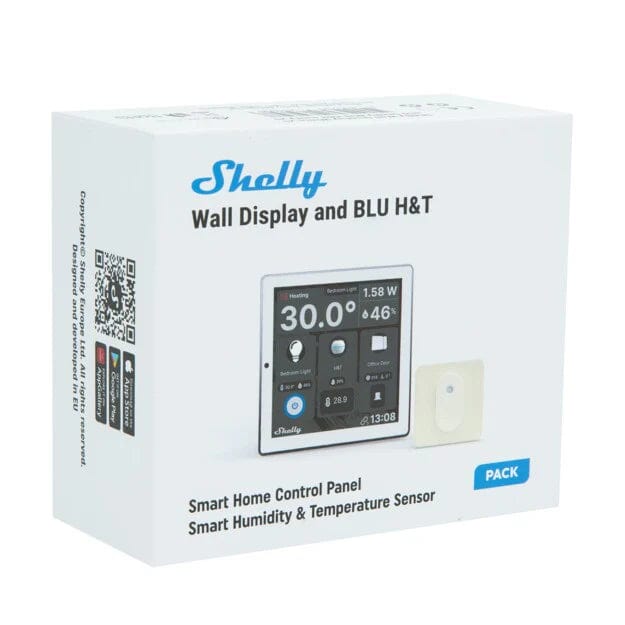

The ShellyWall Display + H&T is a bundle of the Shelly Wall Display and a Shelly BLU H&T (Humidity & Temperature Sensor), available in two different colour options (the wall display is no longer available as a standalone product).

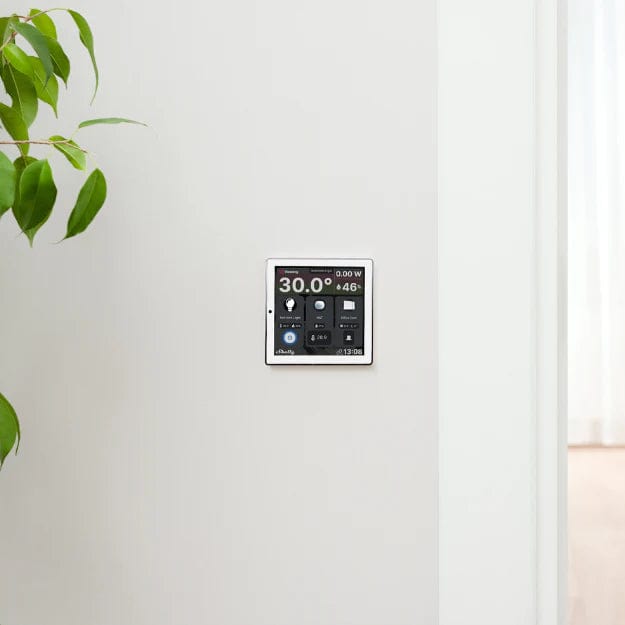

The Shelly Wall Display is a sophisticated 4" display that brings intuitive control and seamless monitoring to every corner of your smart home. Whether it's dimming the lights, adjusting the room's ambience, or ensuring optimal energy efficiency, this smart control panel makes home management simple. The highly customizable home screen becomes a reflection of your preferences, offering a quick glimpse of essential home details. Together with the included Shelly BLU H&T, it can function as a smart thermostat, allowing you to easily fine-tune your heating or cooling.
The display also has an integrated 5A relay for appliance control. The latest (Beta?) update to the software for the Shelly Wall Switch also allows Home Assistant control!
The Shelly BLU H&T is a compact water and dust-resilient Bluetooth sensor that precisely measures temperature and humidity levels, powered by a CR2032 lithium battery (included).
We offer this display bundle in two different colour packs - select an option before adding to cart.

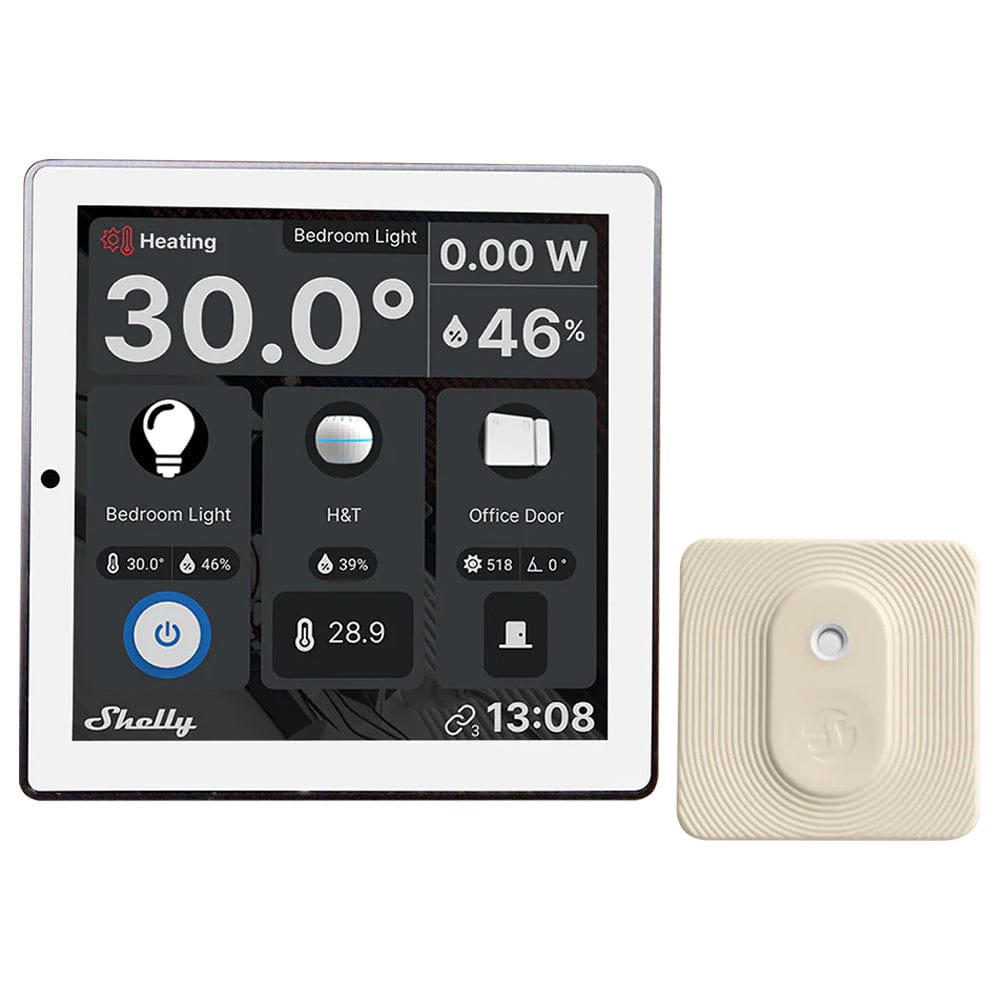

The white wall display bundle comes with an ivory BLU H&T sensor.

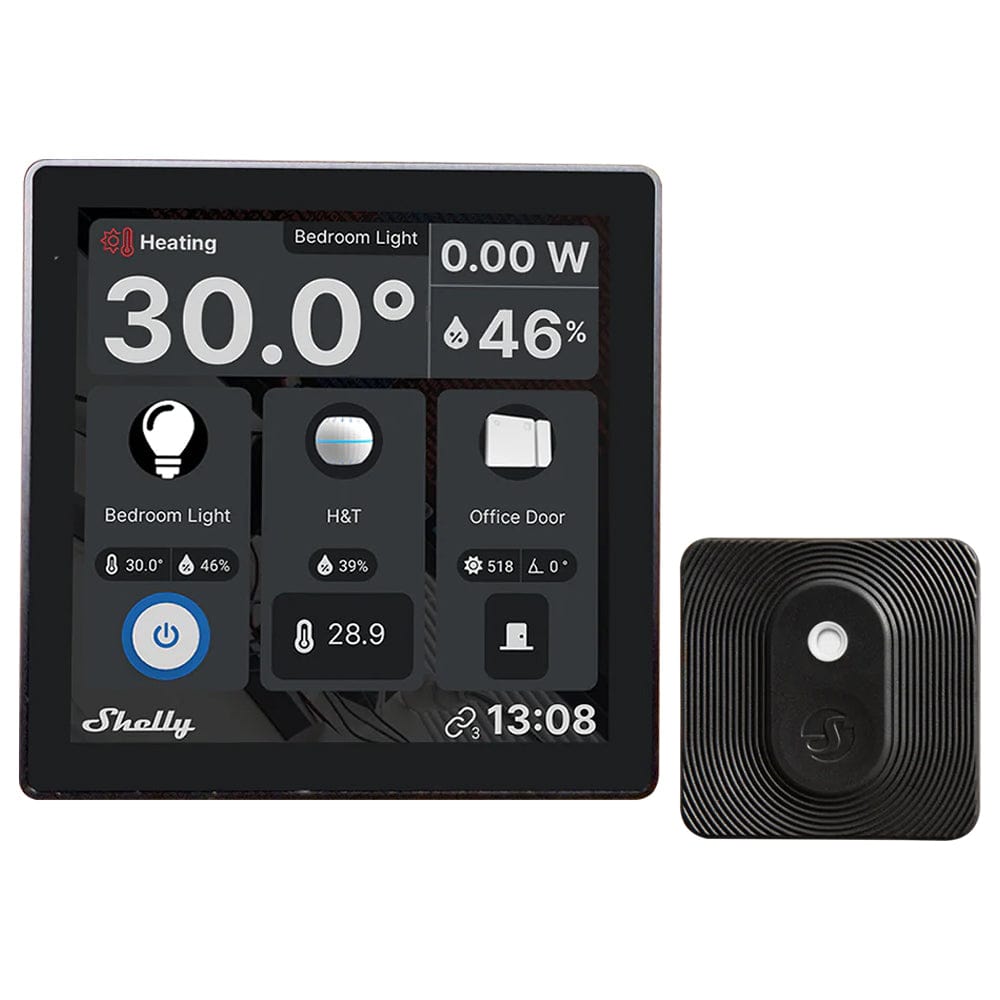

The black wall display bundle comes with a black BLU H&T sensor.
Video
Note the video below only shows the wall display - the included Shelly BLU H&T is not featured.
⚠️Caution - Read Before Buying⚠️
Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
Danger of electrocution. The mounting/installation of the device should be performed by a qualified person (electrician)
Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee (if any)
Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
Do not connect the device to appliances exceeding the given max load.
Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.

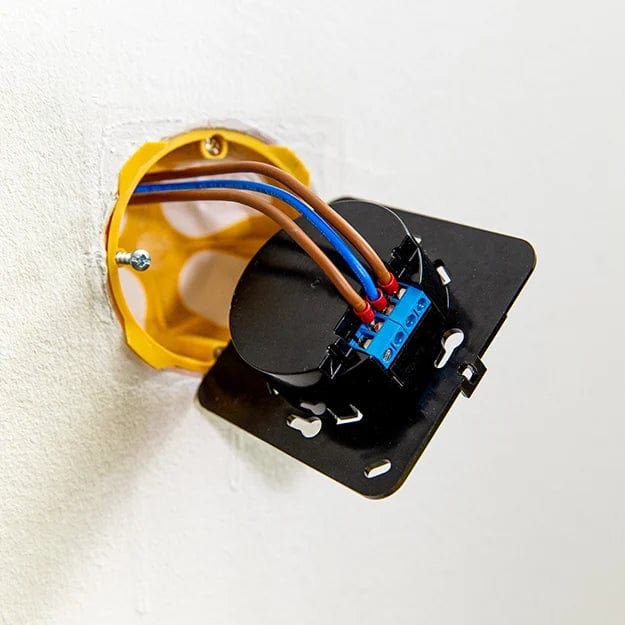

Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.
Features
4" Smart Wall Display
Integrated 5A relay for appliance control; neutral required
Embedded sensors for Temperature, Humidity & LUX
Power consumption monitoring of all devices in your chosen room
Can function as a room thermostat
Easy navigation and customizable home screen and brightness
Create scenes and schedules
Specifications
Size (HxWxD)
85x85x30 mm / 3.35x3.35x1.18 inch
Weight
180 g / 6.35 oz
Screw terminal max torque
0.4 Nm / 4.43 lbin
Conductor cross-section
0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length
6 to 7 mm / 0.24 to 0.28 in
Mounting
Wall box
Shell material
Plastic, aluminum, glass
Shell colour
Black or white
Ambient working temperature
-20 °C to 40 °C / -5 °F to 105 °F
Humidity
30 % to 70 % RH
Max. altitude
2000 m / 6562 ft
Power supply
230 VAC, 50/60Hz
Power consumption
< 1 W
Max. switching voltage
230 VAC
Max. switching current
5 A
Internal-temperature sensor
No
Ambient temperature sensor
Yes
Humidity sensor
Yes
Light sensor
Yes
Wi-Fi
Protocol
802.11 b/g/n
RF band
2401 - 2495 МHz
Max. RF power
< 20 dBm
Range
Up to 30 m / 100 ft indoors Up to 50 m / 160 ft outdoors
(Depends on local conditions)
Bluetooth
Protocol
4.2
RF band
2400 - 2483.5 MHz
Max. RF power
< 4 dBm
Range
Up to 10 m / 33 ft indoors Up to 30 m / 100 ft outdoors (Depends on local conditions)
