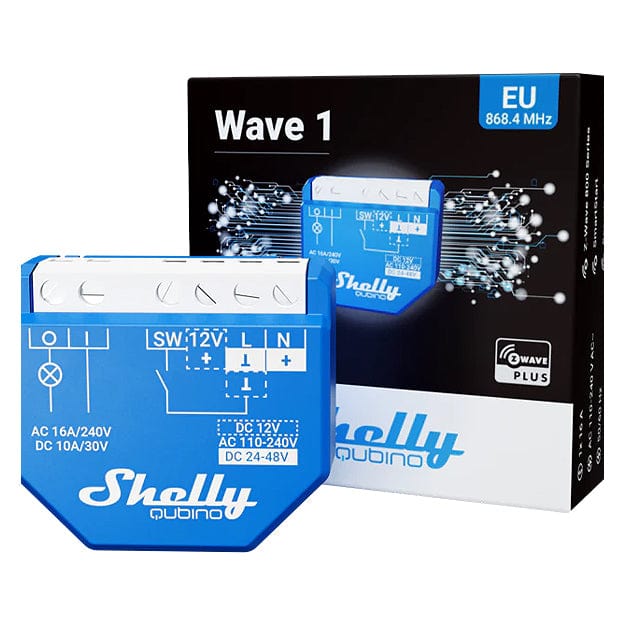

The ShellyWave 1 is a single-channel 16A Z-Wave smart switch with dry contacts that allows you to automate and remotely control a variety of electrical appliances, such as electrical locks, gates, garage doors, irrigation systems, and lights.
Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs, via the Shelly smart home ecosystem, including the Shelly Smart Control app - or link it with a popular home automation software such as Home Assistant via a Raspberry Pi!
Note:You may require a neutral wire to use this product. Please research the device and your home wiring (safely, see below) before purchasing.
Works with all certified Z-Wave Gateways

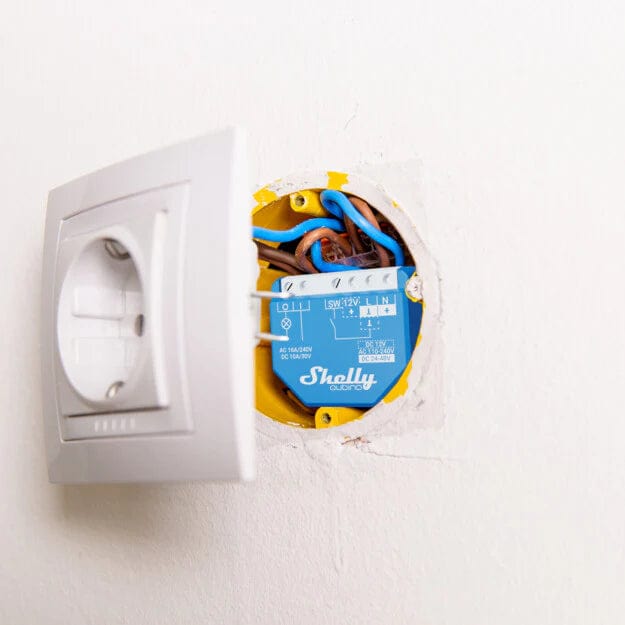

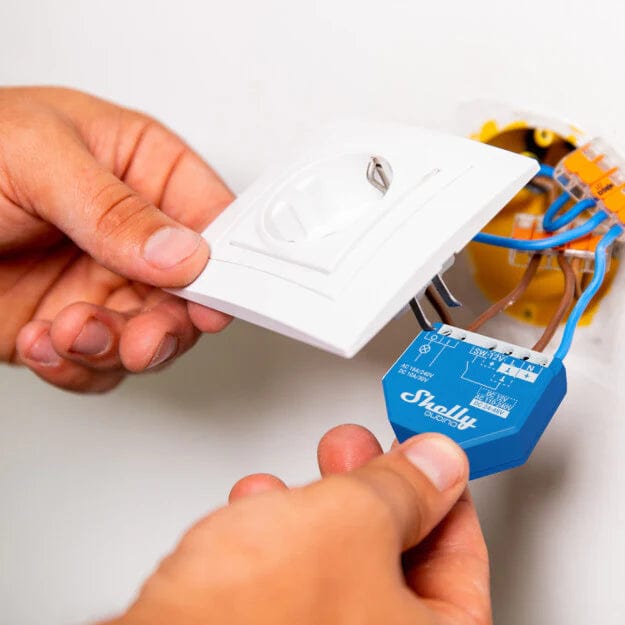

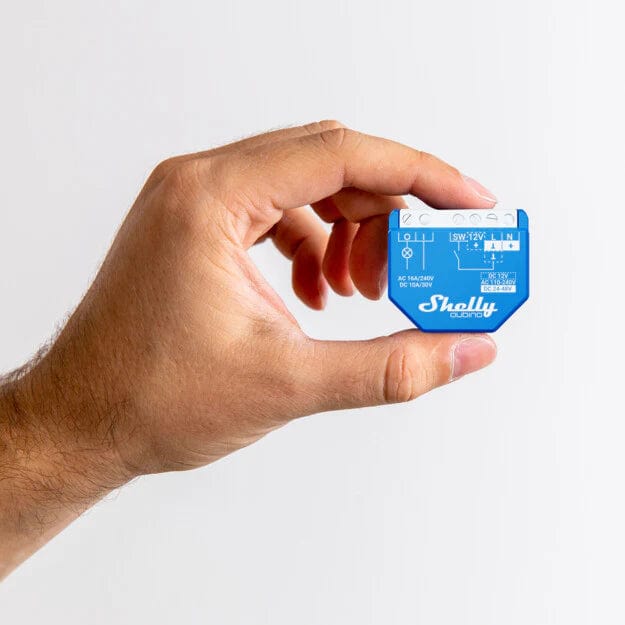

Shelly Wave 1 is retrofit and designed to fit behind any switch or socket, instantly transforming it into a smart one. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances from anywhere using your smartphone or tablet. Shelly Wave devices work with over 4000 Z-Wave-certified devices and gateways.
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralised smart hub! Shelly devices work on the latest Z-Wave chip generation (S800), one of the most popular standardised technologies for smart homes in the world.
Z-Wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-Wave hub. For more information, please visit the official Z-Wave website: www. z-wavealliance.org
⚠️Caution - Read Before Buying⚠️
Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
Danger of electrocution. The mounting/installation of the device should be performed by a qualified person (electrician)
Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee (if any)
Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
Do not connect the device to appliances exceeding the given max load.
Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.
Features
Z-Wave™ smart switch
1 channel 16 A
Dry contacts
Extremely low power consumption: 0.3W
Latest technology: Z-Wave 800 Series
Z-Wave frequency band: 868.4 MHz (CEPT countries)
Automatic set-up with SmartStart
Security 2 Authenticated for the highest level of security
Supports over-the-air firmware updates (OTA)
Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
A Z-Wave™ gateway is not included. A gateway (smart hub) is required for the configuration of the device.
Specifications
Power supply
110-240 V AC / 24-48 V DC /
12 V DC ± 10%
Power consumption
< 0.3 W
Max. switching voltage AC
240 V
Max. switching current AC
16 A
Max. switching voltage DC
30 V
Max. switching current DC
10 A
Overheating protection
Yes
Distance
Up to 40 m indoors (131 ft.) (depends on local condition)
Z-Wave® repeater
Yes
CPU
Z-Wave® S800
Z-Wave® frequency band
868,4 MHz
Maximum radio frequency power transmitted in frequency band(s)
