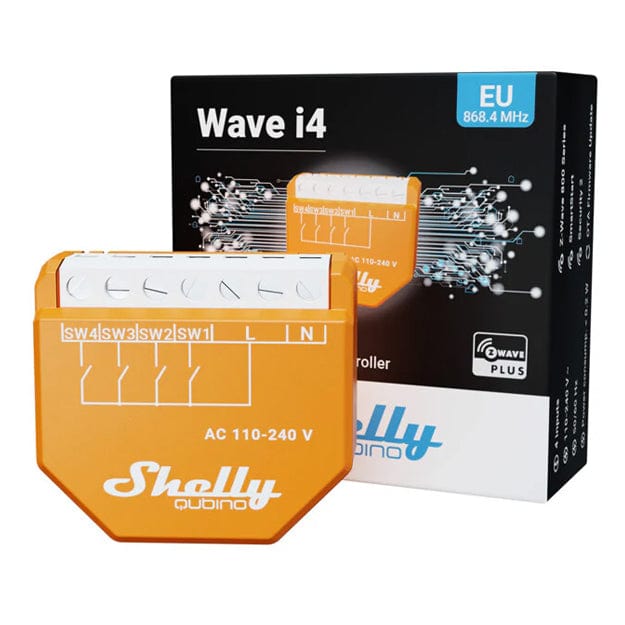

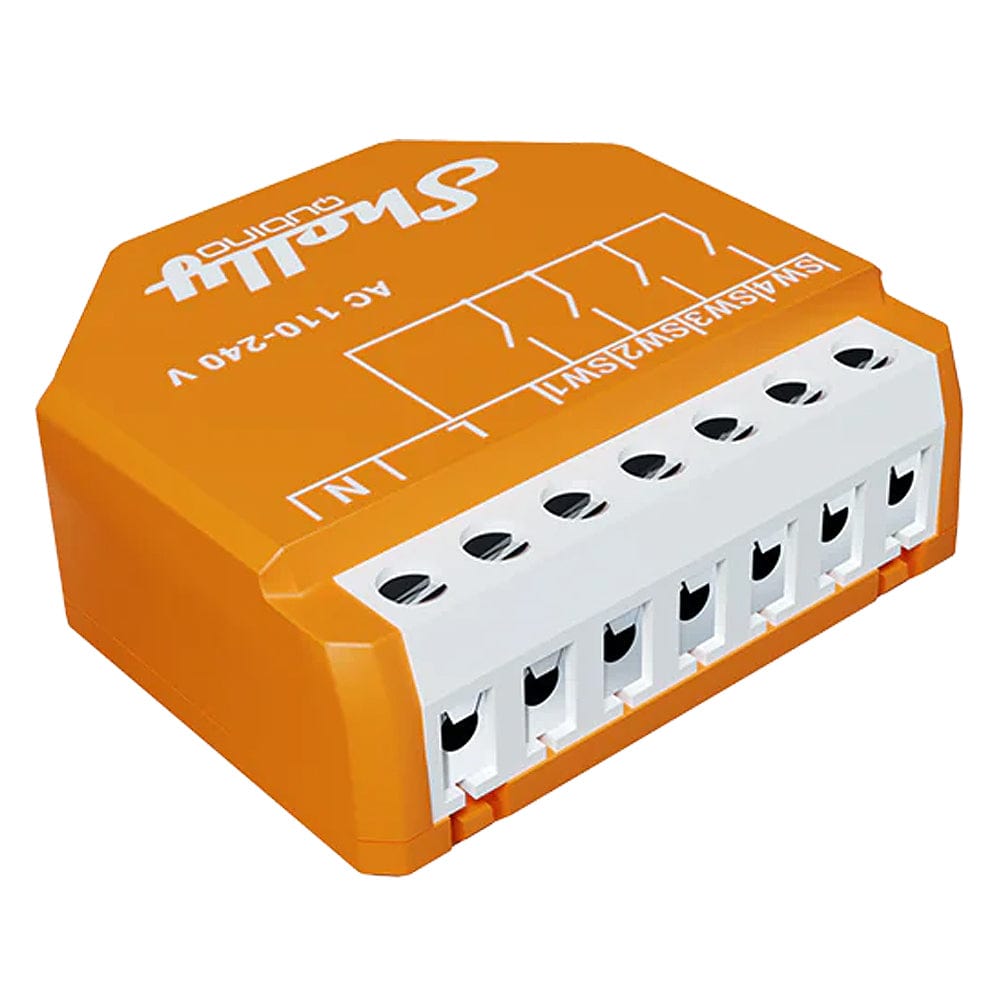

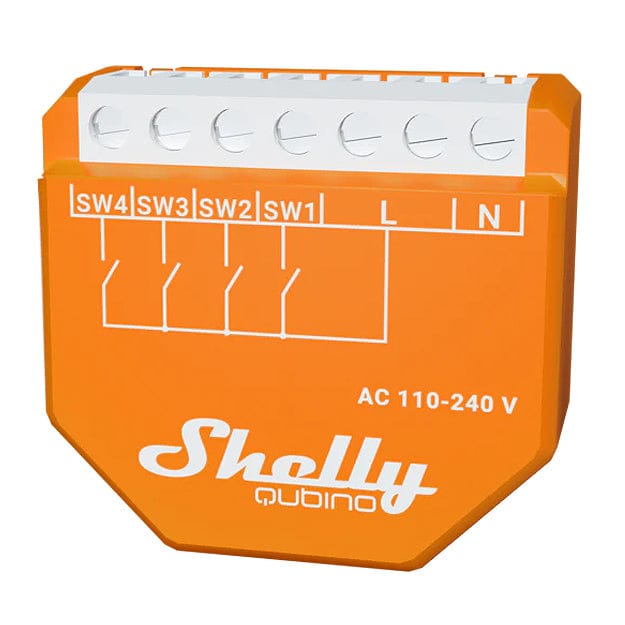

The ShellyWave i4 is a Z-Wave input reader device (no relays!) which allows you to manually activate or deactivate any created scene, run synchronised actions, or execute complex trigger scenarios.

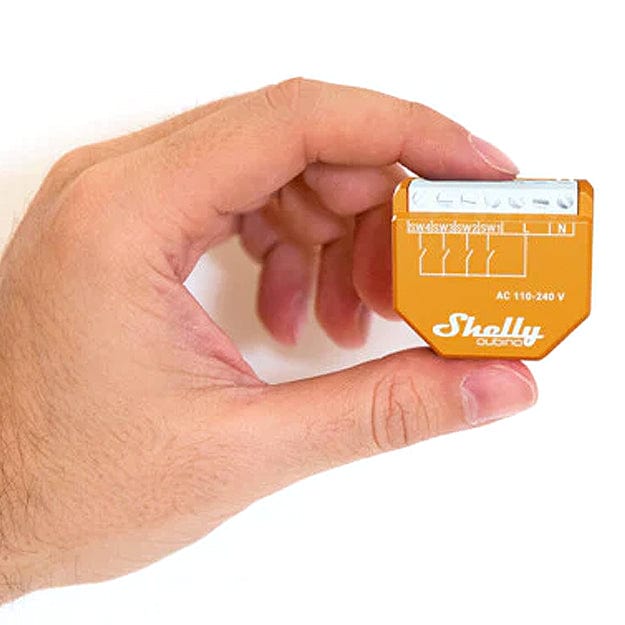

You can use it to control other Z-Wave devices within your network with one push of a button. Due to its retrofit design, it is small enough to fit behind some wall switches, or Shelly wall switches. The Wave i4 can show the status and control the action of four inputs, offering maximum convenience by enabling manual control of your smart home to all family members.
Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs, via the Shelly smart home ecosystem, including the Shelly Smart Control app - or link it with a popular home automation software such as Home Assistant via a Raspberry Pi!
Note:You may require a neutral wire to use this product. Please research the device and your home wiring (safely, see below) before purchasing.
Works with all certified Z-Wave Gateways
Shelly Wave i4 is retrofit and designed to fit behind some switches or sockets. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control it from anywhere using your smartphone or tablet. Shelly Wave devices work with over 4000 Z-Wave-certified devices and gateways.
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralised smart hub! Shelly devices work on the latest Z-Wave chip generation (S800), one of the most popular standardised technologies for smart homes in the world.
Z-Wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-Wave hub. For more information, please visit the official Z-Wave website: www. z-wavealliance.org
⚠️Caution - Read Before Buying⚠️
Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
Danger of electrocution. The mounting/installation of the device should be performed by a qualified person (electrician)
Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee (if any)
Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
Do not connect the device to appliances exceeding the given max load.
Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.
Features
Wave i4 is an input reader device (it does not contain relays)
Manually control other Z-Wave devices (e.g. with a multi-button switch)
Multi-click – activation of up to 12 actions
Extremely low power consumption: < 0.2 W
Z-Wave frequency band: 868.4 MHz (CEPT countries)
Latest technology: Z-Wave 800 Series
Automatic set-up with SmartStart
Security 2 Authenticated for the highest level of security
Over-the-air firmware updates
Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
A Z-Wave™ gateway is not included. A gateway (smart hub) is required for the configuration of the device.
Specifications
Power supply AC
110 - 240 V AC, 50/60 Hz
Power supply DC
No
Power consumption
< 0.2 W
Overload protection
No
Power measurement
No
Working without a neutral line
No
Number of inputs
4
Distance
Up to 40 m indoors (131 ft.) (depends on local conditions)
Z-Wave® repeater:
Yes
CPU
Z-Wave® S800
Z-Wave® frequency band:
868,4 MHz
Maximum radio frequency power transmitted in frequency band(s)
