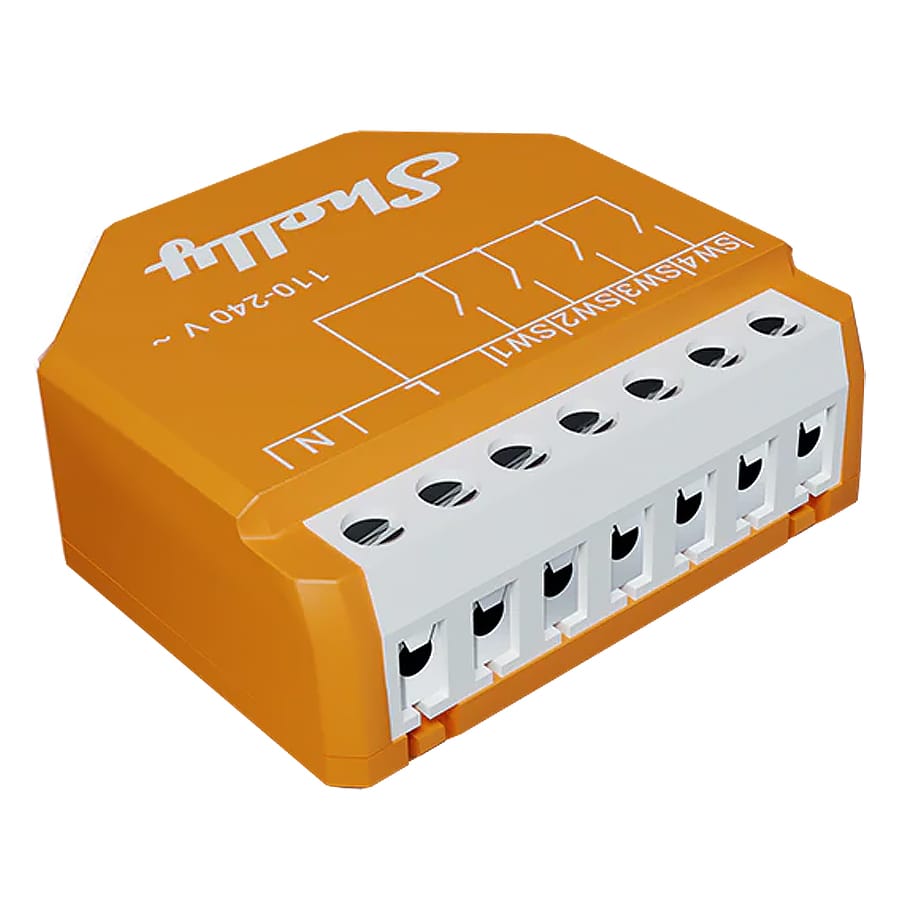

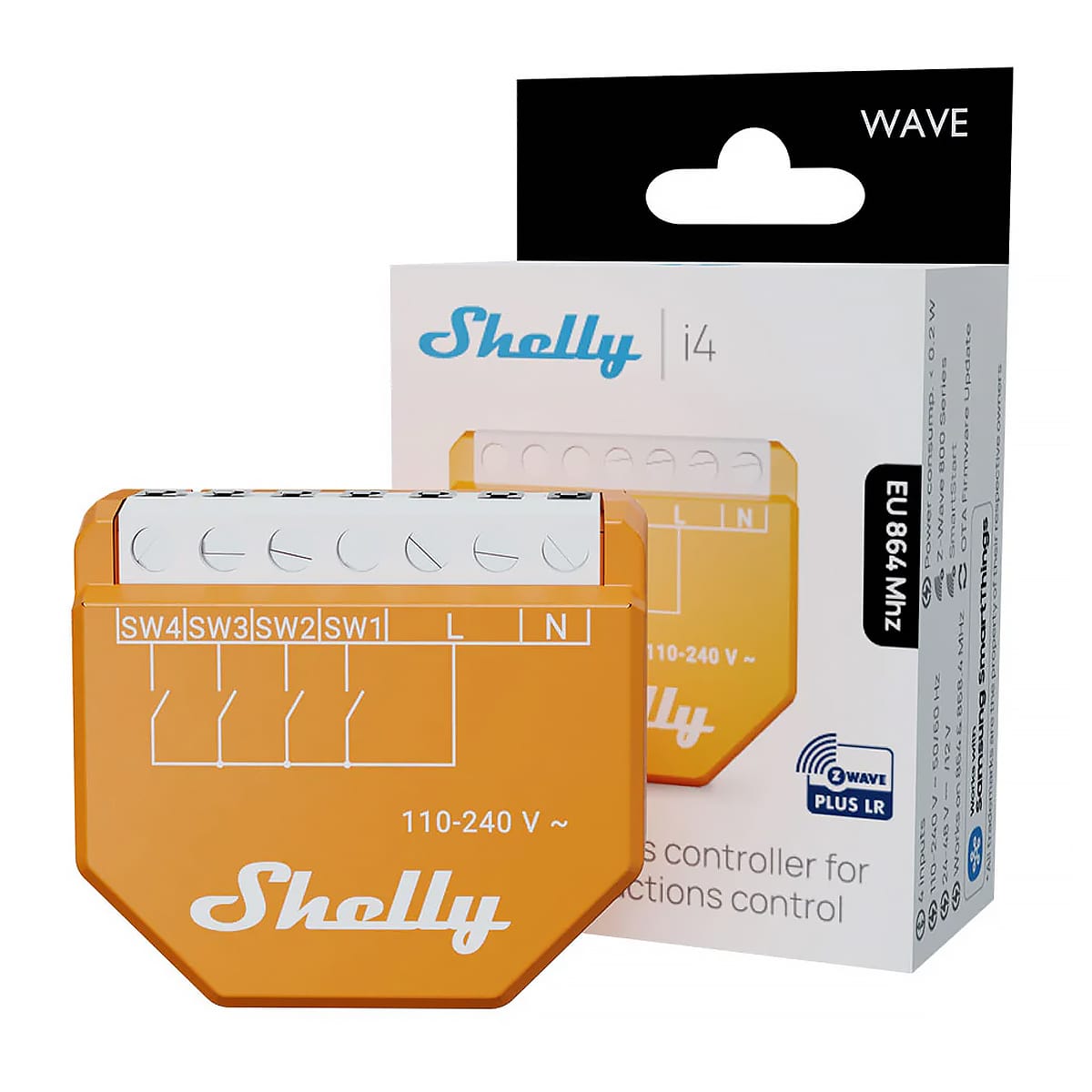

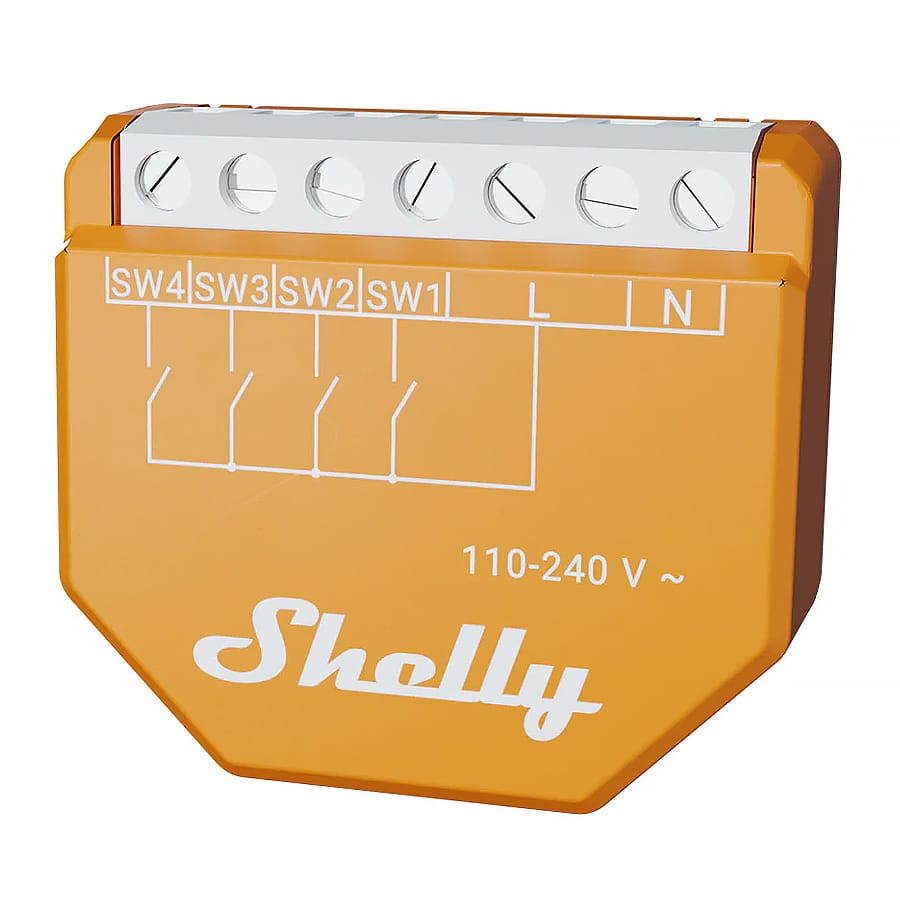

The Shelly Wave i4 LR is a Z-Wave Long Range input reader device (no relays!) which allows you to manually activate or deactivate any created scene, run synchronised actions, or execute complex trigger scenarios with a single button - now withZ-Wave Long Range (ZWLR) for greater coverage and reliability.
It's a 4-digital inputs module (110-240 VAC) that controls other devices within your Z-Wave network. It enables manual activation or deactivation of scenes via a push-buttons (default) or switches. Replace one of the switches in your room and control any other installed Z-Wave device!
Shelly Wave i4 lets you manually trigger scenes, synced actions, or complex automations with a single button. It controls other Z-Wave devices, fits behind any switch, and supports four inputs for full smart home control. Its long-range connectivity ensures reliable performance even in large or professional installations.
Note:You may require a neutral wire to use this product.Please research the device and your home wiring (safely, see below) before purchasing.
Key features include:
Z-Wave operated - include the device to your Z-Wave network and control it remotely.
Z-Wave Long Range - the range of the device is exceeding 1 km (line of sight). ZWLR works as a star network.
Multi-click support - up to 16 possible actions. Control the lights, close the blinds, turn off outlets. Manually control any Z-Wave device within your network and run the scenes you desire.
Smart scenes - set custom scenes by combining the device with any other Z-Wave devices (gateway required).
Wide range of voltage support - the device can be powered by 110-240 V AC.

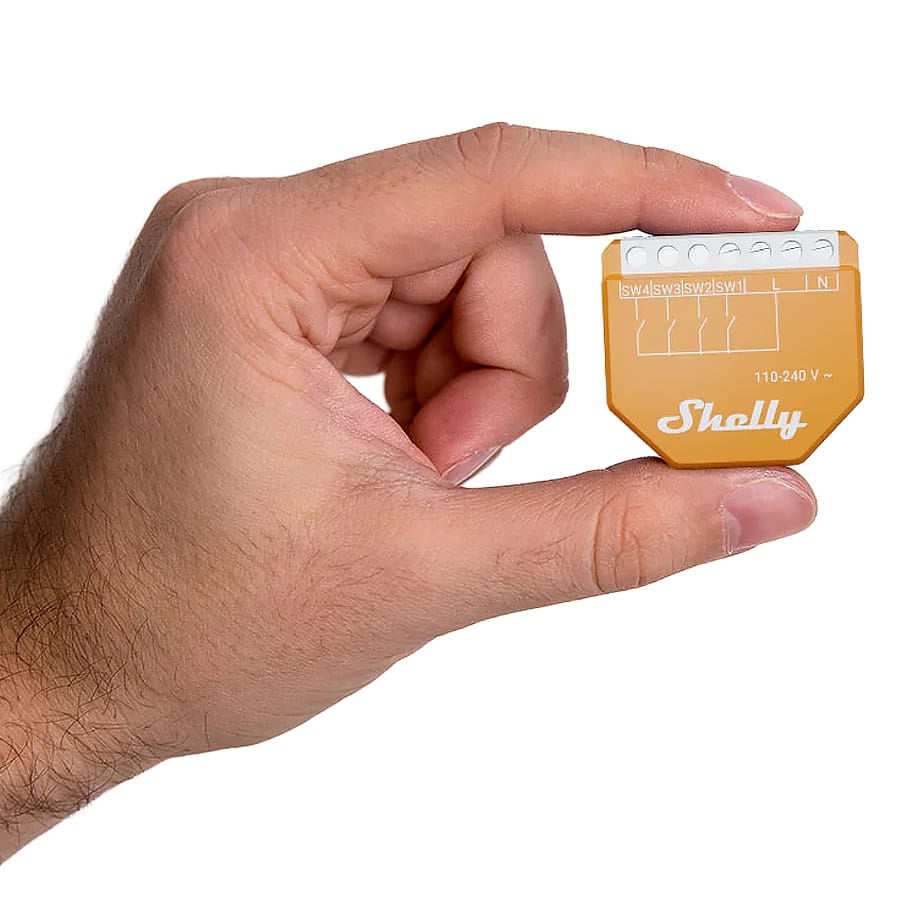

Retrofit device - intended to be installed behind existing wall switches, enabling smart control without changing wiring or switch layout.
Works with all certified Z-Wave Gateways
Shelly Wave i4 LR is retrofit and designed to fit behind some switches or sockets. Once installed, include it in your Z-Wave network (Z-Wave gatewayis required) and control it from anywhere using your smartphone or tablet. Shelly Wave devices work with over 4000 Z-Wave-certified devices and gateways.
To take advantage of the Z-Wave Long Range feature, you will need a Long Range compatible receiver - such as theHome Assistant ZWA-2.
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralised smart hub! Shelly devices work on the latest Z-Wave chip generation (S800), one of the most popular standardised technologies for smart homes in the world.
Z-Wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-Wave hub.For more information, please visit the official Z-Wave website: www. z-wavealliance.org
Multi action support
With a simple push of a button, you can activate up to 16 scenes or actions from other Z-Wave devices in your network. The device supports up to 4 different automation actions per button, making it extremely convenient for quick manual control over a group of devices. Thanks to Z-Wave Long Range, you get extended wireless coverage and reliable performance, even across larger homes or buildings. Set the buttons to simultaneously control lights, blinds, and other devices in specific rooms or throughout the entire property.
Ultimate control
One of the most frustrating things is to realise you forgot to switch off the lights in the living room before you go to bed. Especially when your phone is nowhere around. But there is no need to worry - Shelly Wave i4 allows manual control of other Z-Wave devices with a switch. Now the full control of your house is just one hand away.
⚠️Caution - Read Before Buying⚠️
Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
Danger of electrocution.The mounting/installation of the device should be performed by a qualified person (electrician)
Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee(if any)
Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
Do not connect the device to appliances exceeding the given max load.
Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.
Features
Shelly Wave i4 is an input reader device (it does not contain relays)
Manually control other Z-Wave devices (e.g. with a multi-button switch)
Multi-click – activation of up to 16 actions
Supports Z-Wave Long Range - maintains a strong connection over distances exceeding 1 km (line of sight)
Energy efficient: uses only up to 0.2 W of power
Dual Z-Wave frequency options: choose between 864 MHz (ZWLR) or 868.4 MHz ( Z-Wave Plus)
Latest technology: Z-Wave 800 Series
Easy set up with SmartStart - just scan and go
Security 2 Authenticated for the highest level of security
Over-the-air firmware updates
A Z-Wave™ gateway is not included. A gateway (smart hub) is required for the configuration of the device.
Specifications
Power supply AC
110 - 240 V ~ 50/60 Hz
Power supply DC
No
Power consumption
< 0.2 W
Overcurrent protection
No
Power measurement
No
Number of inputs
4
Long range network
Distance (depends on local condition)
Up to 80m indoors or up to 1000m outdoors
Z-Wave® repeater
No
Z-Wave® frequency bands
864 MHz
Mesh network
Distance (depends on local condition)
Up to 40m indoors
Z-Wave® repeater
Yes
Z-Wave® frequency bands
868.4 MHz
Hardware
CPU
Z-Wave® S800
Maximum radio frequency power transmitted in frequency band(s)
