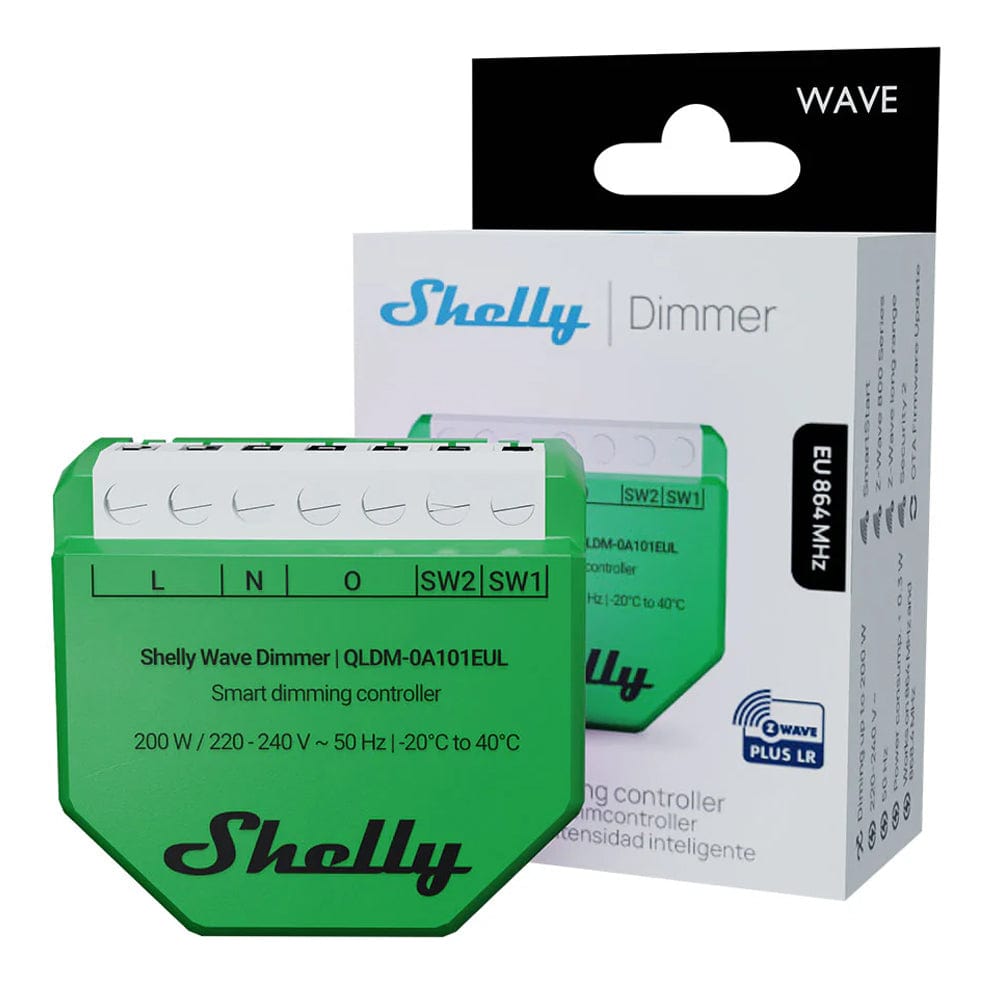

Shelly Wave Dimmer

ShellySKU: 106599
Price:
Sale price £53
incl. VAT
excl. VAT
Stock:
Only 10 units left
Quantity:

Awesome Extras

Home Assistant Connect ZWA-2 by Home Assistant - The Pi HutHome Assistant Connect ZWA-2 by Home Assistant - The Pi Hut
Home AssistantHome Assistant Connect ZWA-2
Sale price £62.40 incl. VAT excl. VAT
Shelly Bypass by Shelly - The Pi Hut
ShellyShelly Bypass
Sale price £3.50 incl. VAT excl. VAT
QuickFix JB-U Maintenance-Free Junction Box by QuickFix JB - The Pi HutQuickFix JB-U Maintenance-Free Junction Box by QuickFix JB - The Pi Hut
QuickFix JBQuickFix JB-U Maintenance-Free Junction Box
Sale price £1.65 incl. VAT excl. VAT
Aeotec Z-Stick 10 Pro (Zigbee + Z-Wave) by Aeotec - The Pi HutAeotec Z-Stick 10 Pro (Zigbee + Z-Wave) by Aeotec - The Pi Hut
AeotecAeotec Z-Stick 10 Pro (Zigbee + Z-Wave)
Sale price £59.90 incl. VAT excl. VAT
Zooz 800-Series Z-Wave GPIO Module by Zooz - The Pi HutZooz 800-Series Z-Wave GPIO Module by Zooz - The Pi Hut
ZoozZooz 800-Series Z-Wave GPIO Module
Sale price £22.40 incl. VAT excl. VAT

The Shelly Wave Dimmer offers precise and reliable dimming control via Z-Wave LR (Long Range). It works with or without a neutral wire and allows for easy adjustment of brightness through the app or a simple button press.

With features like smart scheduling and night mode, it helps you customise dimming for different times of day and activities. Take full control of your dimmable lighting and quickly enhance comfort and efficiency. You can integrate it into a wide range of Z-Wave-compatible smart home systems without needing a hub - including Home Assistant!

  • High compatibility - Works with all certified Z-Wave devices and gateways (Z-Wave Plus). ZWLR setting only works with ZWLR-compatible hubs and devices
  • Extended wireless range - Up to 40 m indoors (Z-Wave Plus) with signal repeater functionality. ZWLR offers up to 80 m indoor range but connects directly to the hub and does not act as a repeater
  • High reliability - Operates on a sub-GHz frequency, ensuring stable and reliable wireless connection without interference
  • Automatic set-up - SmartStart for automatic inclusion in your Z-Wave network
  • Ultra-low power consumption - Battery life up to two years, depending on usage
  • Bulletproof security - Security 2 (AES128 encryption) for the utmost safety of your Z-Wave network
  • No neutral required - The device doesn‘t require a neutral line to provide a full set of dimming functionalities
  • Night Mode - Create comfortable ambient lighting and automatically adjust to your predefined brightness during specific hours of the day


⚠️Caution - Read Before Buying⚠️

  • Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
  • Danger of electrocution. The mounting/installation of the device should be performed by a qualified person (electrician)
  • Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee (if any)
  • Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
  • Do not connect the device to appliances exceeding the given max load.
  • Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
  • Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.

Works with all certified Z-Wave Gateways

Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control it from anywhere using your smartphone or tablet. Shelly Wave devices work with over 4000 Z-Wave-certified devices and gateways.

  • To take advantage of the Z-Wave Long Range feature, you will need a Long Range compatible receiver - such as the Home Assistant ZWA-2.

By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralised smart hub! Shelly devices work on the latest Z-Wave chip generation (S800), one of the most popular standardised technologies for smart homes in the world.

Z-Wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-Wave hub. For more information, please visit the official Z-Wave website: www. z-wavealliance.org

Features

  • Dimming up to 200W
  • Supports Z-Wave Long Range - maintains a strong connection over distances exceeding 1 km (line of sight)
  • Power metering
  • Over-heating, over-current and over-voltage protection
  • Z-Wave frequency band: 864 MHz (ZWLR) & 868.4 MHz (Z-Wave Plus)
  • Works as a Z-Wave repeater
  • Low power consumption: < 0.3 W
  • Latest technology: Z-Wave 800 Series
  • Automatic set-up with SmartStart
  • A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.

Specifications

Power supply
Input voltage 220–240 V ~ 50 Hz
Power consumption < 0.3 W
Neutral not needed Yes
Min. load without neutral and without a bypass 5W (depends on LED type, in case of flickering, use a bypass)
External protection 10A, tripping characteristic B or C, 6 kA interrupting rating, energy limiting class 3
Dimming
Type Trailing edge
Power measurement [W] Yes
Max. output power 200W
Protection
Internal temperature sensor Yes
Overheating protection Yes
Overcurrent protection Yes
Overvoltage protection Yes
Long-range network
Distance (depends on local conditions) Up to 80m indoors or up to 100 m outdoors
Z-Wave® repeater No
Z-Wave® frequency bands 864.0 MHz
Mesh network
Distance (depends on local conditions) Up to 40 m indoors
Z-Wave® repeater Yes
Z-Wave® frequency bands 868.4 MHz
Maximum radio frequency power transmitted < 25 mW
Processor
CPU Z-Wave® S800
Physical

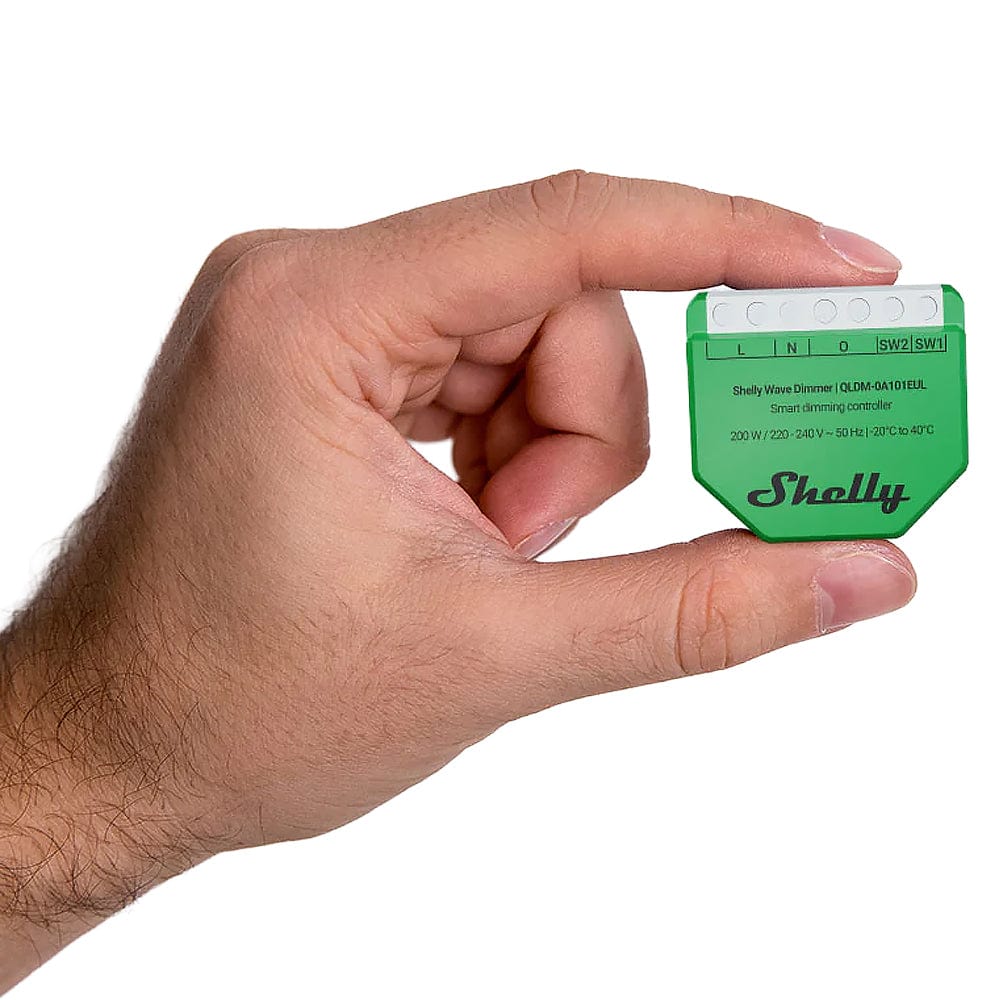

Size (H × W × D) 37×42×16 ±0.5 mm
Weight 25g
Mounting In-wall box
Screw terminals max. torque 0.4 Nm / 3.5 lbin
Conductor cross-section 0.2 to 2.5mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length 6 to 7mm
Shell material Plastic
Colour Lime
Environmental
Ambient temperature -20°C to 40°C
Humidity 30% to 70% RH
Max. altitude 2000m

Resources

Handy Shelly Resources

Package Contents

  • 1x Shelly Wave Dimmer
  • 1x DSK Label
  • 1x User Guide
