RP2350 1.43" AMOLED Round Display Dev Board (466x466)

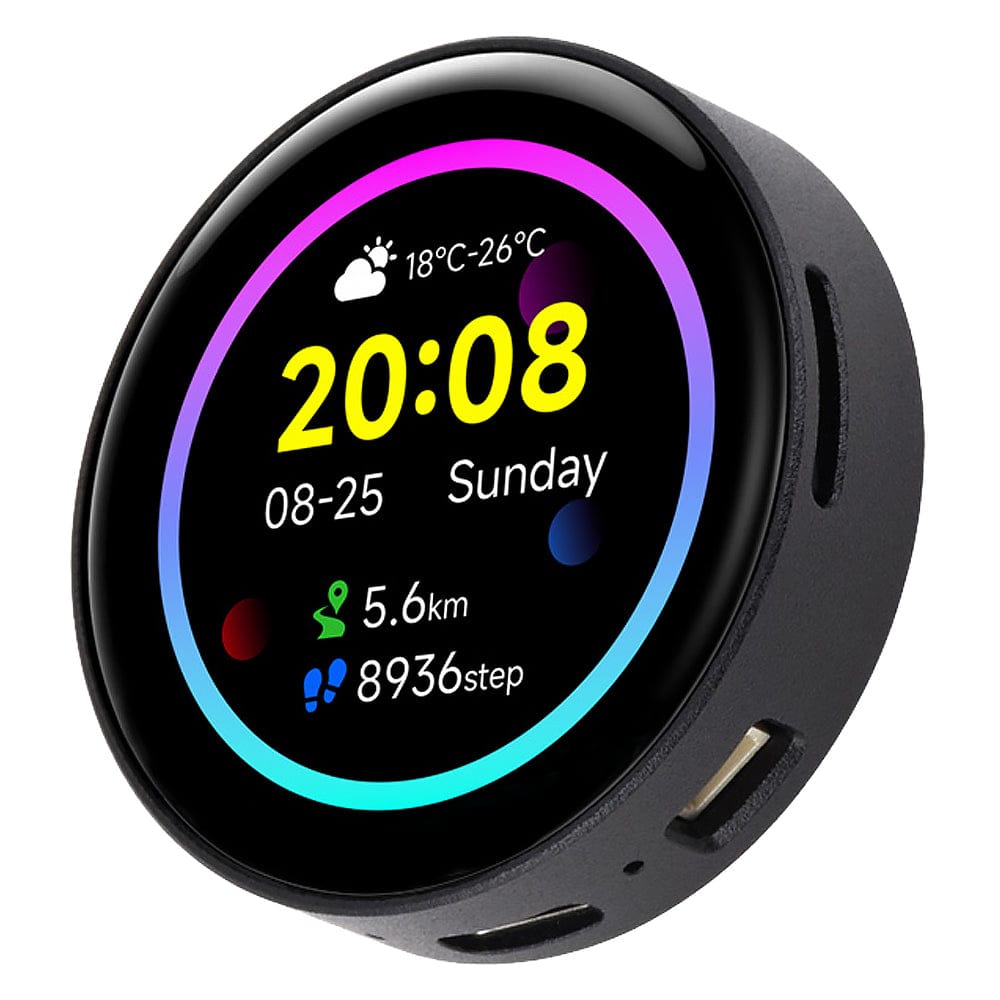

This compact display development board from Waveshare is controlled by a Raspberry Pi RP2350 and features a round 1.43" AMOLED display with capacitive touch, along with sensors and interfaces to make this a versatile choice for small RP2350 projects.

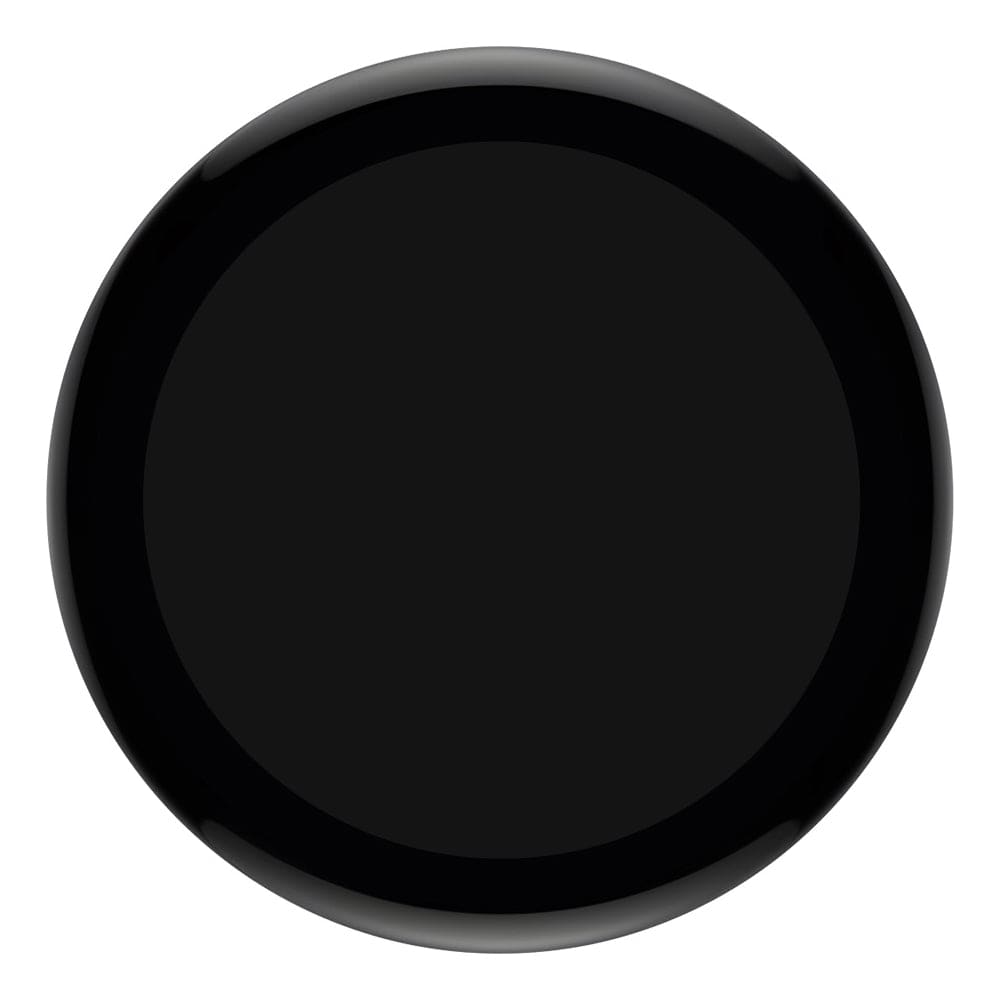

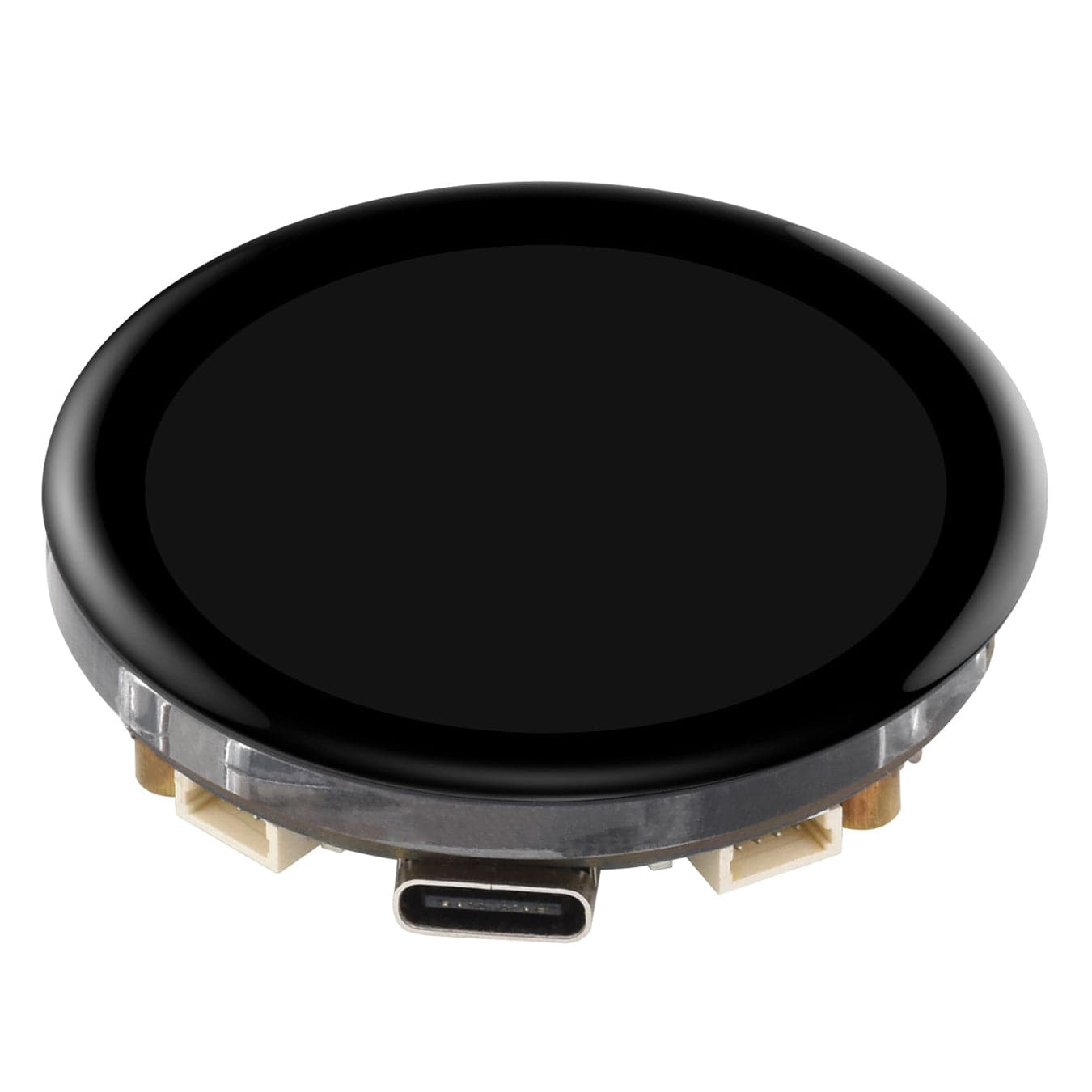

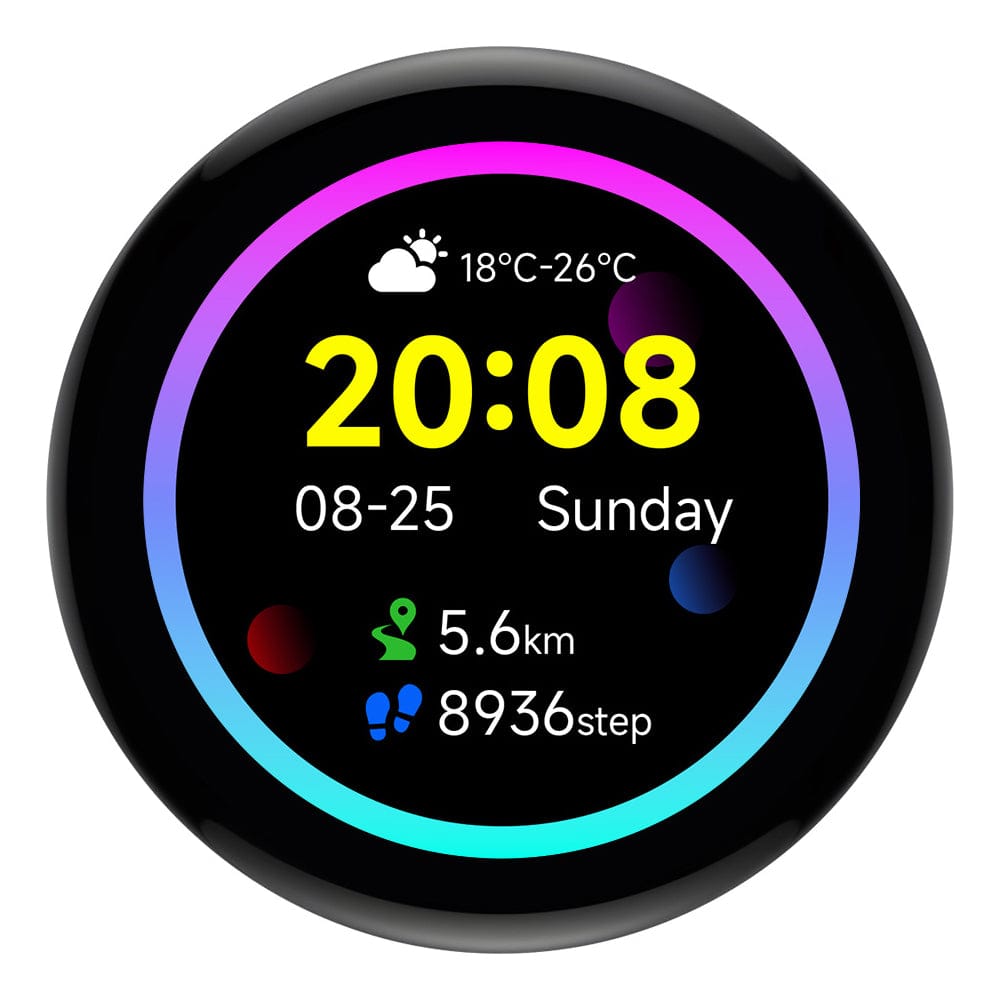

On the front of the unit is the AMOLED display - offering superior contrast (true blacks) and vibrant colours with power efficiency on dark content, because each pixel self-illuminates. It's a 1.43" round display with a 466x466 resolution, offering 16.7 million colours and controlled via SPI.

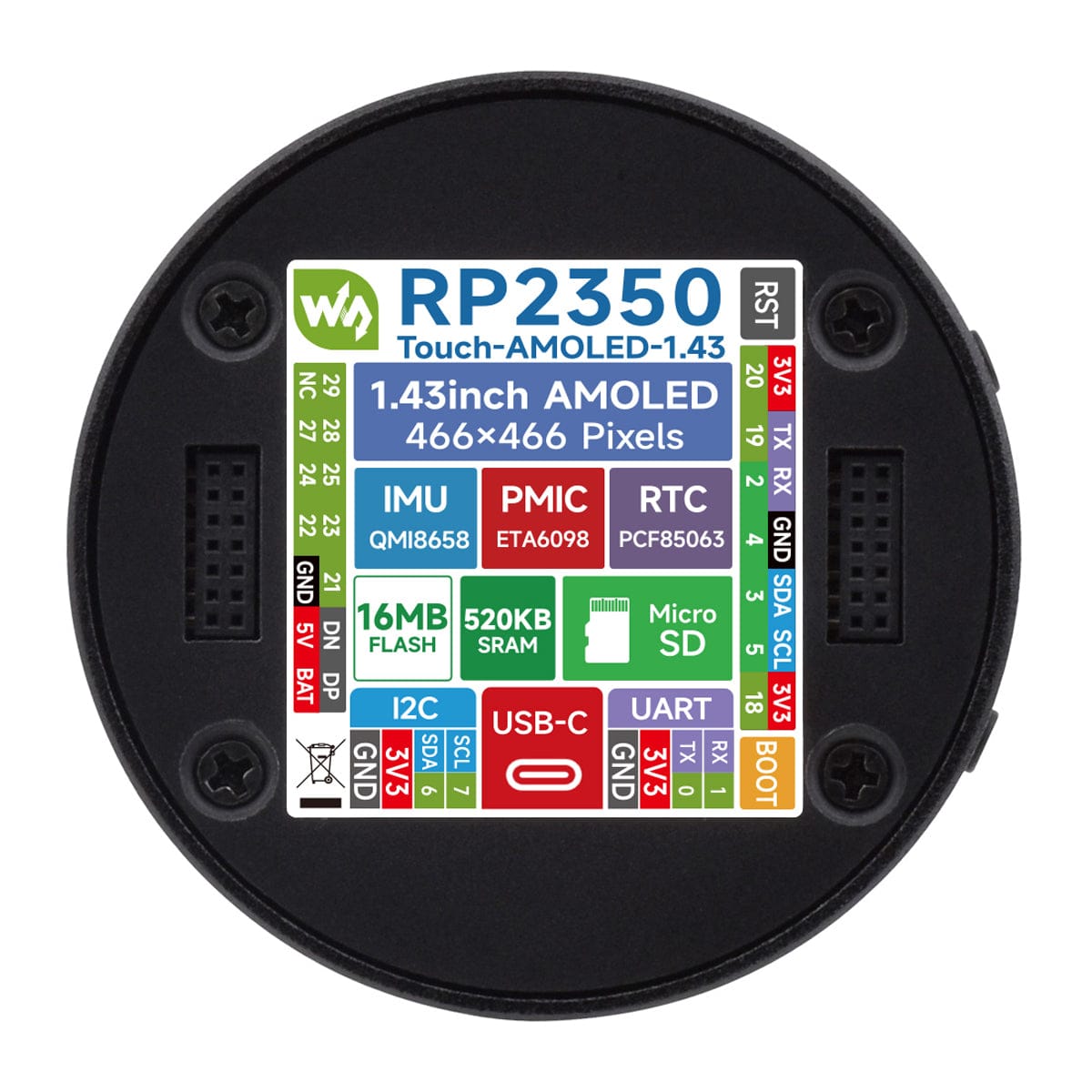

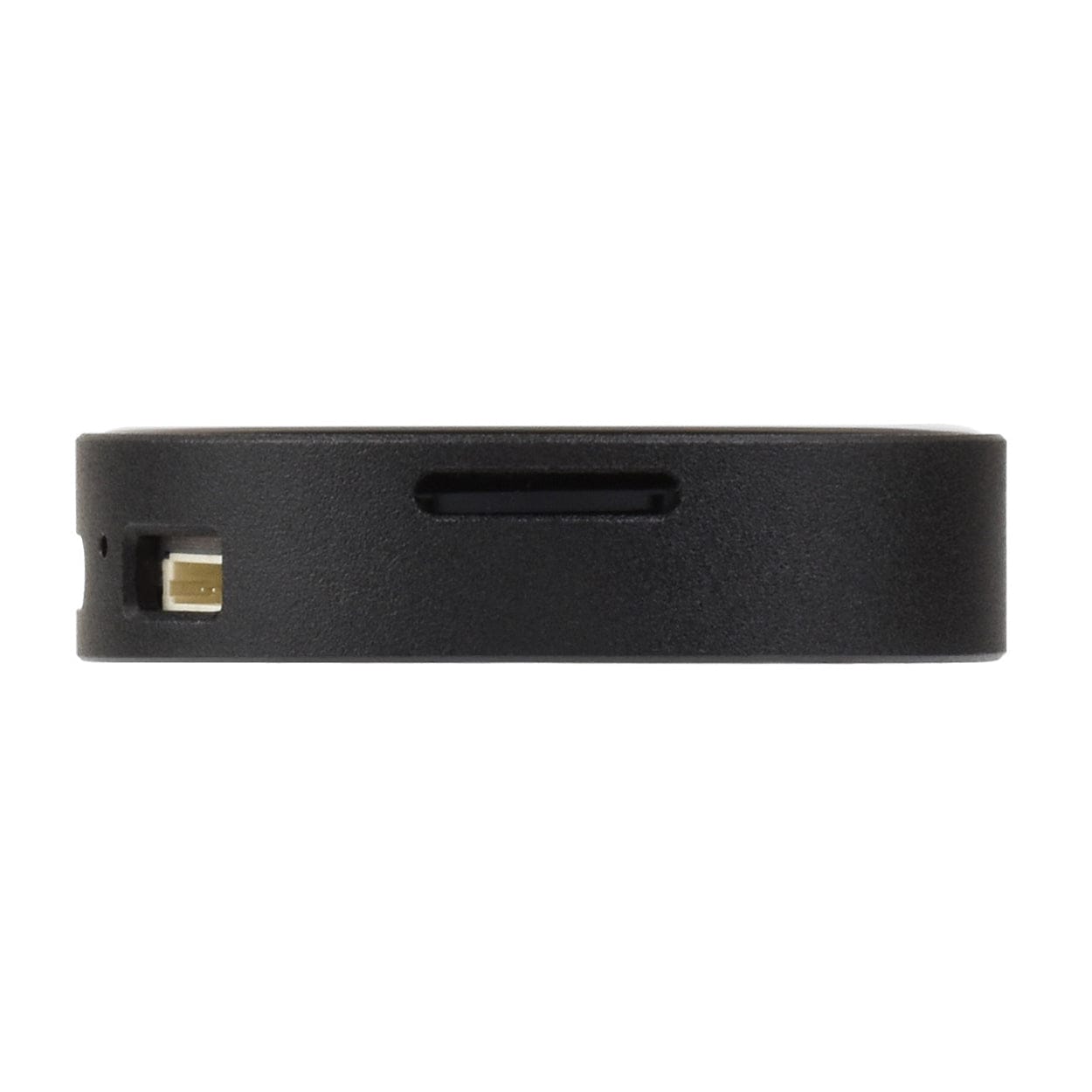

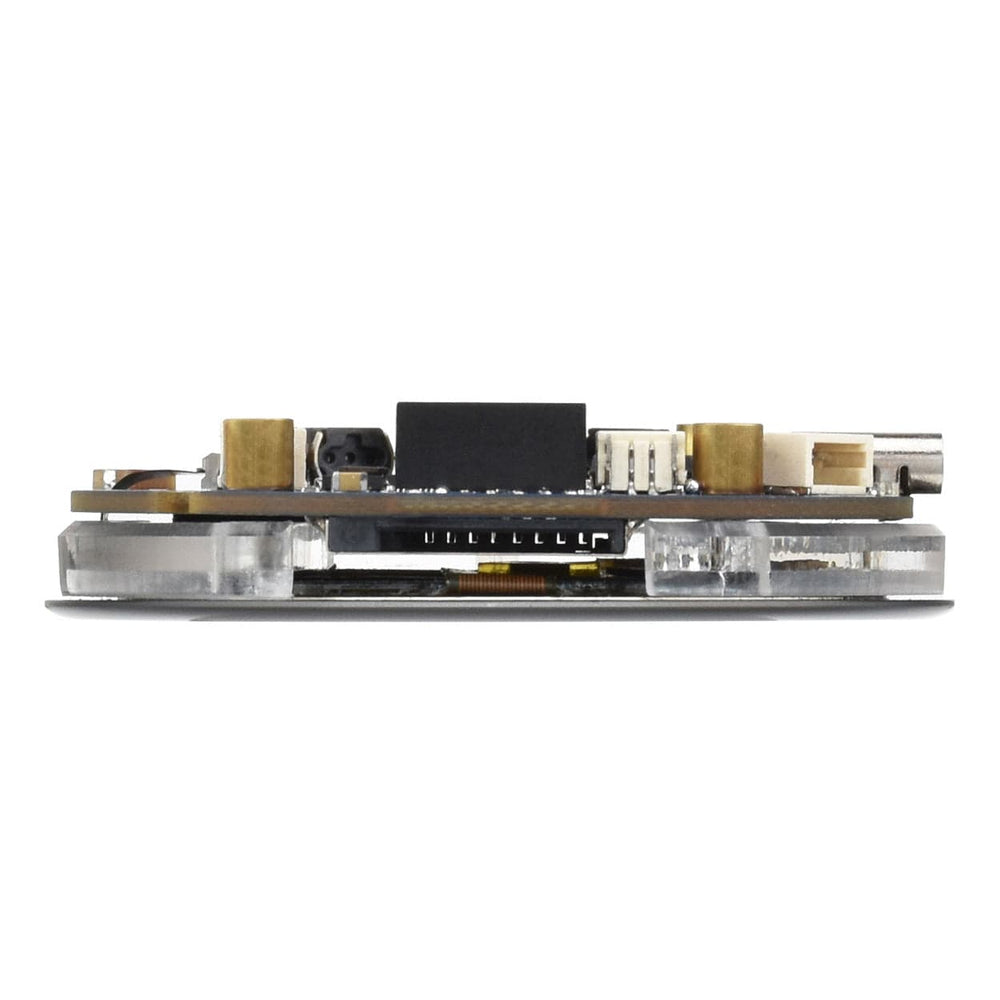

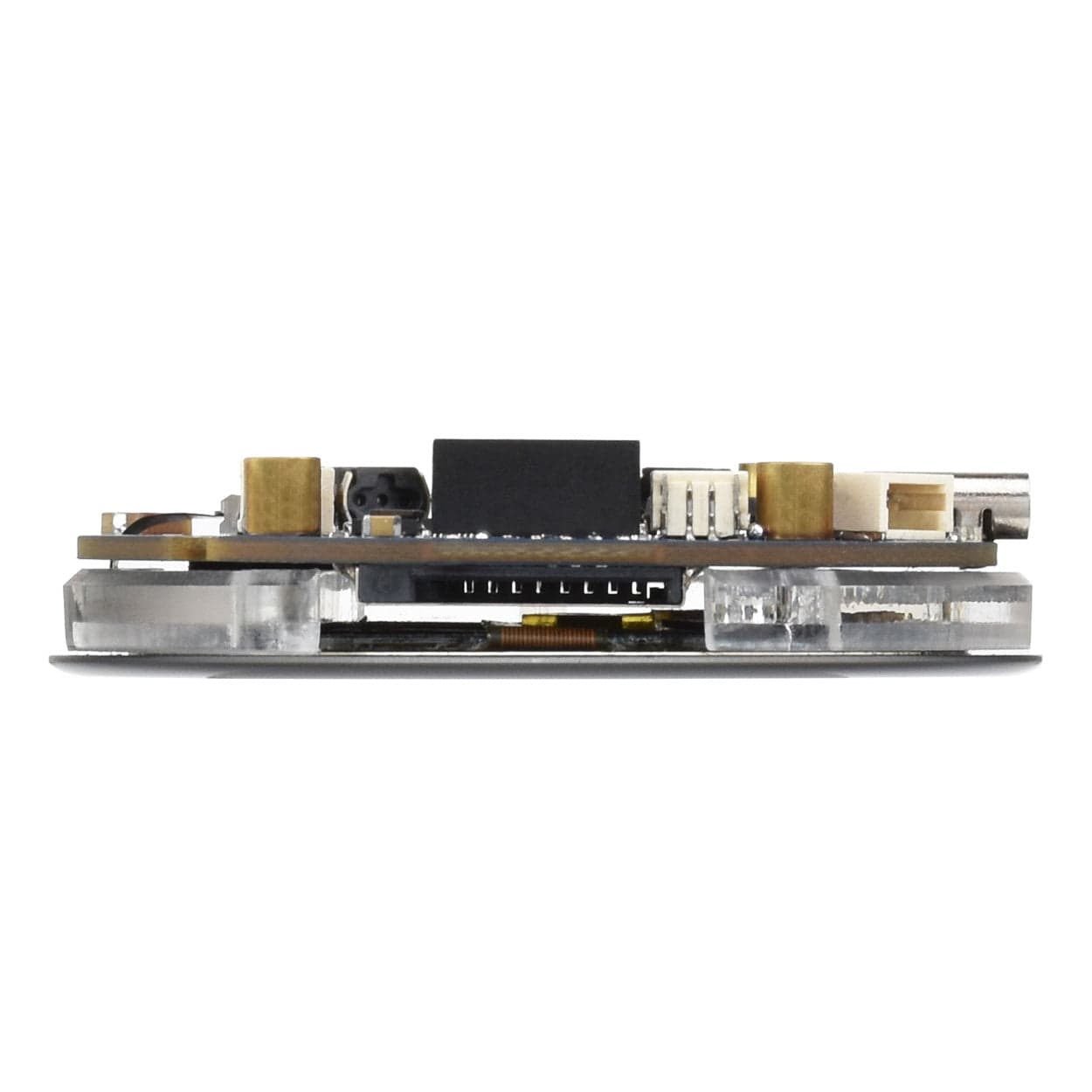

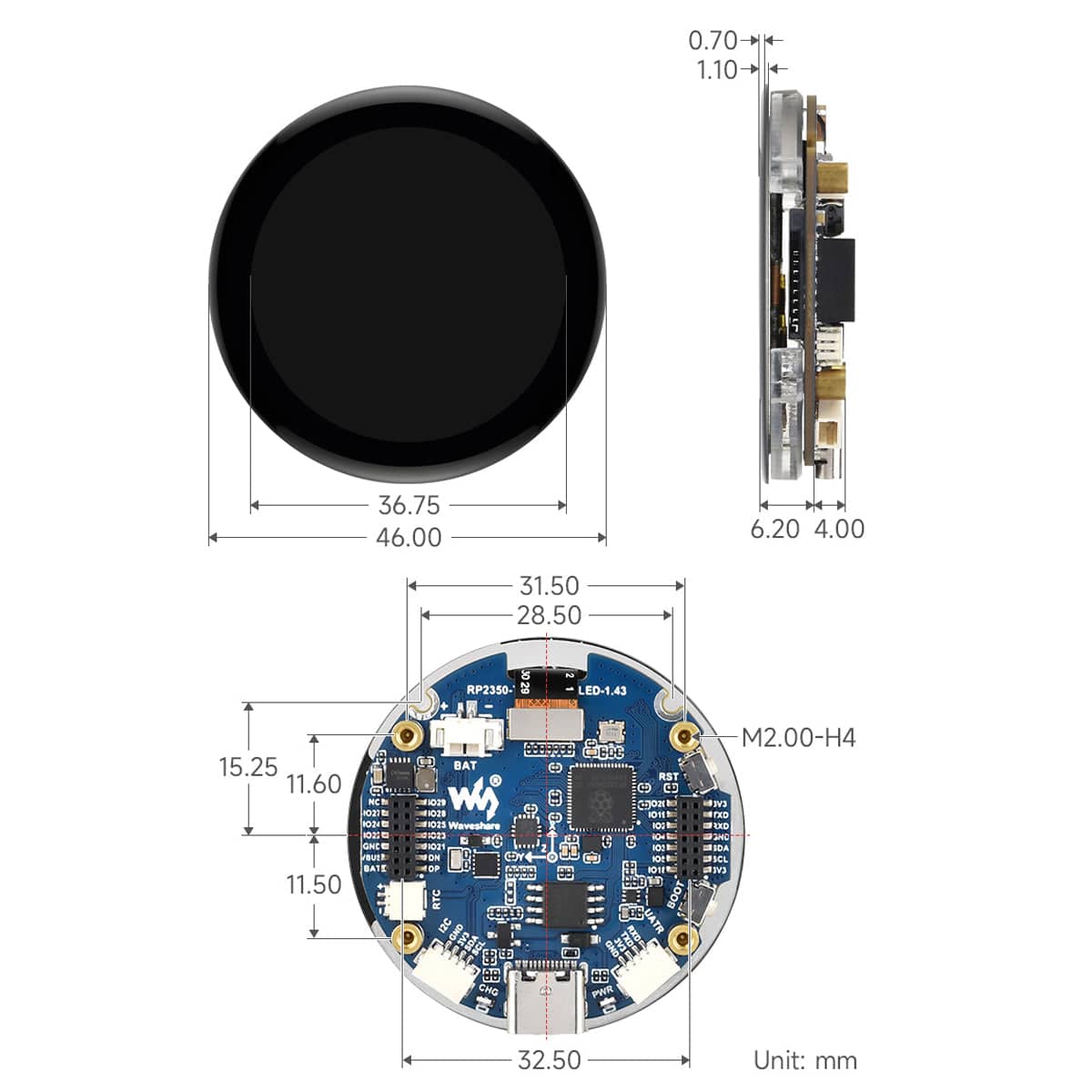

On the rear is where things get even more interesting. You'll find the RP2350 microcontroller backed up with 16MB onboard flash memory, a micro SD slot, 6-axis IMU, RTC with battery header (compatible with Raspberry Pi RTC battery), MX1.25 PicoBlade-compatible lithium battery header with charge circuit, Qwiic-compatible 4-pin I2C header and RESET and BOOT buttons. A USB-C port is provided for power and programming.

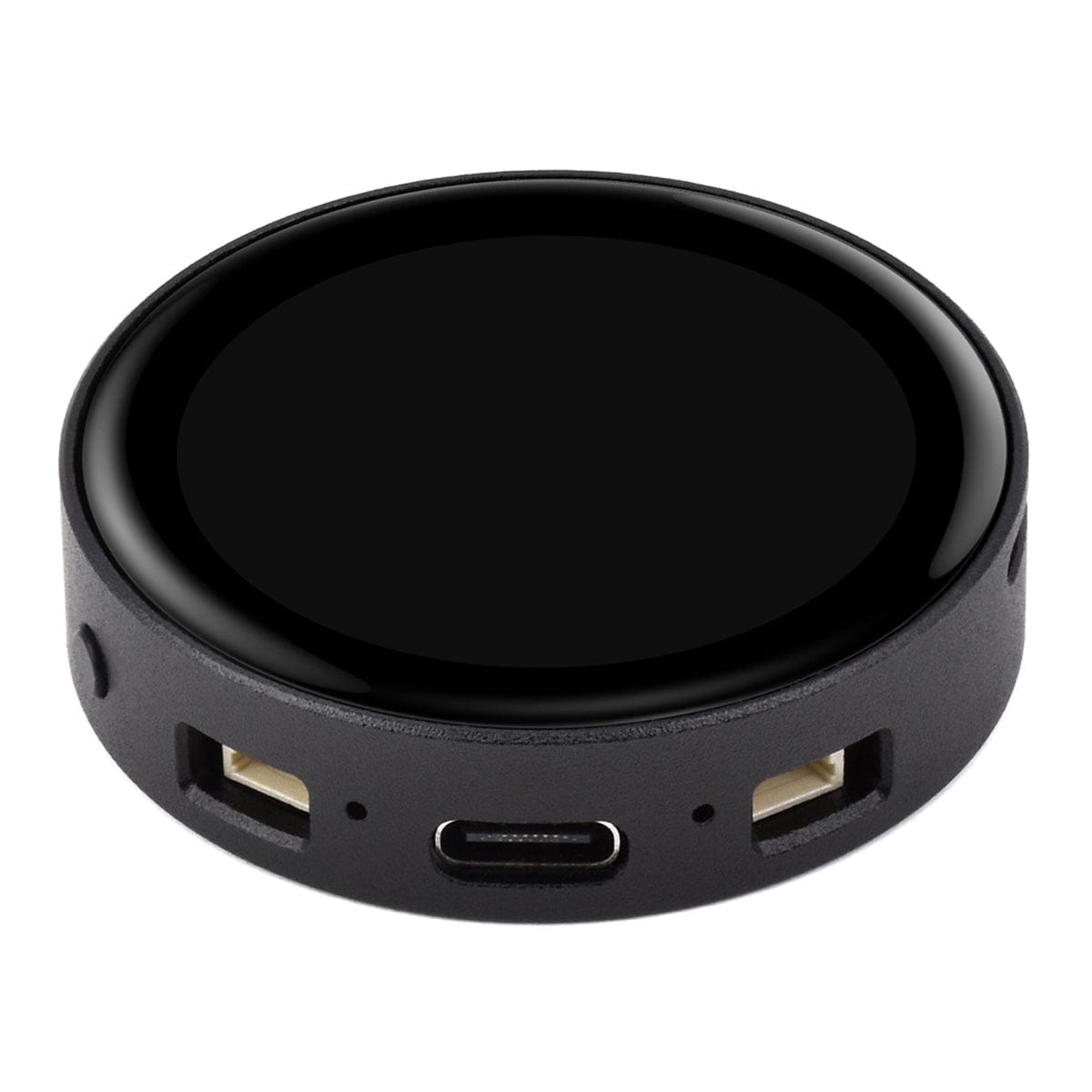

An optional CNC metal case with real labelling is available - select a variant before adding to your cart.

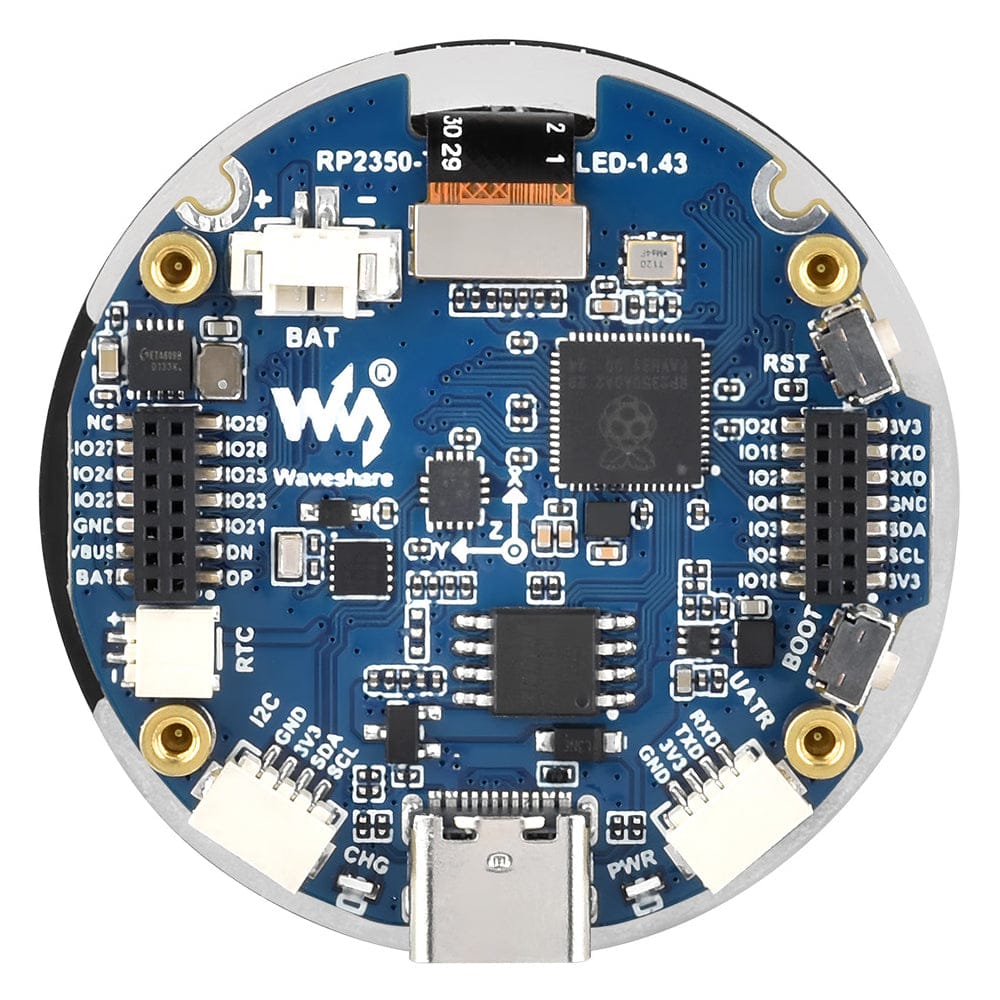

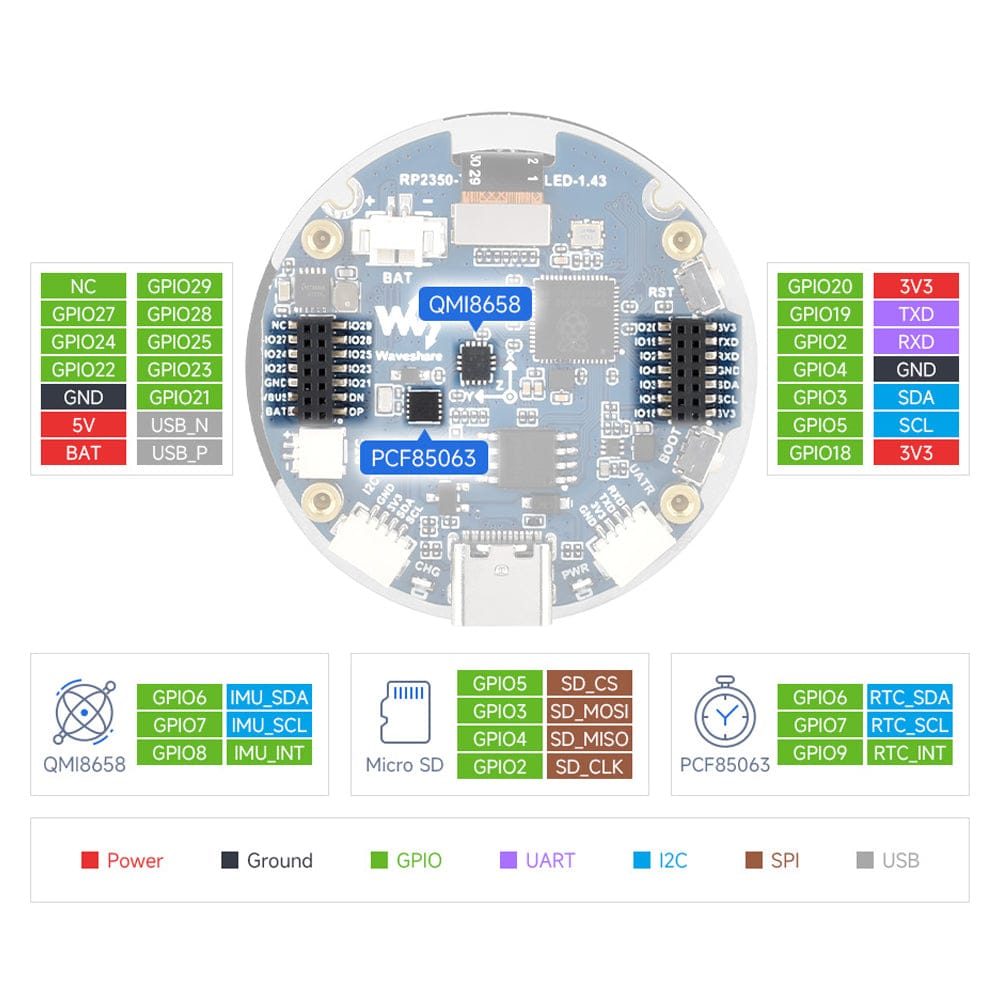

What's Onboard?

1. RP2350A
   • Dual-core, dual-architecture design
   • Up to 150 MHz operating frequency
2. W25Q128JVSIQ
   • 16 MB NOR flash
3. QMI8658
   • 6-axis IMU with 3-axis gyroscope and 3-axis accelerometer
4. PCF85063
   • RTC chip
5. MX1.25 battery header
   • MX1.25 2-pin connector for 3.7 V lithium battery
   • Supports charging and discharging
6. TF card slot
   • Located on the underside of the PCB
7. RTC battery header
   • For rechargeable RTC batteries only
8. I2C 4-pin connector (Qwiic-compatible)
9. Charge indicator
10. USB-C connector
    • Used for programming
    • USB 1.1 device and host support
11. Power indicator
12. UART 4-pin connector
13. BOOT button
    • Hold during reset to enter download mode
14. Reset button
15. ETA6098
    • High-efficiency lithium battery charge management IC
16. MP1605GTF-Z
    • DC-DC power management IC

Features

• RP2350 microcontroller with dual-core, dual-architecture design (Arm Cortex-M33 and Hazard3 RISC-V), up to 150 MHz
• 520KB SRAM
• 16MB onboard Flash memory
• 1.43" AMOLED display with SPI interface
  • 466 × 466 resolution, 16.7M colours
• Capacitive touch support via I2C with interrupt capability
• QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)
• PCF85063 RTC with SH1.0 rechargeable backup battery header
• USB-C port for power, programming, and debugging
• MicroSD card slot for external storage
• 3.7V MX1.25/PicoBlade-compatible lithium battery header
• RST and BOOT side buttons
• UART and I2C via SH1.0 4-pin connector
• Two 14-pin 1.27mm GPIO headers for expansion

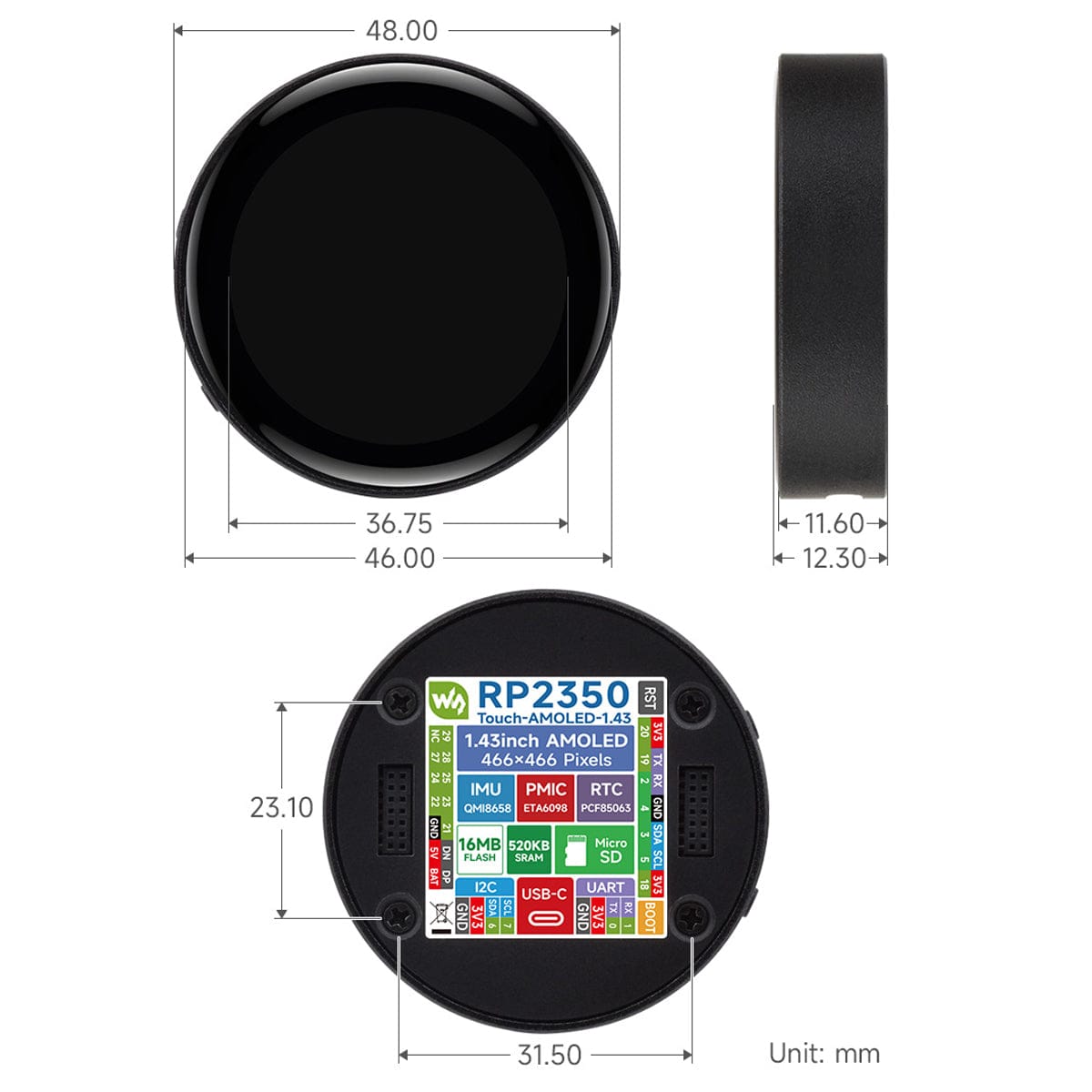

• Optional CNC metal case with clear rear labelling

Resources

• Product documentation

Package Contents

• 1x RP2350 1.43" AMOLED Round Display Dev Board (466x466)
• 2x 100mm SH1.0 4-pin cable
• Optional (see variant):
  • 1x CNC Metal Case
