We noticed a new breed of products using tiny 1.25mm PicoBlade connectors for LiPo battery connection, so we had a chat with our buddies at PKCell to arrange PicoBlade versions of our existing LiPo range, complete with a PicoBlade/Molex 51021/1.25mm connector.

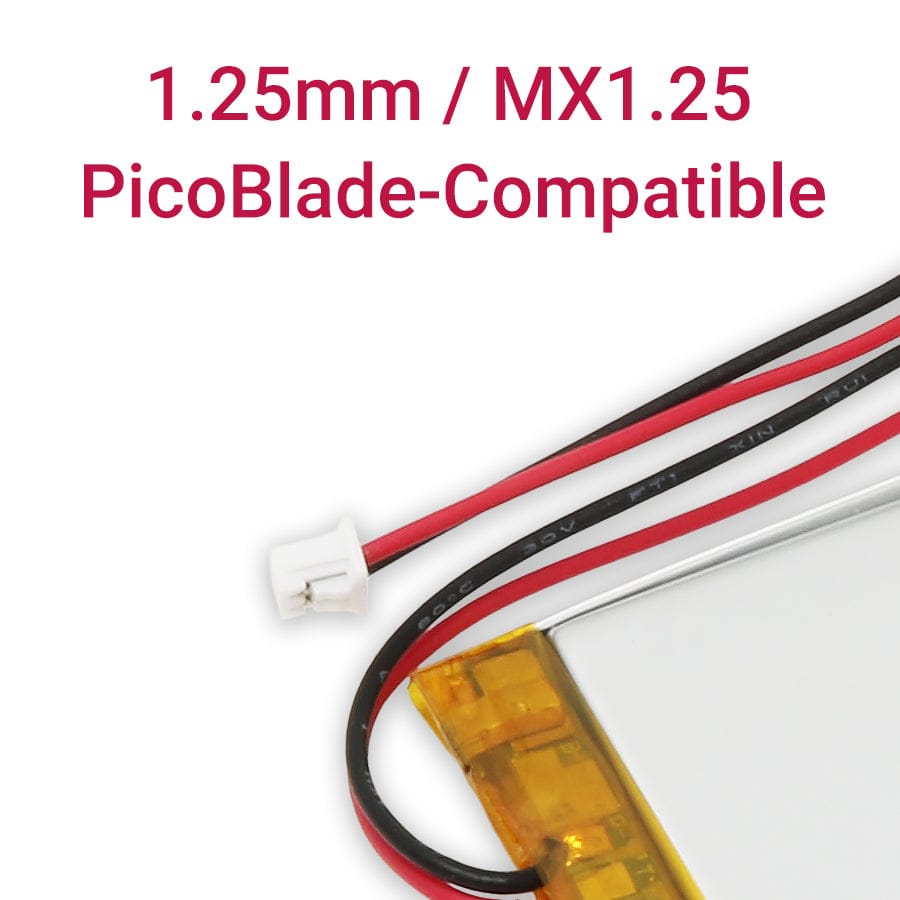

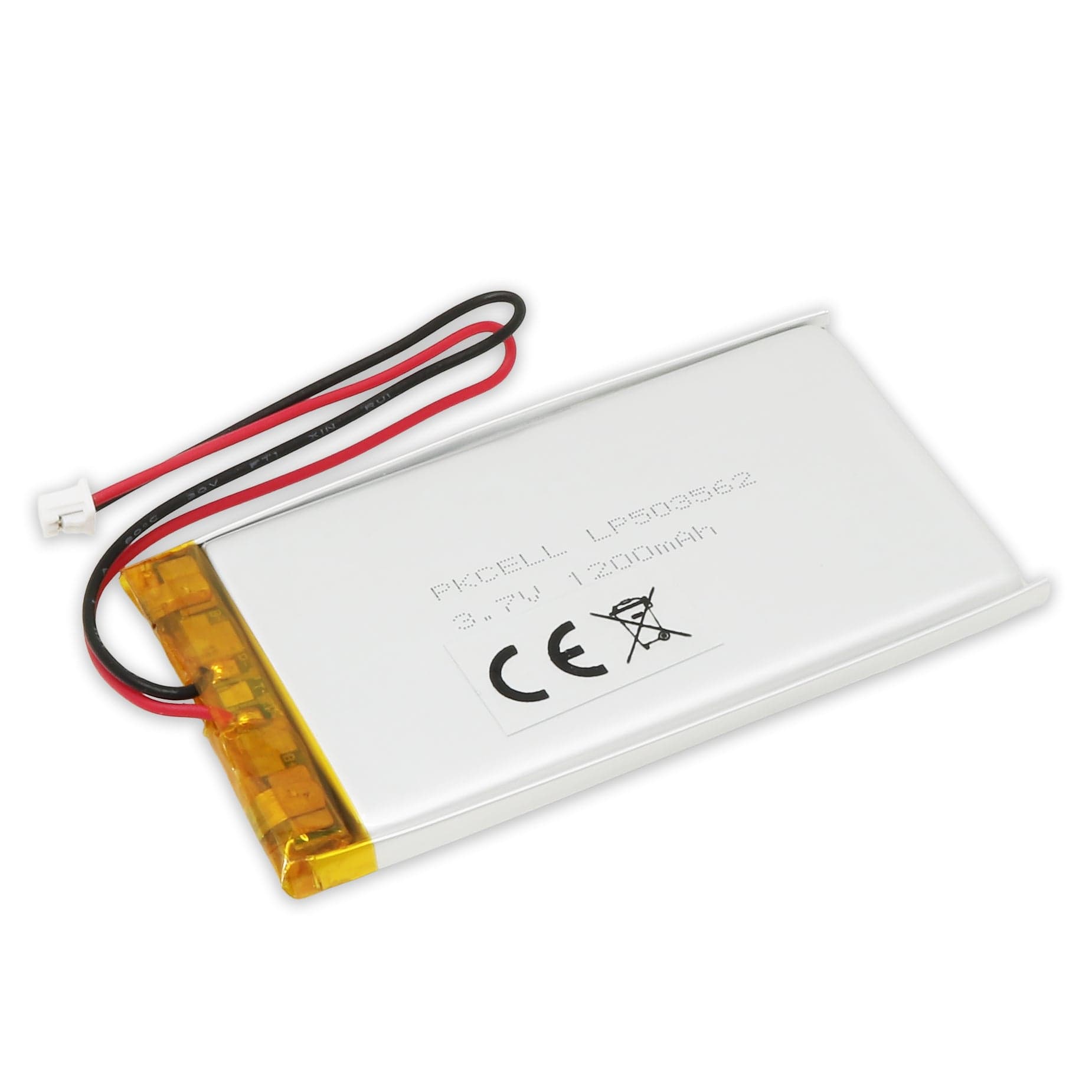

This LiPo battery has a capacity of1200mAh (3.7V)with a 2-pin PicoBlade/Molex 51021 1.25mm connector on a 100mm cable.
LiPo (Lithium Polymer) batteries are a great way to power your portable projects. Compared to other battery chemistries, they're more compact, lighter and offer a consistent voltage output (rather than constantly dropping like other types). They also offer higher rates of discharge, which is ideal for high-power projects.
The batteries include internal protection against over-charging or under-voltage, which makes the battery out at around 3V. You should still use a product with a dedicated LiPo charger/protection built-in. These batteries are also available in150mAhand500mAhcapacities.
Let's be crystal clear one more time for those at the back - these batteries do not have standard JST-PH/PH2.0 connectors.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited to DHL. Why?
Always Check Polarity!
Not all devices follow the same polarity,so always (always!) double-check the LiPo battery port polarity on your device before connecting a battery. If the polarity (+ and -) is different to the battery, consider switching the connector wires over.
Lithium Care
Important! Lithium batteries require careful storage and usage, and must only be charged/discharged within the ratings listed. Please only consider purchasing this item if you have the knowledge and equipment to use and maintain these batteries properly. If you accidentally damage (bend/pierce/crush/dent) these batteries, stop using them immediately and dispose of them safely and responsibly.
Never carry loose batteries – they should be suitably boxed/protected at all times when not in use
Do not short batteries
Always use a product with a battery charger/charging module specifically designed for Lithium batteries
Do not use aNiMH/NiCad/lead-acid charger with these batteries!
Never leave a battery charger unattended
Never completely discharge batteries
All batteries should be checked for damage regularly
Do not expose to extremes of heat or cold, or sudden fluctuations between the two
Always dispose of end-of-life batteries at your local WEEE recycling centre
Features
Nominal voltage:3.7V
Capacity:1200mAh
Cable length: ~100mm
Connector: PicoBlade 1.25mm (Molex 51021)
Discharge performance: 0.5C-1C (0.5C recommended)
High energy density
Wide operating temperature range: Charge at 0～45℃ Discharge at –20～60℃
Designed for a safe operation, all batteries are equipped with multiple safety features, including a safe shut-down separator and a safety vent
Low self-discharge rate: under 3% self-discharge for one year
