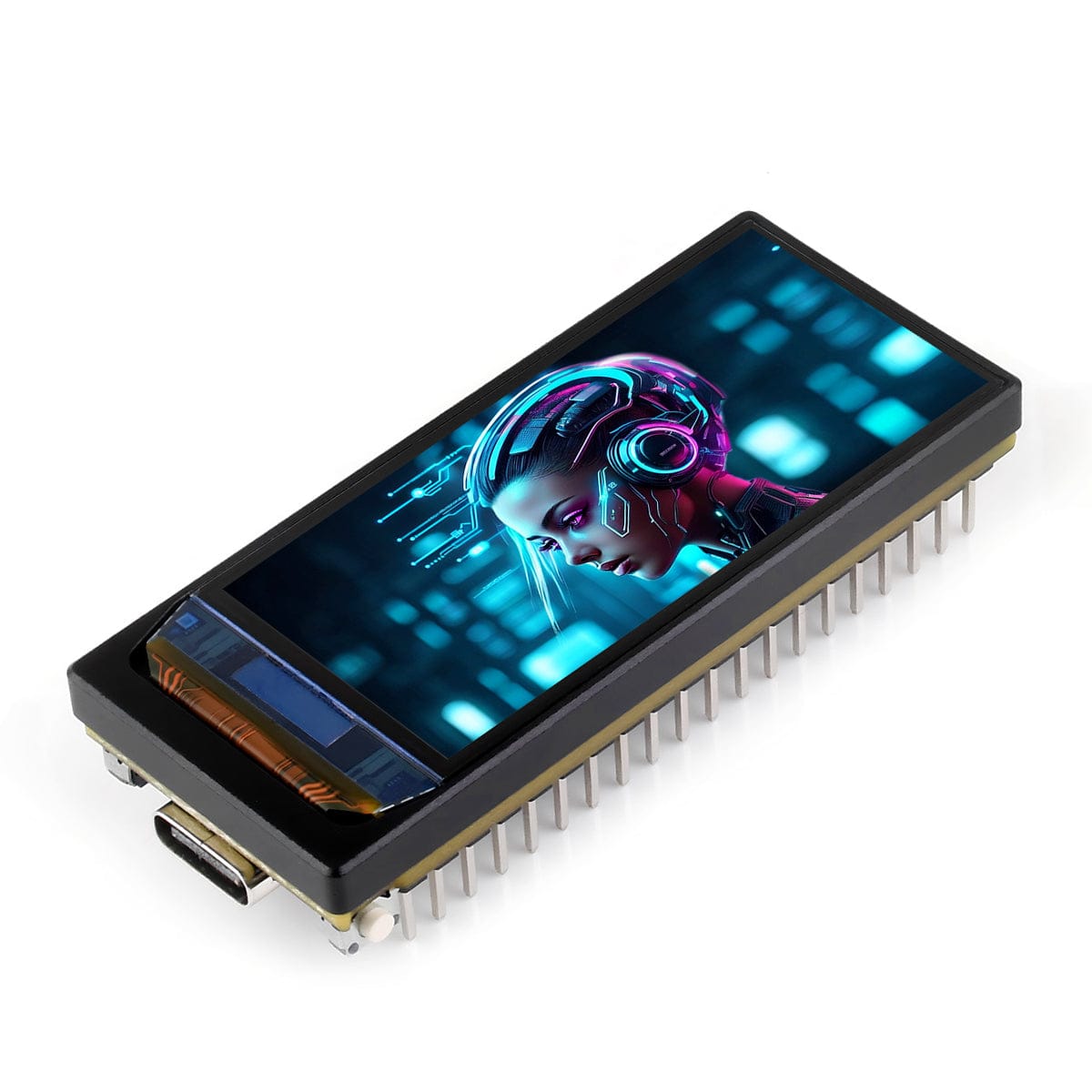

ESP32-S3 Development Board with 1.91" AMOLED Display (240 x 536)

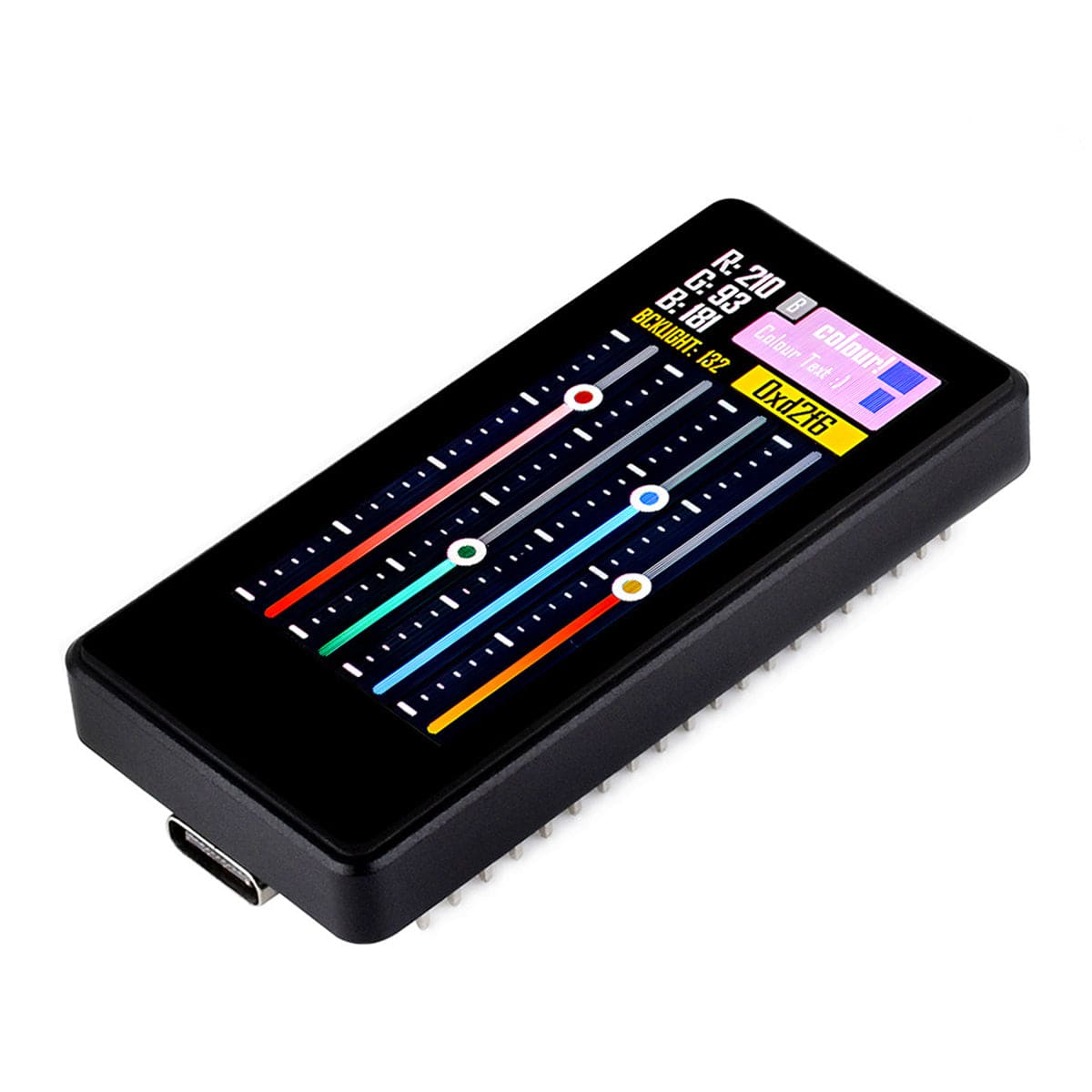

This ESP32-S3 1.91" development board has the ESP32-S3R8 chip and its vibrant and colourful 1.91" AMOLED display, with a resolution of 240 x 536, 16.7 million colours and a wide 160° viewing angle is perfect for running GUI programs like LVGL with ease. The board includes a QMI8658 6-axis IMU, an SD card slot, and a lithium battery header, giving you the option to expand. With compatibility for Pico headers, it offers easy integration and flexibility for expanding your projects.

Available in both touch and non-touch versions (Please select the option you want before adding to the cart), the touch option supports 5-point touch and includes interrupt output, communicating with the touch chip via an I2C connection. Powered by an Xtensa 32-bit LX7 dual-core processor with a 240MHz main frequency, you can be sure that whatever project you are working on, this board has got your back! It supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with an onboard antenna and also allows for an external antenna connection by resoldering a resistor.

This board comes with a built-in 512KB SRAM, 384KB ROM, 16MB Flash, and 8MB PSRAM. It includes a QMI8658 6-axis IMU, providing a 3-axis accelerometer and a 3-axis gyroscope for motion detection and step counting. For added convenience, it has a USB Type-C port for power, program downloads, and debugging, as well as a 3.7V MX1.25 lithium battery recharge/discharge header.

There are 4 options to choose from:

• No Touch without Headers
• No Touch with Headers
• Touch without Headers
• Touch with Headers

Please select which option you want before adding to your cart!

Please note: this board uses a tiny MX1.25 connector for LiPo power. Most LiPo batteries on the market (including ours) use a larger JST fitting. We do not yet stock batteries with an MX1.25 connector, however, you can customise your battery with one of our 1.25mm pitch cables to make a compatible battery yourself (assuming you have the ability, knowledge and tools to do this safely).

Features

• Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna. Supports switching to use an external antenna via resoldering an onboard resistor
• Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

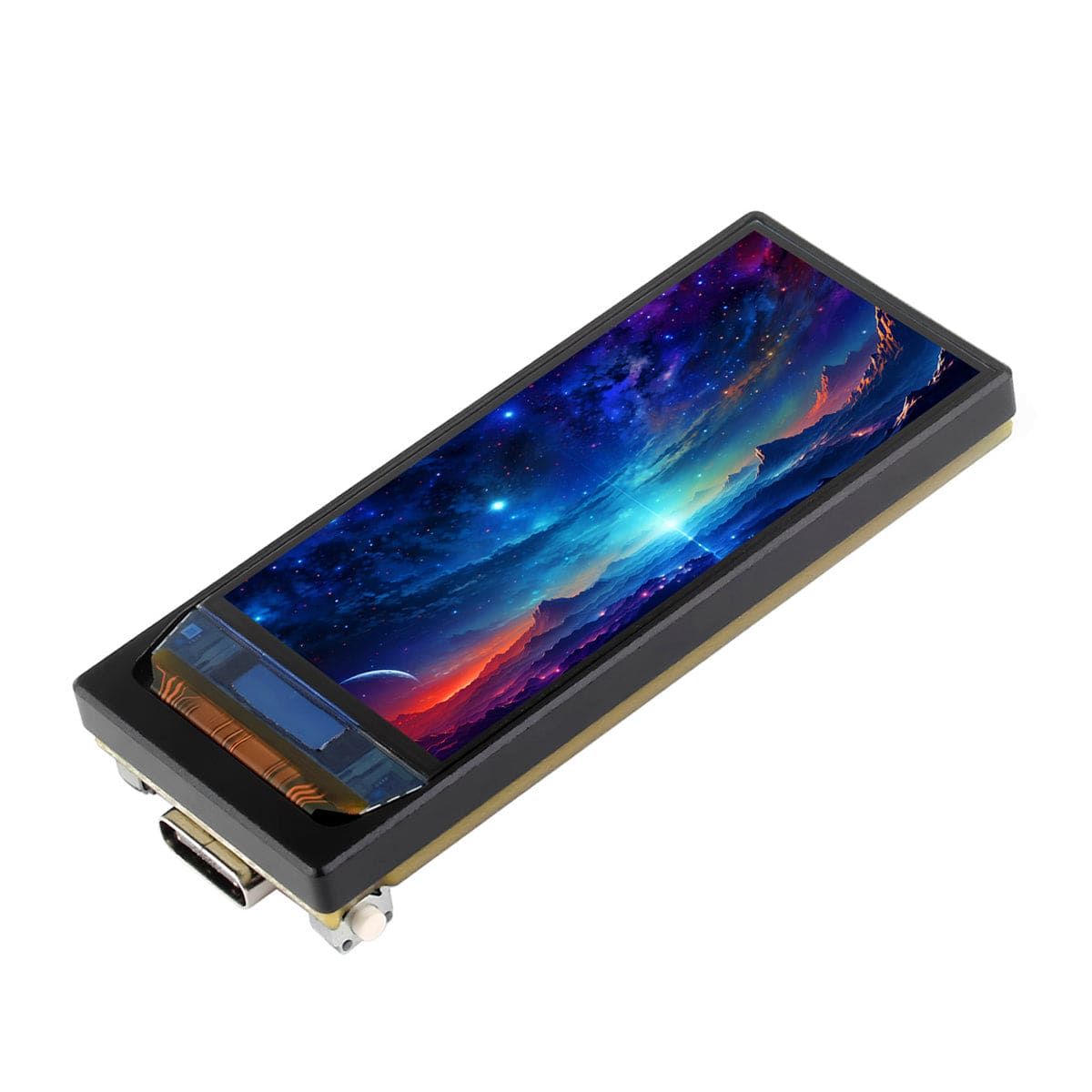

• 1.91" AMOLED display, 240 x 536 resolution, 16.7M color
• QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
• USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
• 3.7V MX1.25 lithium battery recharge/discharge header
• SD card slot for external TF card storage of pictures or files
• Compatible with Pico header, onboard multiple peripheral interfaces, offering strong compatibility and expandability

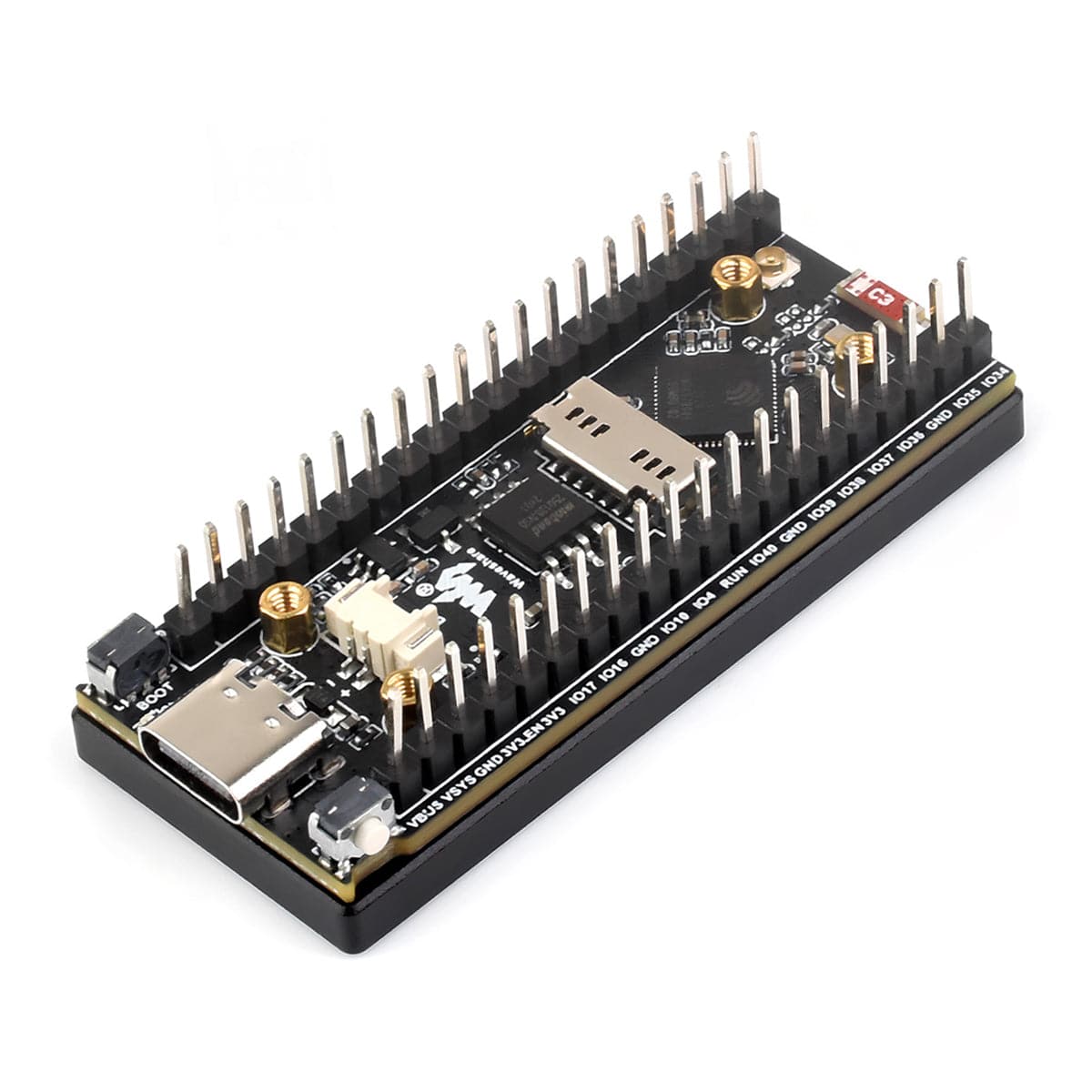

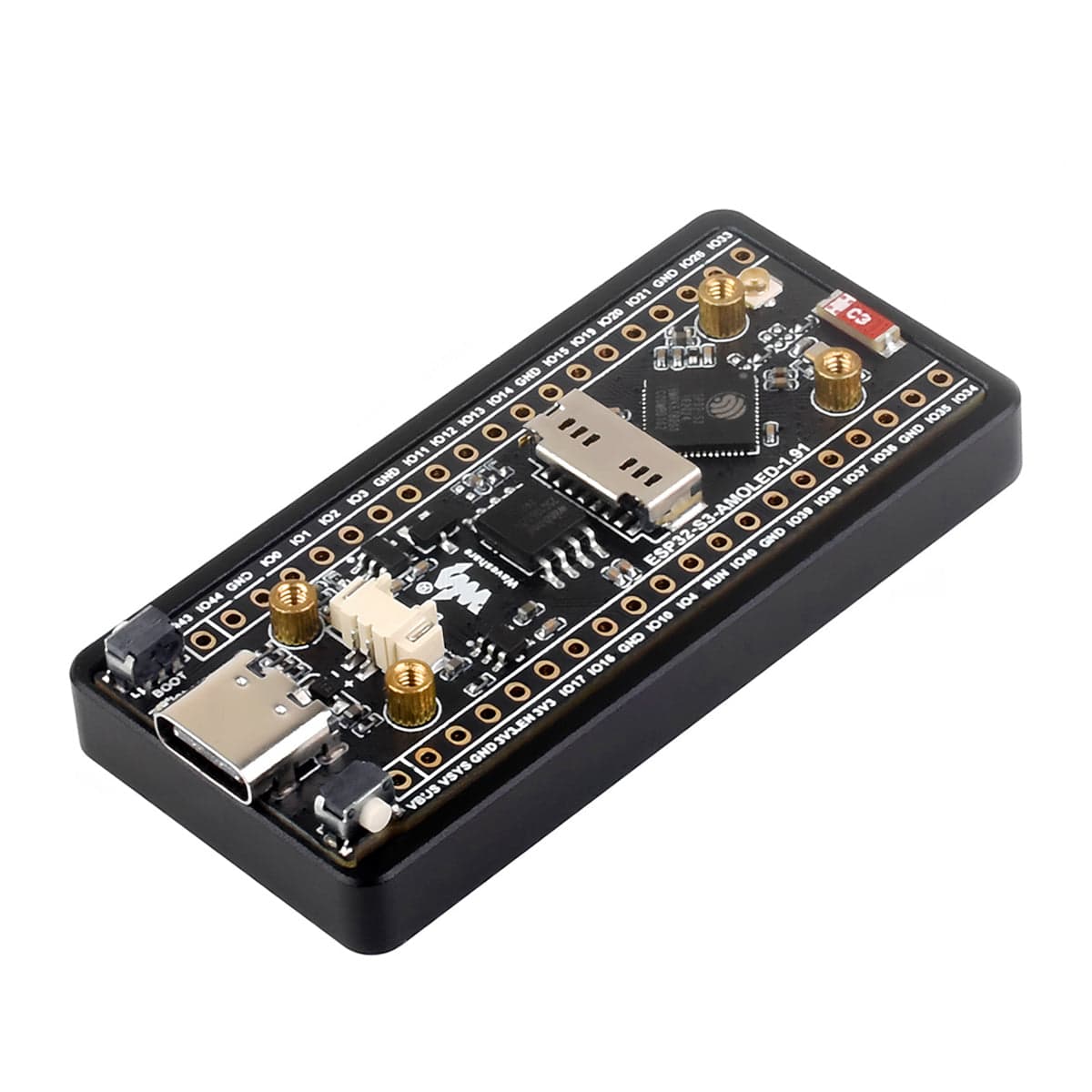

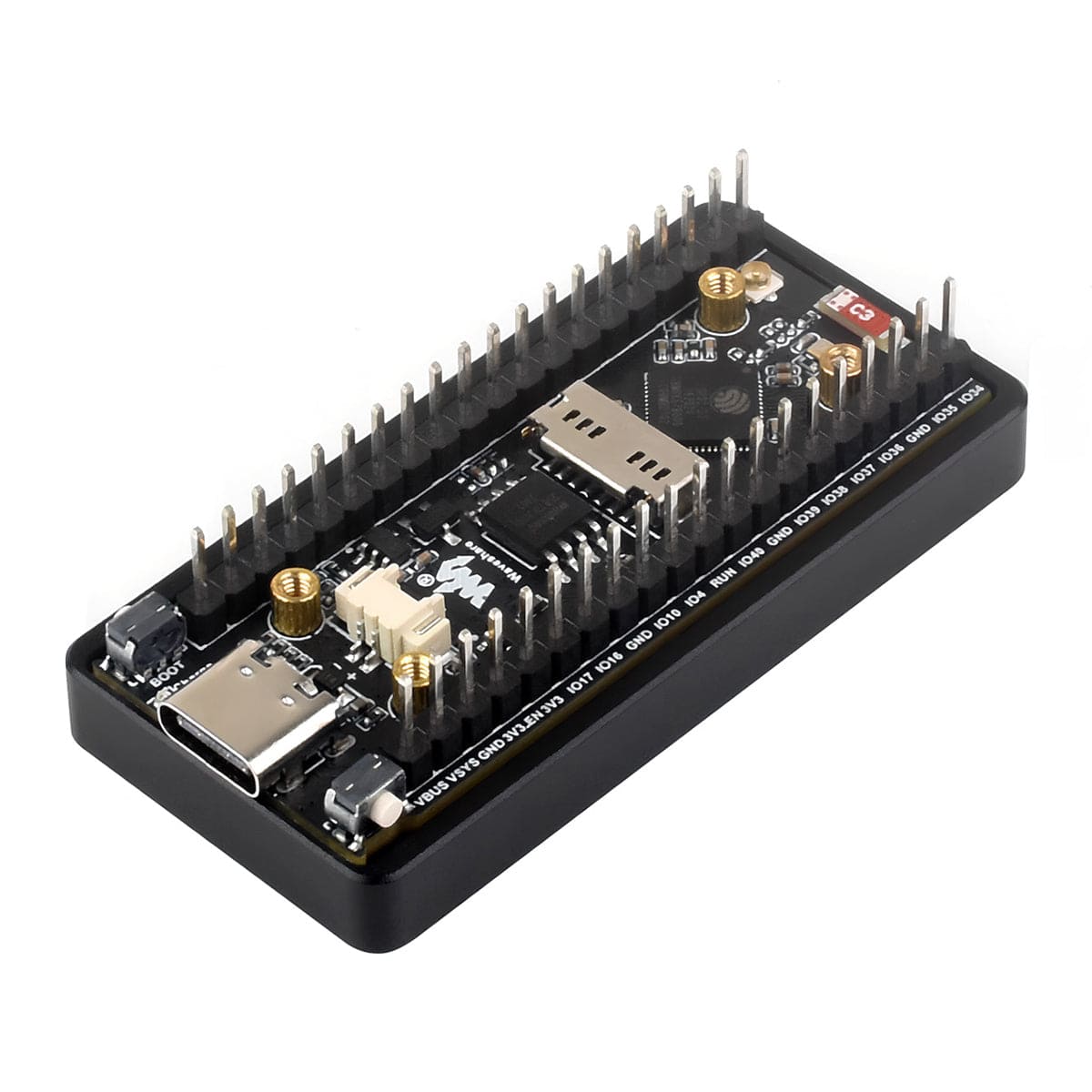

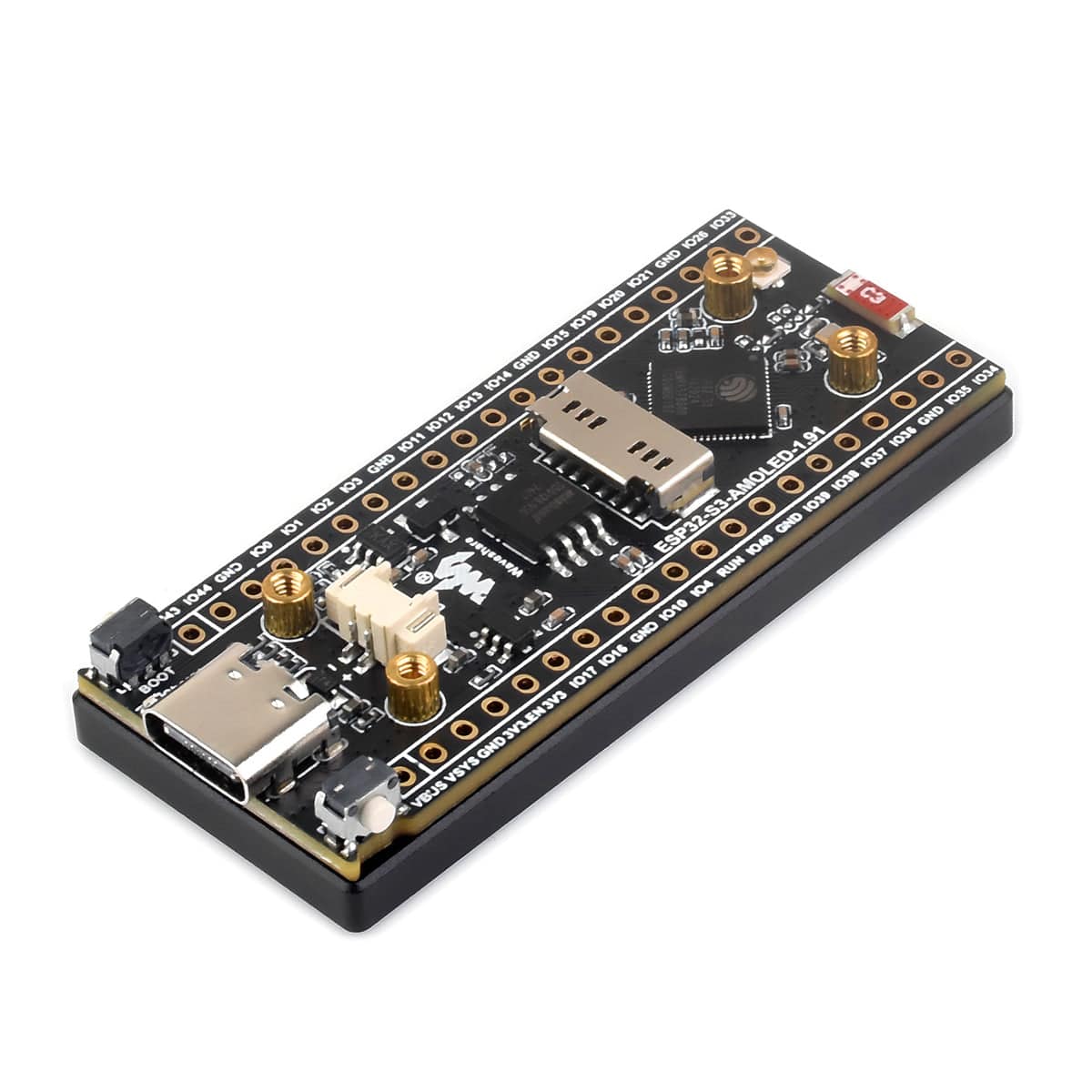

What's on Board

Specifications

Resources

• Product Wiki
• Schematic

Pinout

Package Contents (Optional)

ESP32-S3 AMOLED No Touch Without Headers

• 1x ESP32-S3 AMOLED No Touch Without Headers

ESP32-S3 AMOLED No Touch With Headers

• 1x ESP32-S3 AMOLED No Touch With Headers

ESP32-S3 AMOLED Touch Without Headers

• 1x ESP32-S3 AMOLED Touch Without Headers

ESP32-S3 AMOLED Touch With Headers

• 1x ESP32-S3 AMOLED Touch With Headers
