We already stock a PCIe to M.2 E-Key HAT for using wireless NICs with your Raspberry Pi 5, however, this model also includes IEEE 802.3af/at PoE functionality to power your Pi 5 (5V 4.5A max.), along with a handy 12V output header (2A max.).
We offer this product as either just the HAT itself, or bundled with a compatible AX210 Wi-Fi 6E wireless NIC offering 2.4GHz, 5GHz and 6GHz WiFi and Bluetooth 5.3 -please select an option before adding to your cart.
NGFF M.2 E-Key

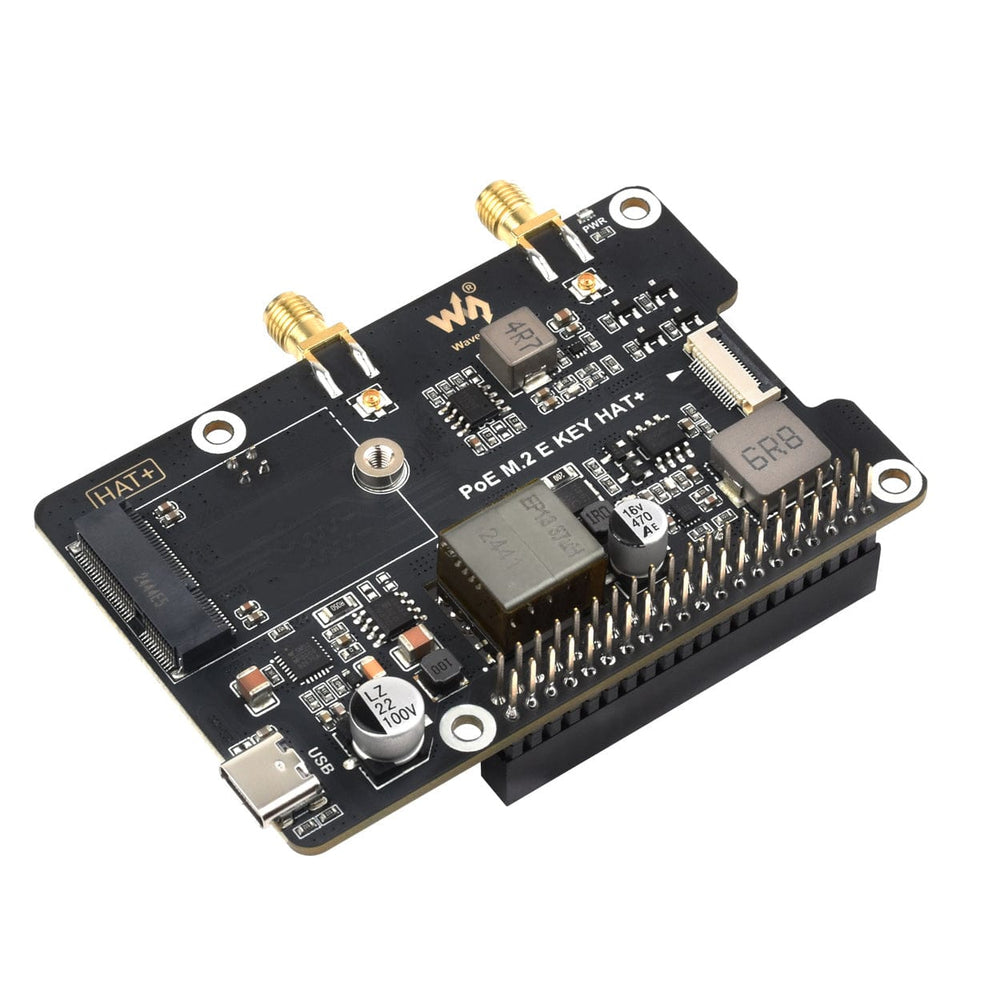

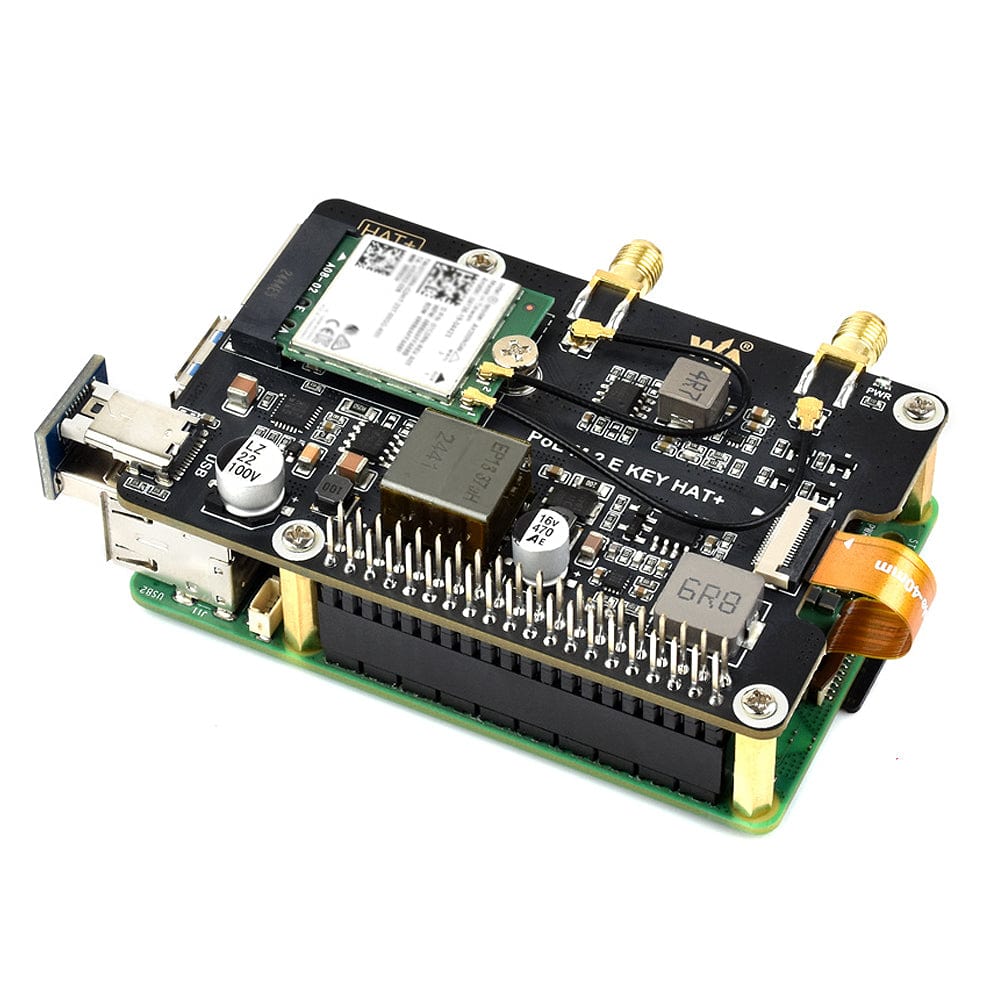

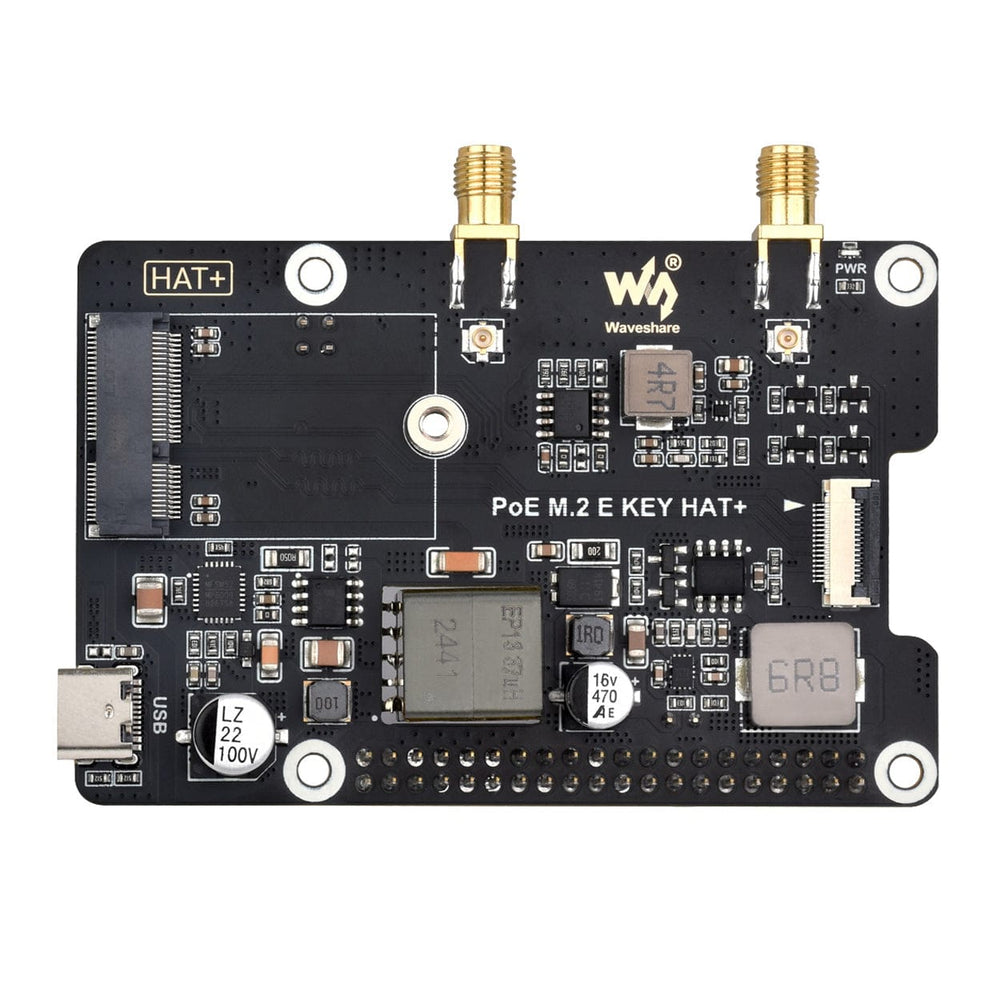

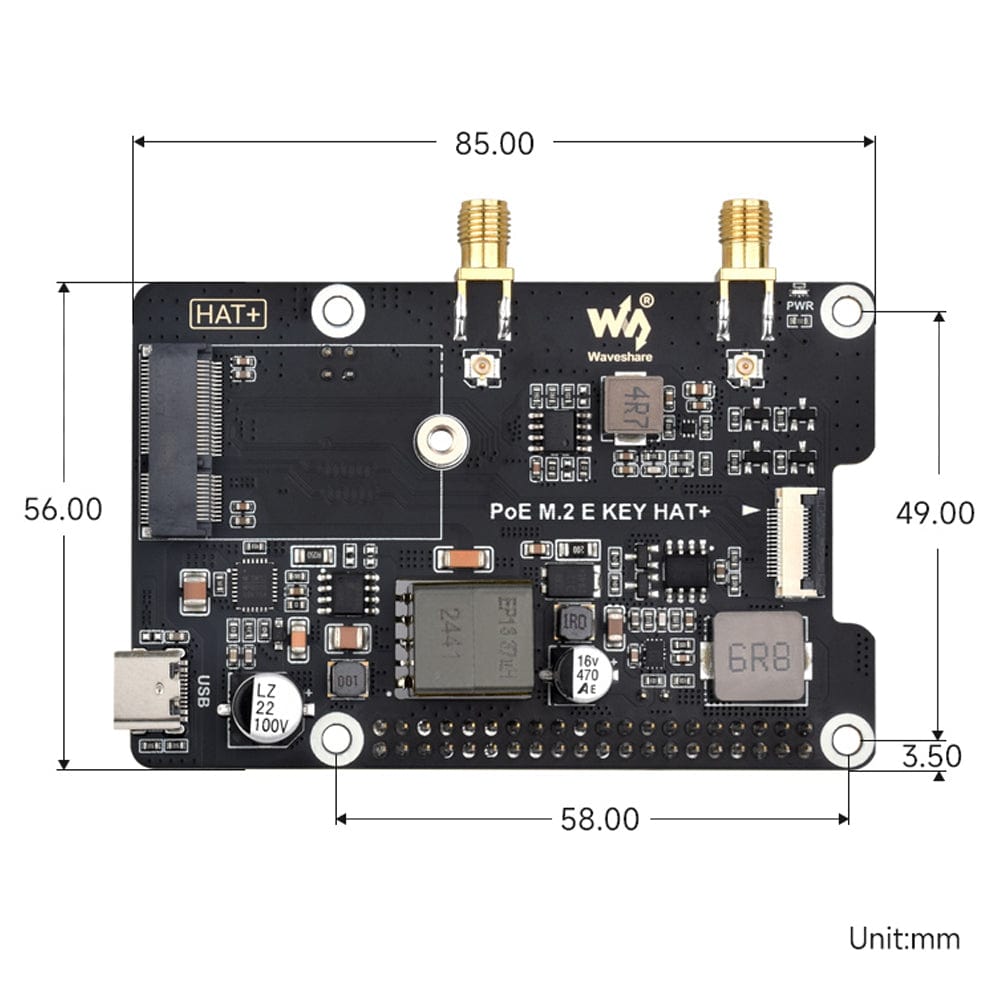

This HAT takes advantage of the Raspberry Pi 5 PCIe interface to offer an NGFF (Next Generation Form Factor) M.2 E-Key slot for your Pi 5, allowing you to connect an E-Key wireless NIC (Network Interface Controller).

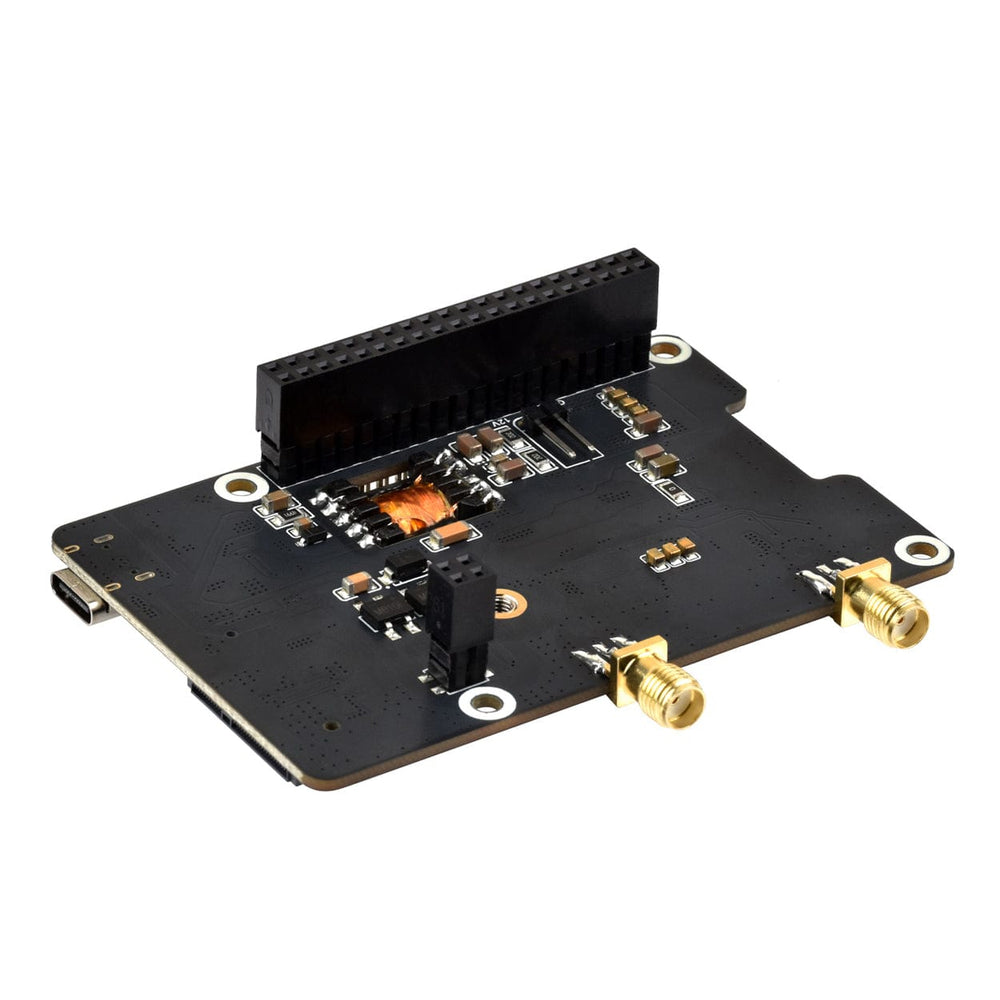

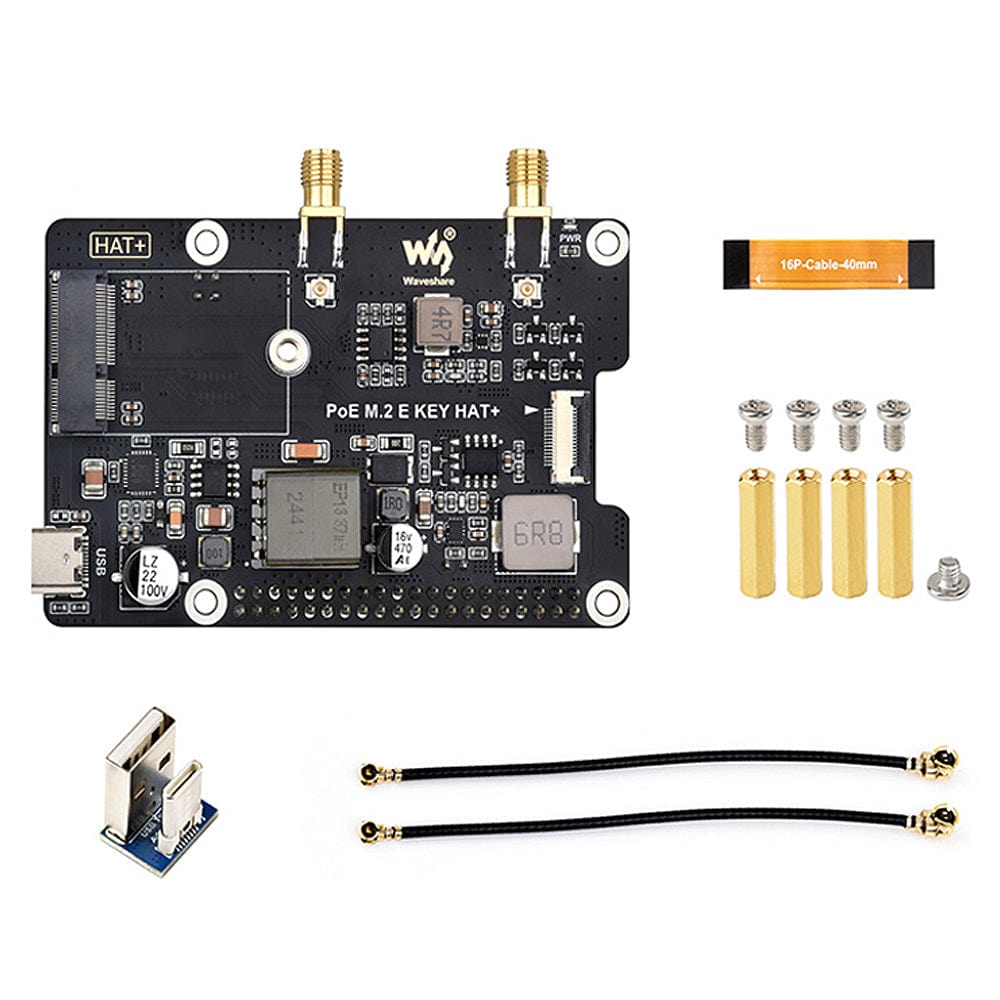

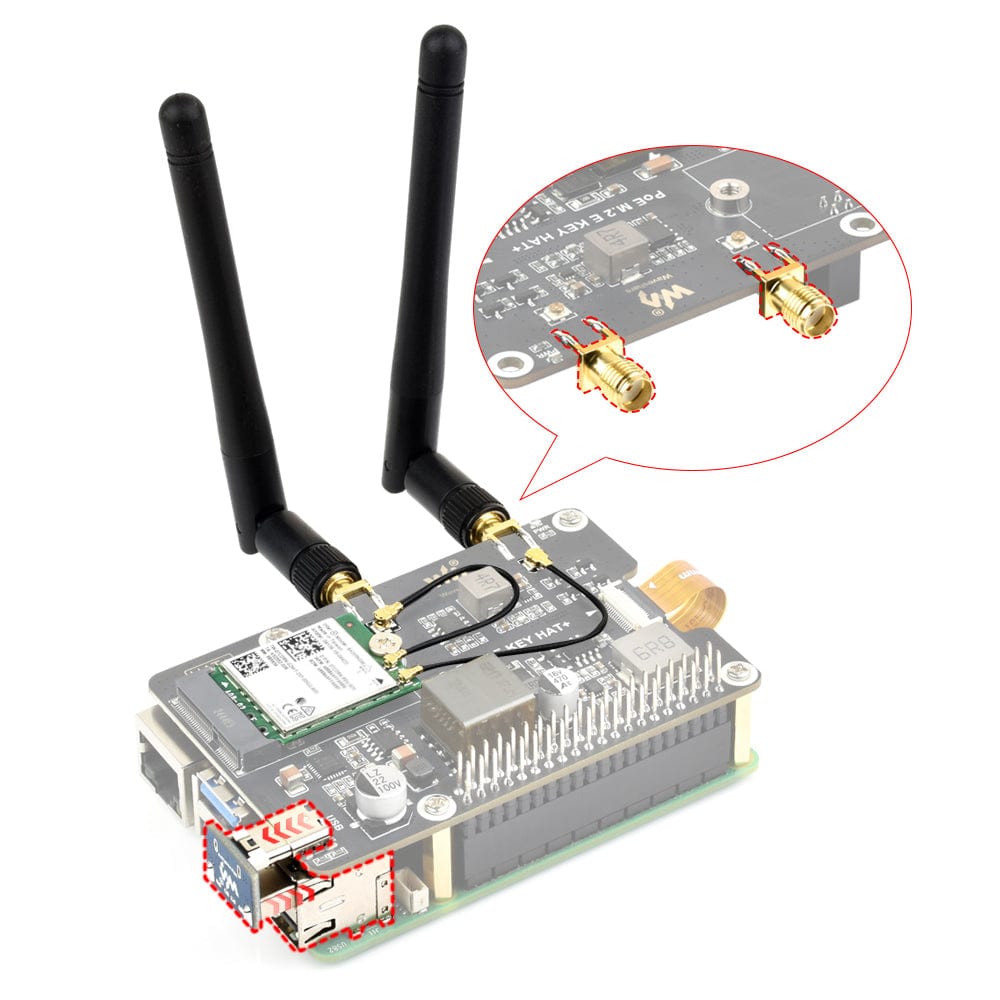

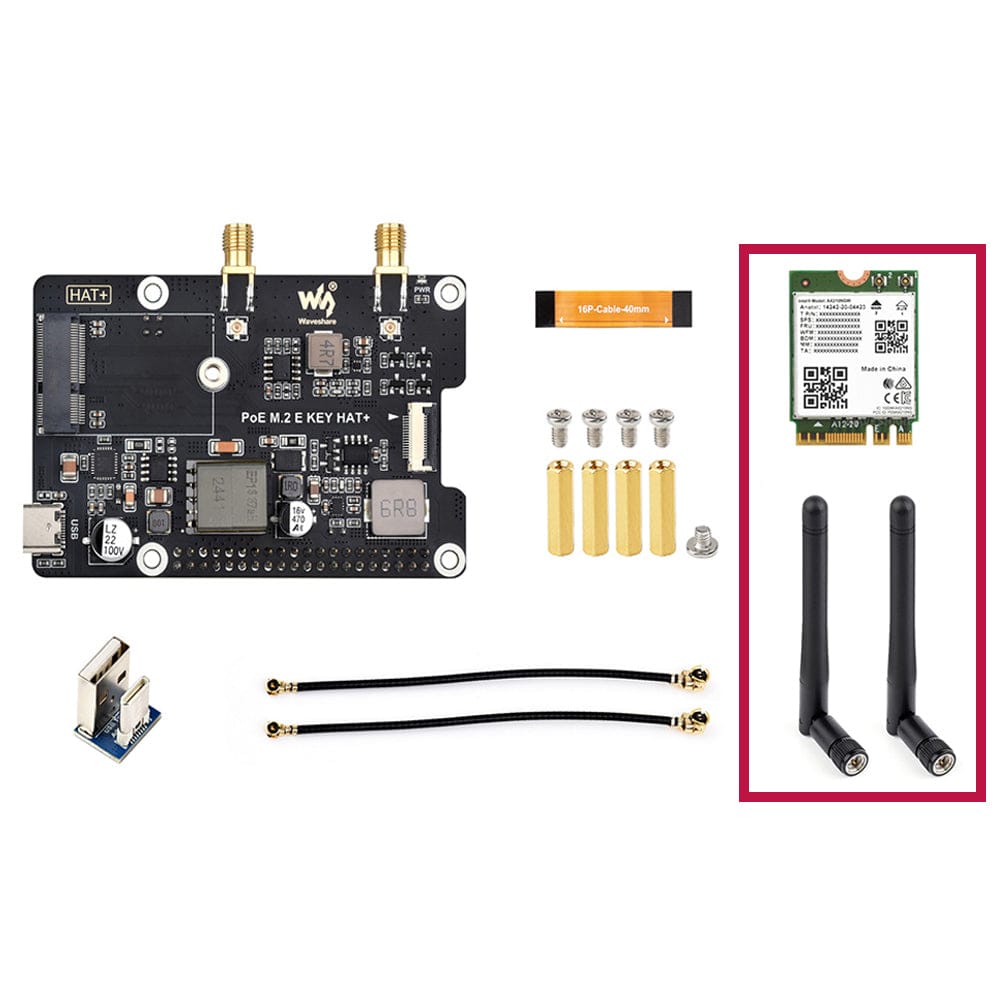

The HAT supports the E-Key device with dual SMA female antenna connectors, with two antennas included in the package. Two IPEX 1 to IPEX 4 adapter cables are also included to connect your NIC to the HAT/antennas.
Bluetooth (via NIC)
Bluetooth signals from the installed NIC are communicated to the Raspberry Pi via the included USB-C/USB-A adapter PCB.
Power over Ethernet (PoE)

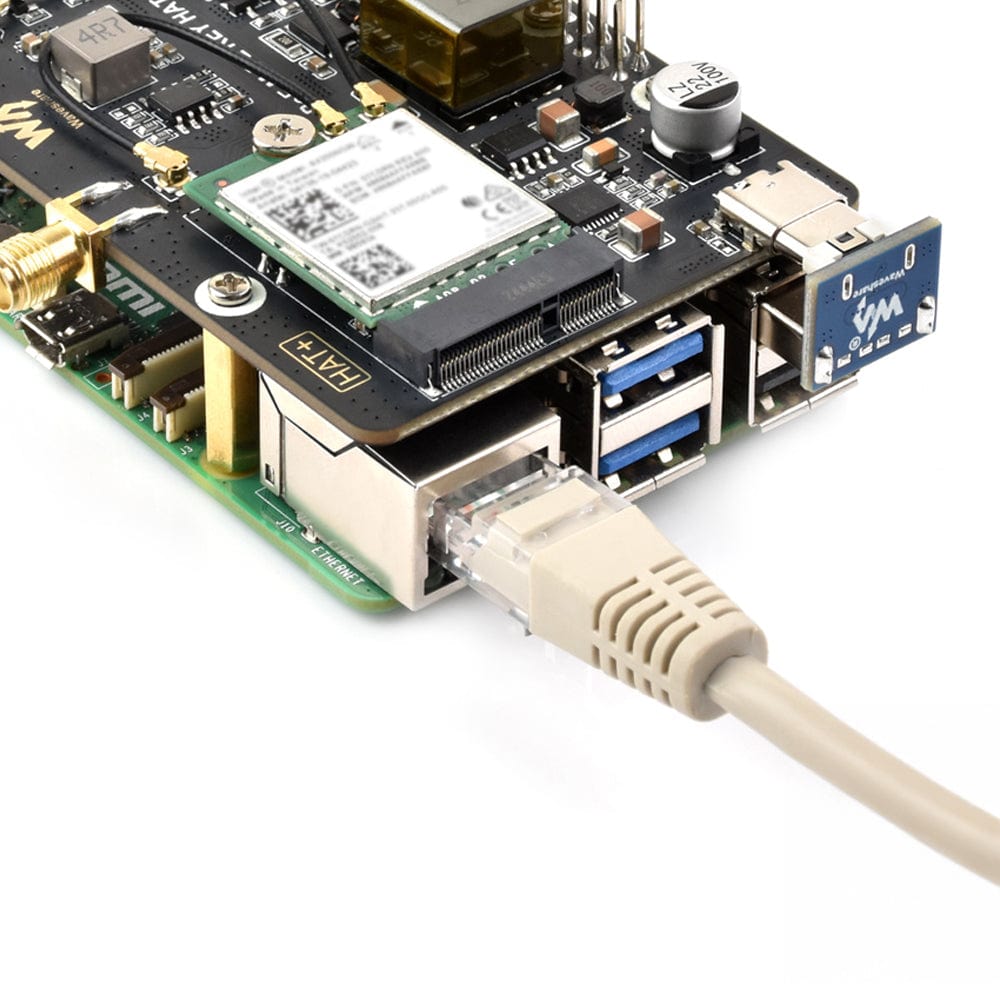

This board also provides PoE functionality, allowing you to power your Raspberry Pi with a power-injected RJ45 Ethernet cable, using the IEEE 802.3af/at network standard.

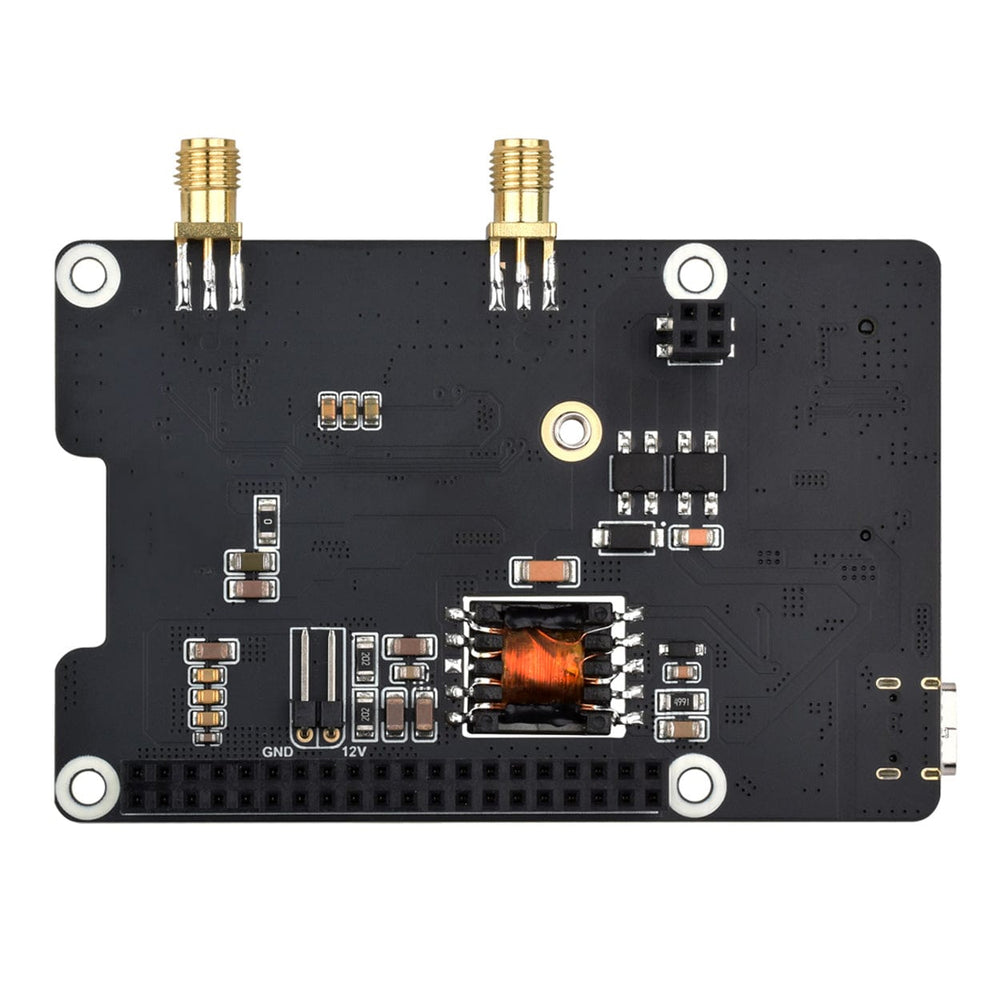

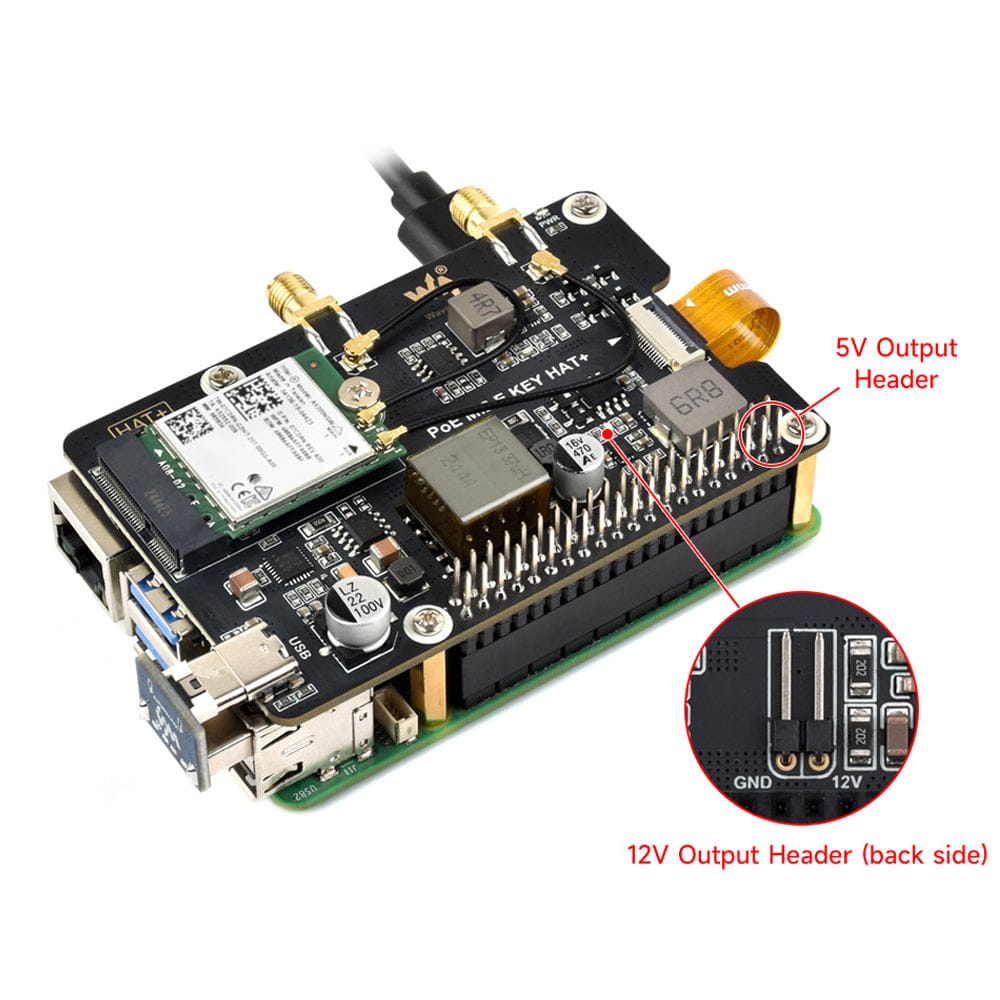

Powering via PoE can provide 5V 4.5A MAX for your Raspberry Pi, and 12V 2A MAX via the 12V pin header (useful for powering other hardware). A power LED on the HAT provides power status indication.
PCIe HAT for Raspberry Pi 5 with M.2 E-Key slot (NGFF) for wireless NICs
Integrated IEEE 802.3af/at Power over Ethernet (PoE) support
PoE supports up to 5V 4.5A to power the Raspberry Pi
12V 2A max output available via onboard 12V pin header
Dual SMA antenna connectors with two antennas included
Includes IPEX 1 to IPEX 4 adapter cables for connecting NIC to antennas
Bluetooth supported via included USB-C to USB-A adapter (NIC required)
Onboard power LED for visual status indication
Pre-soldered GPIO riser header to maintain full access to GPIO pins
AX210 NIC Features
Note: AX210 NIC is only included in the bundle option.
Based on the sixth-generation 802.11AX Wi-Fi standard, offering improved performance, compatibility, lower power consumption, and extended service life compared to 802.11AC
Supports 2.4GHz, 5GHz, and 6GHz tri-band connectivity
Speeds up to 574Mbps on 2.4GHz and up to 2400Mbps on 5GHz/6GHz
Compliant with the Bluetooth 5.3 standard for longer range and enhanced stability
Uses an NGFF (M.2 A/E Key) interface
Incorporates next-generation MU-MIMO wireless technology for improved network quality, more than triple the Internet speed, and greater transmission and download efficiency
Compatible with Linux, Windows 10/11, and other platforms
