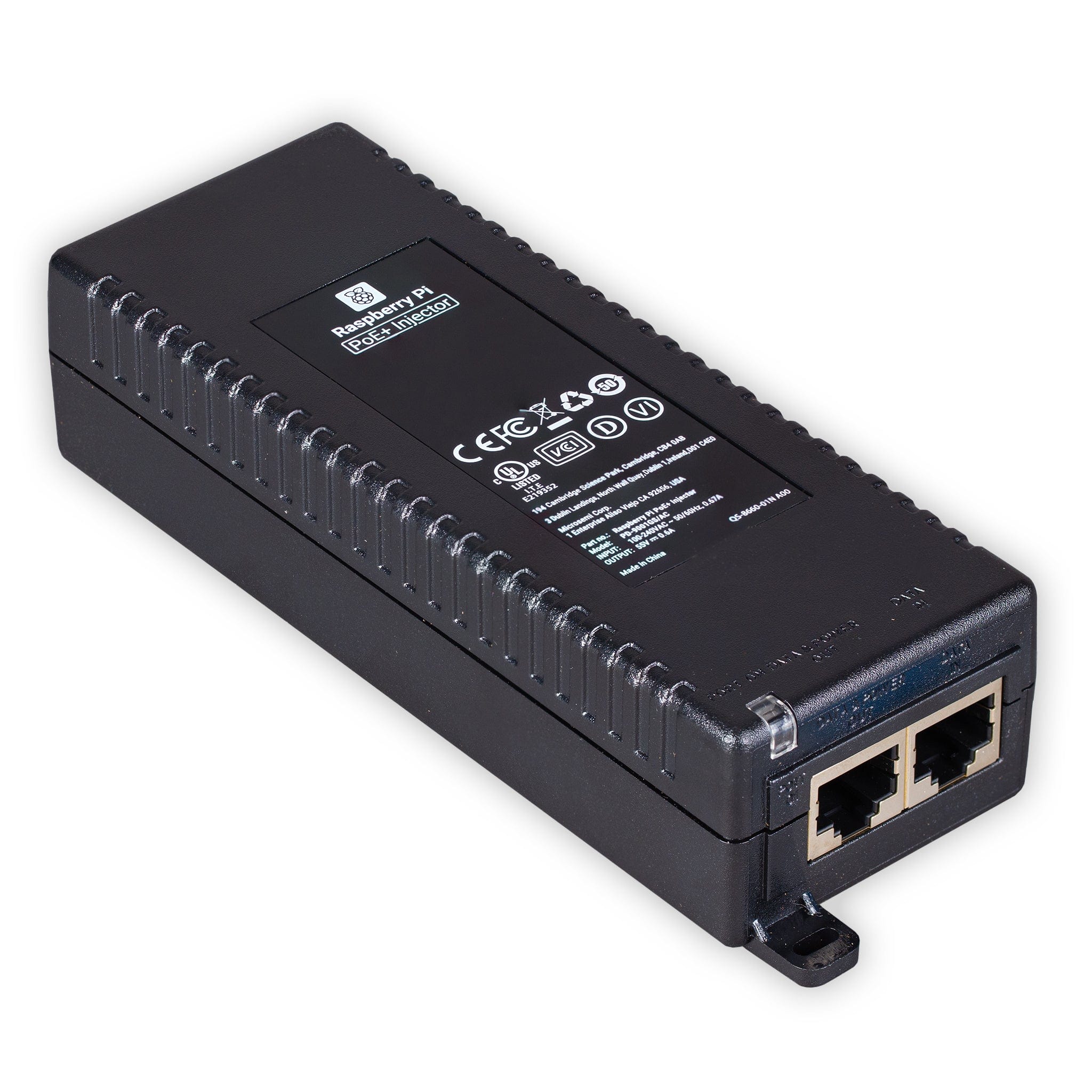

The Raspberry Pi PoE+ Injector is a single-port 30W injector suitable for powering devices conforming to the IEEE 802.3at and 802.3af specifications, including all generations of the Raspberry Pi PoE/PoE+ HAT.
The injector supports network pass-through at 10/100/1000Mbps speeds.
A power cable is not included. You'll need a 'kettle-type' IEC C13 cable, which we stock in the store. See the section below for links for different regions.
Power cable not included
The injector is sold without an EIC mains lead (known as a 'kettle' lead). We offer these in the store if you don't already have one in your box of cables at home:

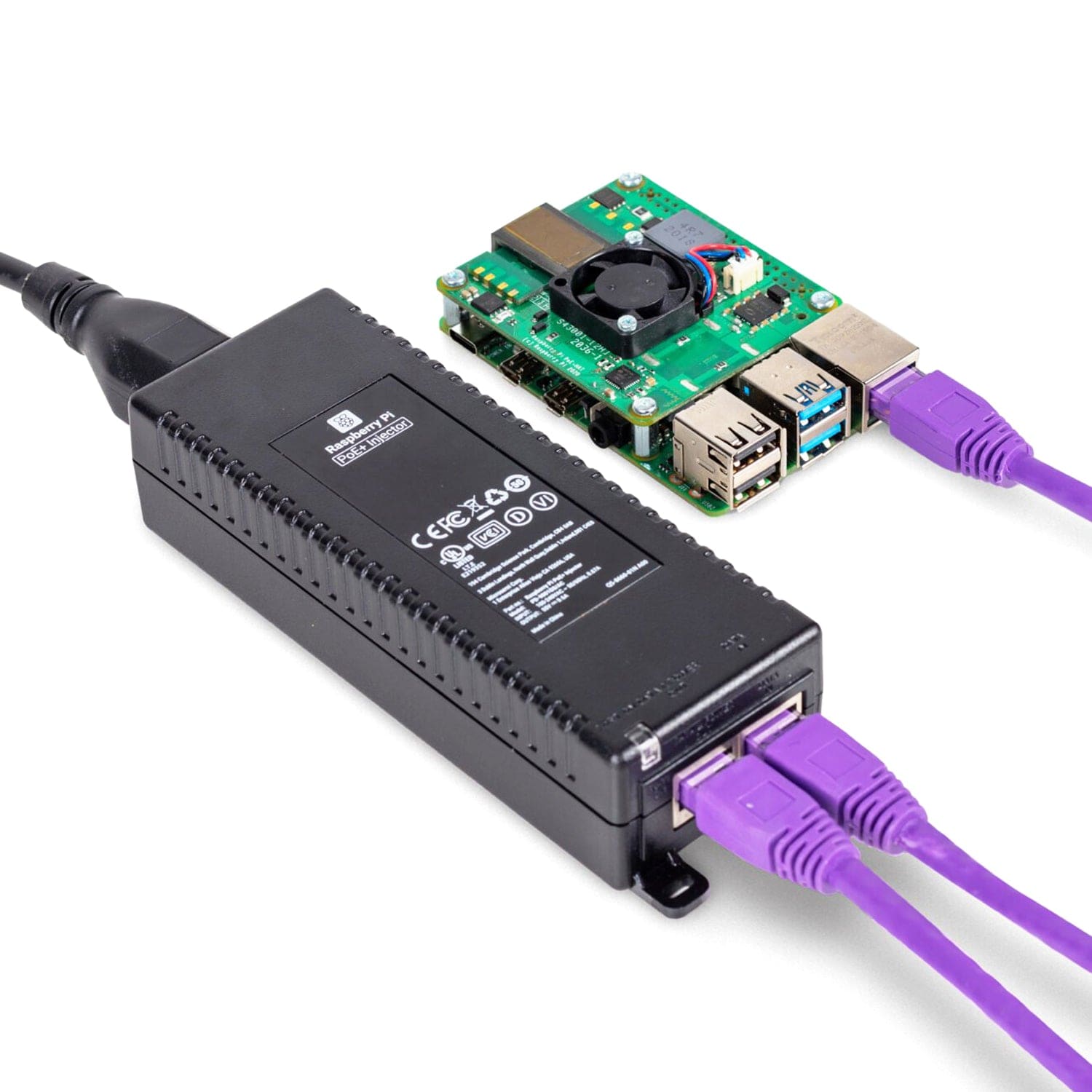

Powers Raspberry Pi PoE and PoE+ devices (HAT required)
IEEE 802.3at compliant with 2-event classification
Compatible with IEEE 802.3af devices
Output power of 30W guaranteed
Supports 10/100/1000 Base-T applications
Ensures low-power devices receive only the power they need
Provides automatic detection and protection of non-standard Ethernet terminals
Requires an IEC C13 power cable (sold separately)
Specifications
Data rate: 10/100/1000 Mbps
Input voltage: 100 to 240 V AC
Output power: 30W
Power output on pins: 4/5 (+), 7/8 (–)
Nominal output voltage: 55 V DC
Dimensions: 159 mm (L) × 51.8 mm (W) × 33.5 mm (H)

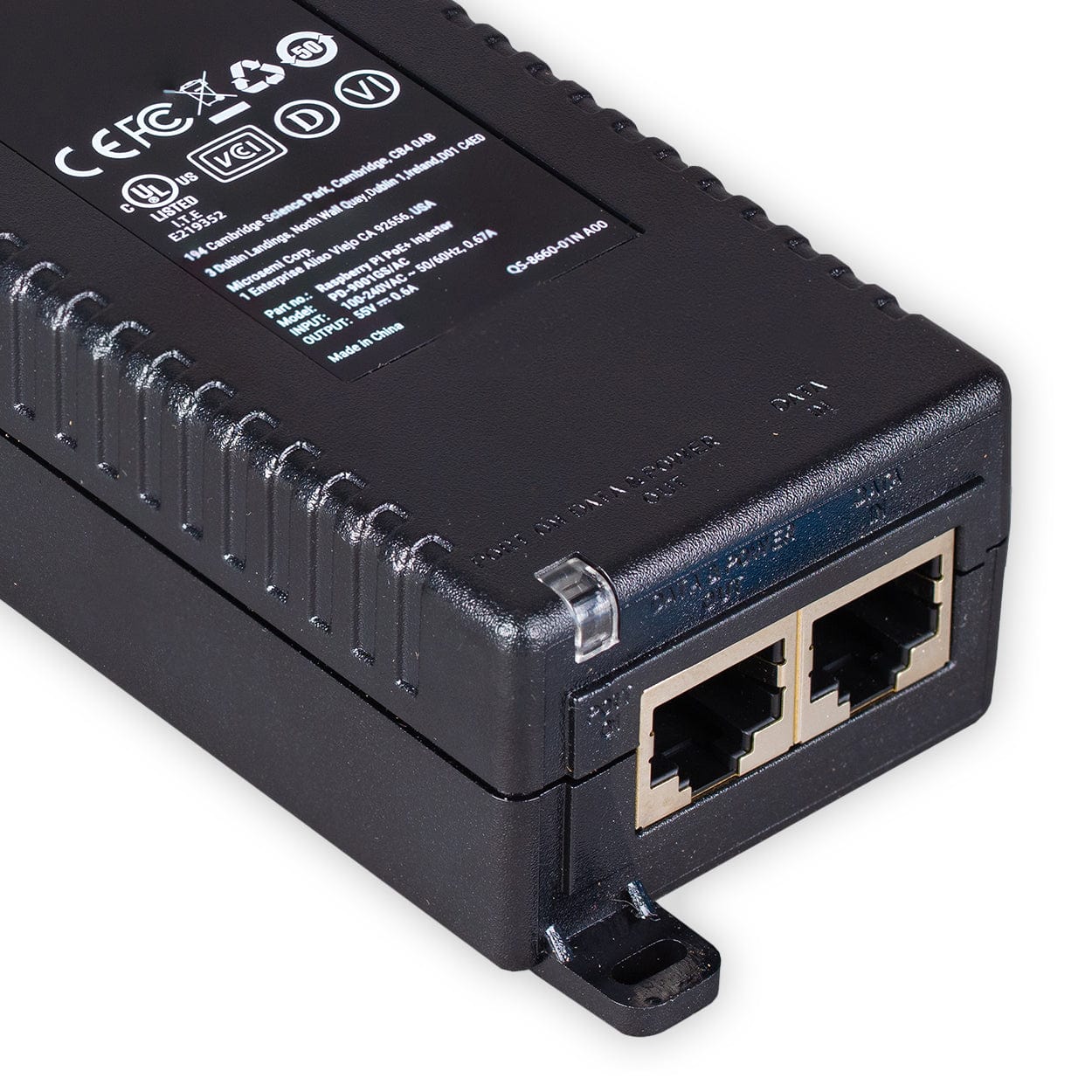

Data connectors: Shielded RJ-45, EIA 568A and 568B
Power connector: IEC c13 mains power input (not included)
Operating ambient temperature: –10⁰C to +50⁰C
Operating humidity: Maximum 90%, non-condensing
Storage temperature: –20⁰C to +70⁰C
Storage humidity: Maximum 95%, non-condensing
Operating altitude: –300m to 3000m
MTBF: 200,000 hrs @ 25⁰C
How do PoE injectors work?
PoE injectors work by 'injecting' power into an RJ45 Ethernet cable along with your data lines (internet connection).
You plug in your standard Ethernet cable for data, along with a power cable (IEC kettle-type) for power, and then the injector merges these into a single RJ45 Ethernet output to run to your device via another RJ45 cable.
This allows both power and internet data to pass through a single RJ45 cable, which is then 'split' at the other end, using a PoE splitter or dedicated PoE HAT.
Why would I want to use PoE?
PoE is really handy for removing the need for a wall socket where your end device/project is (hence why it's so popular for CCTV cameras as they're rarely mounted near a wall socket).
It's also a popular choice for those running lots of devices/Raspberry Pi boards in a single location like a server rack, as it removes the need for lots of individual plug sockets and power supplies (a PoE switch as the injector is generally the better option here though).
Which Raspberry Pi boards support PoE?
There are a few models of Raspberry Pi that support PoE when used with a PoE HAT (they have special pins on the board to accommodate the HATs):
However, you can power other non-PoE Raspberry Pi models by using a dedicated splitter with the correct power cable. For example, to power the original non-PoE Raspberry Pi 3B with PoE, just use a Micro-USB PoE splitter.
I'm already using a HAT on my Raspberry Pi, does this mean I can't power using PoE?
You can still power your Raspberry Pi using PoE, you'll just need to use a standalone PoE splitter rather than a HAT.
