This compact carrier board for Raspberry Pi Compute Module 5 provides dual-Gigabit Ethernet ports along with a range of features and breakouts to provide a useful platform for network-focussed CM5 projects and applications.
The base board's dual gigabit Ethernet ports are assisted by a Realtek RTL8111H Gigabit NIC chip, with port 0 using the CM5's original network port, and port 1 running via PCIe.
The Ethernet ports are conveniently placed alongside a USB-A 3.2 Gen1 port and a USB-C port for 5V power in and programming, ensuring the main cabling routs to the rear of the board for a tidy setup.

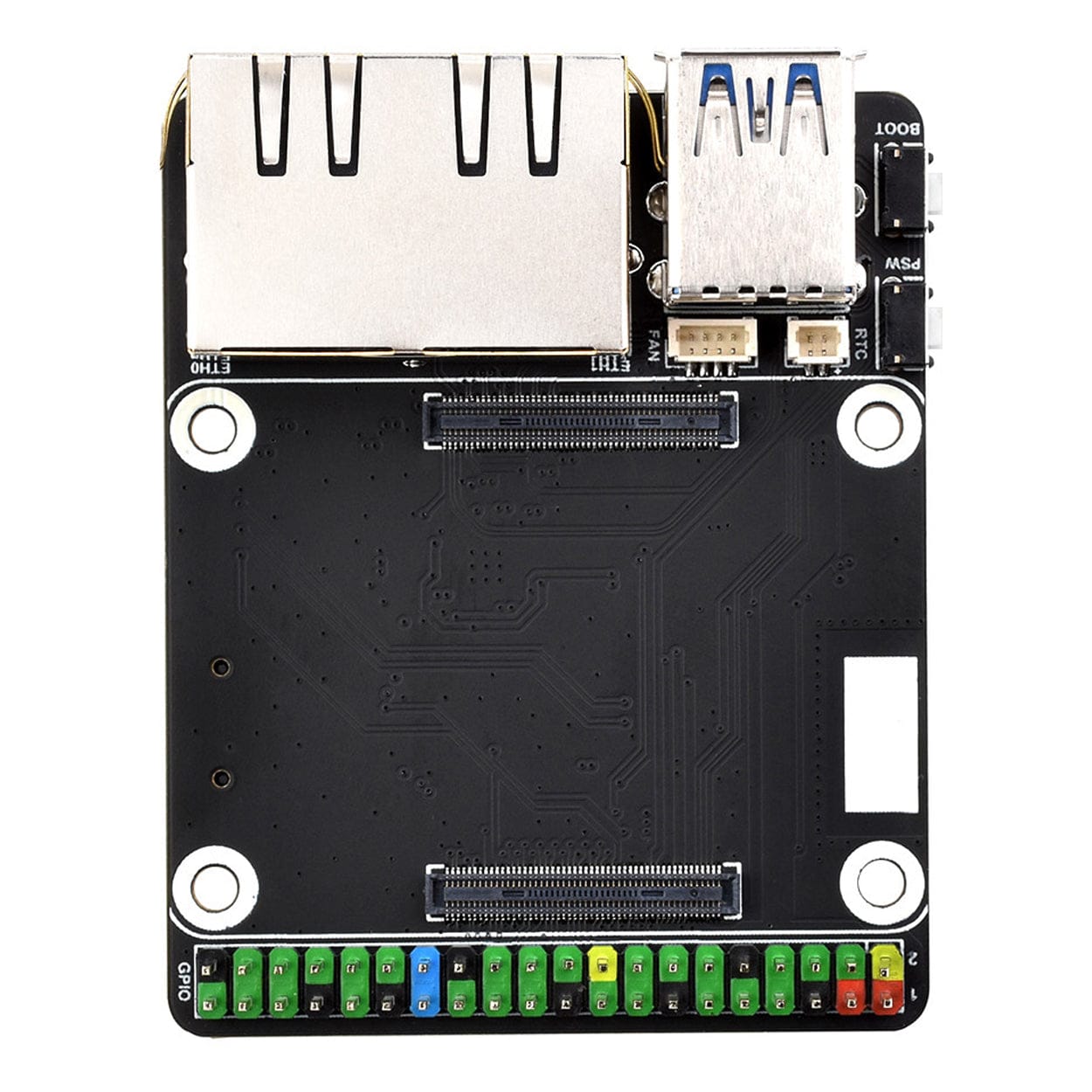

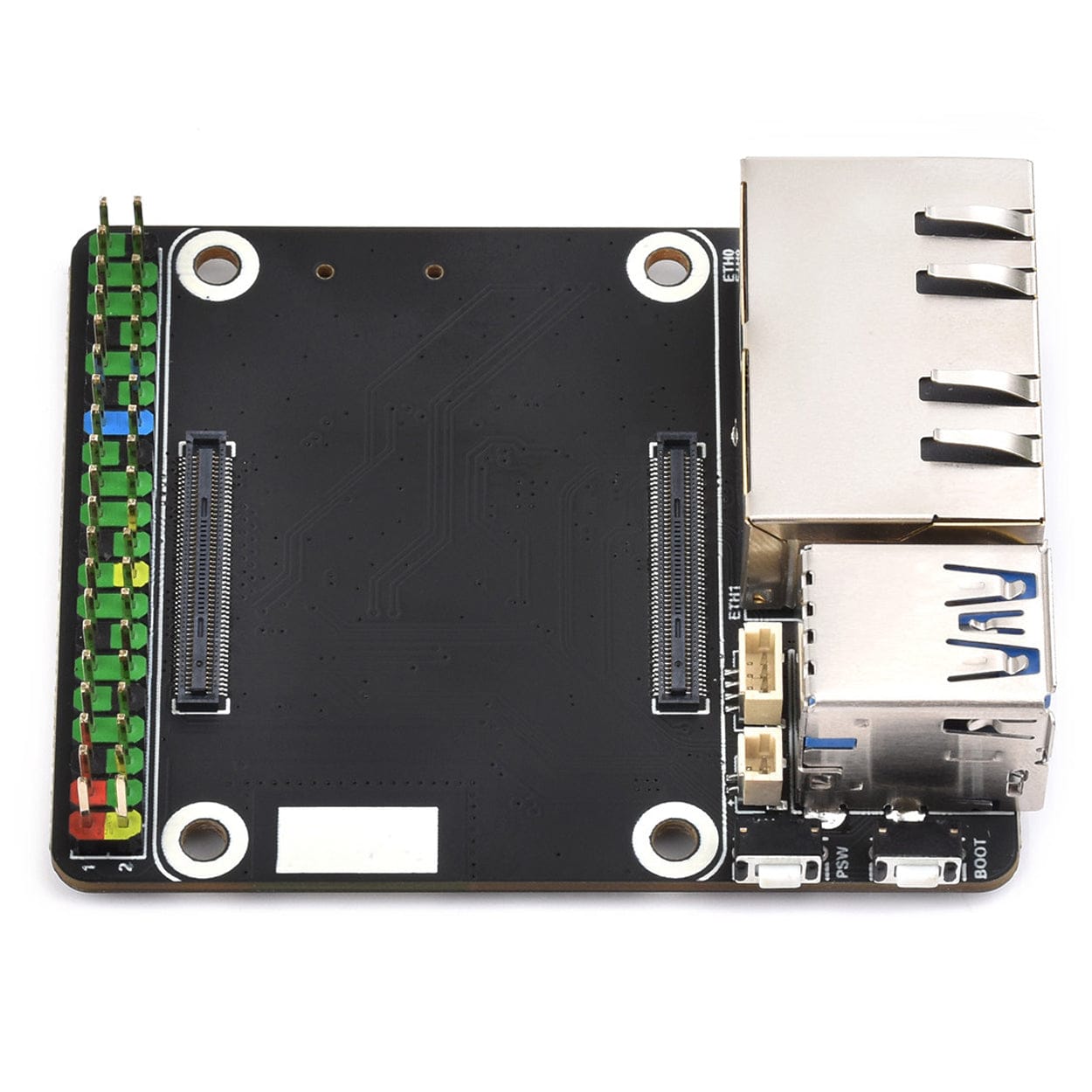

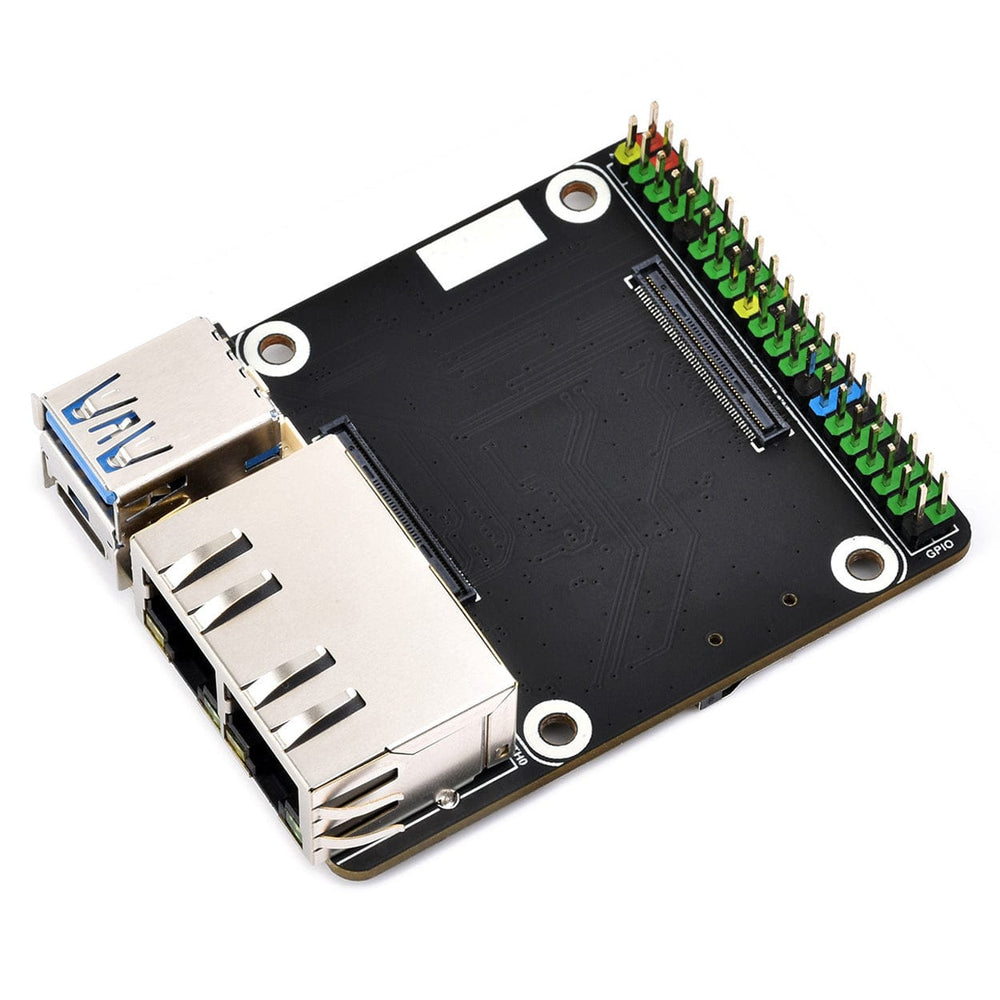

On the top of the board you'll also find BOOT and power buttons to one side, with fan and RTC headers to the rear of the USB port - both using the same connectors as the Raspberry Pi 5 to allow use of the same RTC/fan accessories if desired. A pre-soldered, colour-coded GPIO header is also provided for IO interfacing and supporting the use of HATs.

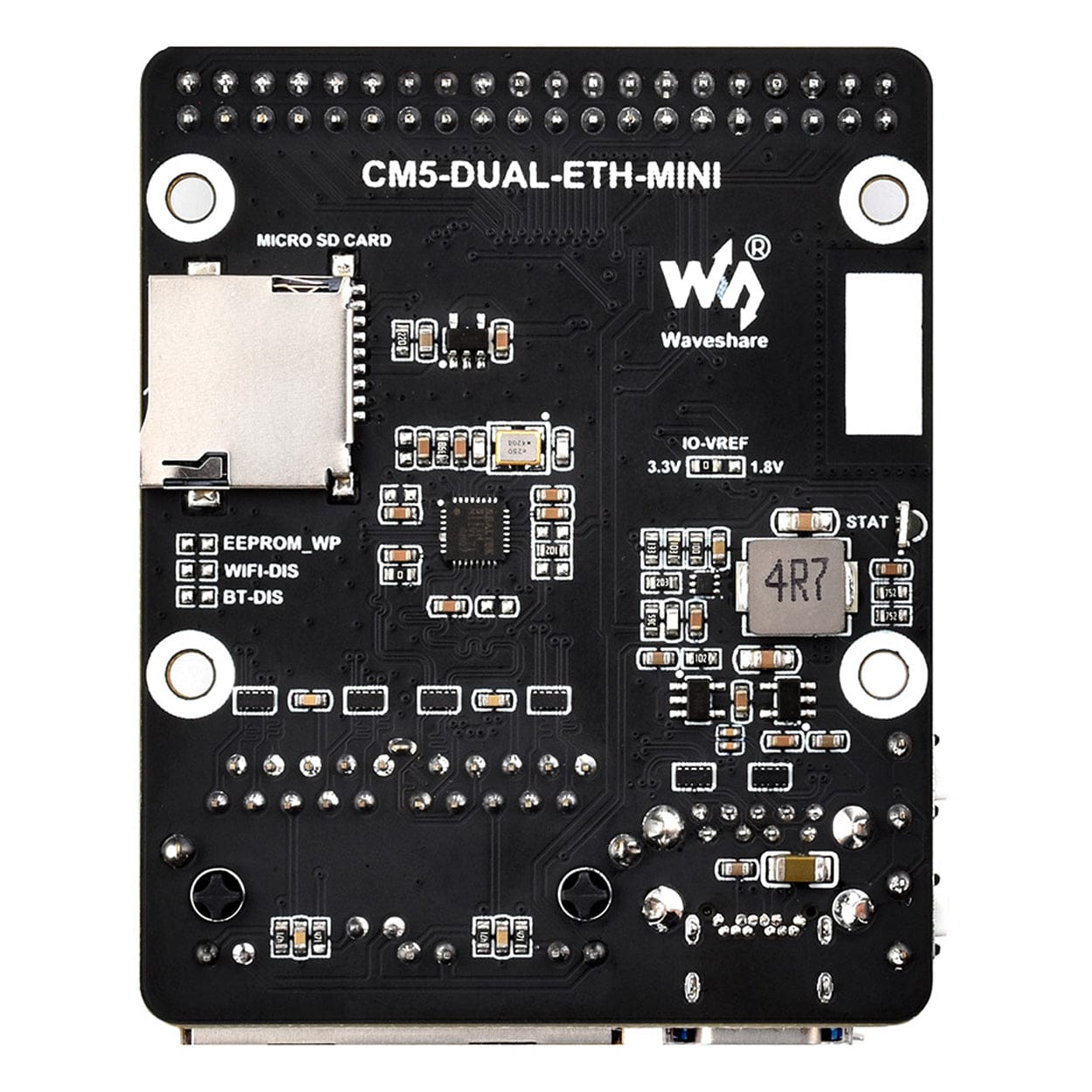

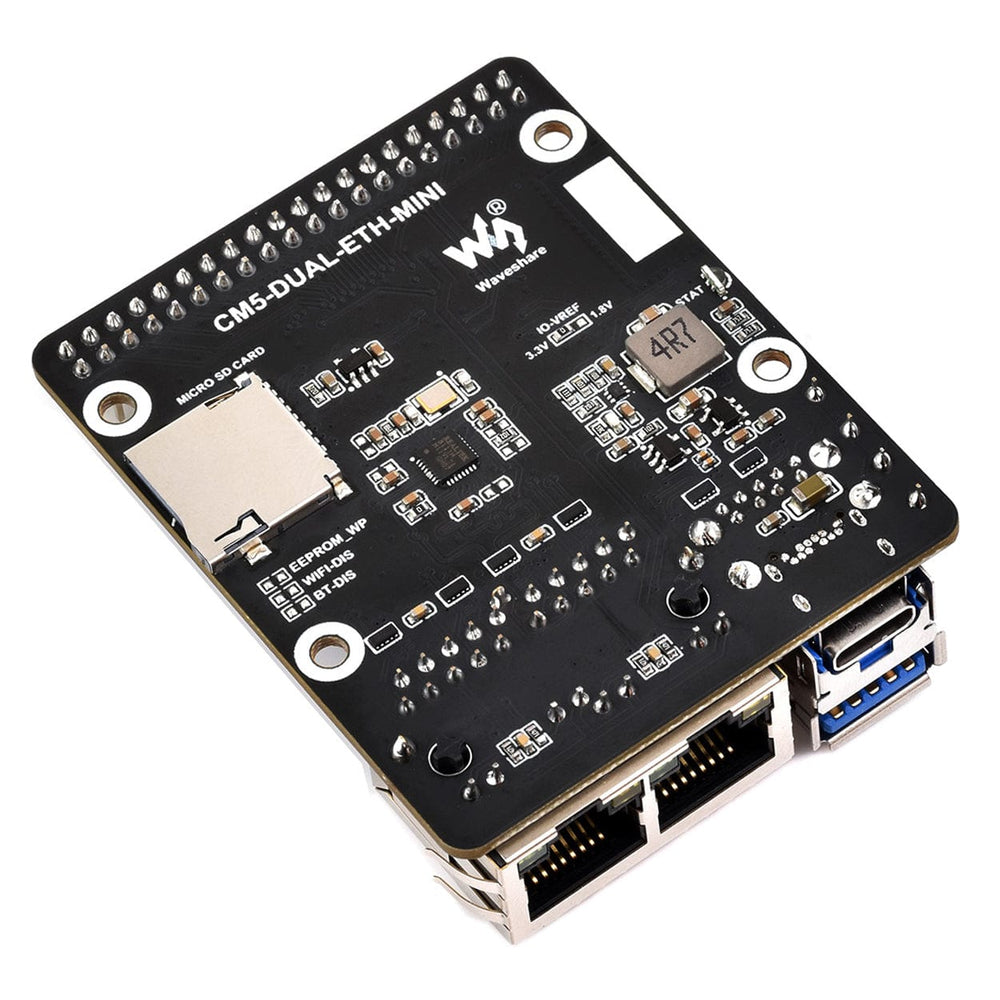

The underside features a MicroSD card slot for use with CM5 Lite (non-eMMC) variants, system switch solder pads for disabling/enabling various system features such as Wi-Fi and Bluetooth, and of course - LED indicators!
CM5 and power supply not included
Features
- Compact carrier board for Raspberry Pi Compute Module 5
- Compatible header fitting for CM5
- Dual Gigabit Ethernet ports (CM5 port + PCIe port via RTL8111H)
- USB-C port for 5V power/programming
- USB-A 3.2 Gen1 port
- MicroSD card slot for CM5 Lite variants
- BOOT and Power buttons
- Fan and RTC headers compatible with Raspberry Pi 5 accessories
- Colour-coded GPIO header
- System switch solder pads
- LED indicators
Specifications
| CM5 socket | Suitable for all variants of Compute Module 5 |
| Networking | Dual Gigabit Ethernet RJ45 connectors |
| USB | USB 3.0 port |
| Pin header | Raspberry Pi 40-pin GPIO header |
| Storage | MicroSD socket for Compute Module 5 Lite (without eMMC) variants |
| Fan header | 4-wire SH1.0 port, allows speed adjustment and measurement, 5V |
| Power input | 5V, Type-C interface |

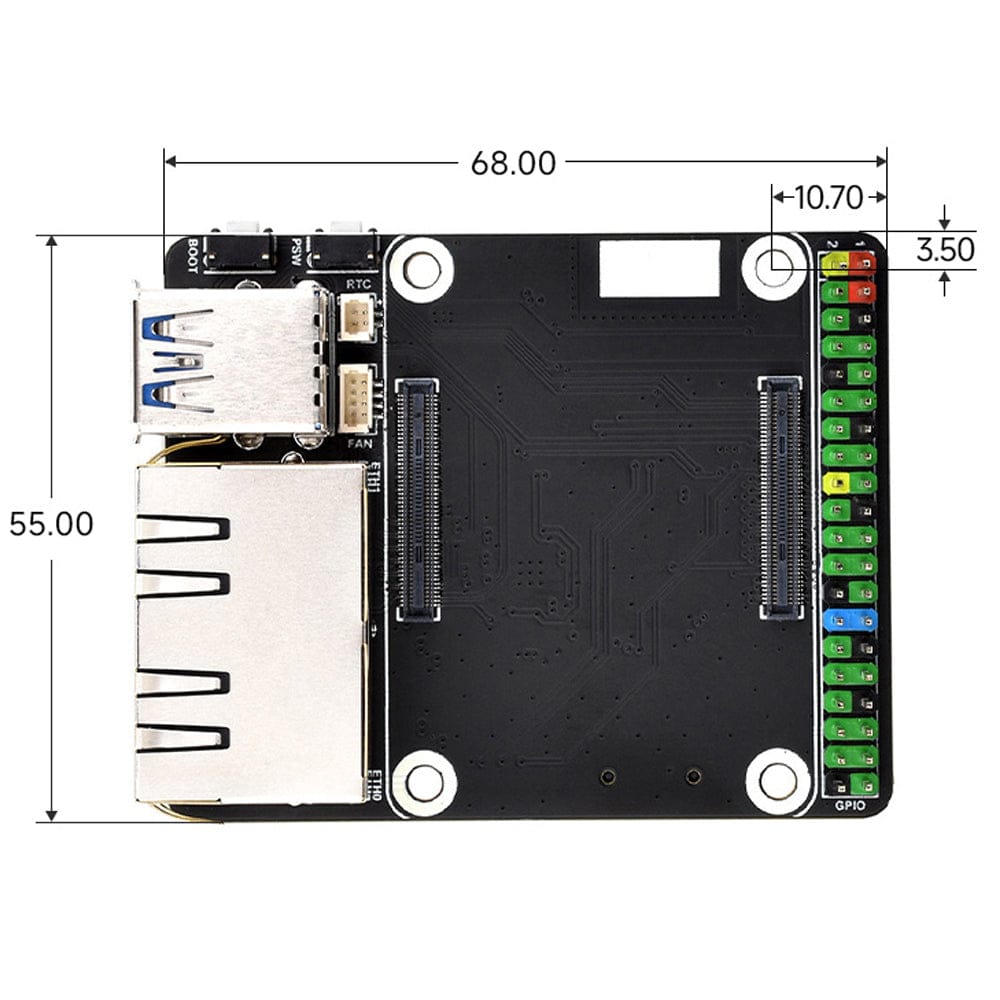

| Dimensions | The base board: 55.0 × 68.0mm With metal case: 61.0 × 75.0 × 27.5mm |
What's onboard?
-
40-pin GPIO header
- For connecting HATs
-
CM5 socket
- Compatible with all variants of Compute Module 5
- PSW button
- BOOT button
-
RTC battery header
- For connecting a rechargeable RTC battery
-
Fan header
- Connects cooling fan; supports speed control and monitoring
-
RJ45 Gigabit Ethernet ports
- Dual ports, 10/100/1000M compatible
- Ethernet 0: CM5 original network port
- Ethernet 1: PCIe extended network port
-
USB 3.2 Gen1 Type-A port
- For connecting USB devices
-
USB Type-C port
- 5V power supply or eMMC programming
-
TF card slot
- For pre-burnt image (Lite variant only)
-
RTL8111H
- Gigabit NIC chip
-
SYSTEM switch
- EEPROM_WP: Prevents EEPROM overwrite
- WiFi_DIS: Disables Wi-Fi (CM5 wireless variants only)
- BT_DIS: Disables Bluetooth (CM5 wireless variants only)
-
Indicators
- Red: Power status
- Green: Working status
Resources
Package Contents
- 1x Waveshare Mini Dual Gigabit Ethernet Base Board
CM5 and power supply not included
