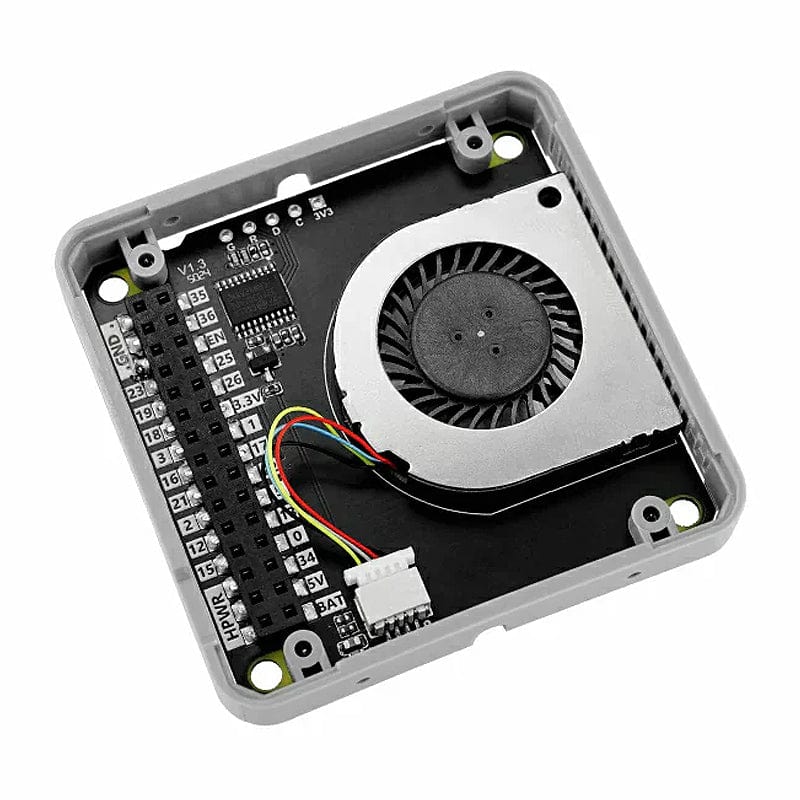

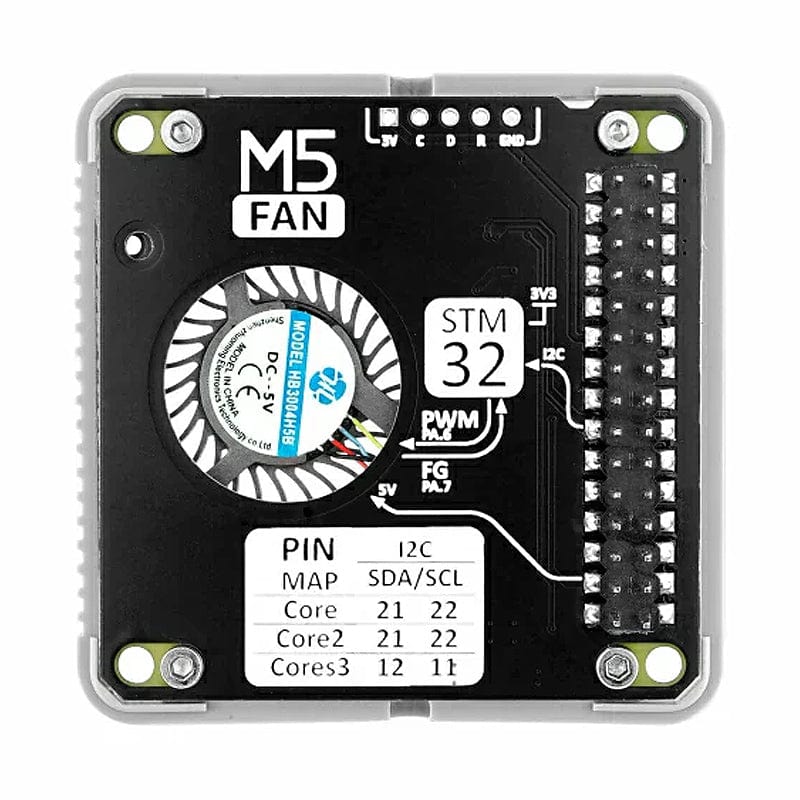

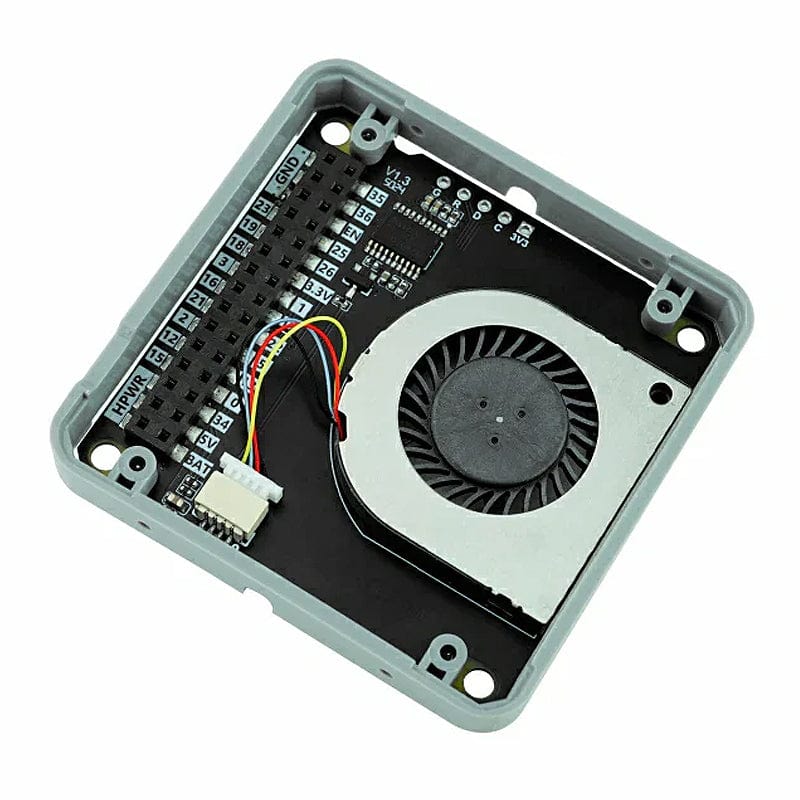

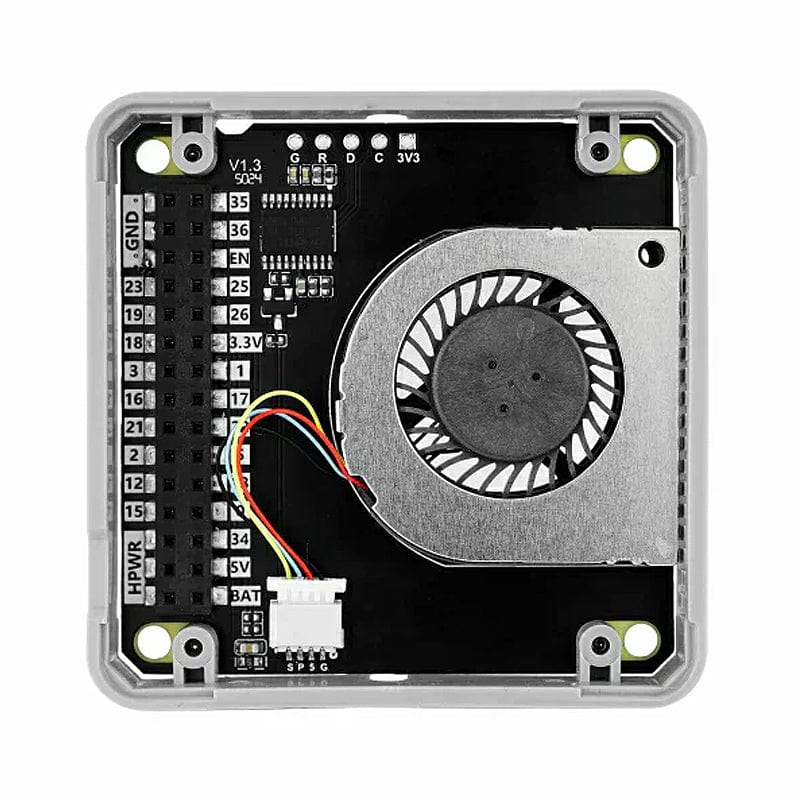

The M5Stack Fan Module v1.1 is a cooling module designed for M5Stack stacked systems such as the Core S3, featuring a built-in STM32 microcontroller.

The module uses the I2C protocol for control, supporting fan speed reading and control, as well as stall protection. This module is primarily used for cooling in stacked systems, effectively improving the thermal performance of the system.

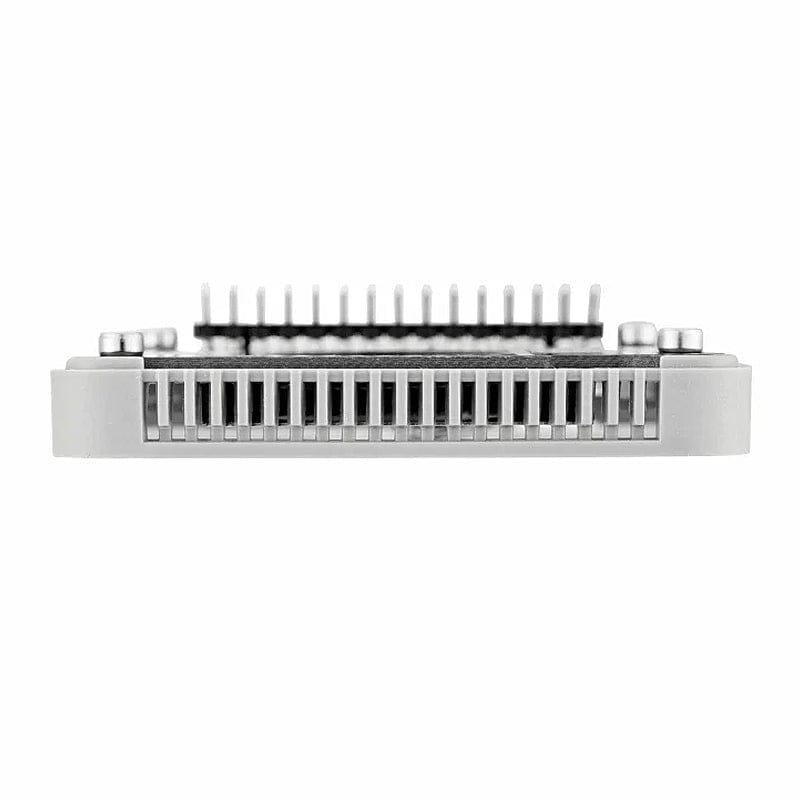

The air intake of Module Fan v1.1 is located at the bottom of the module. For optimal cooling performance, it is recommended to stack it on top of the module that requires cooling.

Features

M5Stack Stacked System
STM32 Microcontroller
I2C Protocol Control
Fan Speed Reading and Control
Stall Protection Feature
Development Platforms
- UIFlow 2.0
- Arduino IDE

Specifications

MCU	STM32F030F4P6
Communication Method	I2C (0x18)
Operating Voltage	5V
Noise Test (ambient noise 40.8dB)	PWM 20%:48.6dB
	PWM 60%:64.5dB
	PWM 100%:70.6dB
Operating Power Consumption	PWM 20%:DC-5V @ 13.52mA
	PWM 60%:DC-5V @ 56.19mA
	PWM 100%:DC-5V @ 125.14mA
Standby Power Consumption	DC-5V @ 503.49uA
Fan Speed	11500RPM ±10%
Maximum Airflow	1.23 CFM
Fan Speed Control	Supports fan speed reading and PWM control
Stall Protection	Supports stall protection feature
Operating Temperature	0-40°C
Product Size	54.0 x 54.0 x 13.1mm
Product Weight	14.9g
