M5Stack Core2 v1.1 ESP32 IoT Development Kit

M5StackSKU: K010-V11
Price:
Sale price £37.25
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

Awesome Extras

SanDiskSanDisk MicroSD Card (Class 10 A1)
Sale priceFrom £5 incl. VAT excl. VAT
M5StackM5Stack Panel Frame for M5Core
Sale price £1.75 incl. VAT excl. VAT
M5StackM5Stack M5GO Battery Bottom2 (for Core2 only)
Sale price £11.67 incl. VAT excl. VAT

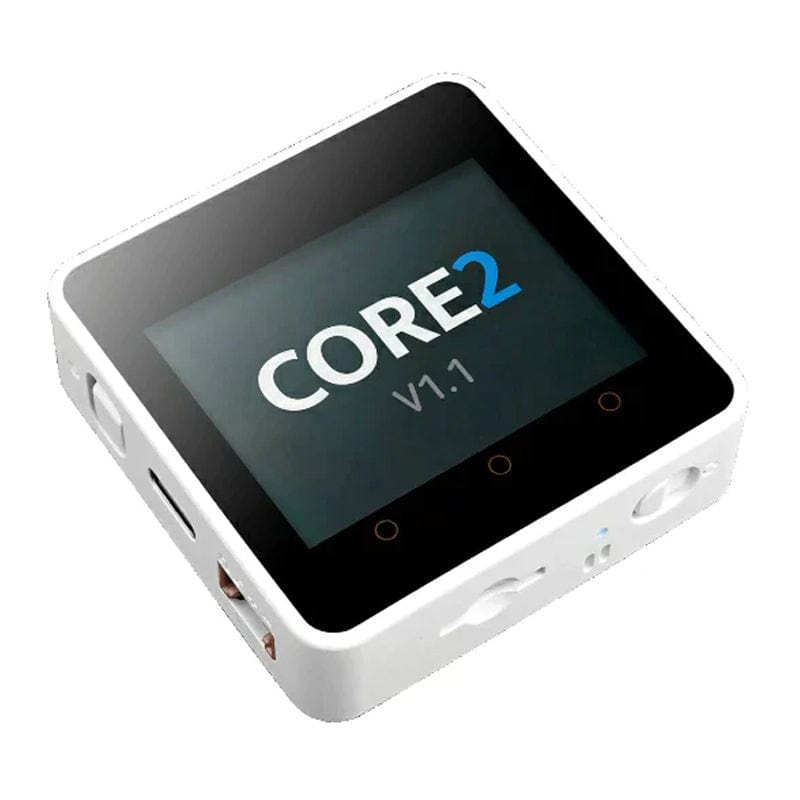

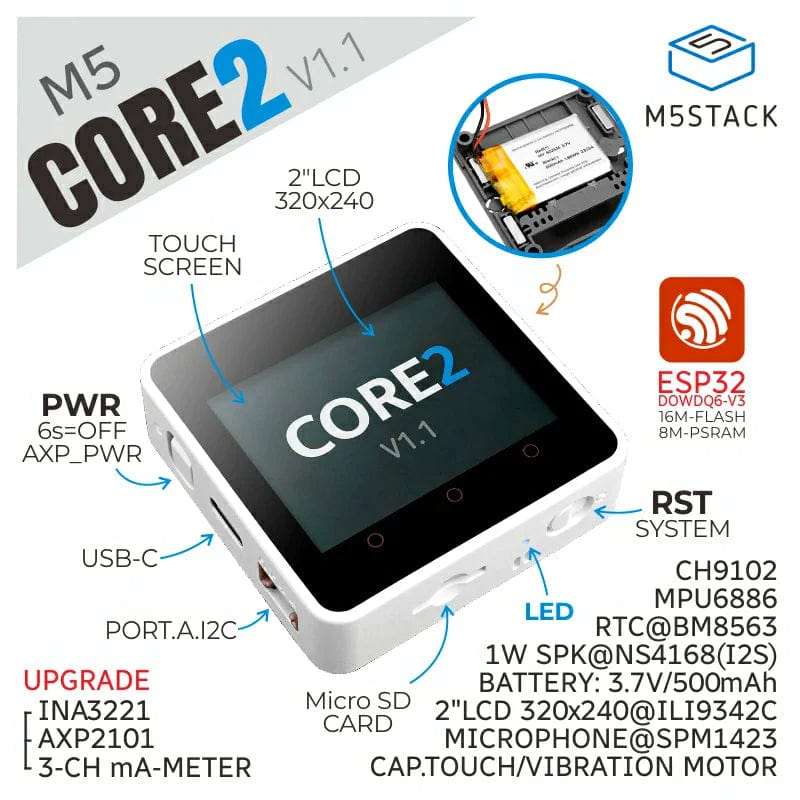

The Core2 V1.1, following its predecessor the Core2, comes with a familiar design but includes some key updates. This development board is user-friendly and powerful, equipped with an ESP32-D0WDQ6-V3 chip. This chip features two 32-bit LX6 processors from Xtensa, capable of speeds up to 240MHz, and supports WiFi. The board has 16MB Flash and 8MB PSRAM for storage, and uses a TYPE-C interface for program downloads, making it suitable for various projects.

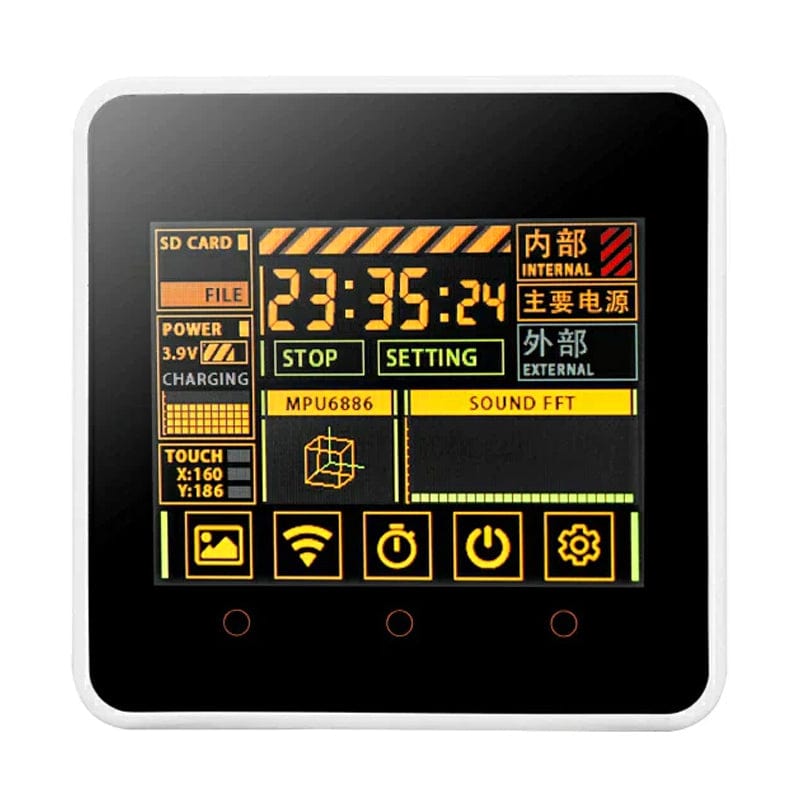

This model boasts a 2" capacitive touch screen, which includes three dots that can be programmed as virtual buttons for different interactive experiences. The Core2 V1.1 also has a built-in vibration motor for feedback and alerts.

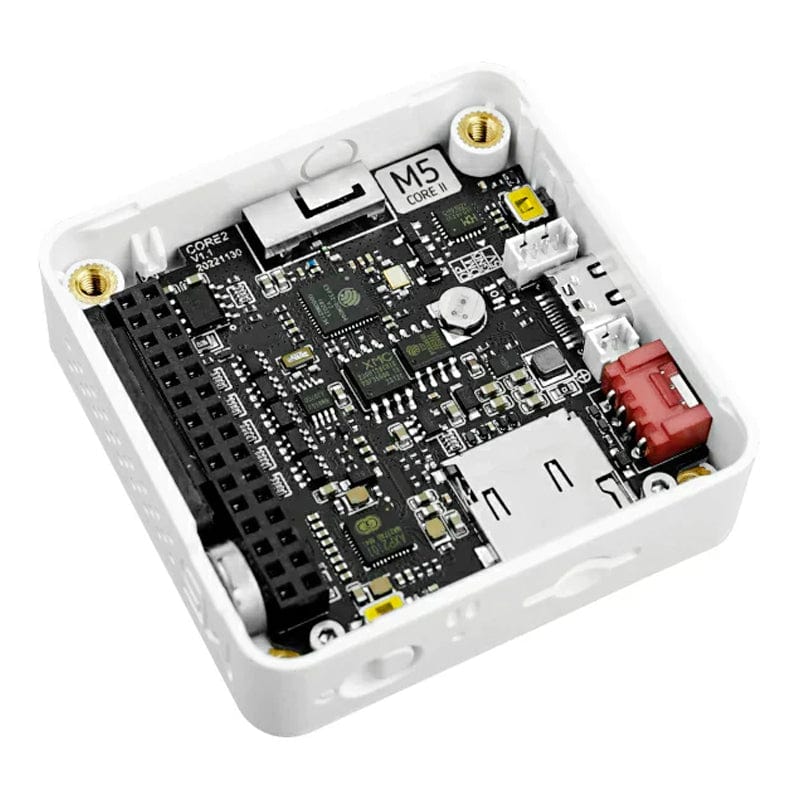

Additionally, the Core2 V1.1 has an integrated RTC module for keeping accurate time, powered by a dedicated battery. Its power consumption is managed by the AXP2101 chip. There's a blue power indicator light on the board, which can be programmed for different functions or indicators as needed. Other features include a MicroSD card slot, a speaker, and a quality I2S digital audio interface with an amplifier chip. On the back, there's an expansion board with a 6-axis IMU sensor and a microphone.

Note: To stack Core2 V1.1 with M5 modules, you'll need to remove/eliminate the battery bottom of Core2 V1.1. If you wish to keep I2S Mic, IMU and Battery functions, a M5GO Bottom2 is required

Revision History

As of 07/02/2024, we are now stocking V1.1, which has the following changes:

  • Power Management Scheme: While the original Core2 uses the AXP192 power management scheme, the Core2 v1.1 has upgraded to a combination of AXP2101 and INA3221. This change is identifiable in the differing IDs of AXP192 and AXP2101, which the program uses to distinguish between the two versions.
  • Power Indicator Color: The Core2 features a green power indicator, whereas the Core2 v1.1 has changed this to blue.
  • RTC Chip Power Supply: The Core2 v1.1 adds a dedicated battery for the RTC (Real-Time Clock) chip to ensure accurate timing even when the main power is off

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

Power Management

  • Power on: One click the power button on the left
  • Power off: Long press the left power button for 6 seconds
  • Reset: Click the RST button on the bottom side

USB Drive

  • Before using, please go to download page to download the USB driver that matches your operating system, and install it.
  • NoteThe Core2 currently has two CH9102F A USB chip versions, users can install the drivers (CH9102) that are compatible with two ICs at the same time to ensure that the device drivers work normally.

Features

  • ESP32-based, built-in Wi-Fi
  • 16M Flash,8M PSRAM
  • Built-in speaker, power indicator, vibration motor, RTC, I2S amplifier, capacitive touch screen, power button, reset button
  • TF card slot (16GB Maximum size)
  • Built-in lithium battery, equipped with power management chip
  • Independent small board built-in 6-axis IMU, PDM microphone

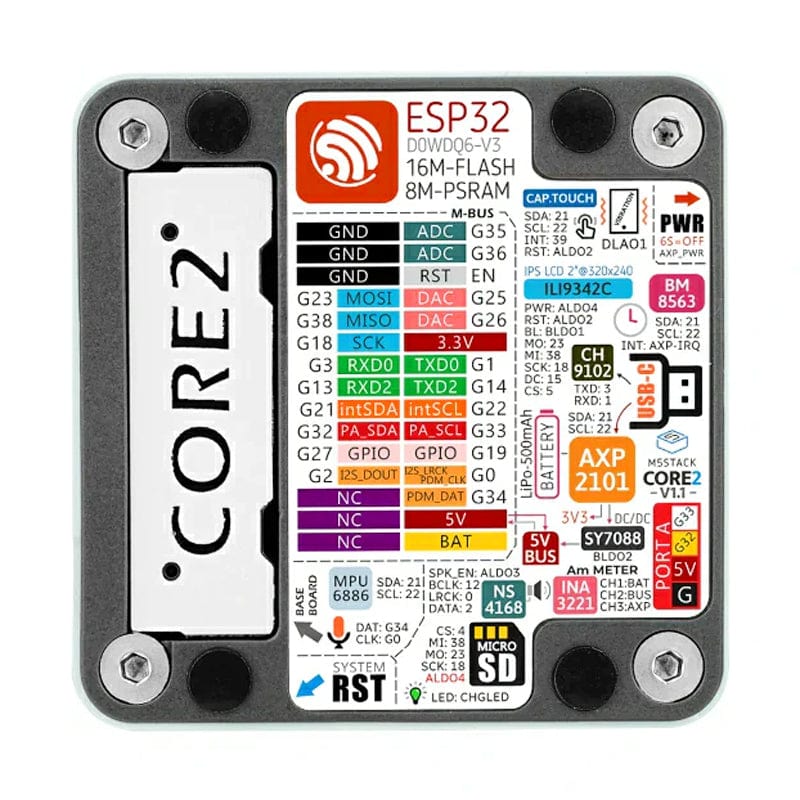

  • M-Bus Socket & Pins
  • Compatible with multi-platform development: UIFlow MicroPython Arduino .NET nanoFramework Operating System (RTOS):zephyr

Specifications

Resources Parameters
ESP32-D0WDQ6-V3 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash 16MB
PSRAM 8MB
Input Voltage 5V @ 500mA

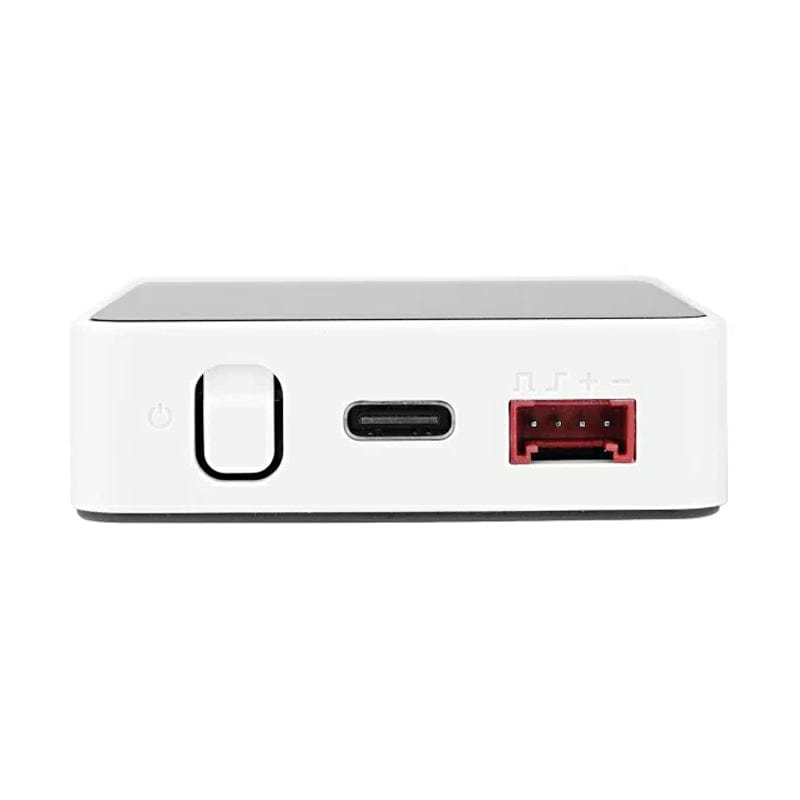

Interface TypeC x 1, GROVE(I2C+I/0+UART) x 1
IPS LCD Screen 2.0"@320*240 ILI9342C
Touch Screen FT6336U
Speaker 1W@NS4168
LED Green power indicator light
Button Power button, RST button, Virtual screen button*3
Vibration reminder Vibration motor
MIC SPM1423
I2S Power Amplifier NS4168
6-axis IMU MPU6886
RTC BM8563
PMU AXP192
USB Chip CH9102F
DC-DC Boost SY7088
TF card slot 16G Max
Lithium Battery 500mAh @ 3.7V
Antenna 2.4G 3D antenna
Operating temperature 0°C to 60°C
Base screw specifications Hexagon socket countersunk head M3
Internal PCB board reserved interface Battery interface (specification: 1.25mm-2P)
USB line interface (specification: 1.25mm-4P)
Case Material Plastic ( PC )

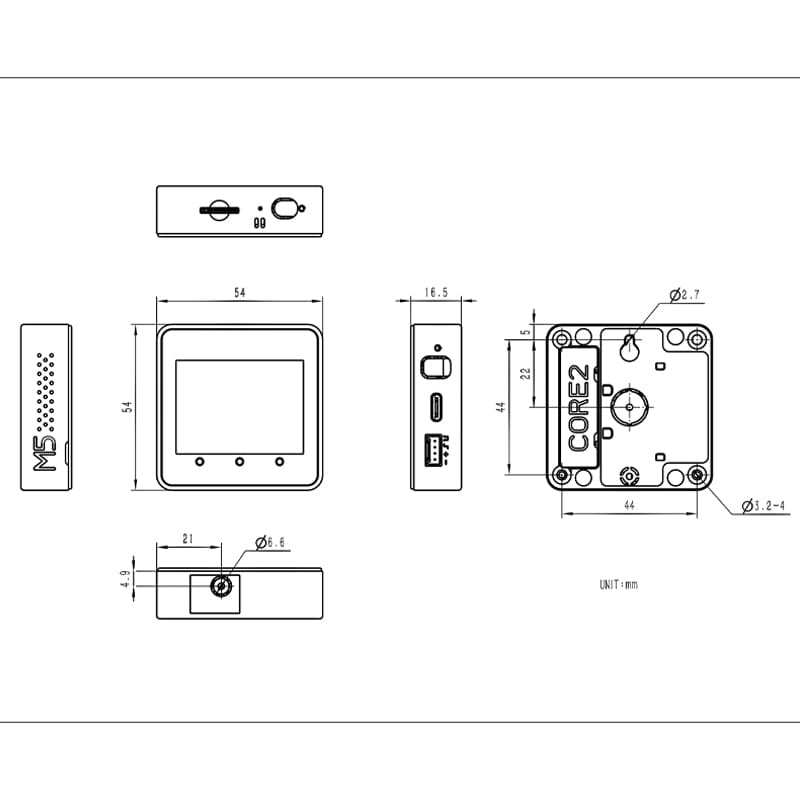

Product Size 54 x 54 x 16.5mm
Package Size 75 x 60 x 20mm
Product Weight 54.8g
Package Weight 83.9g

 Resources

Package Contents

  • 1x Core2 V1.1
  • 1x USB Type-C cable (20cm)
  • 1x Hex Key
