M5Stack CoreMP135 with STM32MP135D

Price:
Sale price £76
incl. VAT
excl. VAT
Stock:
Only 8 units left
Quantity:

Awesome Extras

The Pi HutUSB-A to USB-C Cable - Black
Sale priceFrom £2.25 incl. VAT excl. VAT
The Pi HutUSB-C to USB-C Cable - Black
Sale priceFrom £2.25 incl. VAT excl. VAT
The Pi HutUSB 3.0 Extension Cable
Sale priceFrom £3 incl. VAT excl. VAT

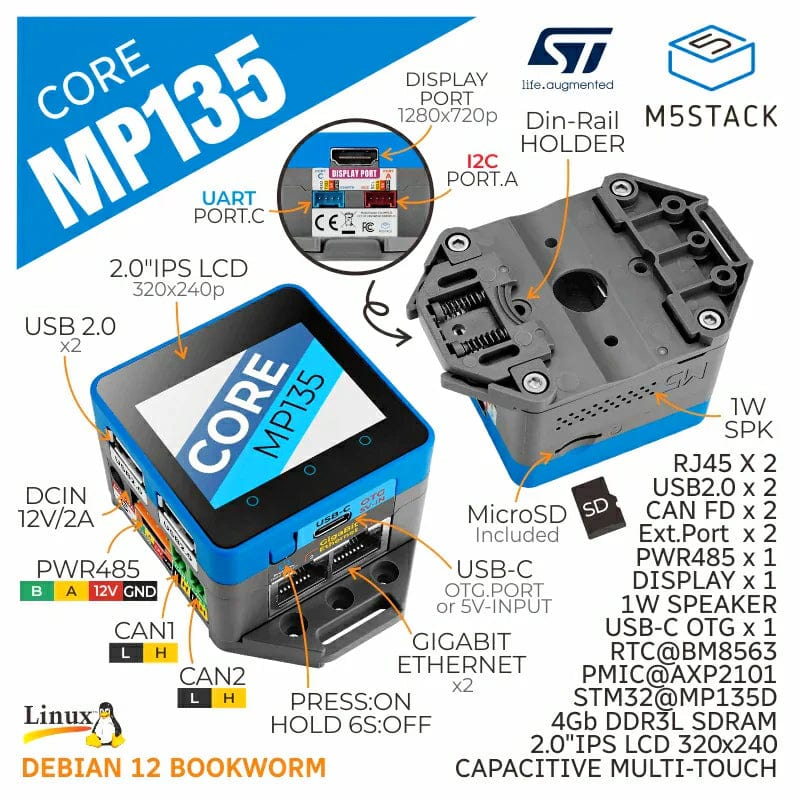

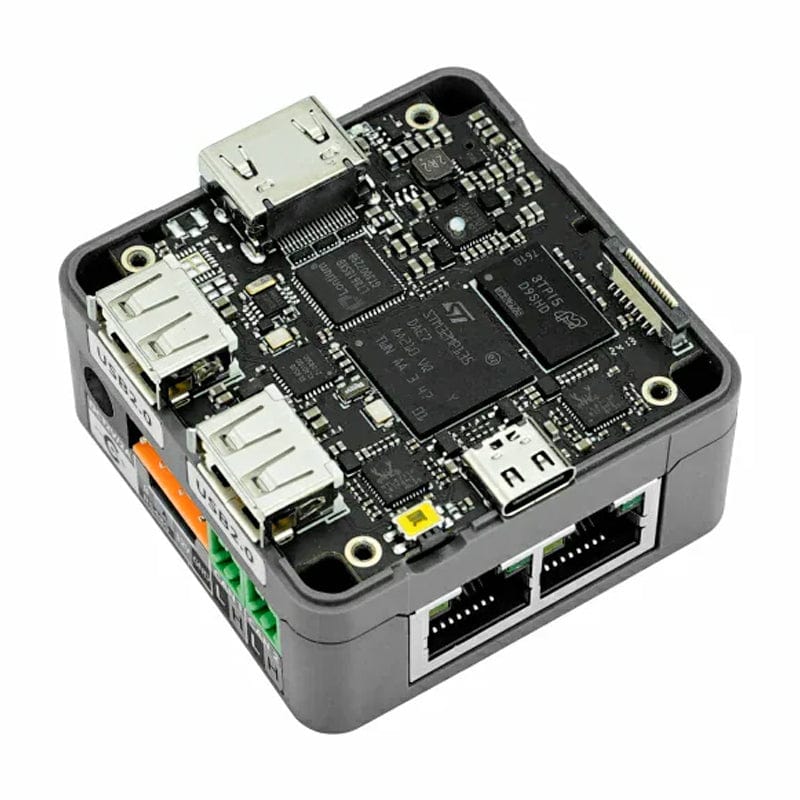

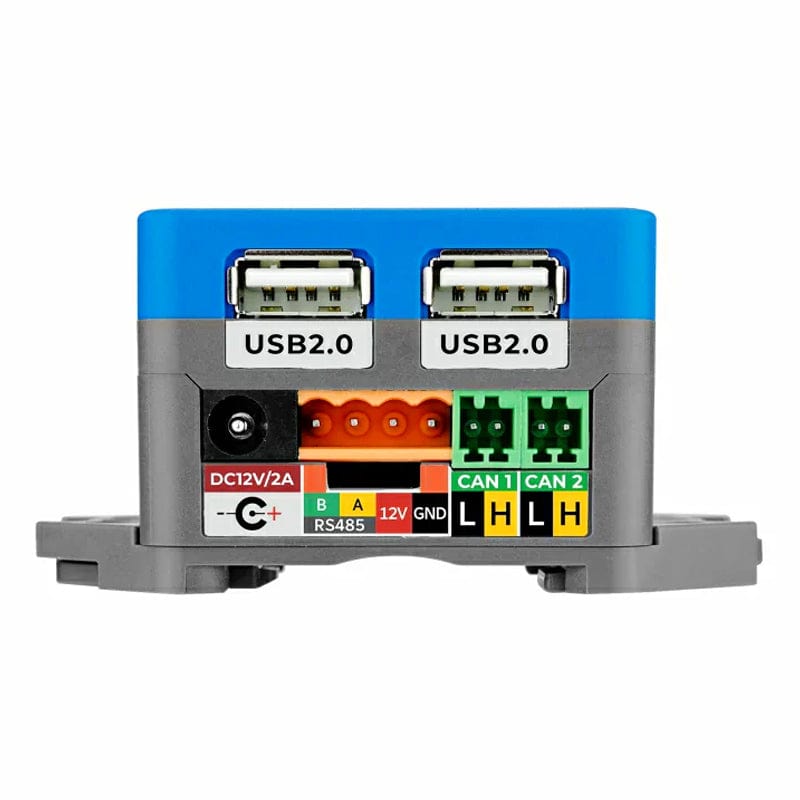

The CoreMP135 is a Linux industrial control host featuring the STM32MP135DAE7 chip with a single-core Arm Cortex-A7 processor running up to 1GHz. It includes 4GB DDR3L SDRAM and various connectors: 2 GbE (Gigabit Ethernet) ports, HD video output, 2 USB 2.0-A ports, a USB-C port, a MicroSD slot, 2 CAN FD interfaces for broadcasting sensor data, 2 Grove (I2C & UART) connectors and a PWR485 interface.

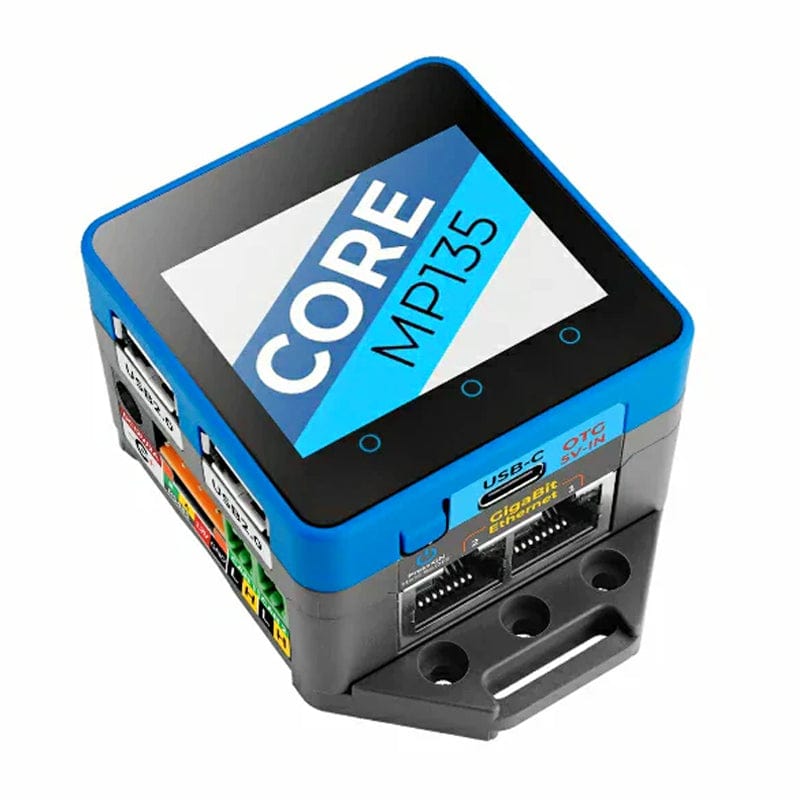

The device has a 2.0" IPS touch screen, a 1W speaker, low power consumption via the AXP2101 chip, integrated RTC (BM8563) for scheduled wake-up and sleep functions and a rechargeable battery. Preloaded with the Debian system, it’s ready for advanced industrial automation, smart homes, multimedia, IoT edge gateways, and robot control. Installation is easy with a DIN rail base plate for mounting.

Features

  • STM32MP135DAE7@Arm Cortex-A7@1GHz
  • Linux Standard Platform
  • Rich peripheral interfaces (CAN\RS485\ gigabit network port, etc.)
  • 2.0" touch screen
  • PMU
  • Audio Output
  • MicroSD and 4Gb DDR3L SDRAM running memory

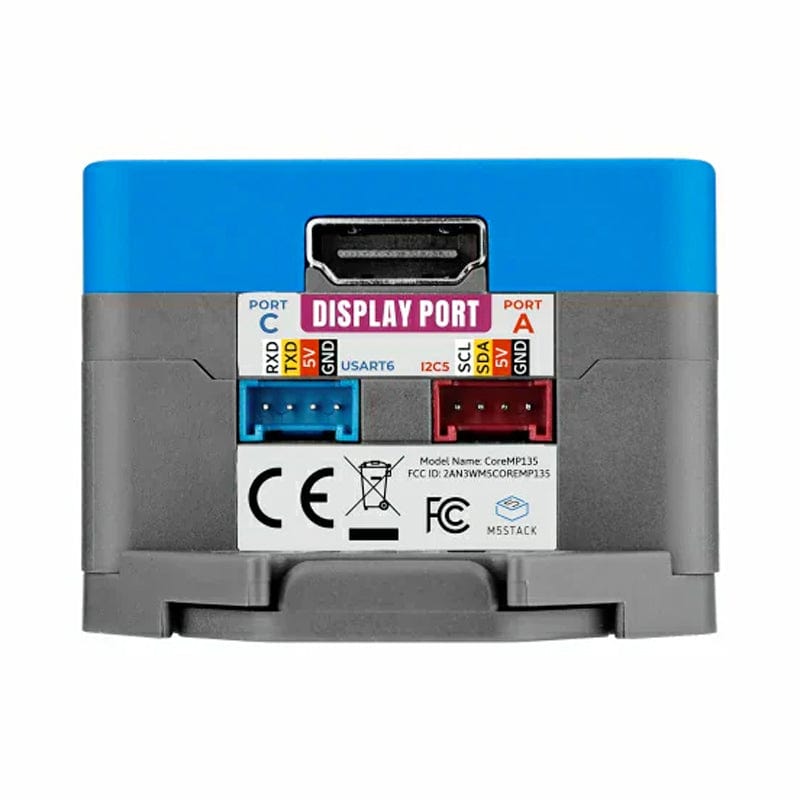

  • M5BUS & PORT A / C

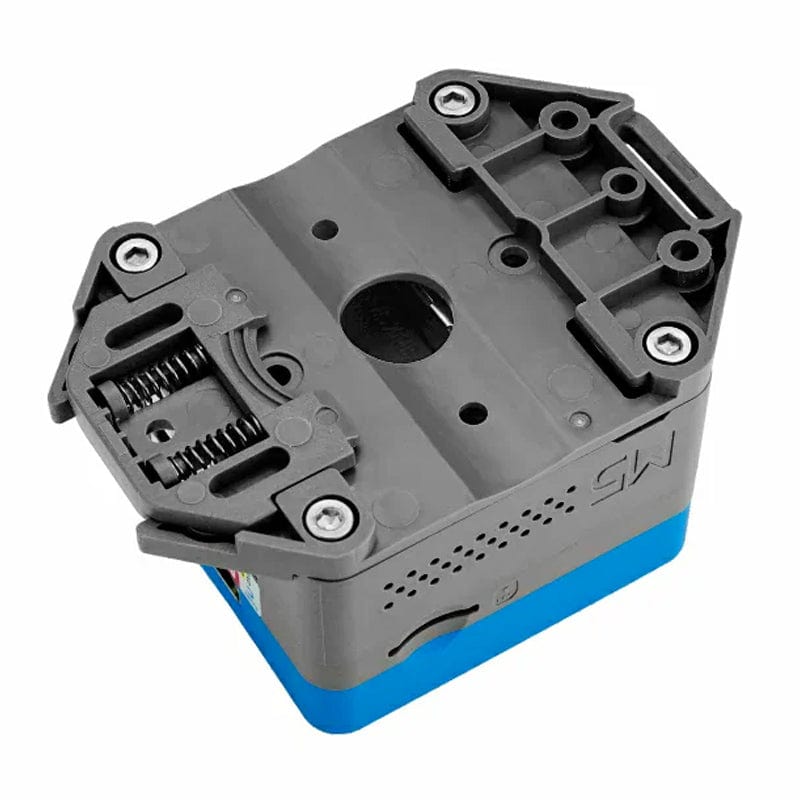

  • DIN Rail rails are easy to install

Specifications

MCU STM32MP135DAE7@single-core Arm Cortex-A7 processor, main frequency 1 GHz
Power Management Chip AXP2101
485 Communication MAX3485
CAN Communications Two-channel SIT1051T/3 (High-speed FDCAN)
USB Hub Interface GL852G (2x USB 2.0)
1x USBC (Support OTG and power supply)
HD Video Interface Chip LT8618SXB supports up to 24 bits of colour depth
DDR3L SDRAM 4GB

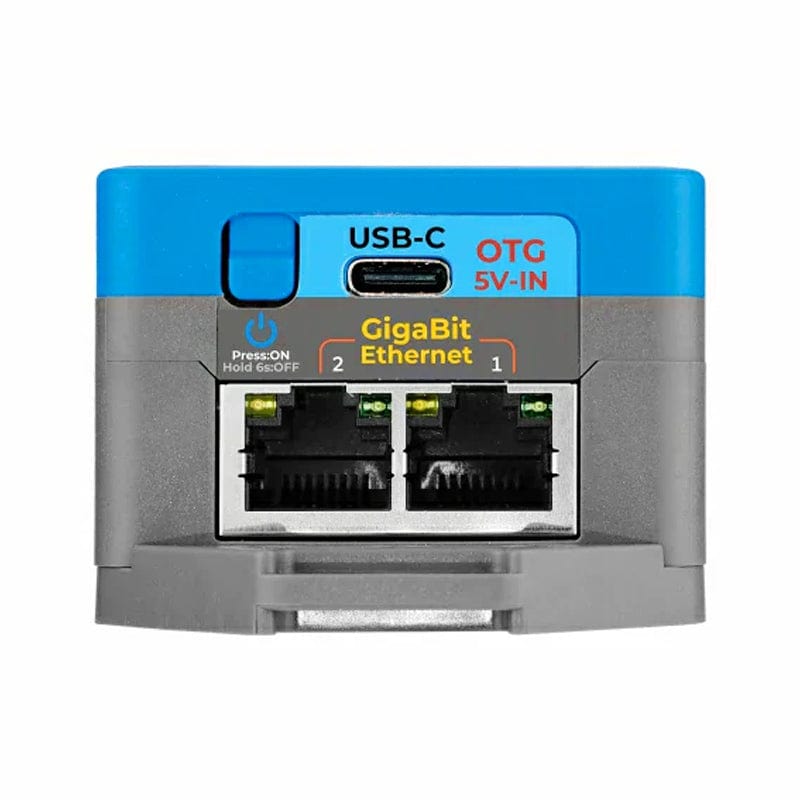

Ethernet RTL8211F (supports up to 1Gbps data rate)
2x RJ45
RTC BM8563
Screen ILI9342C (2.0 IPS LCD)
Resolution: 240 x 320px
Touch FT6336U

Resources

Package Contents

  • 1x CoreMP135
  • 1x M3 hex wrench
  • 1x VH3.96-4P
  • 2x Terminal 2.54mm-2P (Green)
  • 1x MicroSD Card (already installed in the machine)
