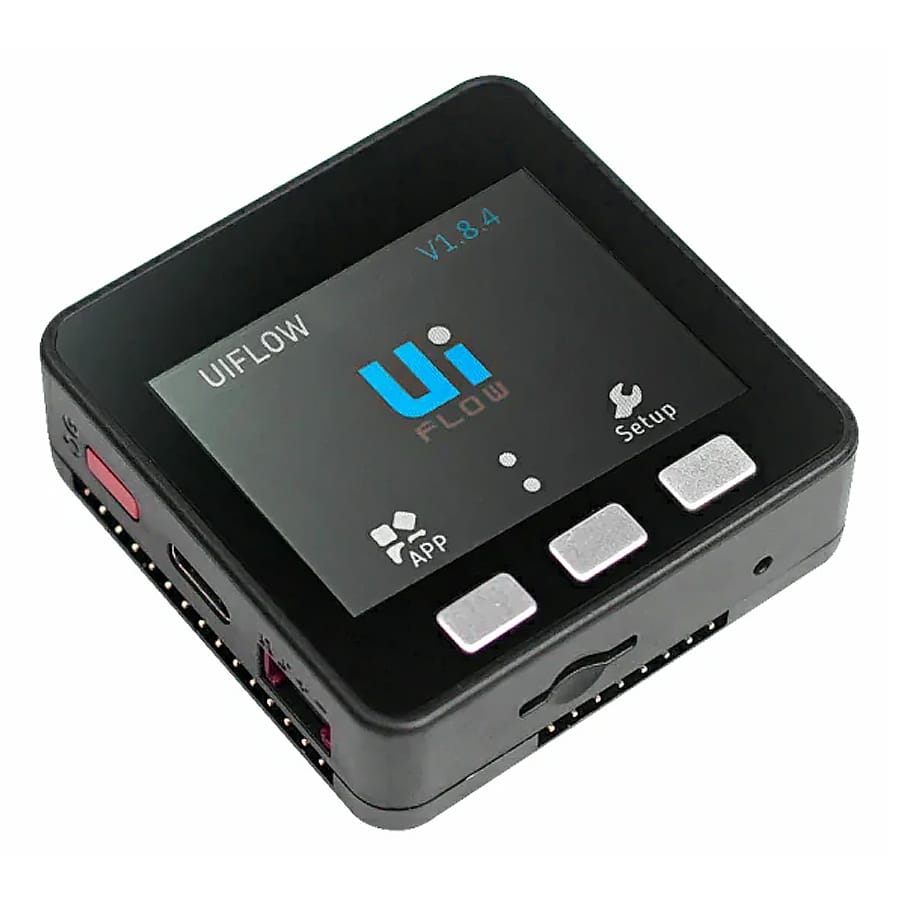

ESP32 Basic Core loT Development Kit V2.7

The ESP32 Basic Core is a cost-effective entry-level IoT main controller.

It has an Espressif ESP32 chipset, equipped with 2 low-power Xtensa® 32-bit LX6 microprocessors with a main frequency of up to 240MHz, built-in 16M FLASH memory, integrated 2.0-inch full-colour HD IPS display panel, speaker, TFCard slot and other peripherals.

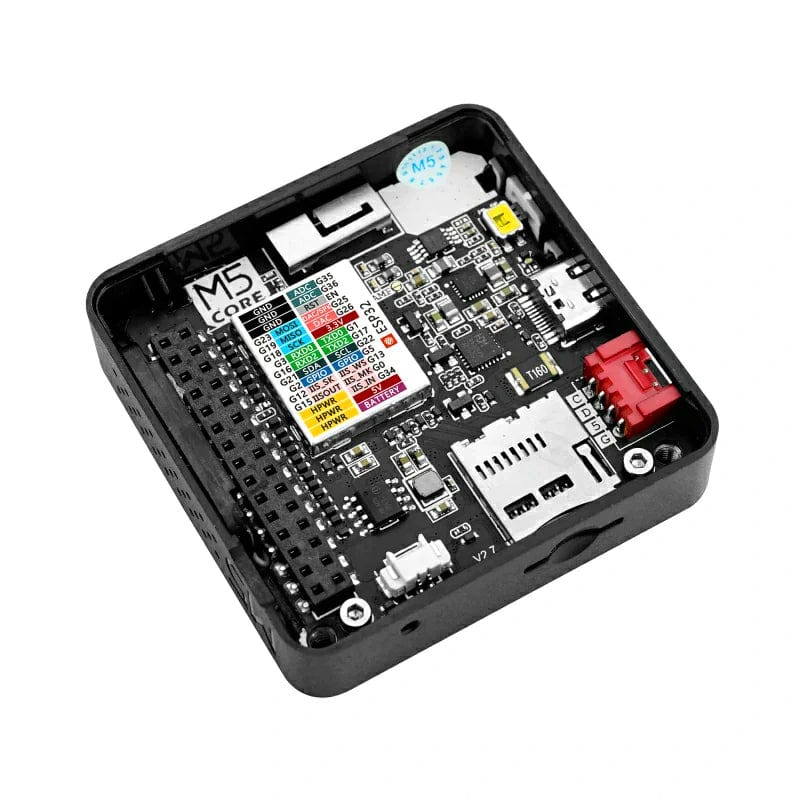

The full-coverage housing gives circuit stability even in complex industrial applications. Internal provides a variety of interface resources (ADC/DAC/I2C/UART/SPI, etc.) and 15x IO pins at the bottom, which is highly developable. It's ideal for a variety of product prototyping, industrial control, and intelligent building applications.

High productisation

• Exquisite designs, Prototyping right into products
• Product-grade full-coverage cover for more stable circuit operation

Low Code Development:

• Support UIFlow graphical programming platform, scripting-free, cloud push
• Fully compatible with mainstream development platforms such as Arduino and ESP32-IDF
• Support FreeRTOS, with dual-core and multitasking mechanism, it can perform tasks efficiently, Program optimisation.

High Integration:

• 2.0 inch IPS display panel, speakers, 3x custom buttons
• Built-in lithium battery power, integrated power management chip, support TypeC interface
• Finely tuned RF circuit for stable and reliable wireless communication

Strong Expandability:

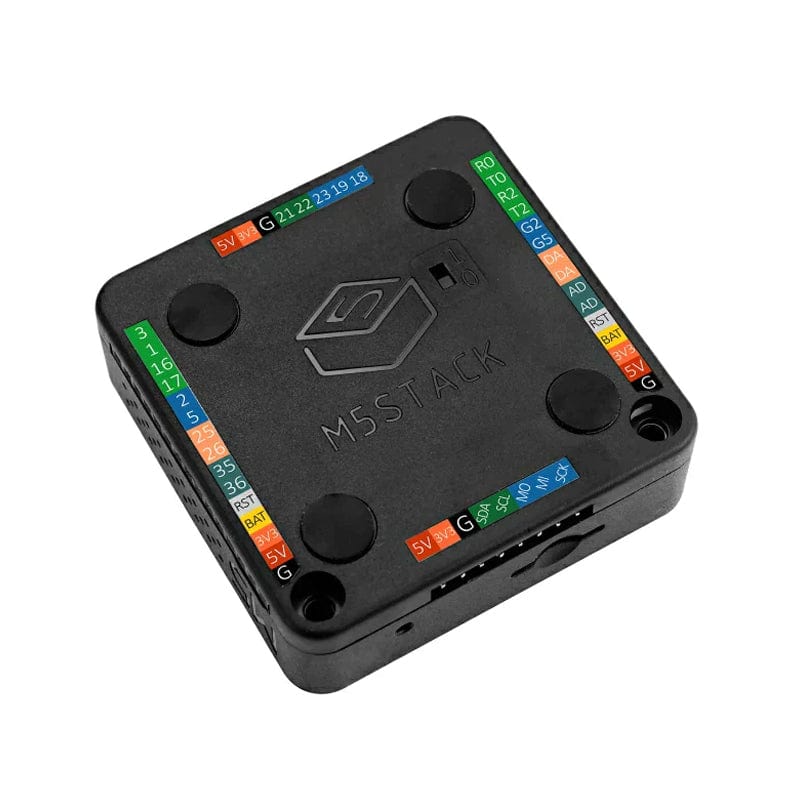

• 15x IO leads
• Easy access to M5Stack's hardware and software ecology system, stackable module design, plug-and-play rich sensors expansion

Power on/off operation

• Power on: Click the red power button on the left
• Shutdown: Quickly double-click the red power button on the left
  *USB power supply *: By default, when USB is powered, it cannot be shut down

Features

• Based on ESP32 development
• 16M FLASH
• Integrated full-colour high-definition IPS display panel and a variety of hardware peripherals
• Rich resources interface, compatible with M5Stack stacking modules and sensors, highly expandable.

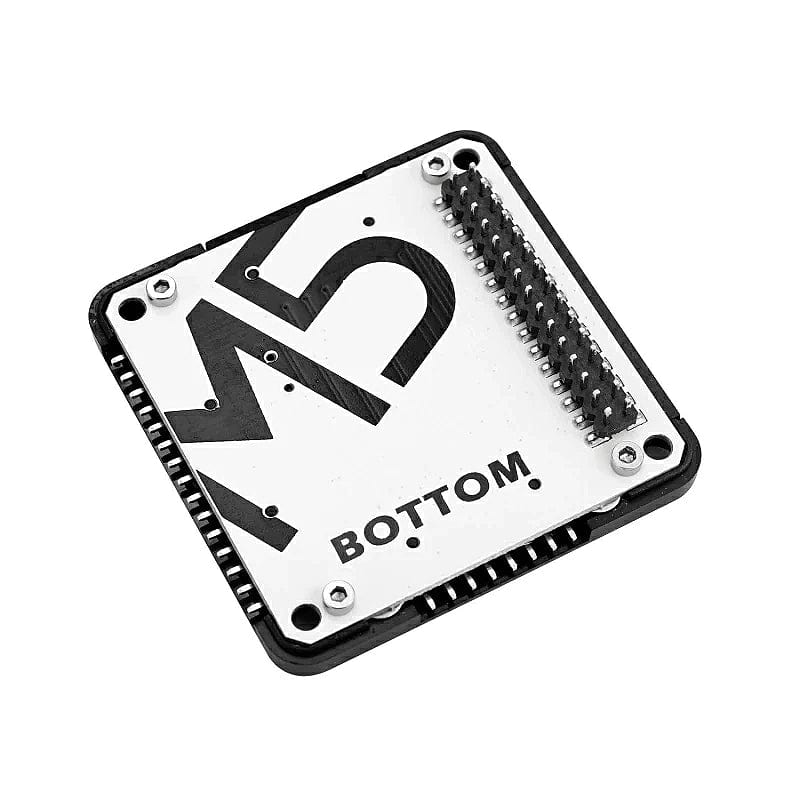

• Use M5CORE BOTTOM base built-in lithium battery, 15x IO leads.
• Compatible with multi-platform development:
  • UIFlow
  • MicroPython
  • Arduino
  • .NET nanoFramework

Specifications

Resources

• Product Wiki
• Schematics

Package Contents

• 1x ESP32 Basic Core loT Development Kit V2.7
• 10x Dupont line
• 1x Type-C USB (20cm)
• 1x Manual
• 1x Sticker
