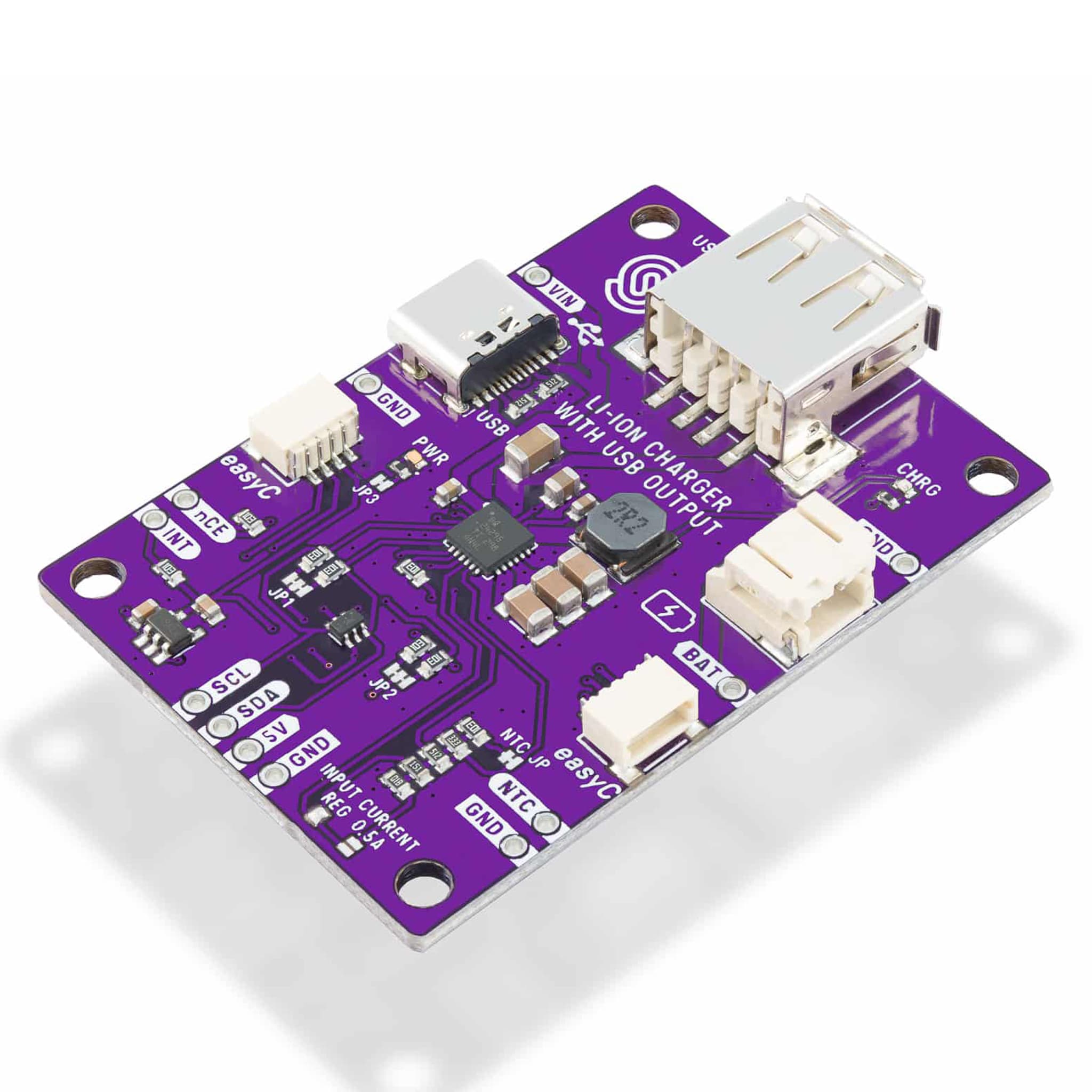

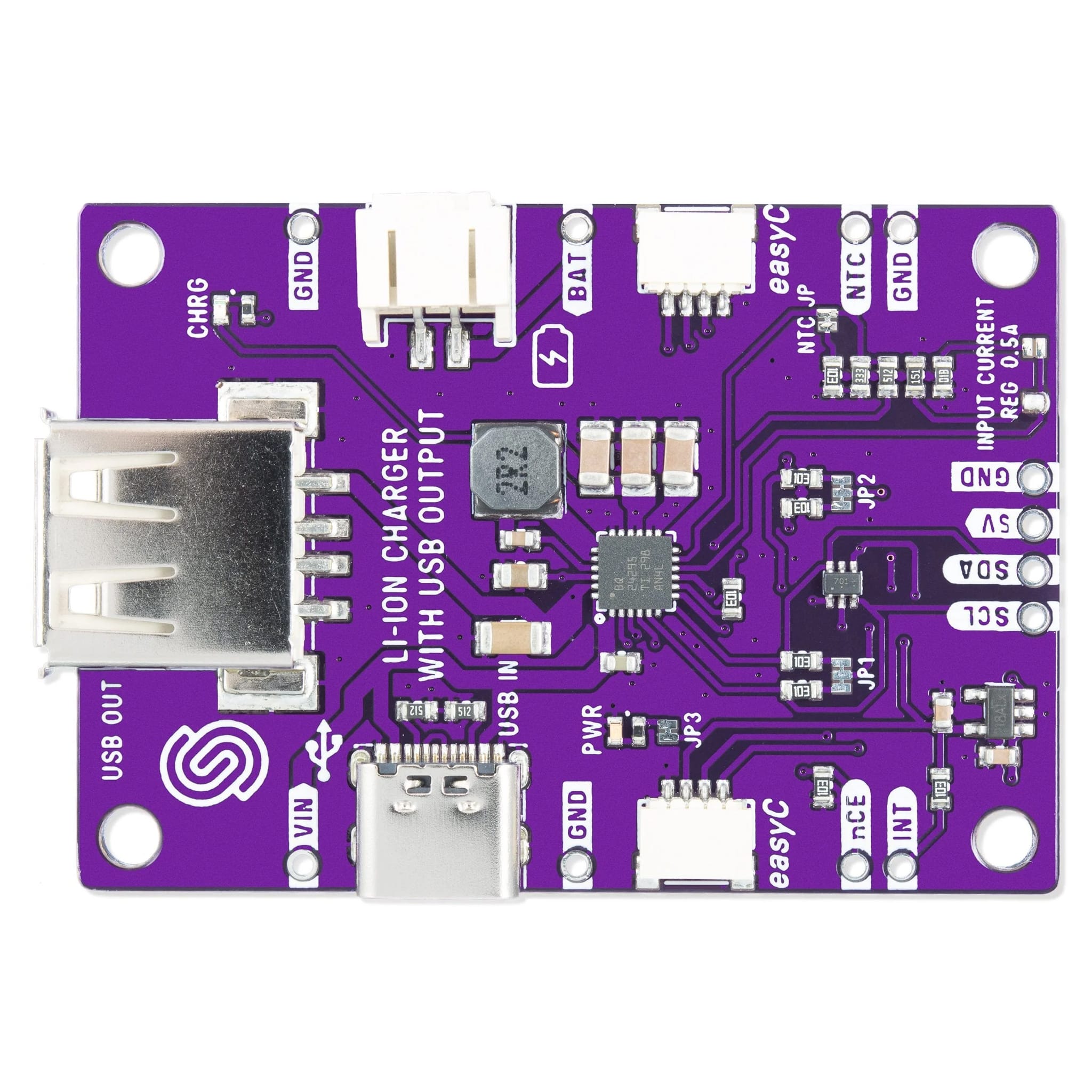

Li-ion Charger BQ24295 with 5V USB Output Board

The BQ24295 Li-ion Battery Charger provides safe and efficient charging for single-cell Li-ion and LiPo batteries, with integrated power path management that allows your device to remain powered while the battery charges.

The BQ24295 is a versatile Li-ion battery charger designed to provide efficient and reliable charging for single-cell lithium-ion or lithium-polymer batteries. It supports various charging modes, including constant current (CC) and constant voltage (CV) charging, to ensure the battery is charged quickly and safely.

The BQ24295 charger operates on a wide input voltage range, typically from 4.35V to 17V, allowing it to be powered by a variety of power sources, including USB ports and AC adapters. It also features integrated power path management, which allows simultaneous charging of the battery while powering the connected device, providing uninterrupted operation.

Features

• IC: BQ24295
• Input voltage range: 4.35V to 17V
• Charging modes: Constant current (CC) and constant voltage (CV)
• Maximum charging current: up to 3A
• Qwiic connectors
• Dimensions: 54 x 38 mm

Resources

• Arduino library

Package Contents

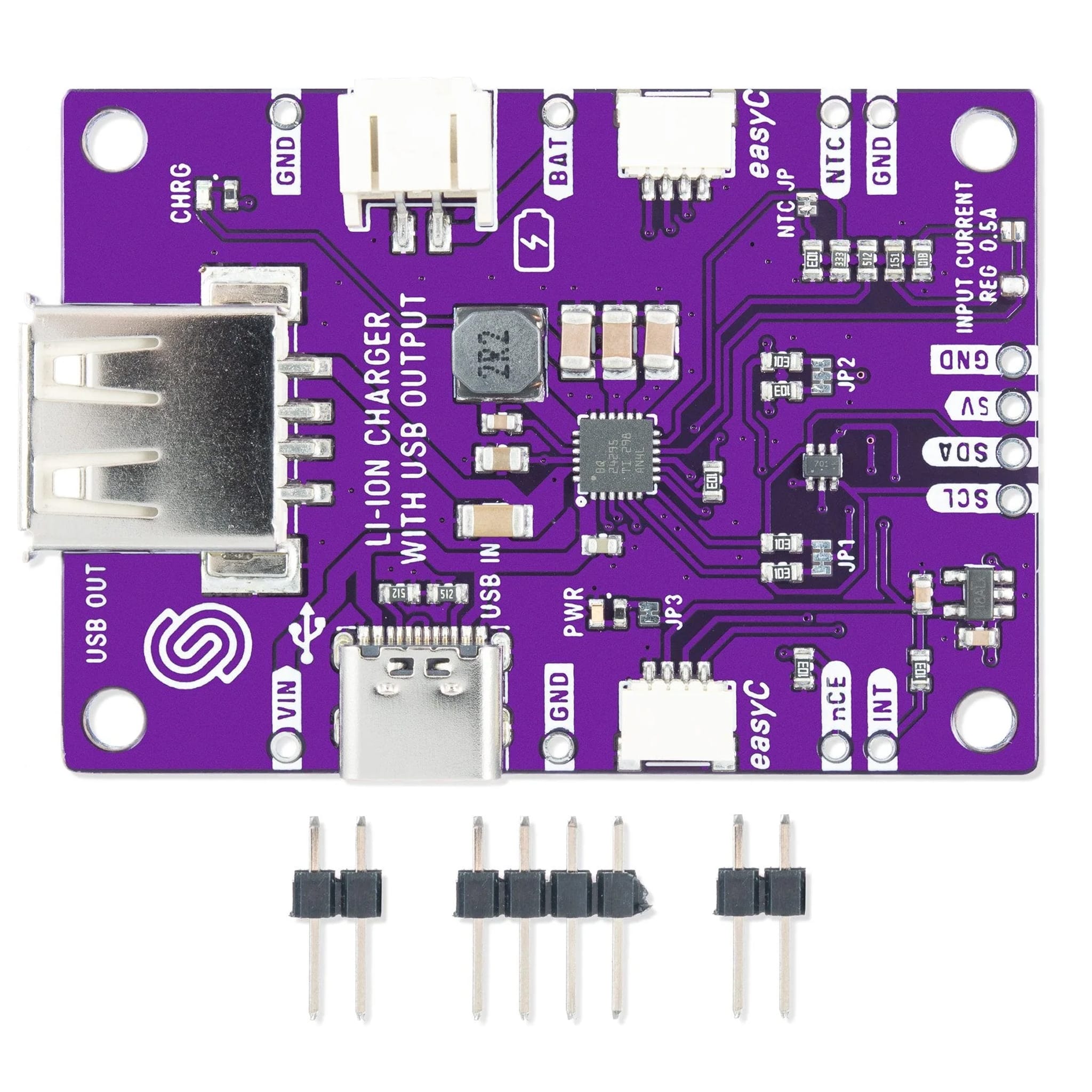

• 1x Li-ion Charger BQ24295 with 5V USB Output Board
