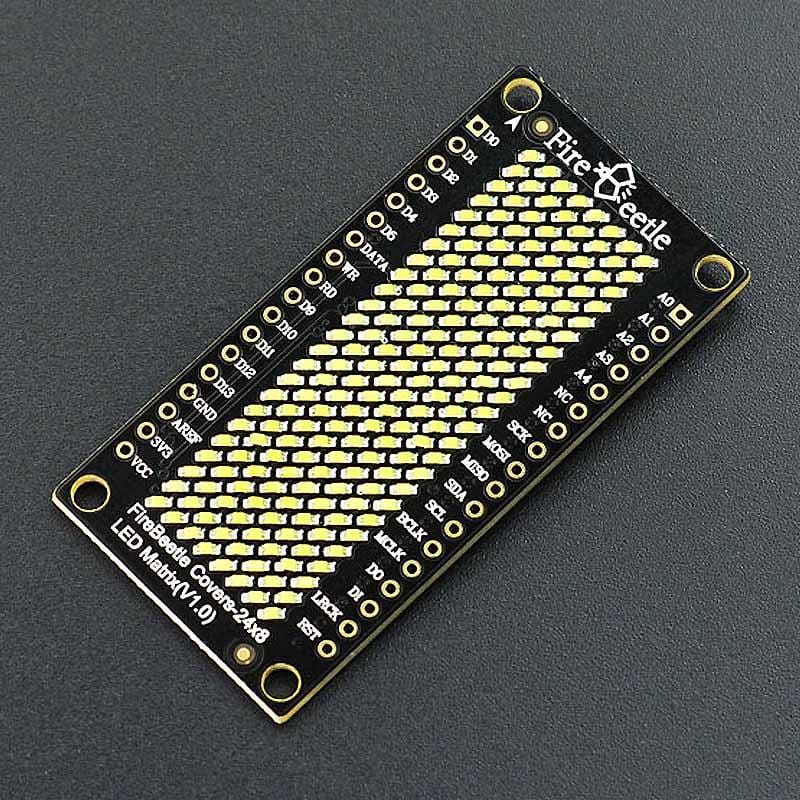

FireBeetle Covers - 24×8 LED Matrix (Green)

This Green 24x8 LED Matrix display is designed for the FireBeetle series of development boards from DFRobot.

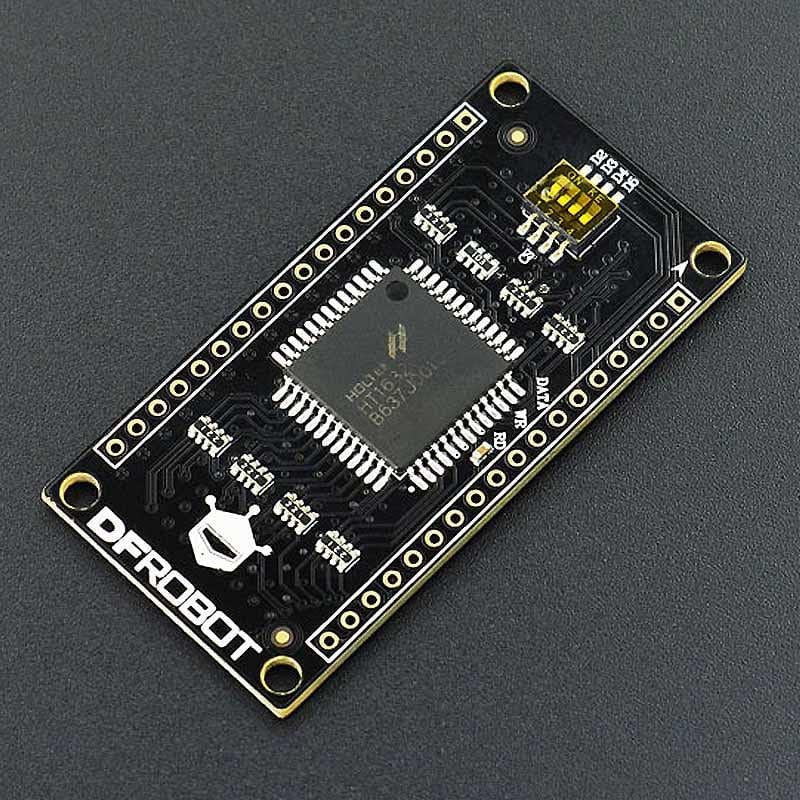

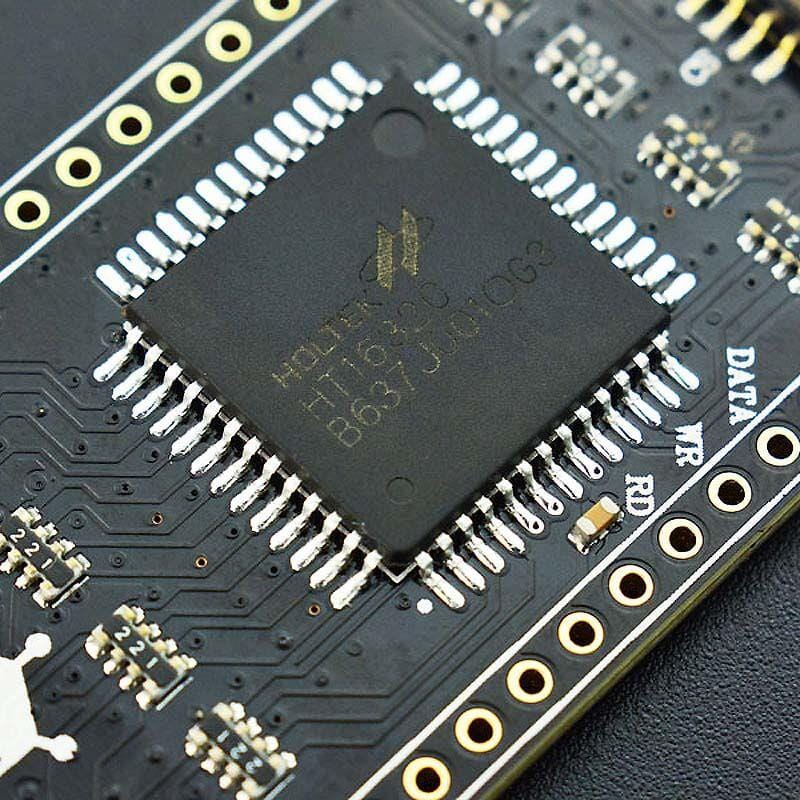

The matrix supports a low-power consumption mode and scrolling character display. Each LED has an independent register via the HT1632C high-performance LED driver chip, which makes it easy to drive separately. It integrates a 256KHz RC clock, uses just 5uA under low-power mode and supports 16 scale PWM brightness adjustment.

This product also works with the other Arduino microcontrollers such as the Arduino UNO when broken out via a breadboard to the necessary pins. Check the product wiki page to find out more.

Soldering required - headers are included in the package.

Available in FIVE different LED colour options:

• White
• Blue
• Green
• Yellow
• Red

Specifications

• Operating Voltage: 3.3~5V
• LED Color: Green
• Drive Chip: HT1632C
• Working Current: 6~100mA
• Low-power consumption: 5uA
• RC clock: 256KHz
• Chip Select (CS): D2, D3, D4, D5 selectable
• Serial Data Communication
• Supports Arduino Library

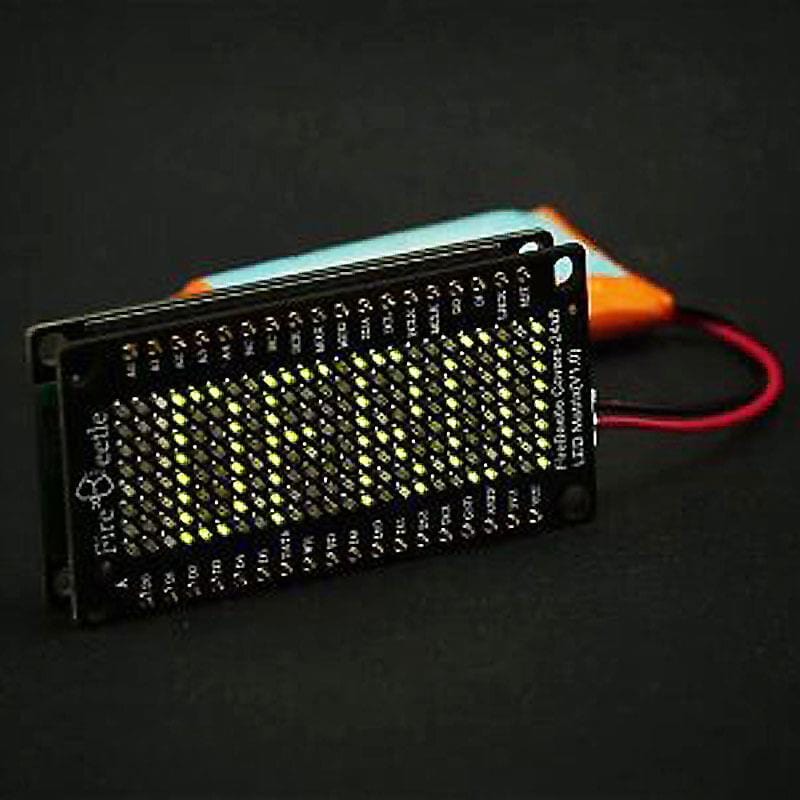

• Supports Scrolling display
• Interface mode: FireBeetle Series Compatible
• Operating Temperature: -10℃~+85℃

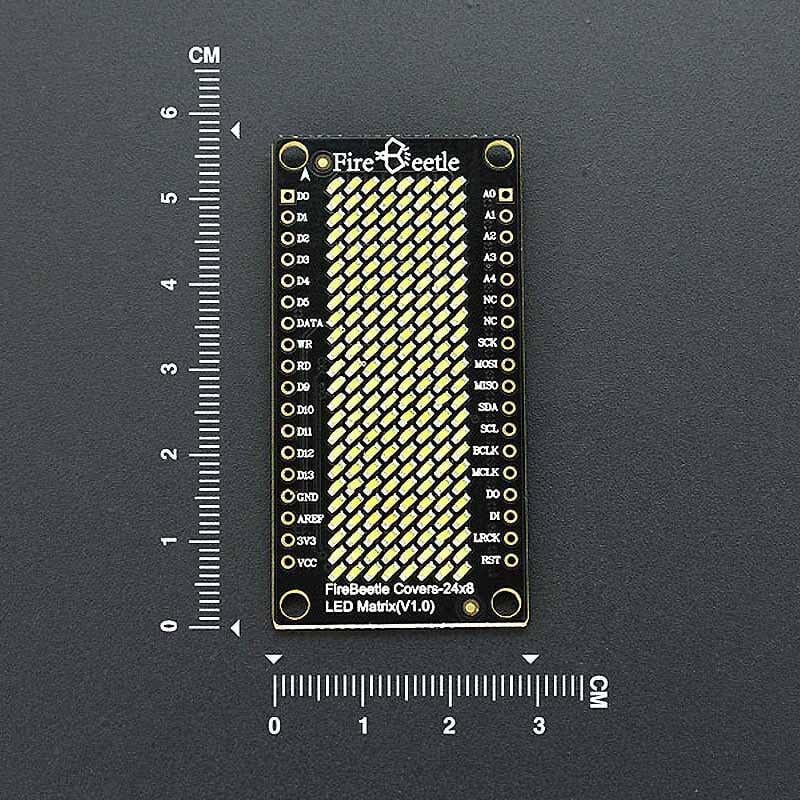

• Dimension: 24mm × 58mm
• Weight: 26g

Package Contents

• 1xFireBeetle Covers-24x8 LED Matrix (Green)
• 2x 18-pin 2.54mm Male Pin Header
• 2x 18-pin 2.54mm Female Pin Header

Resources

• Product Wiki
