FireBeetle Covers - 24×8 LED Matrix (Blue)

DFRobotSKU: DFR0485
Price:
Sale price £14.40
incl. VAT
excl. VAT
Stock:
Only 6 units left
Quantity:

Awesome Extras

DFRobotFireBeetle ESP8266 IoT Microcontroller
Sale price £7.20 incl. VAT excl. VAT
DFRobotFireBeetle 328P with BLE 4.1
Sale price £18.10 incl. VAT excl. VAT
DFRobotFireBeetle ESP32 IoT Microcontroller
Sale price £11 incl. VAT excl. VAT

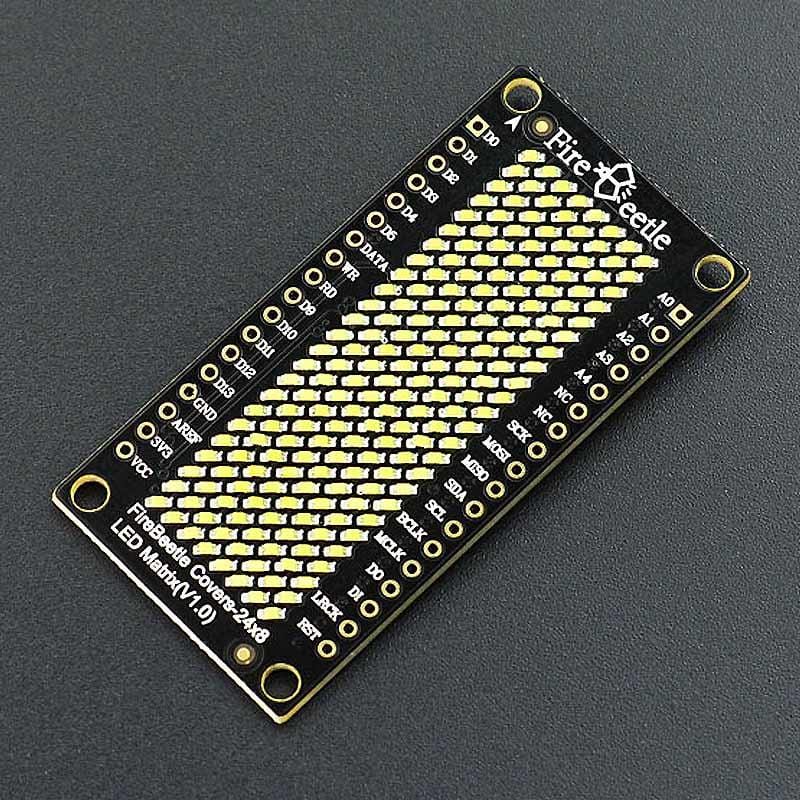

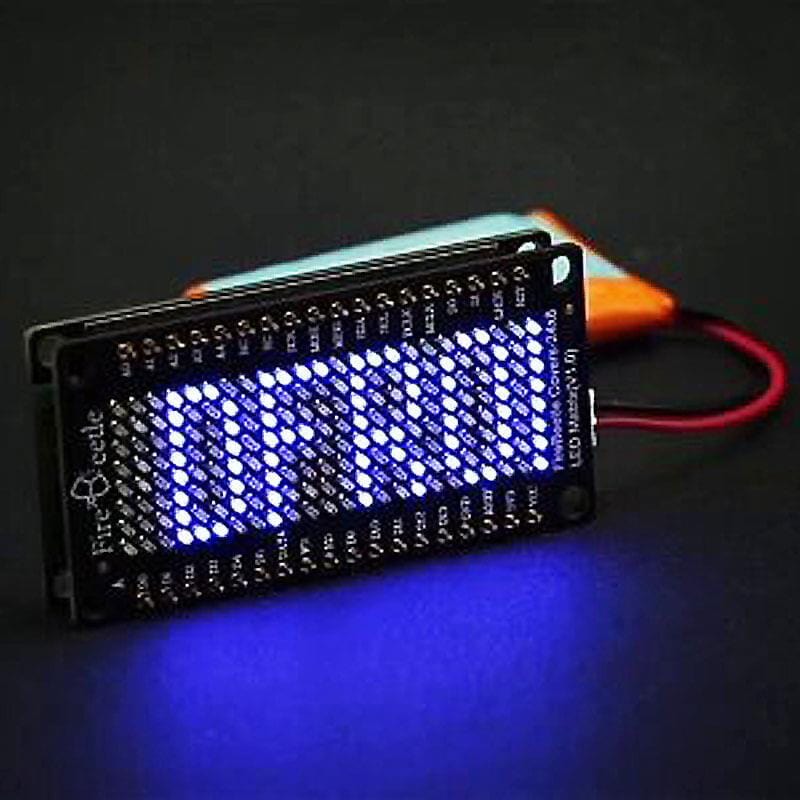

This Blue 24x8 LED Matrix display is designed for the FireBeetle series of development boards from DFRobot.

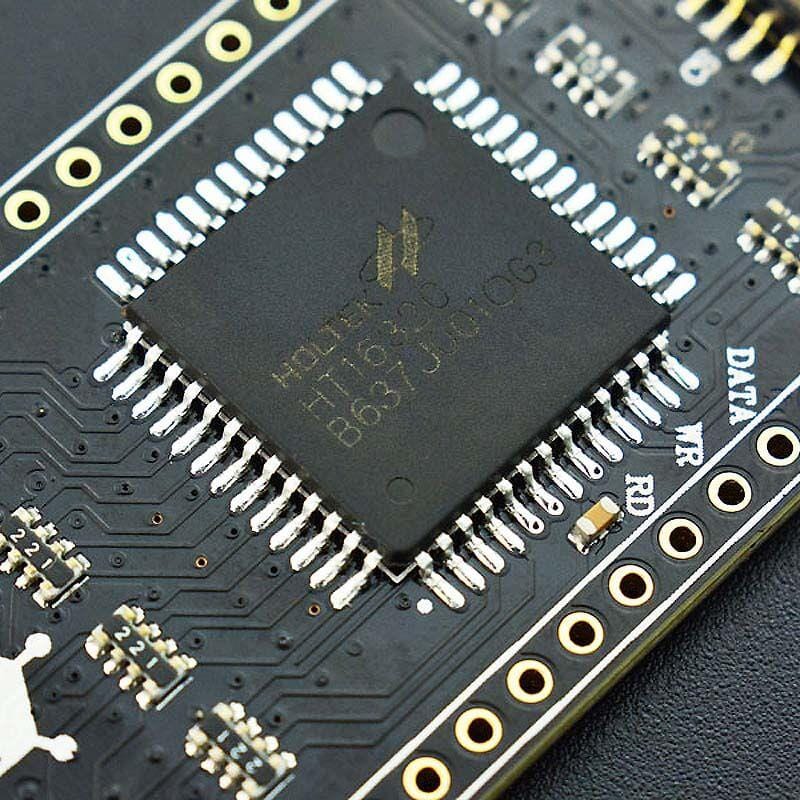

The matrix supports a low-power consumption mode and scrolling character display. Each LED has an independent register via the HT1632C high-performance LED driver chip, which makes it easy to drive separately. It integrates a 256KHz RC clock, uses just 5uA under low-power mode and supports 16 scale PWM brightness adjustment.

This product also works with the other Arduino microcontrollers such as the Arduino UNO when broken out via a breadboard to the necessary pins. Check the product wiki page to find out more.

Soldering required - headers are included in the package.

Available in FIVE different LED colour options:

Specifications

  • Operating Voltage: 3.3~5V
  • LED Color: Blue
  • Drive Chip: HT1632C
  • Working Current: 6~100mA
  • Low-power consumption: 5uA
  • RC clock: 256KHz

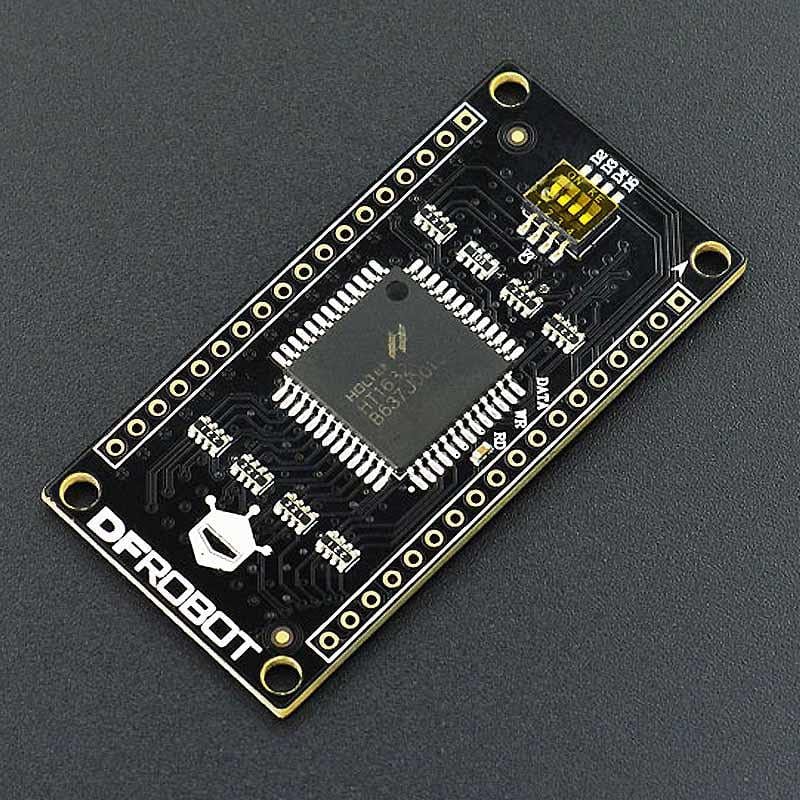

  • Chip Select (CS): D2, D3, D4, D5 selectable
  • Serial Data Communication
  • Supports Arduino Library
  • Supports Scrolling display
  • Interface mode: FireBeetle Series Compatible
  • Operating Temperature: -10℃~+85℃

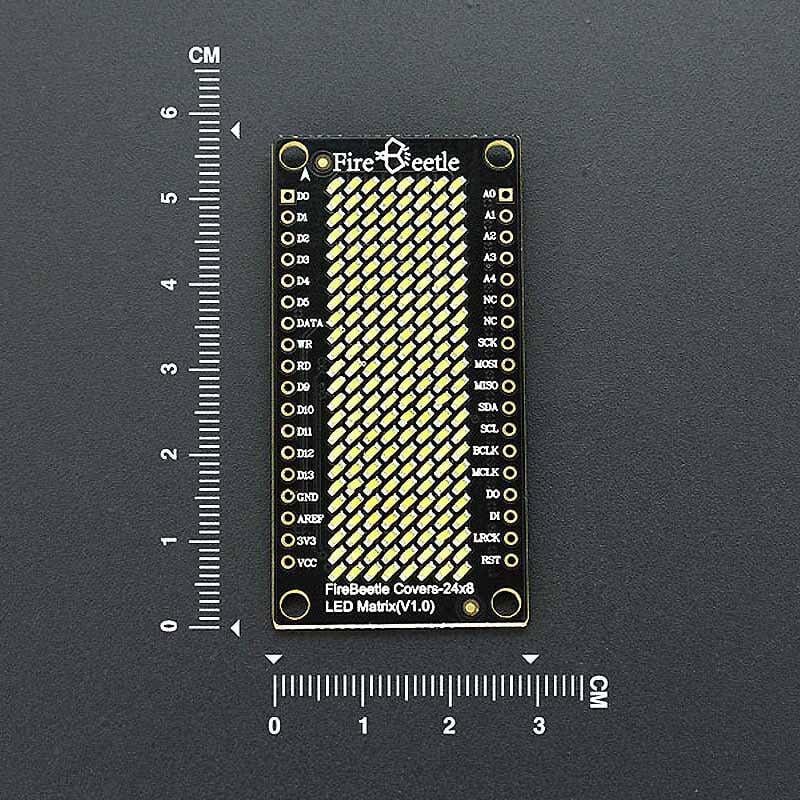

  • Dimension: 24mm × 58mm
  • Weight: 26g

Package Contents

  • 1xFireBeetle Covers-24x8 LED Matrix (Blue)
  • 2x 18-pin 2.54mm Male Pin Header
  • 2x 18-pin 2.54mm Female Pin Header
