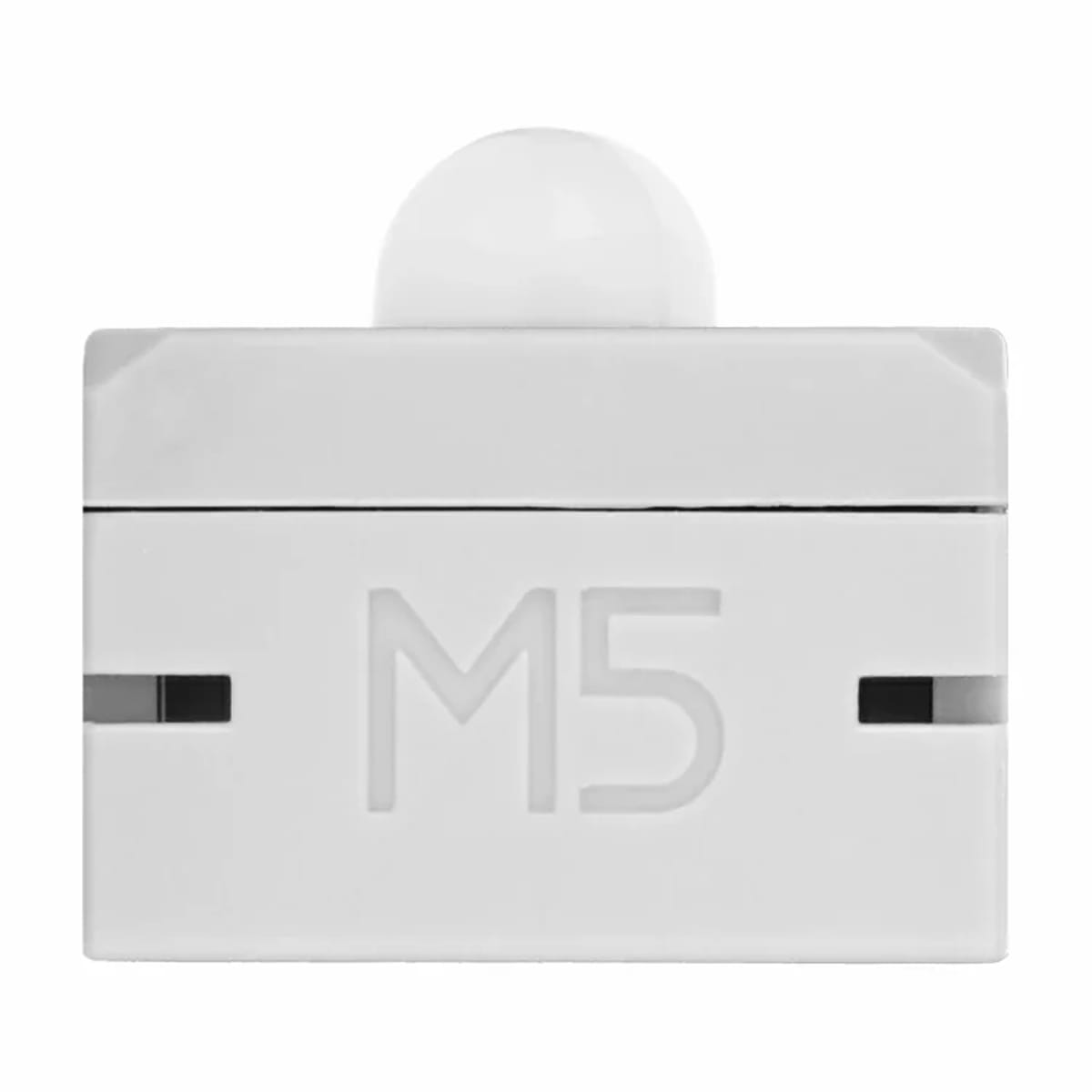

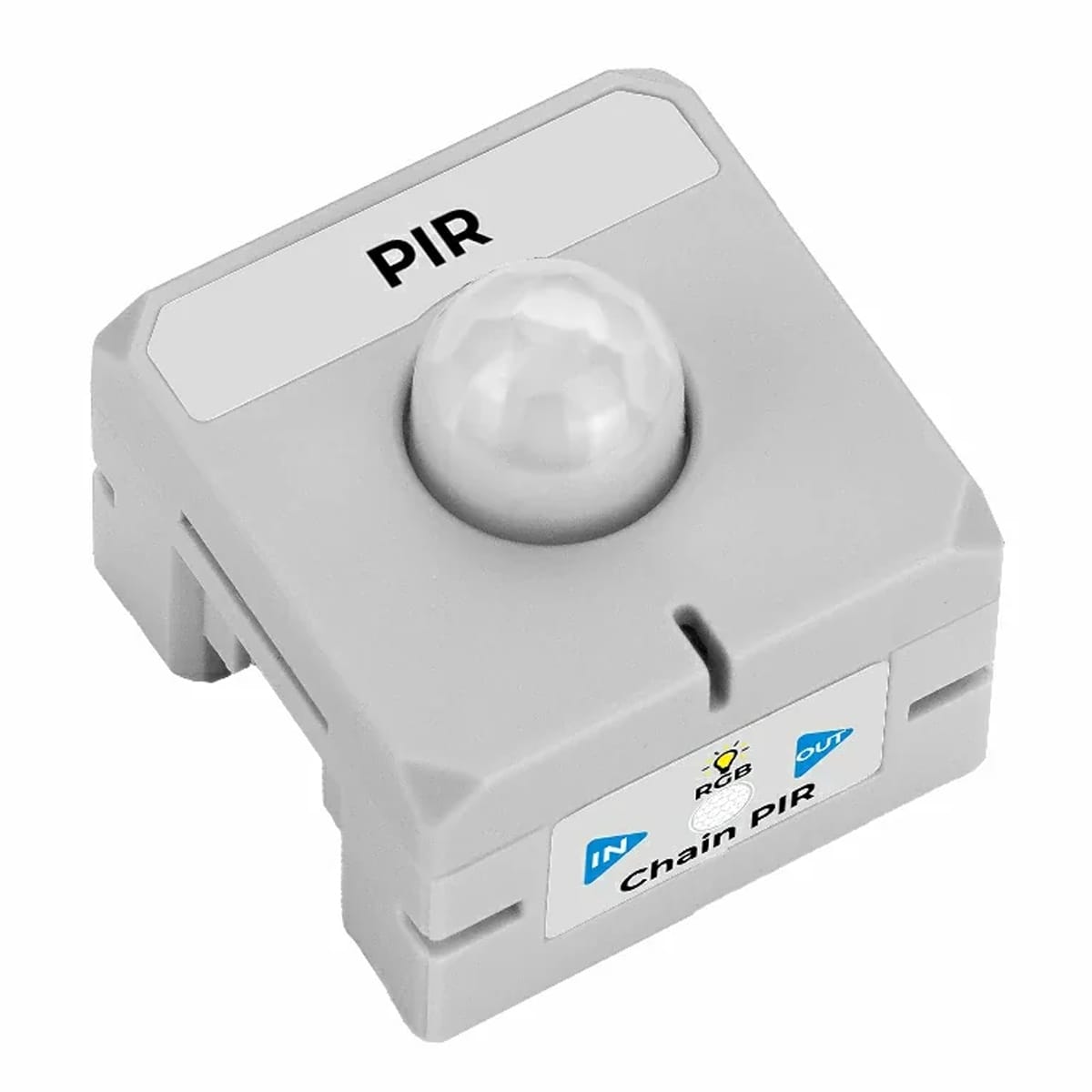

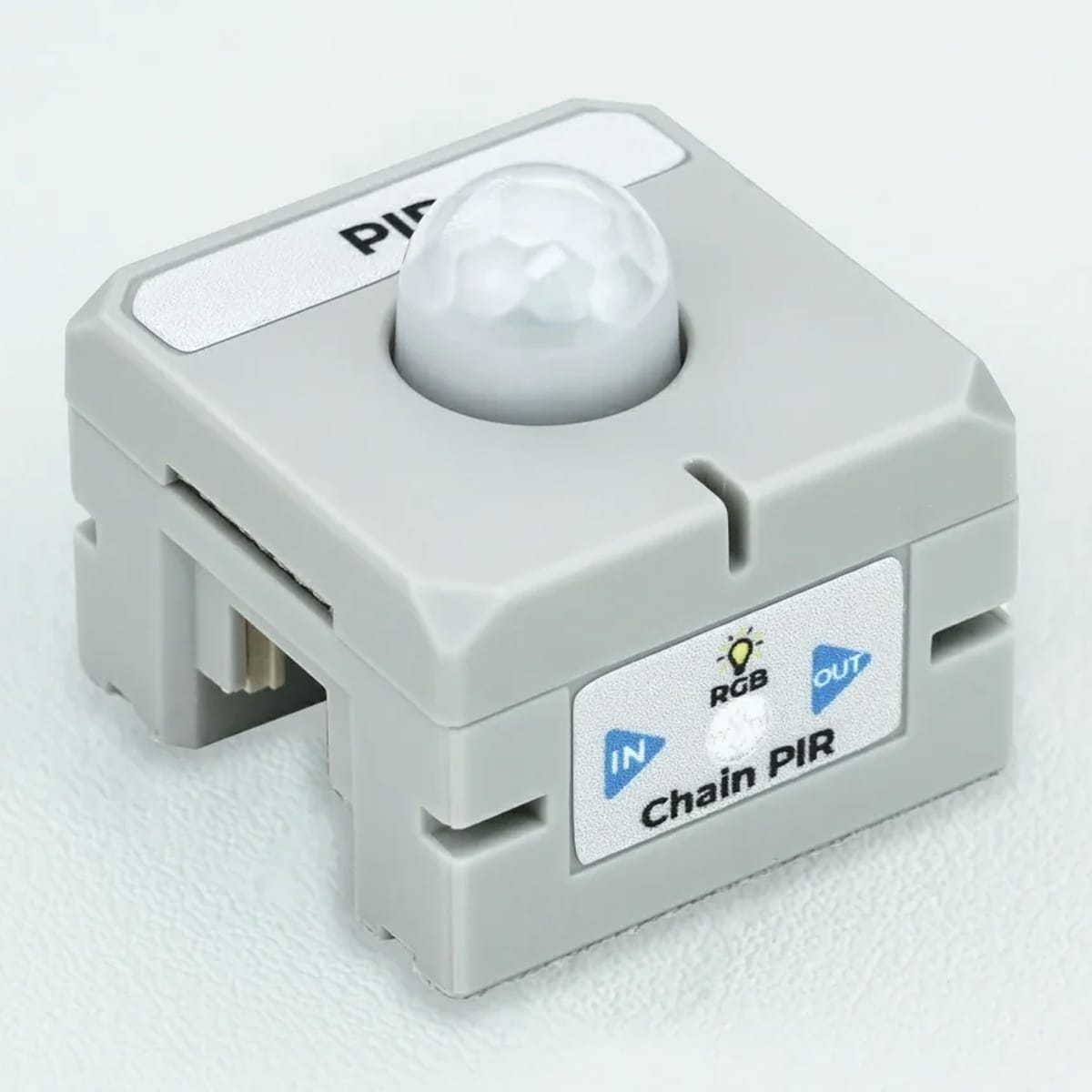

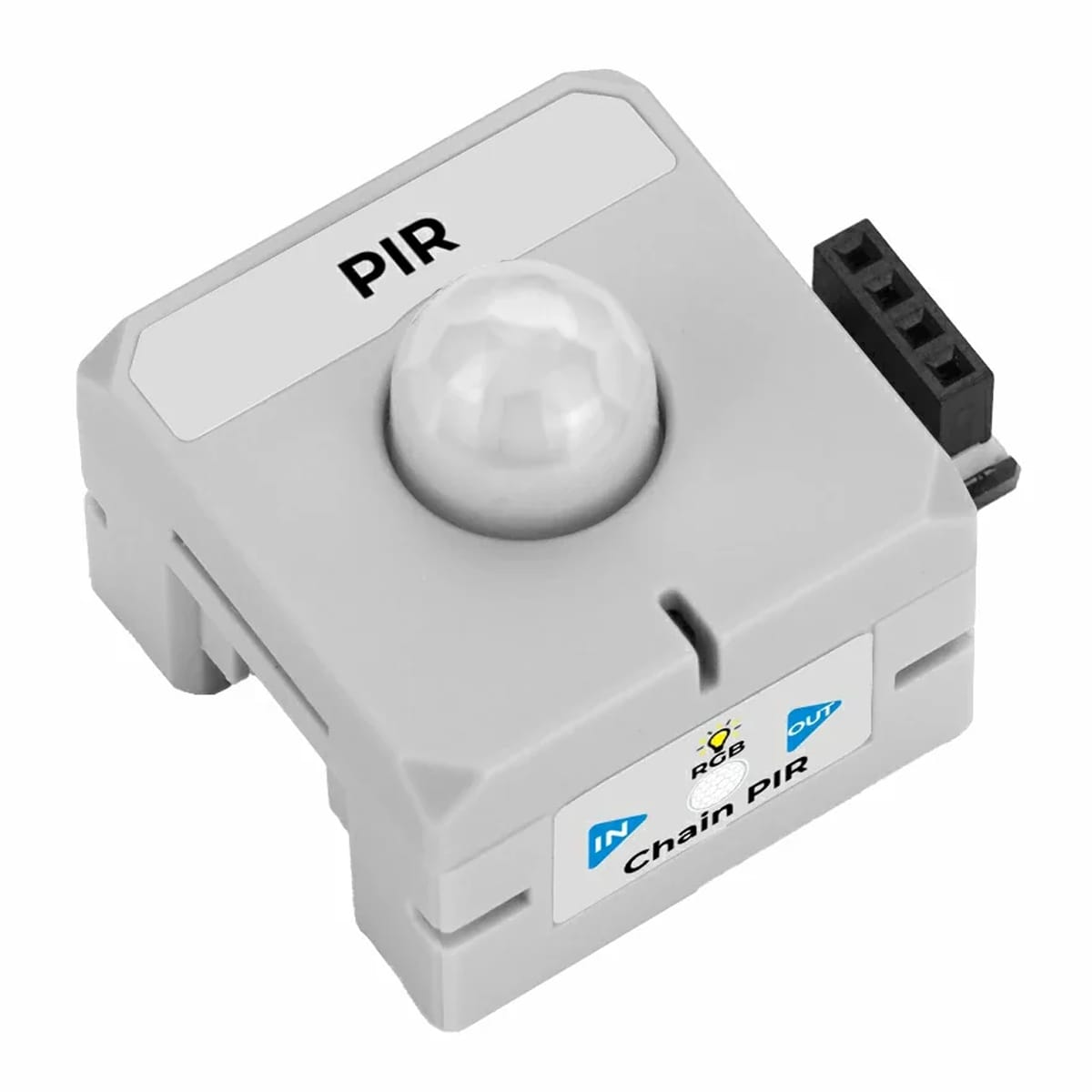

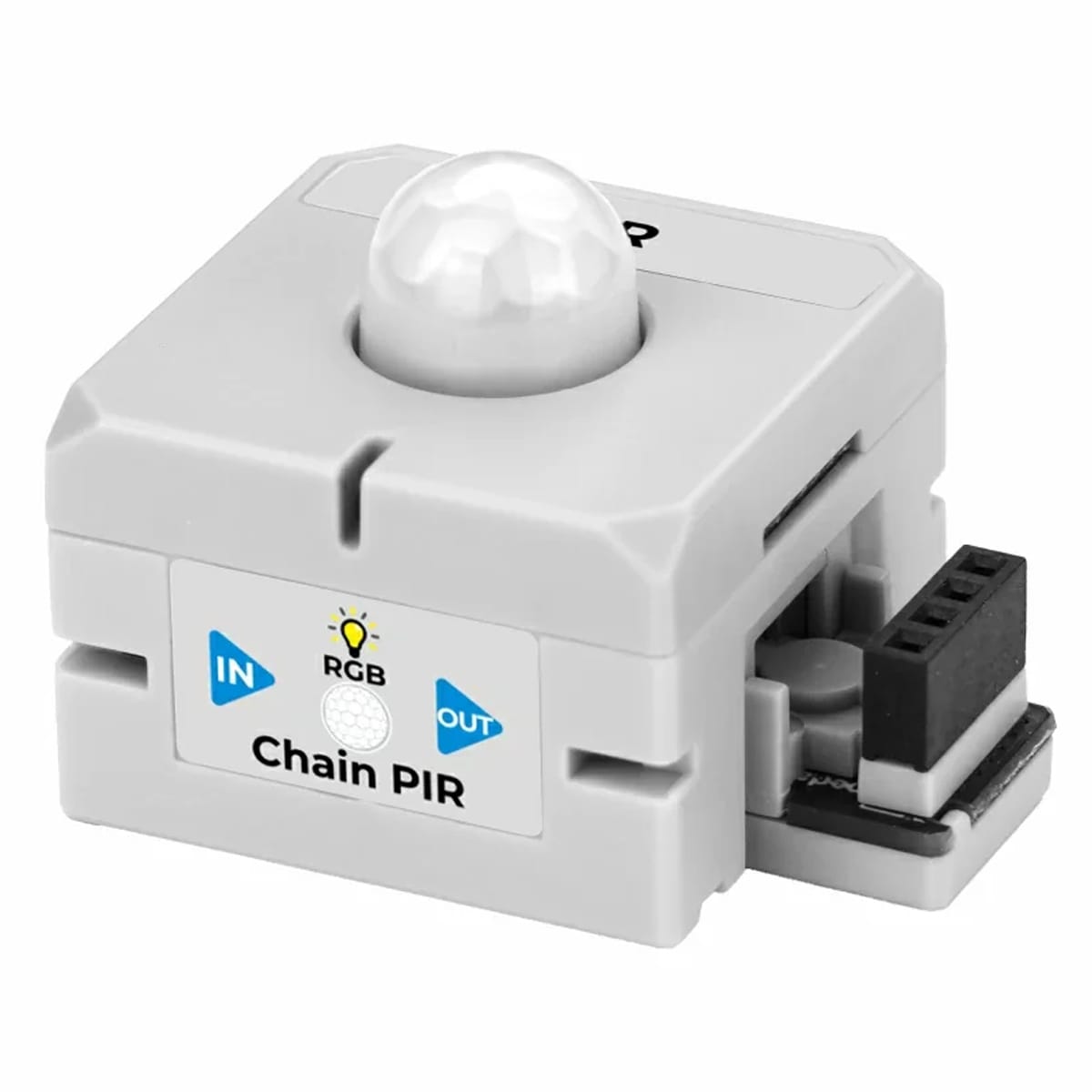

The M5Stack Chain PIR detects human presence using a pyroelectric infrared sensor, with a programmable RGB LED and daisy-chain connectivity for linking with other Chain series devices.
It features a built-in pyroelectric infrared sensor and an integrated programmable RGB LED. It is suitable for applications such as human activity detection, smart home automation, and security alarms.

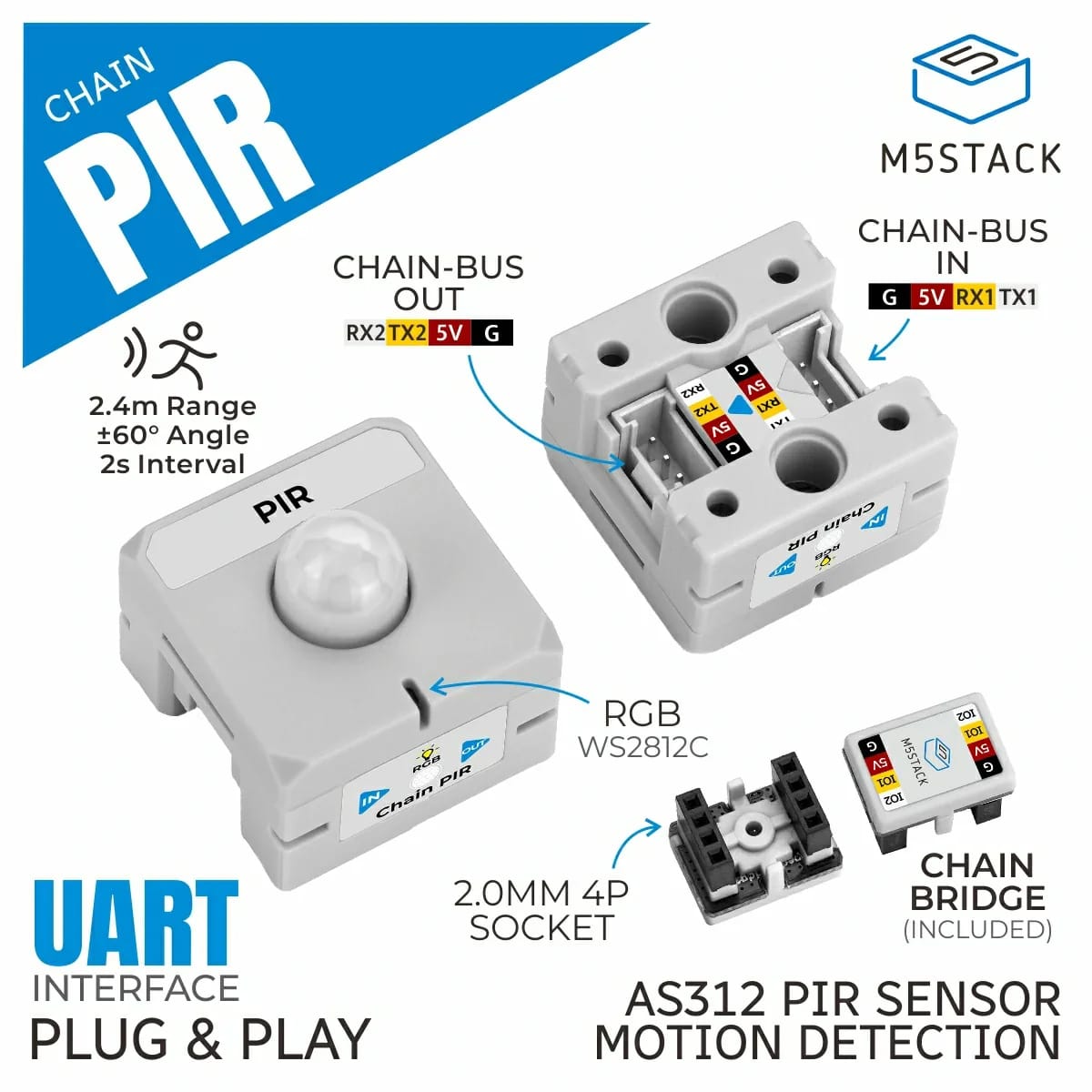

Chain PIR integrates an STM32G031G8U6 data processor and uses a UART serial daisy-chain communication protocol. Its two HY2.0-4P expansion interfaces allow additional Chain series devices to be connected, enabling richer interactive applications.
Features
M5Stack Chain series
Pyroelectric infrared human presence sensing
STM32G031G8U6 main controller
UART serial daisy-chain communication protocol

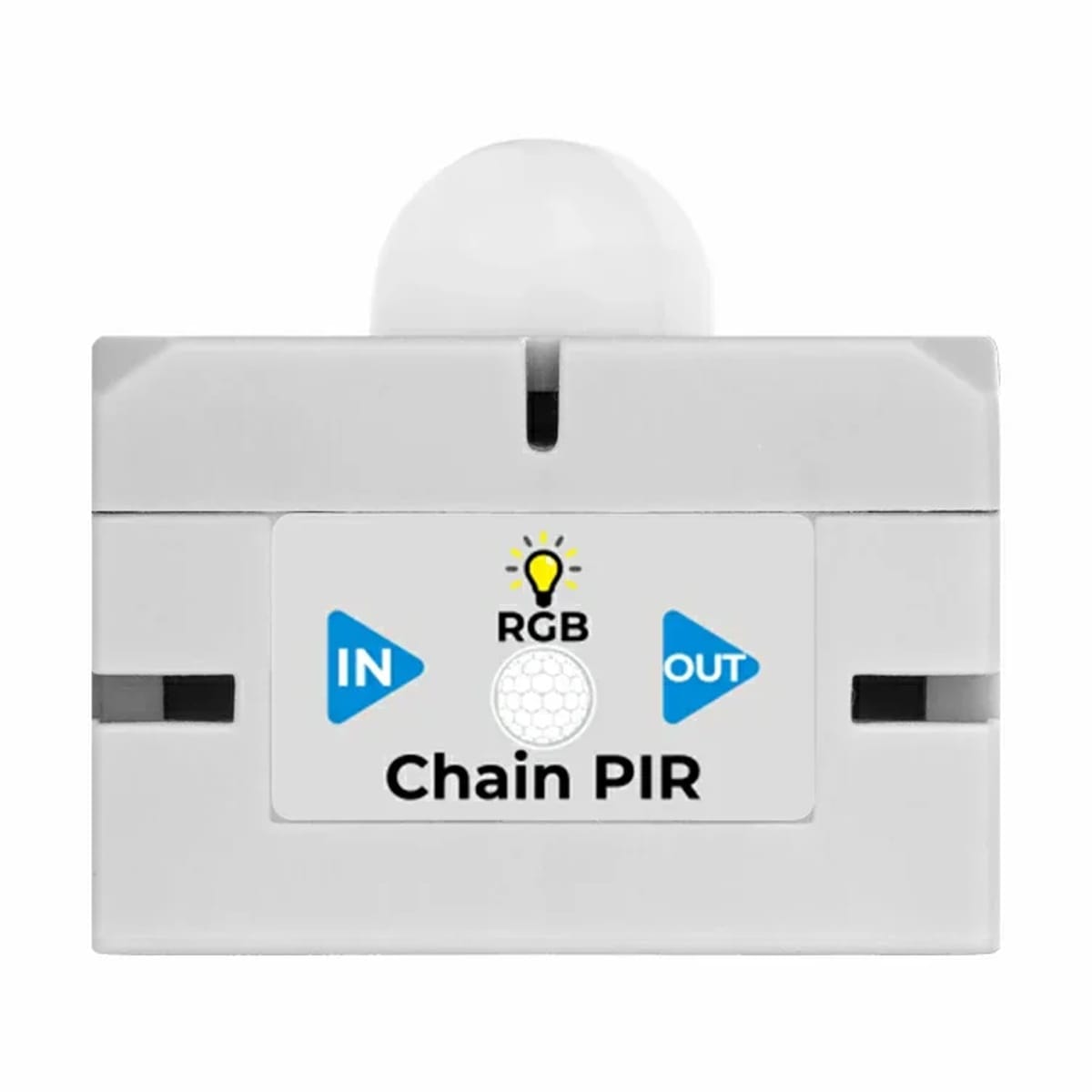

1 x RGB LED

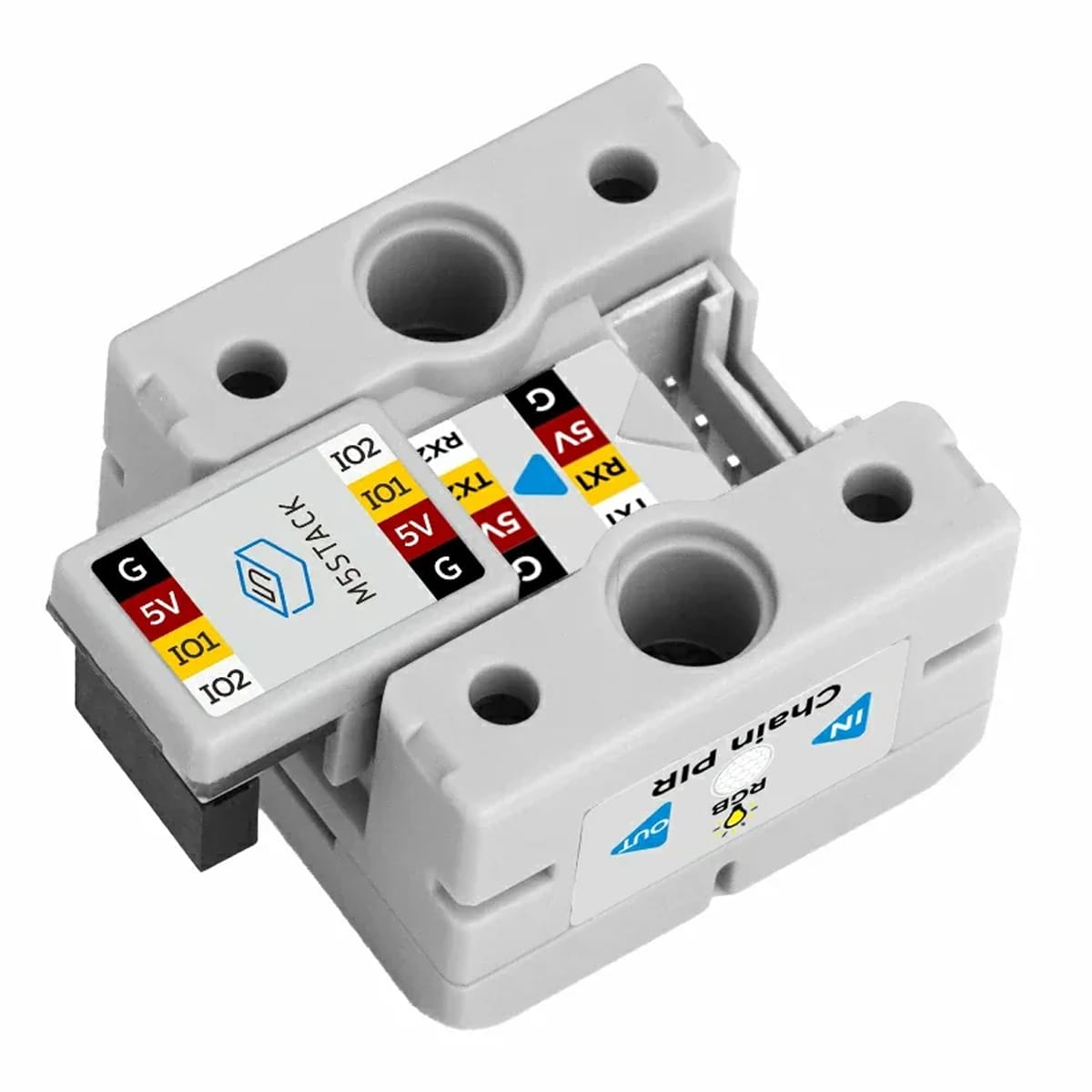

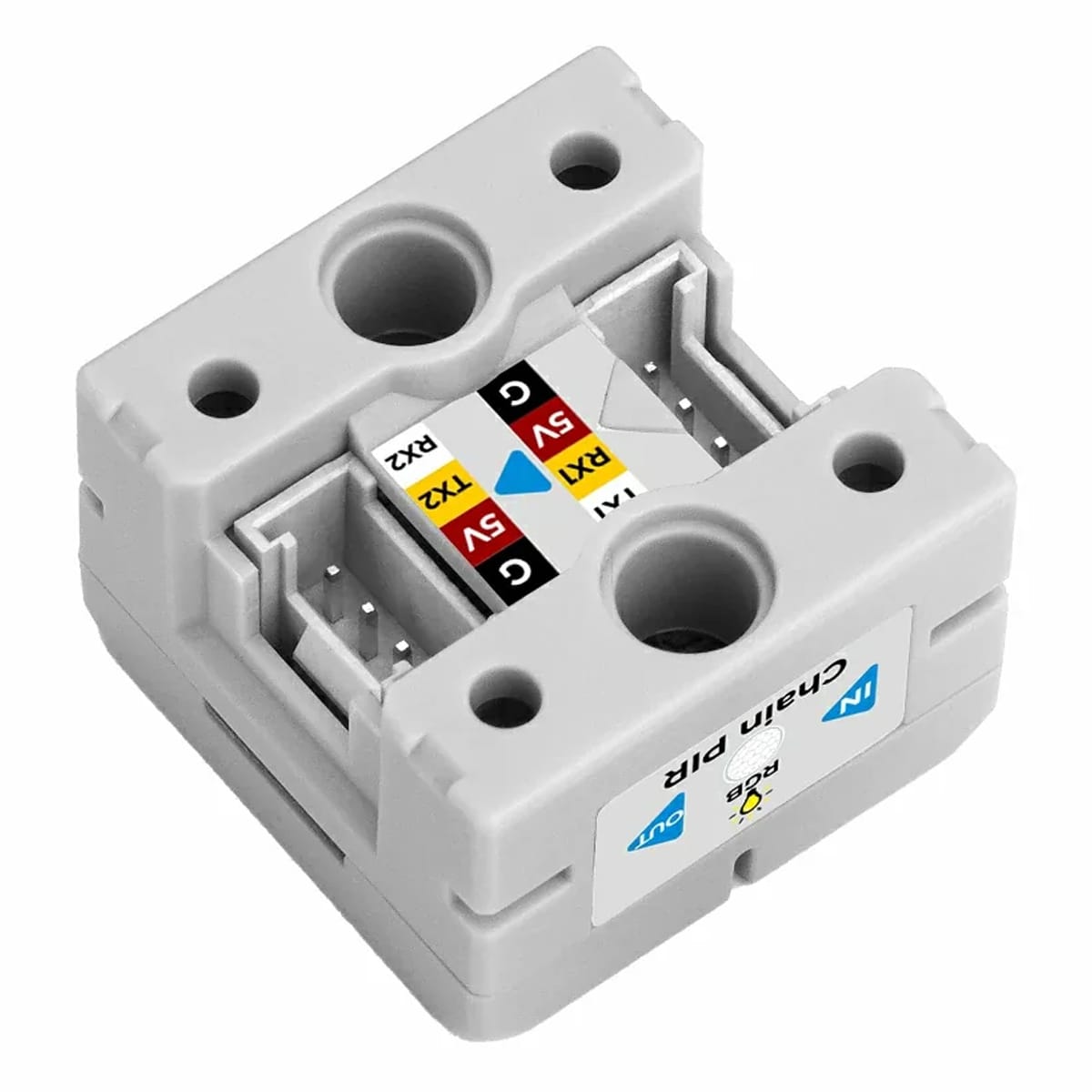

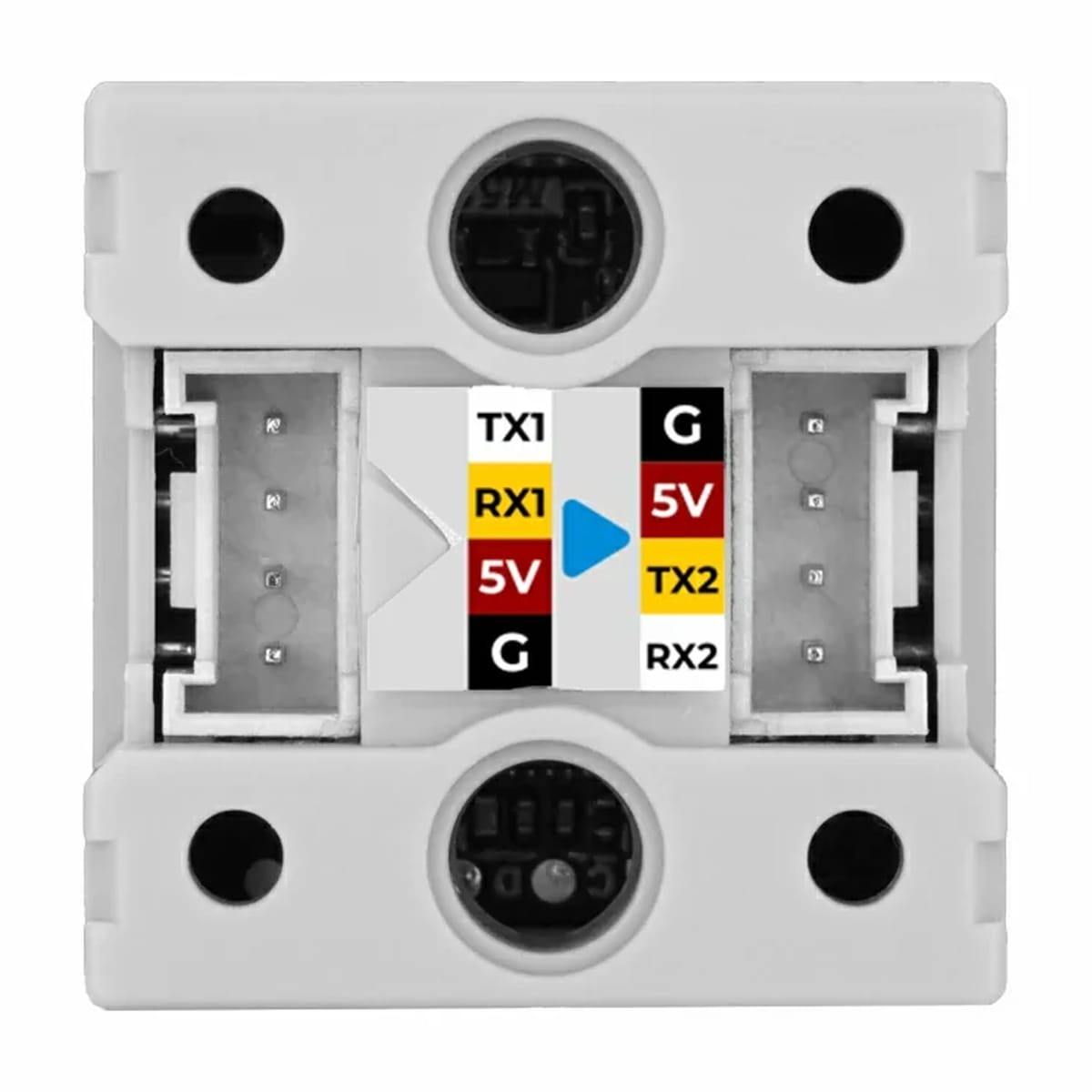

2 x HY2.0-4P expansion interfaces for connecting Chain series devices
Two operating modes:
Automatic reporting mode: Automatically sends data to the host when the PIR status changes
Query mode: The host initiates a query, and the slave responds with the current PIR status
