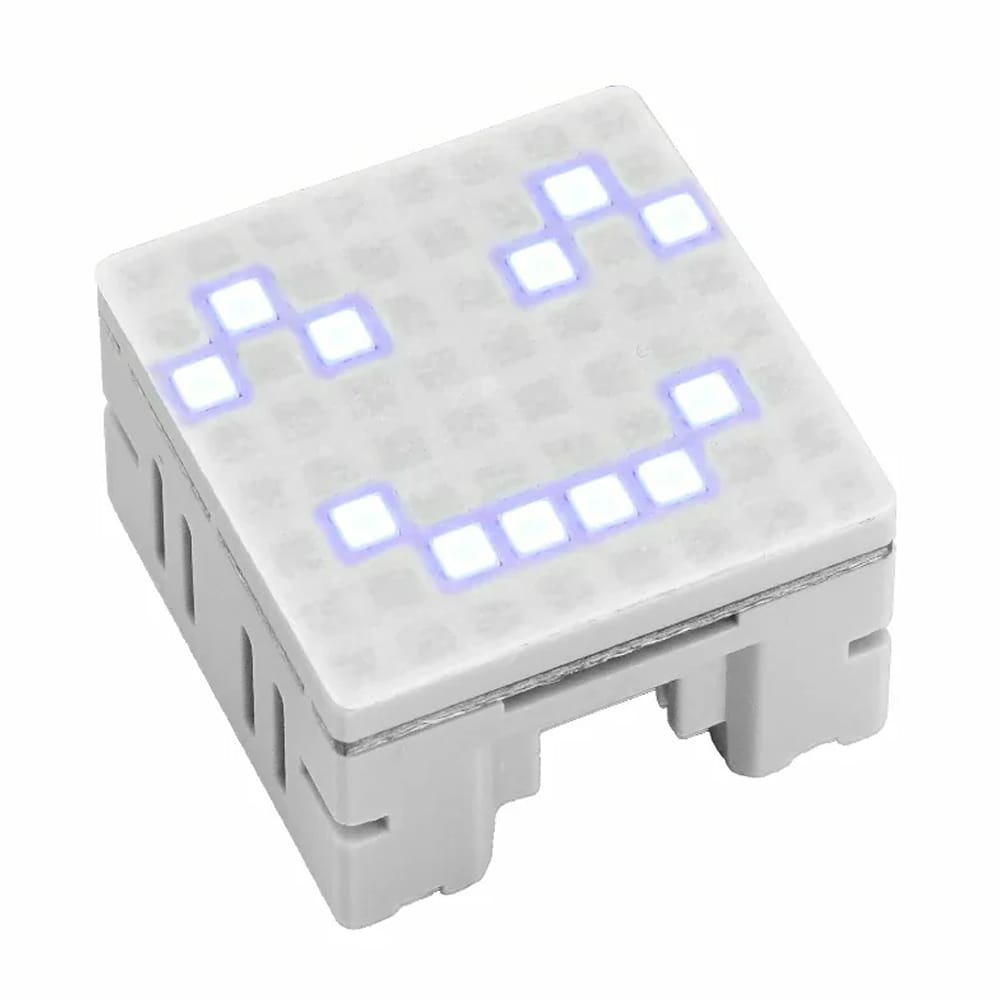

The M5Stack Chain Mono Matrix with 8x8 LEDs combines an 8×8 monochrome LED matrix with daisy-chain connectivity, making it easy to create scrolling text, pixel animations, status indicators, and interactive lighting displays.

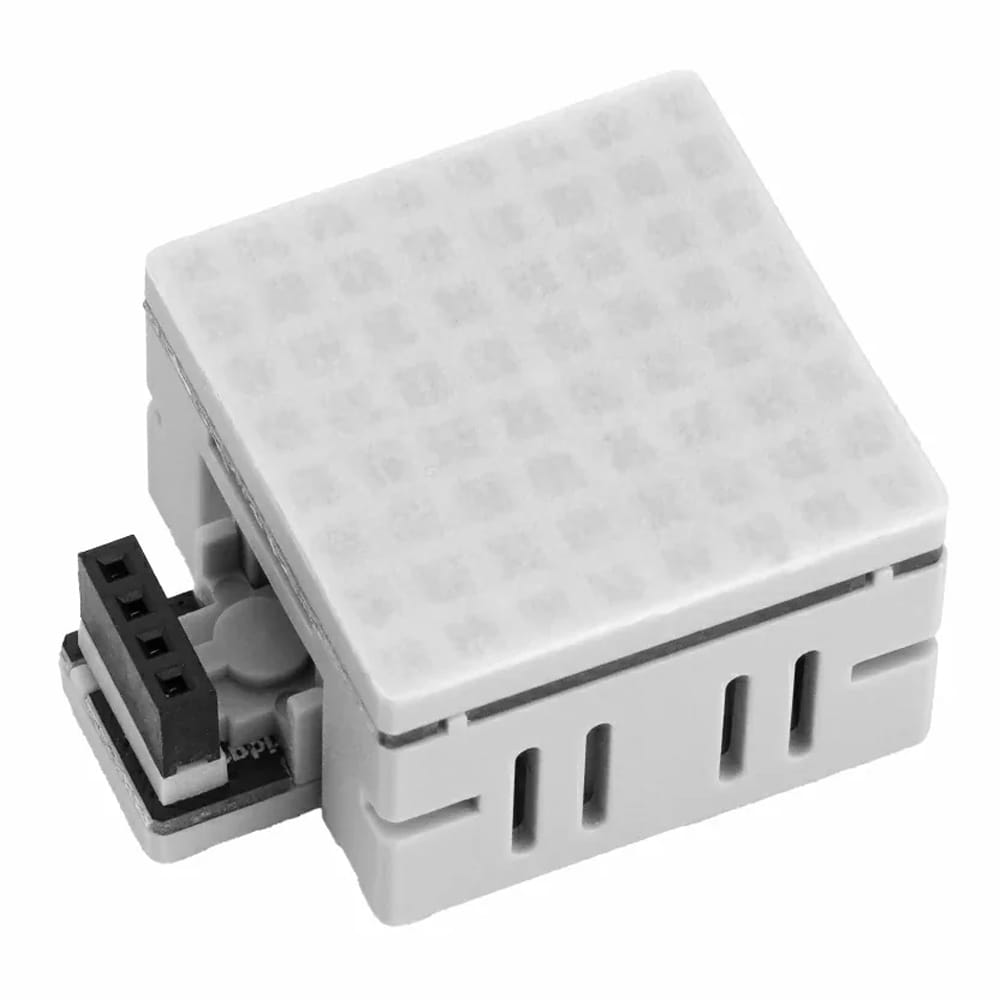

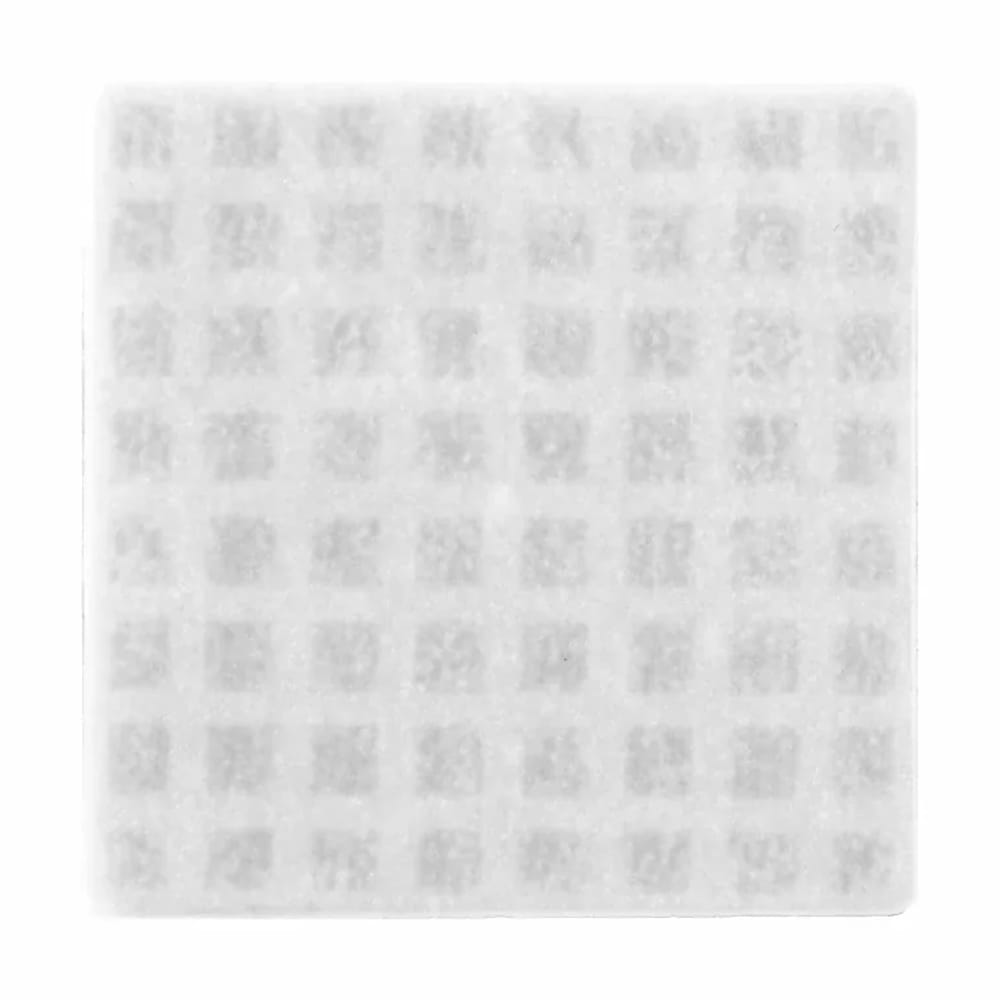

The Chain Mono Matrix with 8x8 LEDs is an LED display node from the M5Stack Chain series, featuring an 8×8 monochrome LED dot matrix unit.
It supports independent pixel control, batch pixel writing, and fast full-screen buffer refresh. It integrates built-in ASCII character generation, string scrolling, brightness adjustment, and multi-angle screen rotation, enabling diverse dynamic light and pixel animation effects. Ideal for pixel light creations, desktop ambient lighting, creative light signage, and smart device indicator lighting.

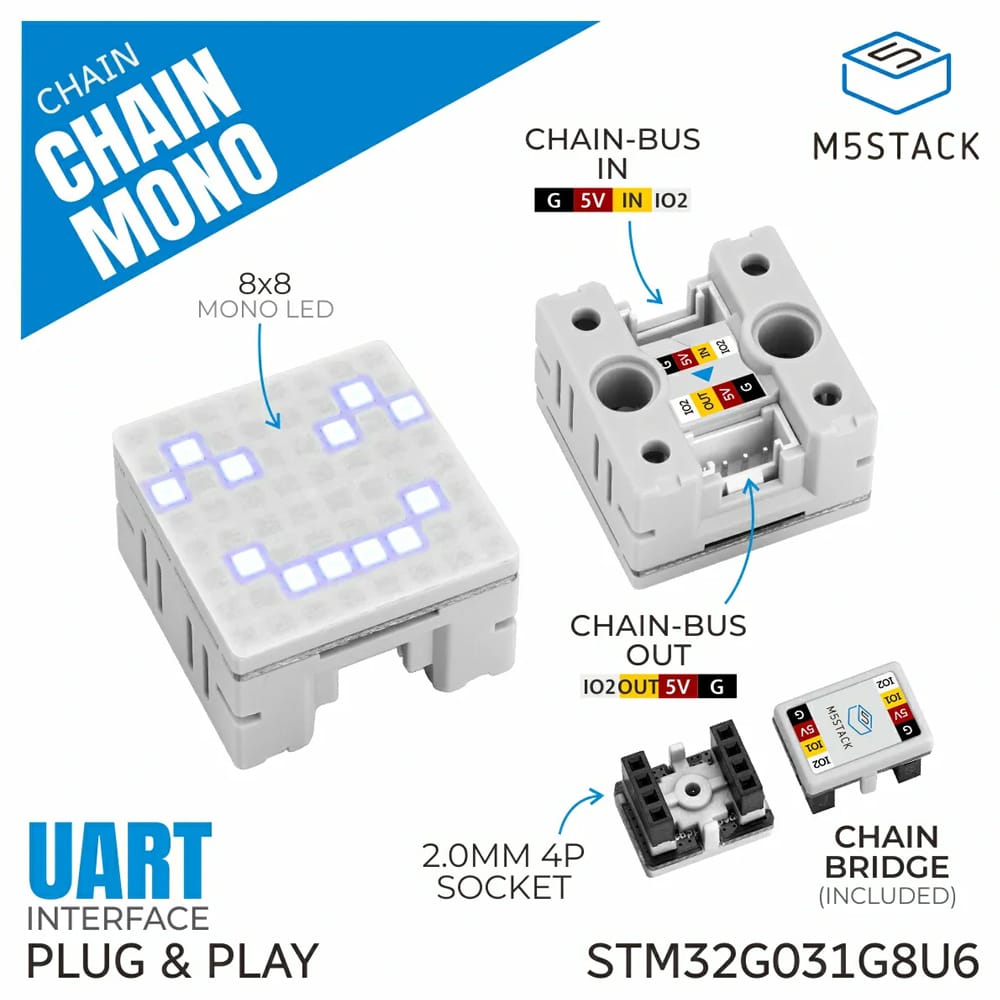

Chain Mono is powered by an STM32G031G8U6 main controller and uses a UART serial daisy-chain communication protocol. Through two HY2.0-4P expansion interfaces, it can be extended with more Chain series devices to build richer interactive applications.
Features
M5Stack Chain series
STM32G031G8U6 main controller
8×8 monochrome LED dot matrix display unit
Built-in ASCII character generation, supports character drawing
Supports independent pixel control and batch writing
8‑byte frame buffer, supports full-screen refresh
Custom patterns, string scrolling – up to 256 characters per node
Supports 0°/90°/180°/270° screen rotation
UART serial daisy-chain communication protocol

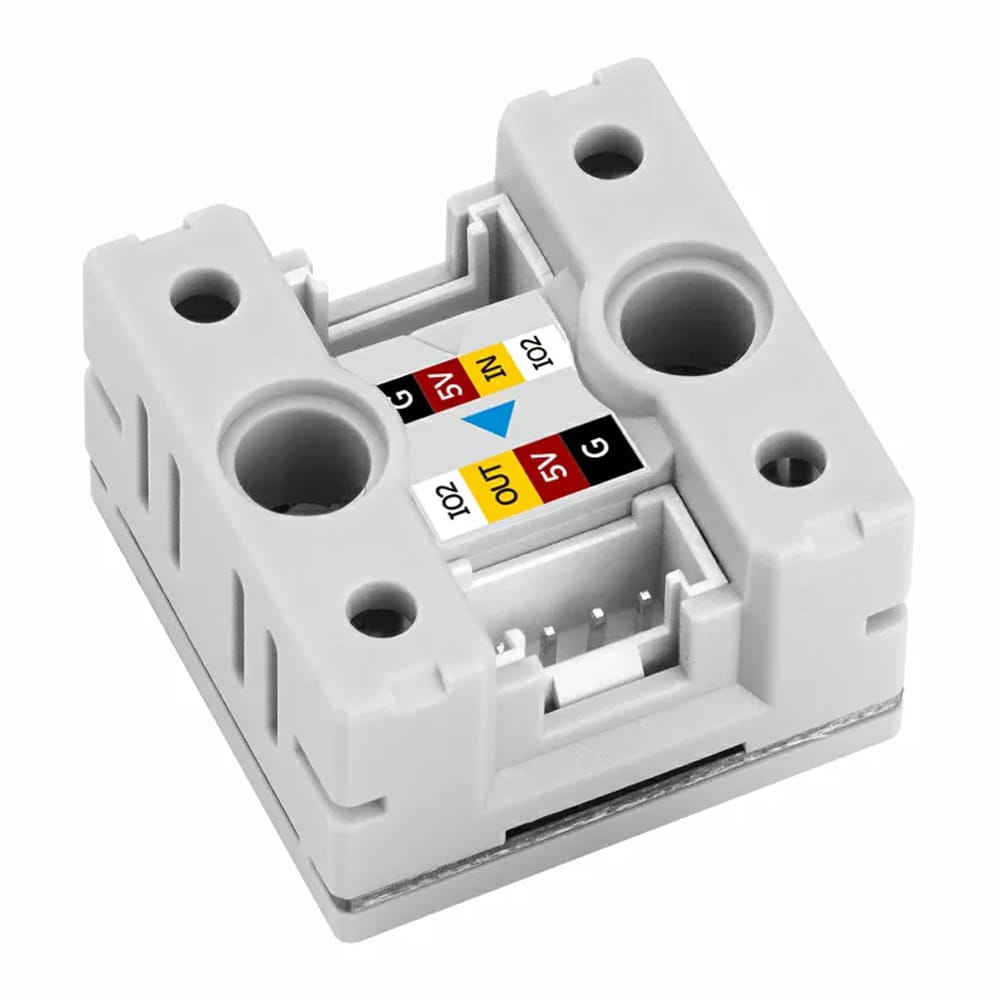

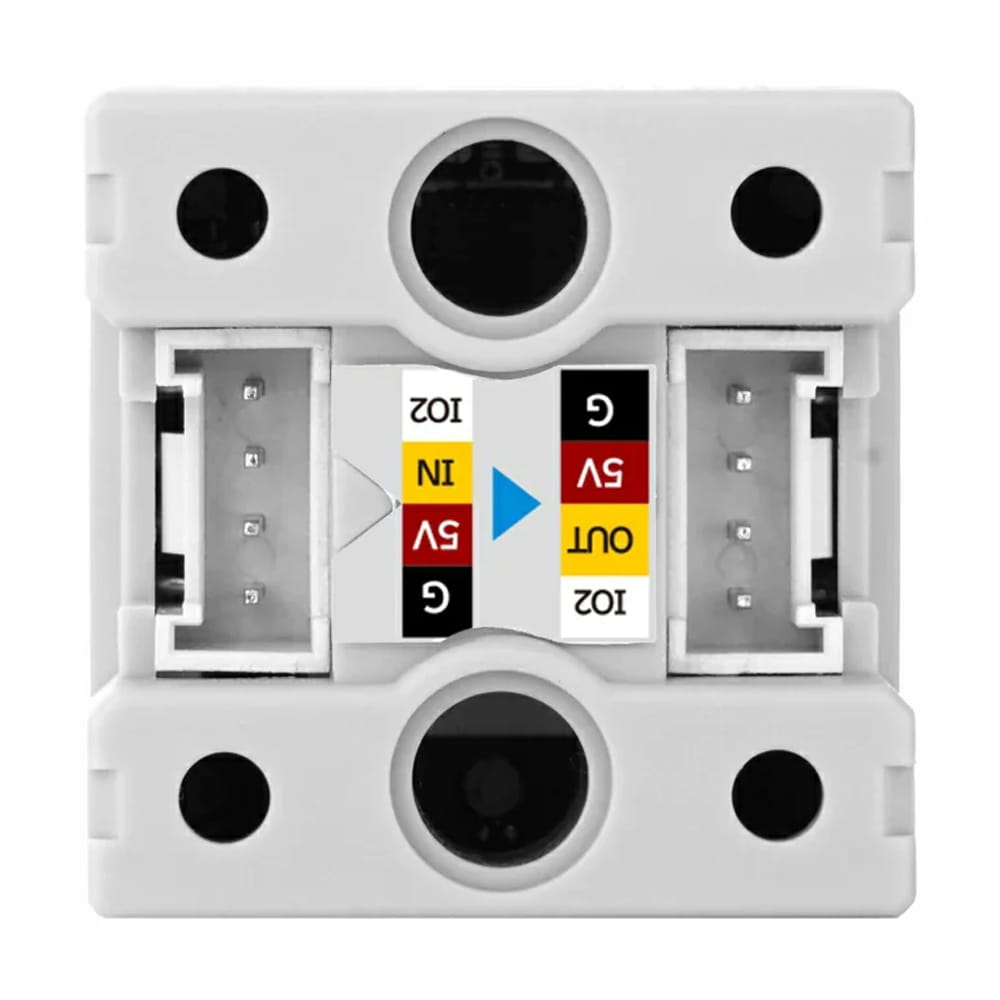

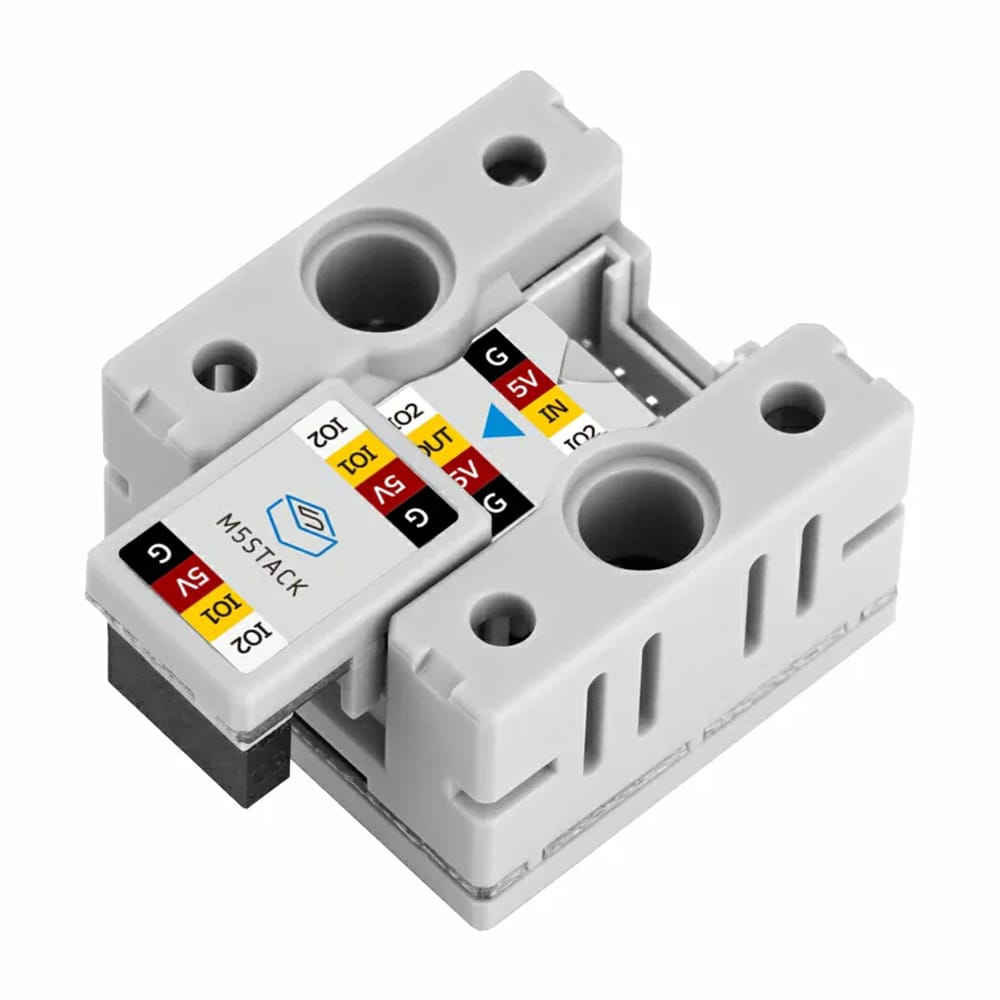

2× HY2.0-4P expansion interfaces for Chain series devices
