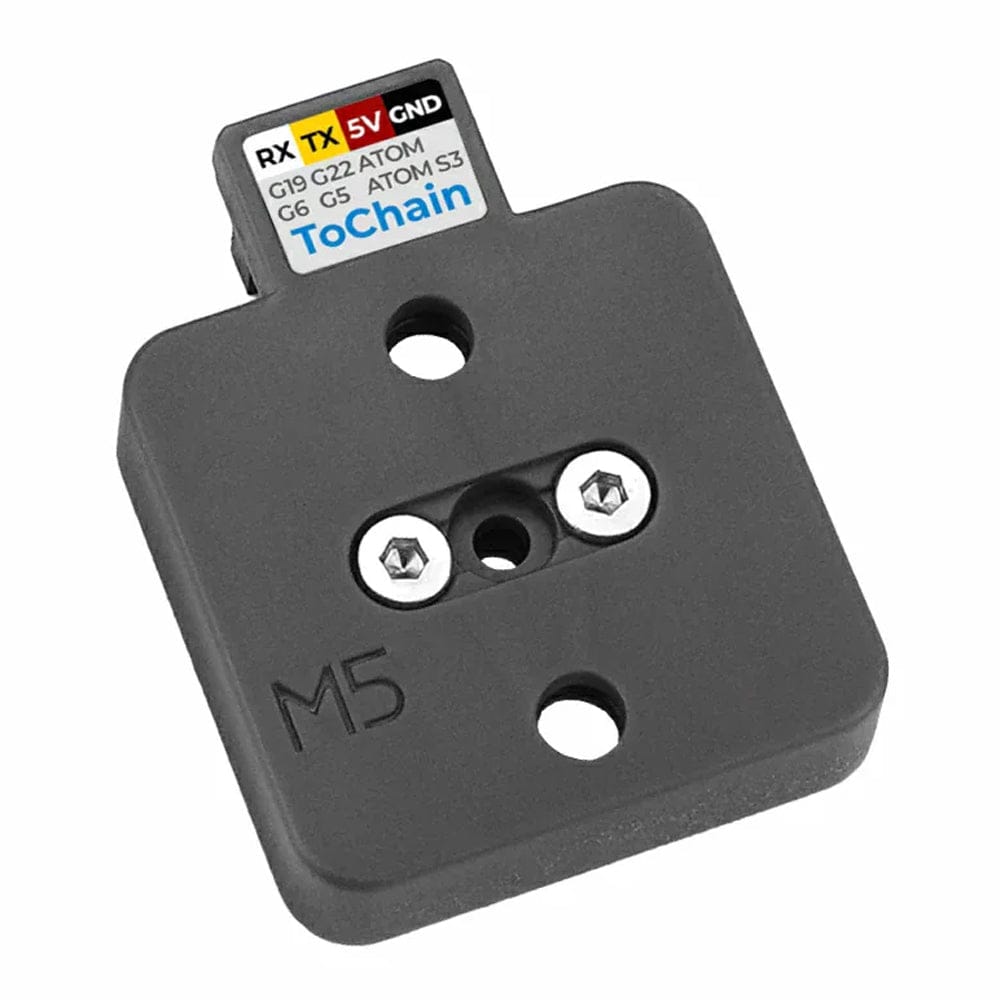

Atomic toChain Base

The Atomic ToChain Base adapts Atom series bottom I/O to a male HY2.0-4P connector for easy connection to M5Stack Chain devices. Reserved solder pads allow flexible signal routing for clean, expandable builds.

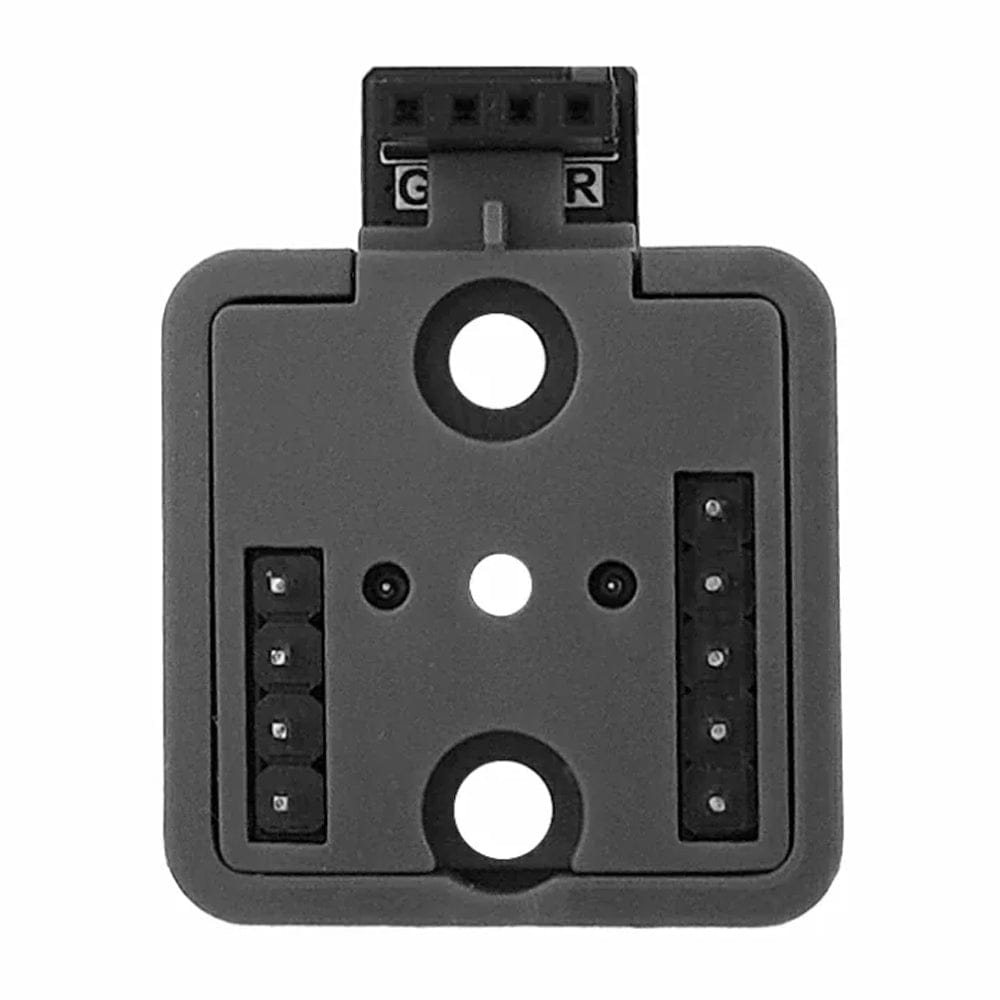

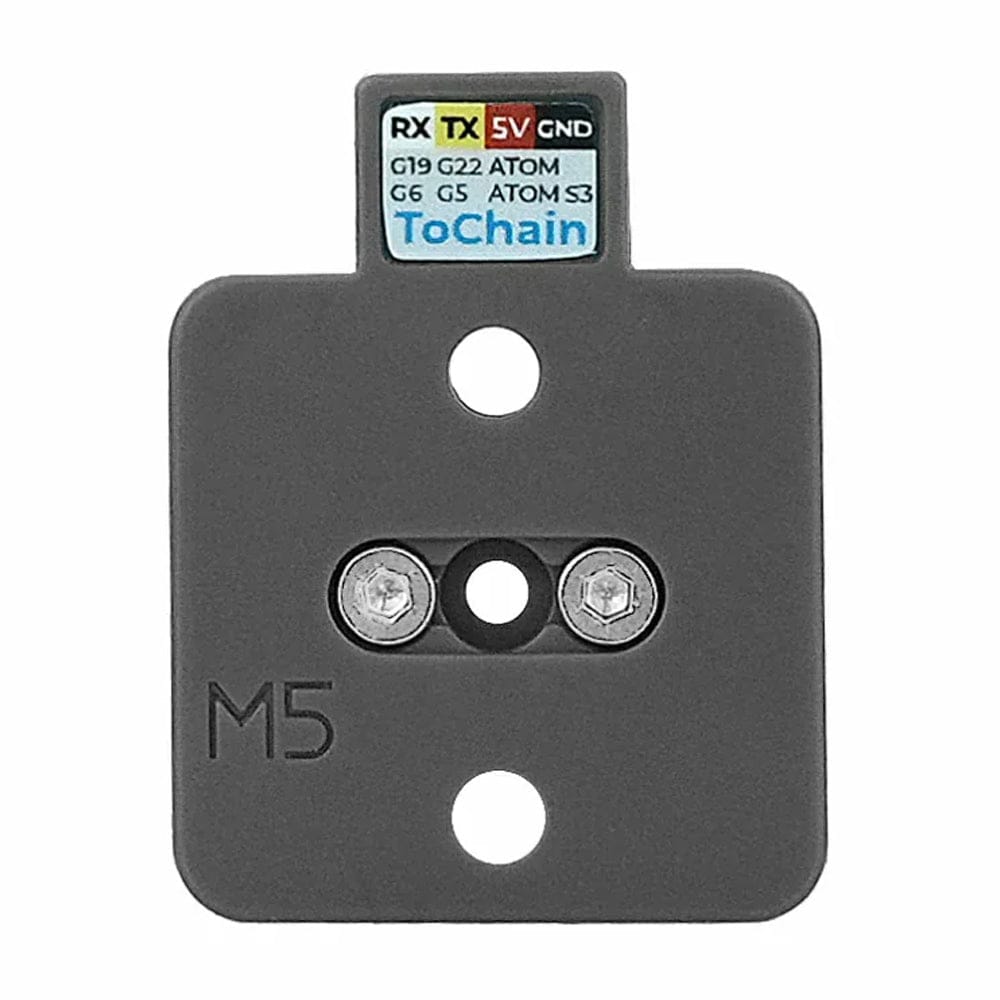

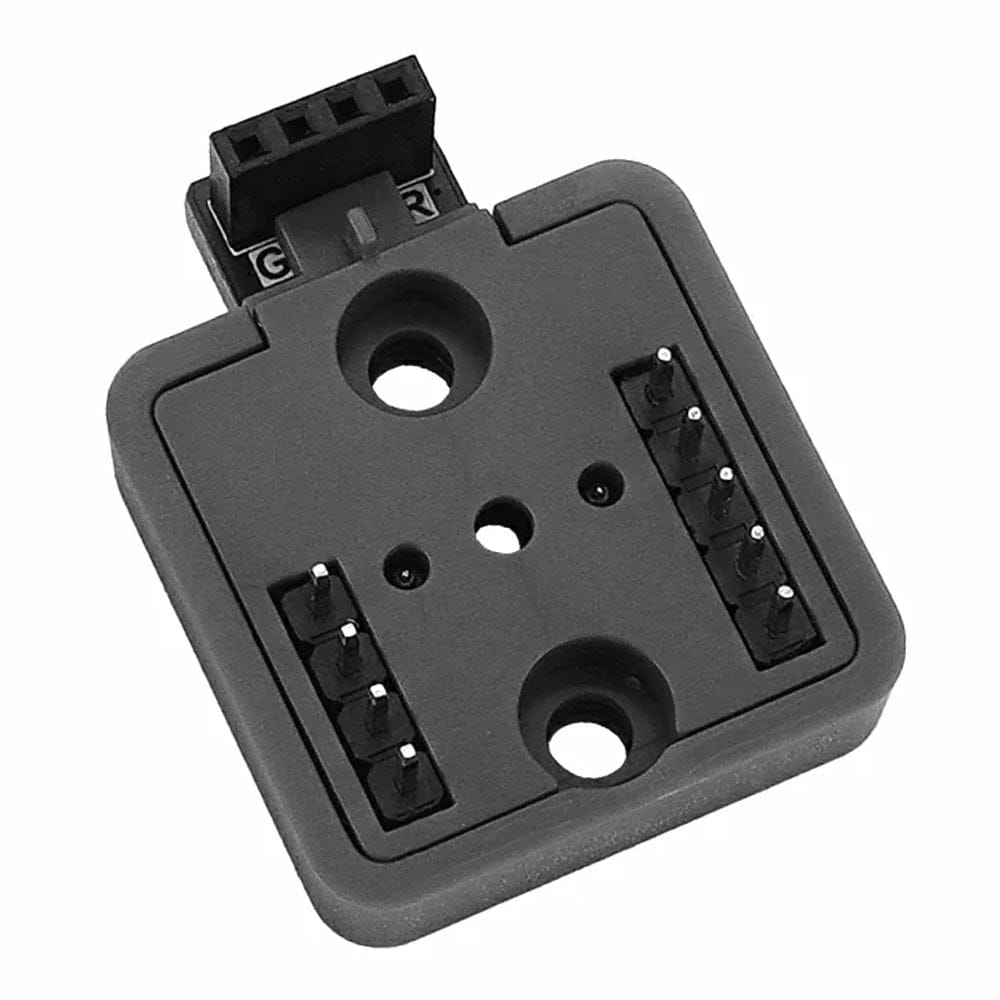

The Atomic ToChain Base is a Chain interface adapter designed specifically for M5Stack Atom series controllers. It converts the Atom controller’s bottom expansion I/O into a male HY2.0-4P connector, making it easy to connect and work with M5Stack Chain series devices.

The adapter also includes reserved solder pads, allowing flexible configuration of how the Atom bottom I/O is routed. This makes it easier to adapt the connection to different project needs while keeping the wiring neat and reliable.

With this adapter, Atom controllers can be seamlessly extended into the Chain ecosystem, enabling more connectivity options and a wider range of application possibilities.

Features

• Atom controller expansion for Chain devices
• Reserved solder pad design for flexible IO pin mapping

Specifications

• Size: 31.0 x 24.0 x 11.8mm
• Weight: 4.3g

Resources

• Documents

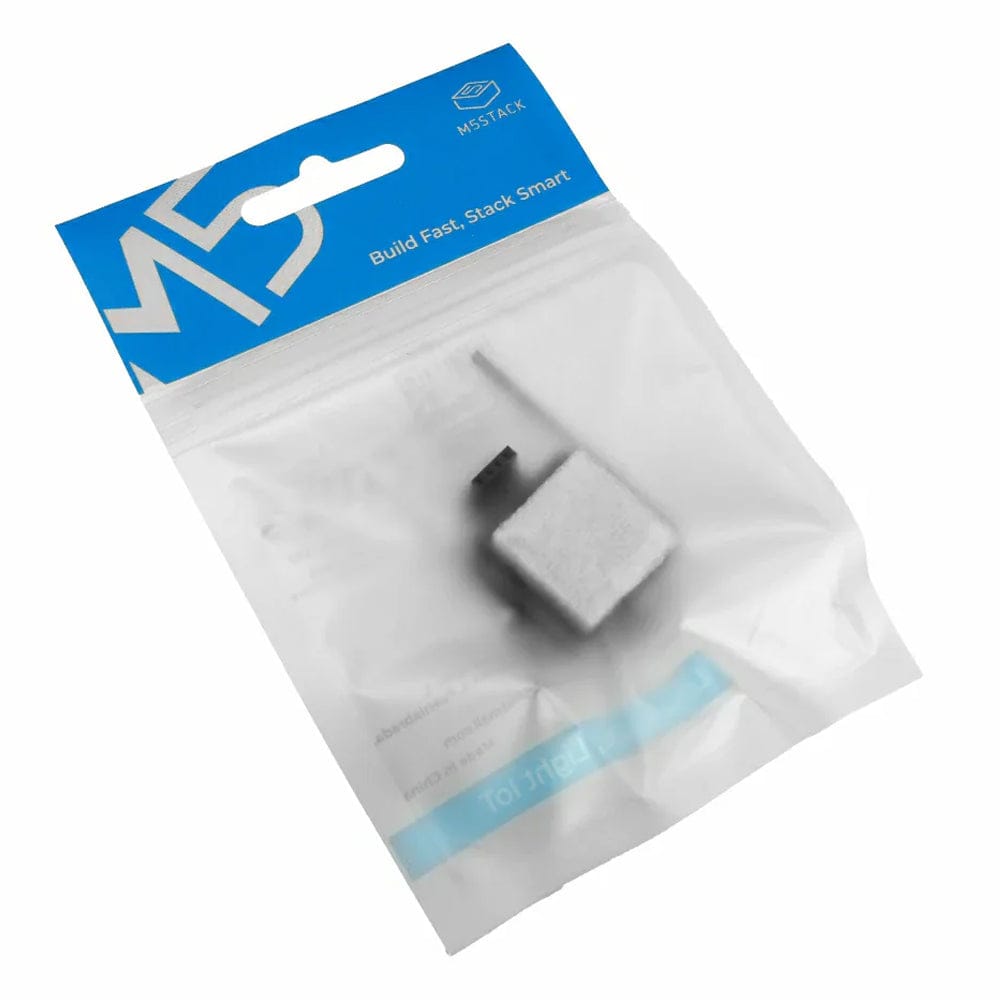

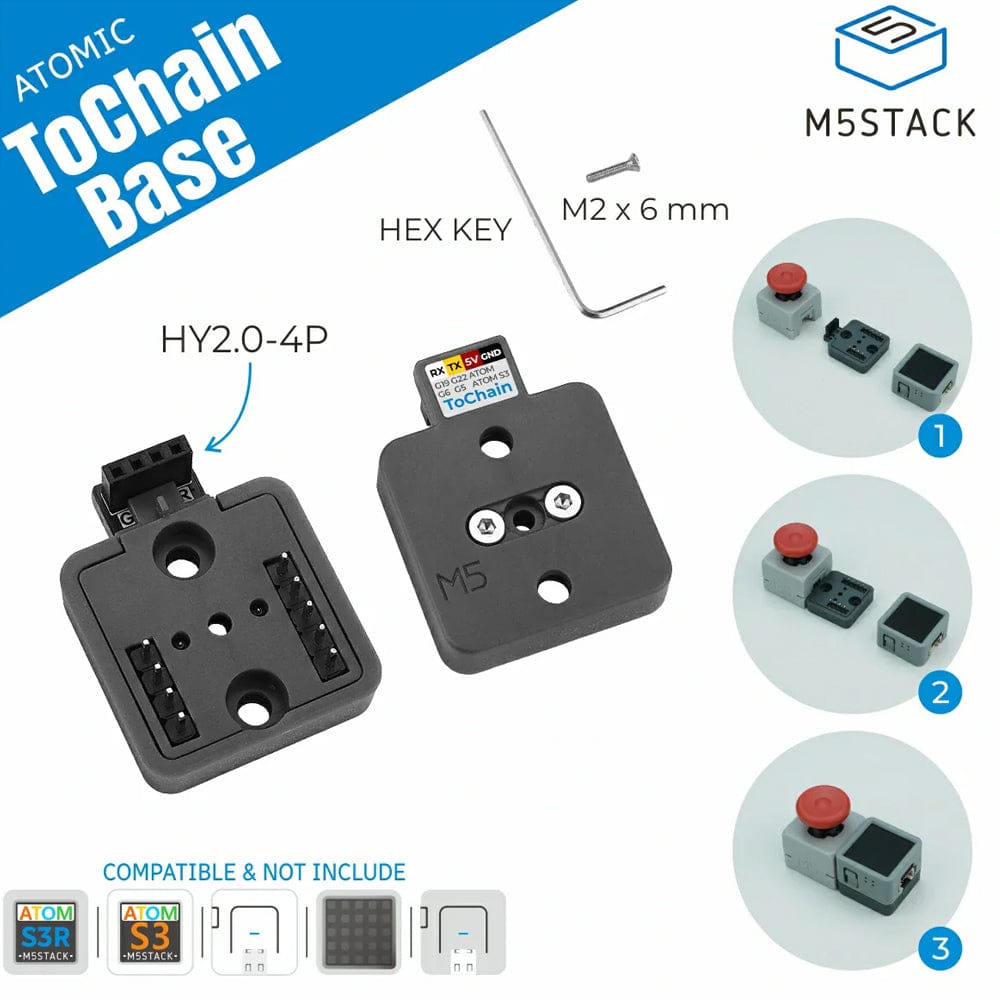

Package Contents

• 1x Atomic ToChain Base
• 1x Hex Key L-Shape 1.5mm (For M2 Screw)
• 1x M2 6mm Screw (pan head, self-tapping)
