Chain Dual Key with ESP32-S3

The M5Stack Chain Dual Key is a dual-key ESP32-S3 board with hot-swappable switches, RGB LEDs, USB/BLE HID support and expansion ports — ideal for macro keyboards, smart home control and custom input projects.

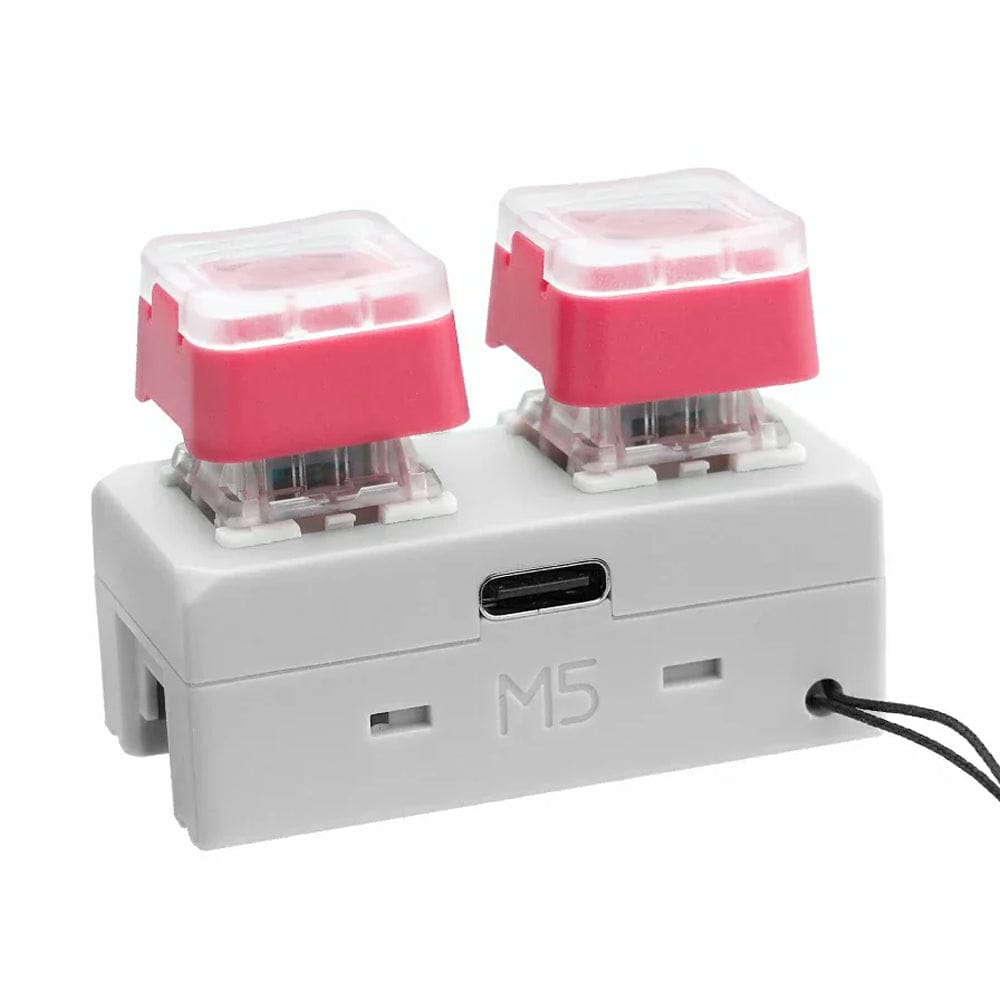

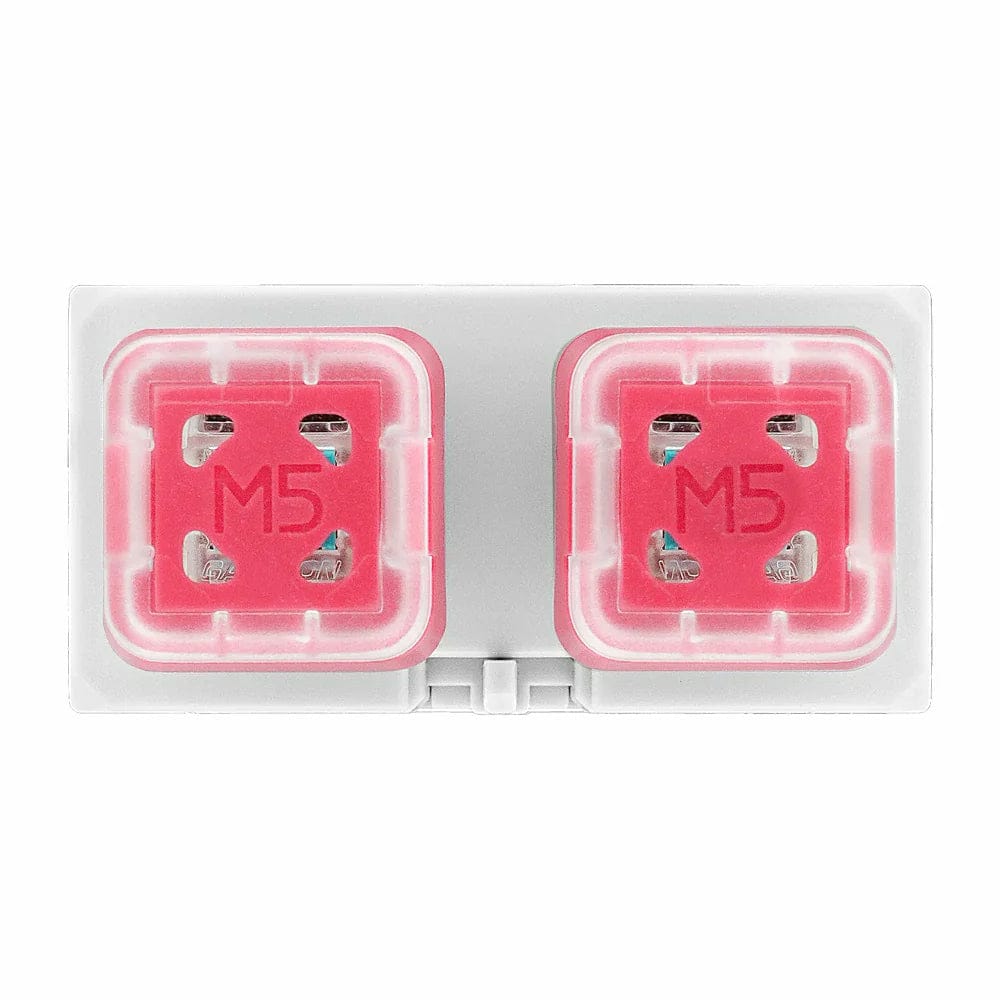

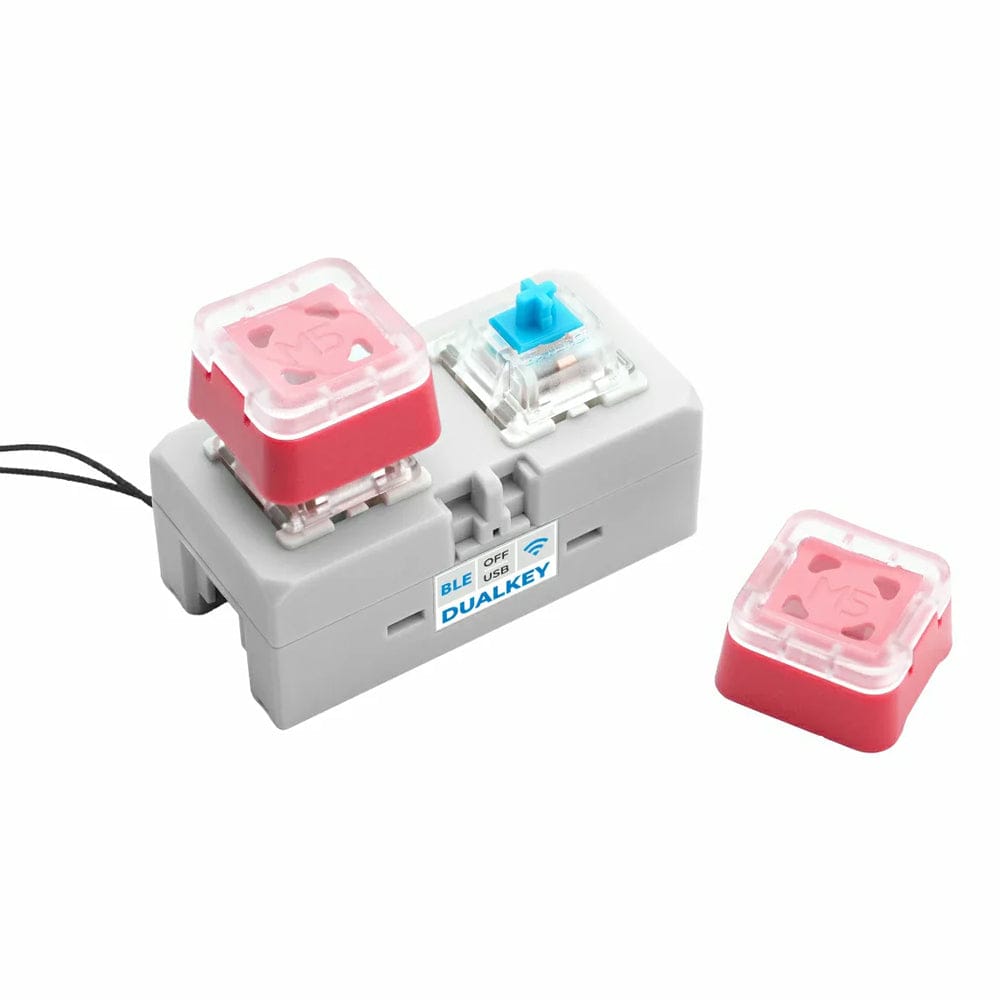

The M5Stack Chain Dual Key is a programmable dual-key input development board built around the ESP32-S3FN8 main controller. It features two hot-swappable blue-switch mechanical keys and two programmable RGB LEDs on the front, giving responsive tactile and visual feedback. A built-in 350mAh lithium battery, paired with a low-power design, provides solid battery life.

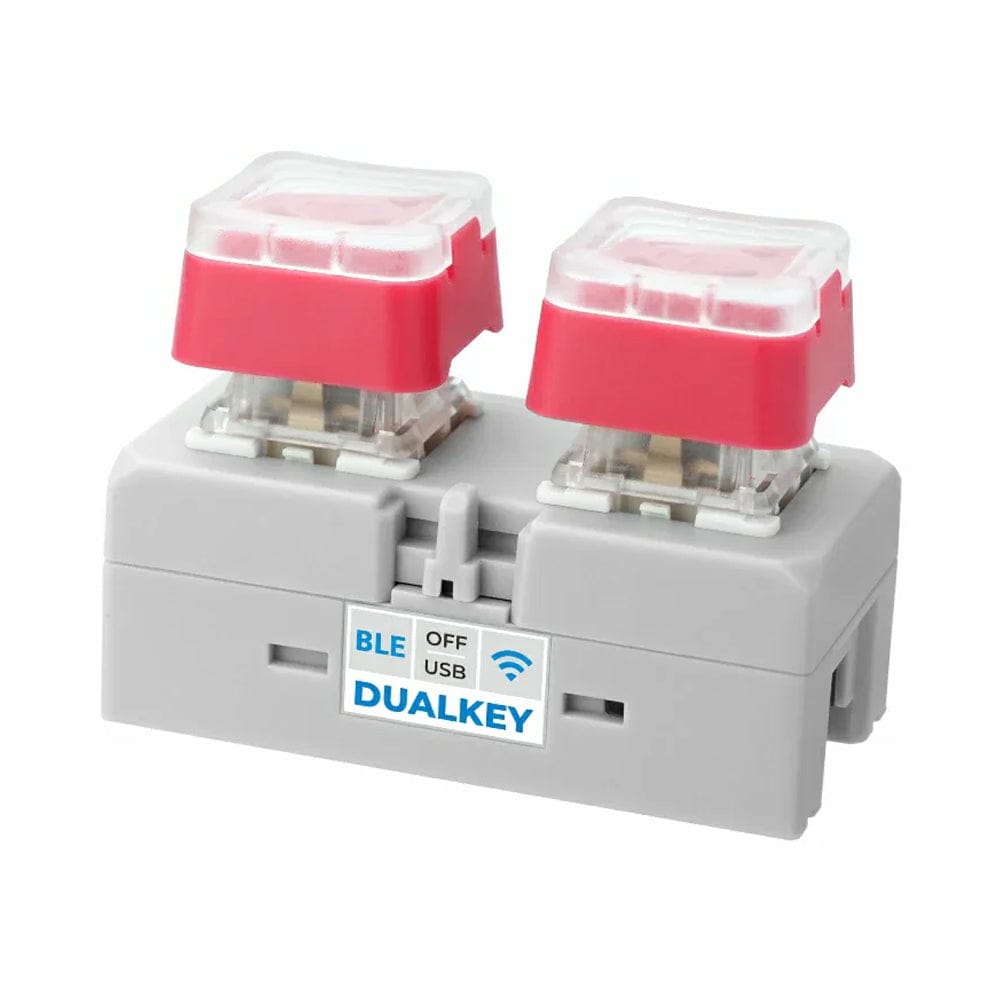

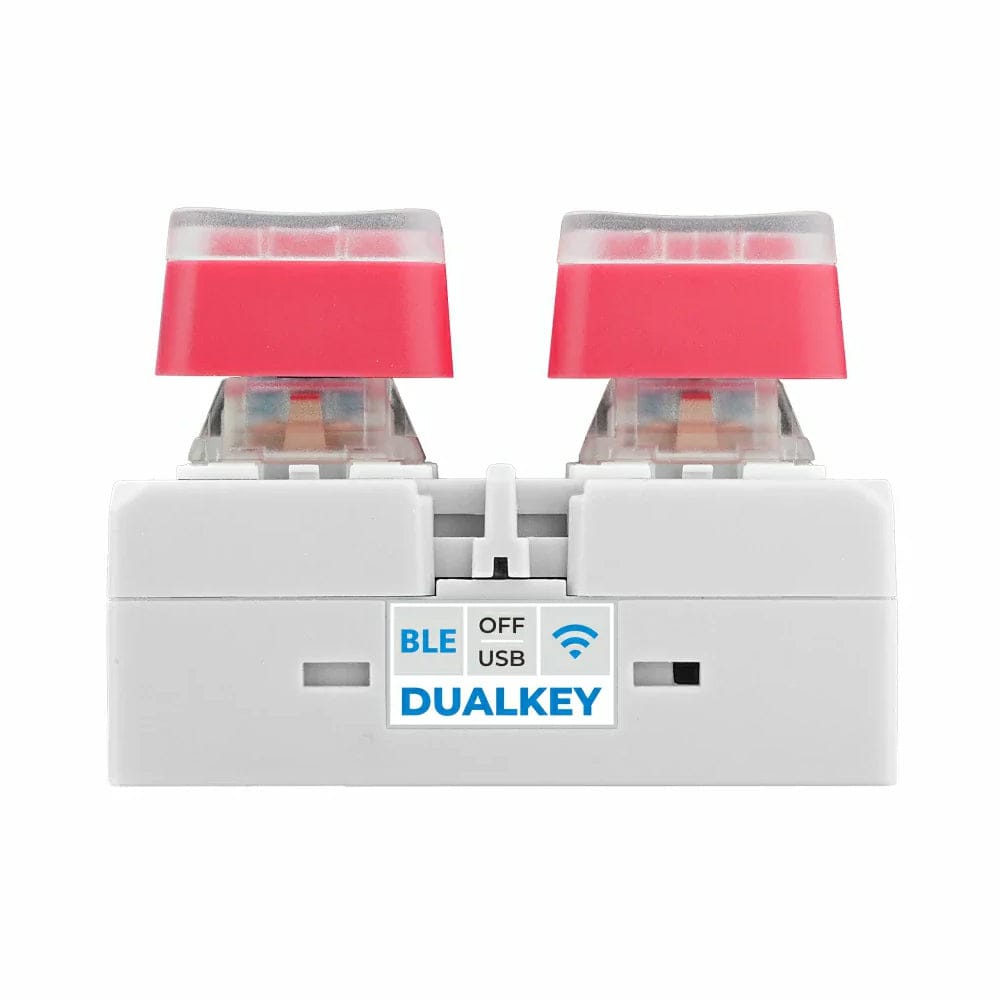

The board ships with Chain macro keyboard firmware and supports both USB and BLE connections, allowing it to function as a HID input device. After powering it on, you can connect to its AP hotspot and use the built-in web interface to configure HID mappings for the device itself or for expansion nodes, enabling a wide range of custom control functions.

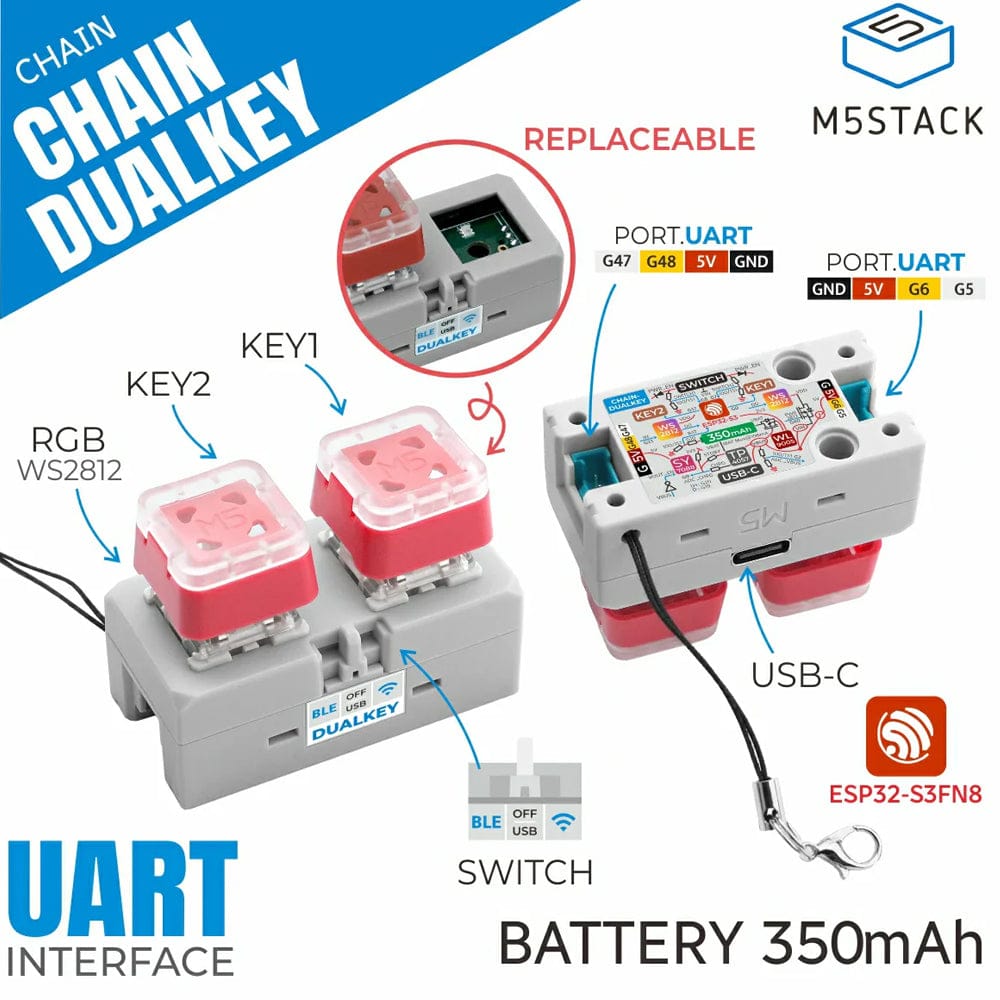

As part of the M5Stack Chain series, the Dual Key includes two HY2.0-4P expansion ports, supporting lateral expansion with additional sensors or modules. With the ESP32-S3’s built-in USB-OTG capability, it’s well suited for smart home control, keyboard peripherals, macro keyboards and other interactive projects.

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?

Features

• ESP32-S3FN8 main control chip
• Built-in 350mAh lithium battery
• 2 programmable RGB LEDs
• 2 hot-swappable blue switch keys
• M5Stack Chain series expandable design
• LEGO-compatible holes on the back
• Lanyard design

Specifications

Resources

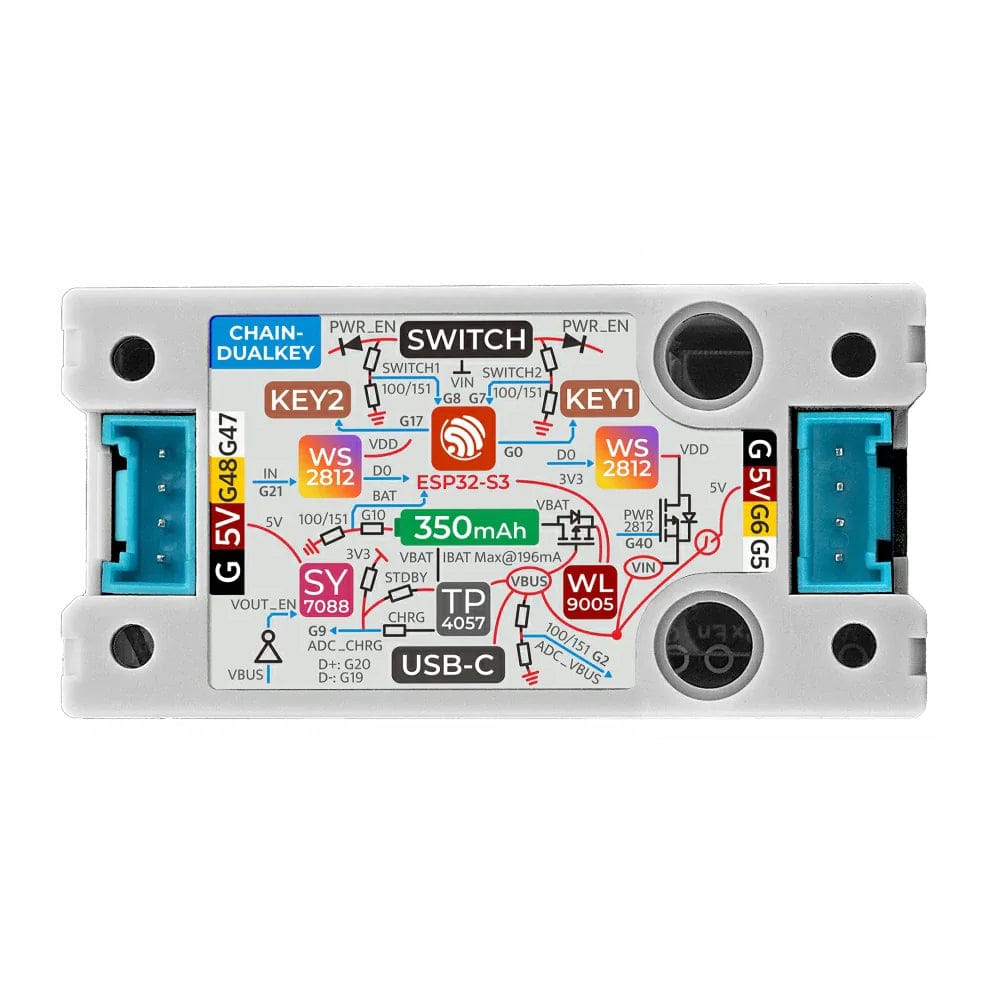

• Documents and schematics

Package Contents

• 1x Chain Dual Key
• 1x Keycap Sticker
